UZM33064G

型号：

UZM33064G

品牌：

DIODES[ DIODES INCORPORATED ]

页数：

5 页

PDF大小：

176 K

下载PDF手册

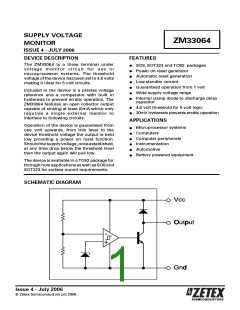

SUPPLY VOLTAGE
MONITOR
ZM33064
ISSUE 4 - JULY 2006
DEVICE DESCRIPTION
FEATURES
The ZM33064 is a three terminal under
voltage monitor circuit for use in
microprocessor systems. The threshold
voltage of the device hasbeen set to 4.6 volts
making it ideal for 5 volt circuits.
SO8, SOT223 and TO92 packages
Power on reset generator
Automatic reset generation
Low standby current
•
•
•
•
•
•
•
Guaranteed operation from 1 volt
Wide supply voltage range
Included in the device is a precise voltage
reference and a comparator with built in
hysteresis to prevent erratic operation. The
ZM33064 features an open collector output
capable of sinking at least l0mA which only
requires a single external resistor to
interface to following circuits.
Internal clamp diode to discharge delay
capacitor
4.6 volt threshold for 5 volt logic
•
•
20mV hysteresis prevents erratic operation
APPLICATIONS
Operation of the device is guaranteed from
one volt upwards, from this level to the
device threshold voltage the output is held
low providing a power on reset function.
Shouldthesupplyvoltage, onceestablished,
at any time drop below the threshold level
then the output again will pull low.
Microprocessor systems
•
Computers
•
Computer peripherals
•
Instrumentation
•
Automotive
•
Battery powered equipment
•
The device is available in a TO92 package for
through hole applicationsaswell asSO8 and
SOT223 for surface mount requirements.
SCHEMATIC DIAGRAM
Issue 4 - July 2006
© Zetex Semiconductors plc 2006
ZM33064
ABSOLUTE MAXIMUM RATING
Input Supply Voltage
-1 to 10V
10V
Power Dissipation
TO92
Offstate Output Voltage
780mW
Onstate Output
SOT223
SO8
2W(Note 2)
780mW(Note 2)
Sink Current(Note 1)
Internally limited
100mA
Clamp diode
Forward Current(Note 1)
Operating junction
temperature
150°C
Operating Temperature
Storage Temperature
TEST CONDITIONS
-40 to 85°C
-65 to 150°C
(T
=25°C for typical values, T =-40 to 85°C for min/max values (Note3))
amb
amb
COMPARATOR
MIN
TYP.
MAX.
PARAMETER
SYMBOL
UNITS
Threshold Voltage
High state output (Vcc increasing)
Low state output (Vcc decreasing)
VIH
VIL
4.5
4.5
4.61
4.59
4.7
4.7
V
V
Hysteresis
VH
0.01
0.02
0.05
V
OUPUT
MIN
TYP.
MAX.
PARAMETER
SYMBOL
VOL
UNITS
Output sink saturation:
(Vcc=4.0V, Isink=8.0mA)
(Vcc=4.0V, Isink=2.0mA)
(Vcc=1.0V, Isink=0.1mA)
0.46
0.15
1.0
0.4
0.25
60
V
V
V
Onstate output sink current
(Vcc , Output=4V)
Isink
Ioh
Vf
10
20
mA
Offstate output leakage current
(Vcc , Output=5V)
0.02
1.2
1.5
0.5
1.5
µA
V
Clamp diode forward voltage
(If=10mA)
0.6
Propagation delay
Td
µs
(Vin 5V to 4V, Rl=10k, Tamb=25°C)
TOTAL DEVICE
MIN
1.0 to 6.5
TYP.
MAX.
PARAMETER
SYMBOL
UNITS
V
Operating input voltage range
Vcc
Iq
Quiescent input current (Vcc=5V)
135
200
µA
Note:
1. Maximum package power dissipation must be observed
2. Maximum power dissipation, for the SOT223 and SO8 packages, is calculated assuming
that the device is mounted on a PCB measuring 2 inches square.
3. Low duty cycle pulse techniques are used during test to maintain junction temperatures as
Issue 4 - July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
ZM33064
TYPICAL CHARACTERISTICS
500
10
RL=10K
TA=25 °C
8
400
300
200
100
0
6
4
25 °C
-40 °C
85 °C
2
0
0
2
4
6
8
10
0
2
4
6
8
10
(V)
Input Voltage
(V)
Input Voltage
Input Current vs. Input Voltage
Output Voltage vs. Input Voltage
30
20
10
RL=10K
Vin=4V
-40 °C
5
4
25 °C
85 °C
Ϸ
Ϸ
4
2
0
0
3
0
1
2
4
0
0.4
0.8
1.2
1.6
2.0
Time (µs)
Output Saturation Voltage (V)
Output Saturation Voltage vs. Sink Current
Reset Delay Time
80
4.70
Vin=0V
60
4.65
4.60
Upper Threshold
85 °C
40
25 °C
Lower Threshold
-40 °C
20
4.55
4.50
0
0
0.4
0.8
1.2
1.6
2.0
-40
0
20
80
-20
40
60
100
Forward Voltage (V)
Temperature ( °C)
Clamp Diode Forward Current vs. Voltage
Threshold Voltage vs. Temperature
Issue 4 - July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
ZM33064
TIMING DIAGRAM
Vcc
Threshold
Voltage
1 V
Output
Output
Output
Undefined
Undefined
APPLICATION CIRCUIT
Note 4: A time delayed reset can be accomplished with the additional Cd.
1
TDY =Time (Seconds)
VTH =Microprocessor Reset Threshold
Vin =Power Supply Voltage
TDY = RCd ln
VTH(mpu)
1 −
Vin
Issue 4 - July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
ZM33064
CONNECTION DIAGRAMS
SO8 Package Suffix – N8
SOT223 Package Suffix – G
Top View
Top View –
Pin 4 floating or connected to pin 2
TO92 Package Suffix – C
Bottom View –
ORDERING INFORMATION
Part Number
ZM33064N8
ZM33064G
ZM33064C
Package
SO8
Part Mark
ZM33064
ZM33064
ZM33064
SOT223
TO92
Europe
Americas
Zetex Inc
Asia Pacific
Zetex (Asia Ltd)
Corporate Headquarters
Zetex GmbH
Zetex Semiconductors plc
Streitfeldstraße 19
D-81673 München
Germany
700 Veterans Memorial Highway 3701-04 Metroplaza Tower 1 Zetex Technology Park, Chadderton
Hauppauge, NY 11788
USA
Hing Fong Road, Kwai Fong Oldham, OL9 9LL
Hong Kong United Kingdom
Telefon: (49) 89 45 49 49 0 Telephone: (1) 631 360 2222
Telephone: (852) 26100 611 Telephone: (44) 161 622 4444
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Fax: (1) 631 360 8222
usa.sales@zetex.com
Fax: (852) 24250 494
asia.sales@zetex.com
Fax: (44) 161 622 4446
hq@zetex.com
For international sales offices visit www.zetex.com/offices
Zetex products are distributed worldwide. For details, see www.zetex.com/salesnetwork
This publication is issued to provide outline information only which (unless agreed by the company in writing) may not be
used, applied or reproduced for any purpose or form part of any order or contact or be regarded as a representation relating
to the products or services concerned. The company reserves the right to alter without notice the specification, design, price
or conditions of supply of any product or service.
Issue 4 - July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
