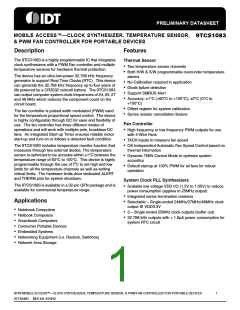

PRELIMINARY DATASHEET
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR,
& PWM FAN CONTROLLER FOR PORTABLE DEVICES
9TCS1083
Description
Features
The 9TCS1083 is a highly programmable IC that integrates
clock synthesizers with a PWM Fan controller and multiple
temperature sensors for hardware thermal protection.
Thermal Sensor
• Two temperature sensor channels
• Both H/W & S/W programmable over/under temperature
alarms
• No Calibration required in application
• Diode failure detection
• Support SMBUS Alert
• Accuracy: 1ꢀC (+60ꢀC to +100ꢀC); 2ꢀC (0ꢀC to
+100ꢀC)
The device has an ultra-low-power 32.768 kHz frequency
generator to support Real Time Clocks (RTC). This device
can generate the 32.768 kHz frequency up to four years of
life powered by a CR2032 coincell battery. The 9TCS1083
can output computer system clock frequencies of 24, 25, 27
and 48 MHz which reduces the component count on the
circuit board.
• Offset register for system calibration
• Series resistor cancellation feature
The fan controller is pulsed width modulated (PWM) used
for the temperature proportional speed control. The device
is highly configurable through I2C for ease and flexibility of
use. The fan controller has three different modes of
operations and will work with multiple pole, brushless DC
fans. An integrated Start-up Timer ensures reliable motor
start-up and turn-on or follows a detected fault condition.
Fan Controller
• High frequency or low frequency PWM outputs for use
with 4-Wire Fans
• TACH inputs to measure fan speed
The 9TCS1083 includes temperature monitor function that
measures through two external diodes. The temperature
sensor is optimized to be accurate within 1ꢀC between the
temperature range of 60ꢀC to 100ꢀC. This device is highly
• OS Independent Automatic Fan Speed Control based on
thermal information
• Dynamic TMIN Control Mode to optimize system
acoustics
2
programmable through the use of I C to set high and low
• Default startup at 100% PWM for all fans for robust
operation
limits for all the temperature channels as well as setting
critical limits. The hardware limits drive dedicated ALERT
and THERM pins for system shutdown.
System Clock PLL Synthesizers
The 9TCS1083 is available in a 32-pin QFN package and is
available for commercial temperature range.
• Scalable low voltage VDD I/O (1.5V to 1.05V) to reduce
power consumption (applies to 25MHz output)
• Integrated series termination resistors
• Selectable – Single-ended 24MHz/27MHz/48MHz clock
output @ VDD3.3V
• 3 – Single ended 25MHz clock outputs (buffer out)
• 32.768 kHz outputs with < 1.8µA power consumption for
system RTC circuit
Applications
• Notebook Computers
• Netbook Computers
• Smartbook Computers
• Consumer Portable Devices
• Embedded Systems
• Networking Equipment (i.e. Routers, Switches)
• Network Area Storage
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
1
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Block Diagram
VDD_TS
Sample
Regulator
Current
RAM
11 bits
ADC
Digital
ALERT#
THERM#
Channel 1
Channel 2
Analog
MUX
Reference
Voltage
Fault Detect
TACH
PWM
Fan Controller
POR
V_bat
V_3.3
Power
Switch
VDD_RTC
32K_A
Amplitude
Control
32.768K
DCO
32K_A_IO
32K_B_IO
SMBCLK
SMBDAT
SMBUS
VDD_32KB
Fraction N
Divider
32K_B / 25M_C
VDDIO_25MA
25M_A
X1
X2
25M_IO
25M_IO
Xtal
VDD_25MB
25M_B
GND
VDD_24M
24M_48M
VDD_27M
27M_48M
24/48M_IO
27/48M_IO
Ultra
Low Power
PLL
Preferred drive strengths for single-ended outputs.
Transmission lines to load do not share series resistors.
Ω
Ω
Desktop (Zo=50 ) and mobile (Zo=55 ) have the same drive strength.
Number of Loads Actually Driven.
Match Point for N
& P Voltage /
Current (mA)
Number of Loads
to Drive
1 Load Rs = 2 Loads Rs= 3 Loads Rs =
0.56 / 33
Ω
Ω
Ω
Ω
1
2
3
33 [39
]
]
]
-
-
-
D.C.Drive Strength
Ω
(17 )
0.92 / 66
39 [43
Ω
22 [27 ]
Ω
Ω
Ω
(14 )
1.15 / 99
43 [43
Ω
27 [33 ]
15 [22 ]
Ω Ω
Ω
Ω
Ω
)
(11.6
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
2
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Pin Assignment
32 31 30 29 28 27 26 25
Thermal_DXP2
Thermal_DXN2
32K_A
1
2
3
4
5
6
7
8
24 THERM#
23 ALERT#
22 VDD_RTC_OUT
21 V_3.3
VDDIO_25MA
GND
9TCS1083
20 X2
25M_A
19 X1
VDD_24
18 SMBDATA
17 SMBCLK
SEL_24*/24M_48M
9
10 11 12 13 14 15 16
* Internal Pull-Up Resistor
24M/27M/48Mhz outputs require external series resistors on Board.
Power Group
Pin Number
Description
VDD
4
GND
33
5
VDDIO_25MA IO power
VDDIO_24 IO power
VDDIO_27
7
10
13
21
22
26
29
30
12
33
33
27
25
27
27
VDDIO_25B IO Power
V3.3
VDD_RTC_Out
VDD_TS power
VDDIO_32KB Power
VBAT power
* Pin33: Thermal pad (connect to GND)
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
3
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Pin Descriptions
PIN # PIN NAME
TYPE
IN External thermal diode P (Channel 2)
IN External thermal diode N (Channel 2)
OUT RTC clock 32.768KHz output A, typical 1V peak to peak.
PWR Power for 25MHz_A output, typical 1.05V to 1.8V.
PWR Ground pin
DESCRIPTION
1
2
3
4
5
6
7
Thermal_DXP2
Thermal_DXN2
32K_A
VDDIO_25MA
GND
25M_A
OUT 25MHz_A output, typical 1.05V to 1.8V pending on VDDIO_25MA voltage.
PWR Power for 24/48MHz output, typical 3.3V.
VDD_24M
24MHz enable latched input / Programmable free‐running 24/48M clock output.
SEL_24 selects the functionality of 24_48M output as the following:
1 = 24M output (Default)
0 = 48M output
27MHz enable latched input / Programmable free‐running 27/48M clock output.
SEL_27 selects the functionality of 27_48M output as the following:
1 = 27M output (default)
8
SEL_24*/24M_48M
SEL_27*/27M_48M
I/O
9
I/O
0 = 48M output
10 VDD_27M
11 25M_B
12 GND
PWR Power for 27/48 MHz output, typical 3.3V.
OUT 25MHz_B output, typical 3.3V peak to peak.
PWR Ground pin
13 VDD_25MB
PWR Power for LDO and main circuit.
This 3.3V LVTTL input notifies device to sample latched inputs and start up on first high assertion or
exit powerdown mode on subsequent assertions. Low enters powerdown mode.
14 PWRGD/PD#
IN
15 TACH
IN Fan controller TACH signal input
16 PWM
OUT Fan controller PWMsignal output
17 SMBCLK
18 SMBDAT
19 X1
20 X2
21 V_3.3
22 VDD_RTC_OUT
23 ALERT#
24 THERM#
25 GND_TS
26 VDD_TS
27 GND
IN SMBUS clock. 3.3V tolerant.
I/O SMBUS data. 3.3V tolerant.
IN Crystal input. Connect to 25MHz crystal.
OUT Crystal output. Connect to 25MHz crystal.
PWR Power for 32K PLL core. Connect to system's 3.3V standby power rail.
OUT Power for chipset RTC circuit.
OUT Open drain interrupt output for SMBUS alert pin.
OUT Open drain interrupt output for external hardware connection.
PWR Ground pin for thermal sensor function
PWR Power for thermal sensor function, typical 3.3V.
PWR Ground pin
25MHz_C output select pin / Programmable free‐running 32.768khz or 25MHz clock output.
SEL_25 selects the functionality of 32K_25M output as the following:
1 = 25MHz output (Default)
28 SEL_25*/32KB_25M_C
I/O
0 = 32.768kHz output
29 VDD_32KB
30 VBAT
31 Thermal_DXN1
32 Thermal_DXP1
33 Thermal Pad
PWR Power for 32.768kHz_B output, typical 3.3V.
PWR Power for 32kHz_A output. Connect to coin cell battery
IN external thermal diode N
IN external thermal diode P
PWR Connect to GND.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
9TCS1083 REV 0.8 011612
4
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Frequency and Output Selection Tables
Clock Output Selection Table
Remark
Pin number Setting
Output
48MHz
L
-
8
H
24MHz
default, internal pull high
L
48MHz
-
9
H
27MHz
default, internal pull high
-
default, internal pull high
L
32.768kHz_B
25MHz_C
28
H
Output Selection Table A
Power Supply
VDDIO_Control
Outputs
25M_A
V_Bat
V_3.3
VDD_32KB VDDIO_25A VDD_25B
32K_A
32K_B
25M_B
VDD_RTC
2.3~3.0
2.3~3.0
2.3~3.0
2.3~3.0
2.3~3.0
0
0
0
0
0
0
0
ON
ON
ON
ON
ON
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
Vbat
V3.3
V3.3
V3.3
V3.3
3.31
3.31
3.31
3.31
0
3.3
3.3
3.3
0
1.05~1.52
1.05~1.52
0
ON
3.3
ON
ON
Note 1: When V3.3 is applied, XTAL will always be ON. 32K source will switch to an analog PLL. Fan control will be ON.
Note 2: If amplitude greater than 1.5V is required on 25MHz_A output, please contact IDT support.
Output Selection Table B
Power Supply
Outputs
Thermal
Sensor
OFF
OFF
OFF
VDD_24M1
V_3.3
VDD_27M
VDD_TS
24_48M
27_48M
Fan Control
3.3
3.3
3.3
3.3
0
0
0
3.3
3.3
0
0
0
OFF
ON
ON
ON
OFF
OFF
ON
ON
ON
ON
ON
3.3
3.3
3.3
3.3
ON
ON
Note 1: When either VDD_24M, VDD_27M or VDD_TS is ON, V_3.3 should be ON.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
5
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Absolute Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the 9TCS1083. These ratings, which are standard
values for IDT commercially rated parts, are stress ratings only. Functional operation of the device at these or any other
conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute
maximum rating conditions for extended periods can affect product reliability. Electrical parameters are guaranteed only over
the recommended operating temperature range.
PARAMETER
SYMBOL
VDDxxx
CONDITIONS
MIN
MAX
3.6
UNITS
V
Notes
1,2
Maximum Supply Voltage
Core/Logic Supply
Maximum Supply Voltage
Maximum Input Voltage
Minimum Input Voltage
VDDIOxxx
Core/Logic Supply
3.3V LVCMOS Inputs
Any Input
3.6
3.6
V
V
V
1,2
1,2,3
1,2
VIH
VIL
GND - 0.5
-65
ꢀC
ꢀC
Storage Temperature
Case Temperature
Ts
Tcase
-
-
150
115
1,2
1,2
1 Unless otherwise noted, guaranteed by design and characterization, not 100% tested in production.
2 Operation under these conditions is neither implied, nor guaranteed.
3 Maximum input voltage is not to exceed maximum VDD
Electrical Characteristics–SMBus Interface
PARAMETER
SYMBOL
CONDITIONS
MIN
2.7
MAX
3.6
UNITS
V
Notes
1
SMBus Voltage
VDD
VOLSMB
@ IPULLUP
Low-level Output Voltage
Current sinking at
0.4
V
1
IPULLUP
TRI2C
SMB Data Pin
4
mA
1
VOLSMB = 0.4 V
SCLK/SDATA
Clock/Data Rise Time
SCLK/SDATA
(Max VIL - 0.15) to
(Min VIH + 0.15)
(Min VIH + 0.15) to
(Max VIL - 0.15)
1000
300
ns
ns
1
1
1
TFI2C
Clock/Data Fall Time
Maximum SMBus Operating
FSMBUS
Block Mode
400
kHz
Frequency
1 Unless otherwise noted, guaranteed by design and characterization, not 100% tested in production.
AC Electrical Characteristics–Input/Common Parameters
PARAMETER
SYMBOL
CONDITIONS
MIN
MAX
1.8
UNITS
ms
Notes
1
From VDD Power-Up or de-
assertion of PD# to 1st clock
Differential output enable after
PD# de-assertion
TSTAB
Clk Stabilization
Tdrive_PD#
TDRPD
300
us
1
1 Unless otherwise noted, guaranteed by design and characterization, not 100% tested in production.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
6
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Electrical Characteristics–Input/Supply/Common Parameters
PARAMETER
Ambient Operating Temp
Supply Voltage
SYMBOL
Tambient
V_3.3
CONDITIONS
-
MIN
0
MAX
70
UNITS
ꢀC
V
Notes
Supply Voltage
Other Supply Voltages
Supply Voltage
Supply Voltage
3.135
3.135
0.9975
2.3
3.465
3.465
1.575
3.465
Supply Voltage
VDD_xx
V
Supply Voltage
VDDIO_25MA
V_bat
V
Supply Voltage
V
Input High Voltage
Input Low Voltage
VIHSE
VILSE
Single-ended inputs
Single-ended inputs
2
VDD + 0.3
0.8
V
V
1,4
1,4
VSS - 0.3
Low Threshold Input-
High Voltage
Low Threshold Input-
Low Voltage
VIH_FS
3.3 V +/-5%
3.3 V +/-5%
0.7
VDD + 0.3
V
1
VIL_FS
IIN
VSS - 0.3
-5
0.35
5
V
1
Input Leakage Current
VIN = VDD , VIN = GND
Inputs with pull or pull down
resistors
uA
1,3
Input Leakage Current
IINRES
-200
2.4
200
uA
1
V
IN = VDD , VIN = GND
Single-ended outputs, IOH = -
1mA
Single-ended outputs, IOL = 1 mA
Output High Voltage
Output Low Voltage
VOHSE
VOLSE
V
V
1,2
1,2
1
0.4
50
Full active mode, CL = Full load,
3.3V Rail
IDD3.3OP
mA
IDD3.3PD#
IDD3.3WOL
IDD3.3RTC
Complete Power-Down, 3.3V Rail
10
25
mA
mA
uA
1
1
1
3.3V Operating Supply
Current
WOL Mode with 25MA running,
3.3V Rail
RTC Mode with 32KA running,
3.3V Rail
0.1
Full active mode, CL = Full load,
IDDIO_OP
5
mA
1
VDDIO Rails
Complete Power-Down,
VDDIO Rails
IDDIO_PD#
IDDDIO_WOL
IDDIO_RTC
1
mA
mA
uA
1
1
1
1
VDDIO Operating Supply
Current
WOL Mode with 25MA running,
VDDIO Rails
RTC Mode with only 32KA
running, VDDIO Rails
RTC Mode with 32KA running,
V_bat Rail
10
0.5
1.8
V_bat Operating Supply
Current
IDD_V_bat
uA
25MHz Typical
Input Frequency
Fi
VDD = 3.3 V
MHz
nH
pF
1
1
1
1
1
Pin Inductance
Lpin
7
5
6
6
CIN
Logic Inputs
Output pin capacitance
X1 & X2 pins
1.5
Input Capacitance
COUT
CINX
pF
pF
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 5pF with Rs = 27 (unless otherwise specified)
1 Unless otherwise noted, guaranteed by design and characterization, not 100% tested in production.
2Signal is required to be monotonic in this region.
3 Input leakage current does not include inputs with pull-up or pull-down resistors
4 3.3V referenced inputs are: SCLK, SDATA, SEL_25, SEL_24, SEL_27, PWRGD.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
7
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
AC Electrical Characteristics–Power Management
Output Clock Power Consumption Table
Power Supply
Power Consumption @ 2' transmission line
Outputs
V_bat / V_3.3
I_V_bat
I_V_3.3
I_VDD_32KB I_VDD_25M
32K_A
32K_A
32K_A+B
2.3~3.3
2.3~3.3
2.3~3.3
2.3~3.3
2.3~3.3
1.8uA
0
0
0
1uA
1uA
1uA
0
0
0
1mA
2mA
0
0
0
0
2mA
2mA
2mA
2mA
32K, 25M_A
32K_A+B,25MA+B
Note: When V_3.3 is applied, XTAL will always be ON. 32K source will switch to an analog PLL.
Fan control will be ON
Power consumption @ 2' transmission line
I_V3.3 I_VDD_24M I_VDD_27M I_VDD_TS
Power Supply
VDD_24/27/TS
V_3.3
3.3
3.3
3.3
3.3
0
24Mhz
24/27Mhz
2mA
2mA
2mA
2mA
0
0
0
1mA
1mA
0
0
0
3mA
3mA
3mA
24/27Mhz+Thermal+Fan
0.8mA
Note: When either VDD_24M, VDD_27M or VDD_TS is ON, V3.3 should be ON
Power Switch (VBAT/V33 -> VDD_RTC)
Integrated power switch detects the VDD_RTC SW to coin battery (VBAT) or main power supply (V33).
When there is no V33 (V33=0), the SW will connect the VDD_RTC to VBAT; when V33 goes higher than 2.5V, the VDD_RTC
will be switched to V33 with no delay. After V33 goes lower than 2.3V, the VDD_RTC will be switched to VBAT, no delay.
V_bat 3.0V
V_3.3
VDD_RTC=V_bat
VDD_RTC=V_3.3
VDD_RTC=Vbat
V_bat
VDD_RTC
2.5V
2.3V
V_3.3 < 2.5V
V_3.3 < 2.3V
When VDD_RTC = VBAT, the power SW circuit consumes < 100nA.
When VDD_RTC = V33, the power consumption on VBAT needs to be “0”.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
8
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Electrical Characteristics–USB48MHz
PARAMETER
Long Accuracy
Clock period
SYMBOL
ppm
Tperiod
CONDITIONS
see Tperiod min-max values
48.00MHz output nominal
MIN
-100
MAX
100
UNITS NOTES
ppm
ns
1,2
1,2
1
20.8313 20.8354
Output High Voltage
Output Low Voltage
VOH
VOL
IOH = -1 mA
IOL = 1 mA
2.4
0.4
-33
-33
30
V
V
mA
mA
mA
mA
V/ns
V/ns
%
1
1
1
1
1
1
1
1
1
V OH @MIN = 1.0 V
Output High Current
Output Low Current
IOH
IOL
V
OH@MAX = 3.135 V
VOL @ MIN = 1.95 V
OL @ MAX = 0.4 V
V
38
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
tSLR
tSLR
Measured from 0.8 to 2.0 V
Measured from 2.0 to 0.8 V
VT = 1.5 V
0.5
0.5
45
2.5
2.5
55
dt1
Jitter, Cycle to cycle
tjcyc-cyc
VT = 1.5 V
350
ps
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 5pF with Rs = 27 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
Electrical Characteristics–24MHz
PARAMETER
Long Accuracy
Clock period
SYMBOL
ppm
CONDITIONS
MIN
-100
MAX
100
UNITS NOTES
see Tperiod min-max values
24.00MHz output nominal
ppm
ns
1,2
1,2
1
Tperiod
41.6625 41.6708
Output High Voltage
Output Low Voltage
VOH
VOL
IOH = -1 mA
IOL = 1 mA
2.4
0.4
-33
-33
30
V
V
mA
mA
mA
mA
V/ns
V/ns
%
1
1
1
1
1
1
1
1
1
V OH @MIN = 1.0 V
Output High Current
Output Low Current
IOH
IOL
V
OH@MAX = 3.135 V
VOL @ MIN = 1.95 V
OL @ MAX = 0.4 V
V
38
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
tSLR
tSLR
Measured from 0.8 to 2.0 V
Measured from 2.0 to 0.8 V
VT = 1.5 V
0.5
0.5
45
4
4
dt1
55
350
Jitter, Cycle to cycle
tjcyc-cyc
VT = 1.5 V
ps
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 5pF with Rs = 27 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
9
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Electrical Characteristics–25M_B & 25M_C
PARAMETER
Long Accuracy
Clock period
SYMBOL
ppm
CONDITIONS
MIN
-100
MAX
100
UNITS NOTES
see Tperiod min-max values
25.00MHz output nominal
ppm
ns
1,2
1,2
1
Tperiod
39.99600 40.00400
Output High Voltage
Output Low Voltage
VOH
VOL
IOH = -1 mA
IOL = 1 mA
2.4
0.4
-29
-23
29
V
V
mA
mA
mA
mA
V/ns
V/ns
%
1
1
1
1
1
1
1
1
1
V OH @MIN = 1.0 V
Output High Current
Output Low Current
IOH
IOL
V
OH@MAX = 3.135 V
VOL @ MIN = 1.95 V
OL @ MAX = 0.4 V
V
27
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
tSLR
tSLR
Measured from 0.8 to 2.0 V
Measured from 2.0 to 0.8 V
VT = 1.5 V
0.5
0.5
40
4
4
dt1
60
500
Jitter, Cycle to cycle
tjcyc-cyc
VT = 1.5 V
ps
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 5pF with Rs =0 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
Electrical Characteristics–25MHz_A (Low Voltage output)
PARAMETER
Long Accuracy
Clock period
SYMBOL
ppm
Tperiod
CONDITIONS
MIN
-100
MAX
100
UNITS
ppm
ns
Notes
1,2
1,2
see Tperiod min-max values
25.00MHz output nominal
39.99600 40.00400
Output High Voltage
Output Low Voltage
Output High Current
Output Low Current
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
VOH
VOL
IOH
IOH = -1 mA
IOL = 1 mA
Vtop-0.1
0.1
V
V
1
1
VOH =0.83xVtop
-3
-16
25
4
mA
mA
V/ns
V/ns
%
1
IOL
VOL = 0.13V
1
tSLR
tFLR
dt1
Measured from 20% to 80%
Measured from 80% to 20%
VT = Vtop/2
0.5
0.5
40
1,3
1,3
1,4
1,4
4
60
500
Jitter
tjcyc-cyc
VT = Vtop/2
ps
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 5pF with Rs = 0 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
10
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Electrical Characteristics–27MHz
PARAMETER
Long Accuracy
Clock period
SYMBOL
ppm
Tperiod
CONDITIONS
MIN
-50
MAX
50
UNITS
ppm
ns
Notes
1,2
1,2
see Tperiod min-max values
27.000MHz output nominal
37.0365 37.0376
Output High Voltage
Output Low Voltage
VOH
VOL
IOH = -1 mA
IOL = 1 mA
2.4
0.4
-29
-23
29
V
V
1
1
1
1
1
1
1
1
1
1
V OH @MIN = 1.0 V
mA
mA
mA
mA
V/ns
V/ns
%
Output High Current
Output Low Current
IOH
IOL
V
OH@MAX = 3.135 V
VOL @ MIN = 1.95 V
OL @ MAX = 0.4 V
V
27
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
tSLR
tFLR
Measured from 0.8 to 2.0 V
Measured from 2.0 to 0.8 V
VT = 1.5 V
1
1
4
4
dt1
45
55
200
Jitter, Cycle to cycle
tjcyc-cyc
Cycle to Cycle, VT = 1.5 V
ps
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 5pF with Rs = 27 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
Electrical Characteristics–32KHz_A (Low Voltage Output)
PARAMETER
Long Accuracy
SYMBOL
ppm
CONDITIONS
see Tperiod min-max values
MIN
32.768 Typical
MAX
UNITS
kHz
Notes
1,2
Output High Voltage
Output Low Voltage
VOH
VOL
32K_A Output
32K_A Output
0.8
1.2
0.3
V
V
1
1
+/-10
0.86
ppm
sec/day
1
1
Initial Frequency Error
32KINI
0C to 70C
RTC Frequency Error
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
32KRTC_7D
tSLR
7-day measurement
Measured from 20% to 80%
Measured from 80% to 20%
VT = V_bat/2
8
sec
V/ns
V/ns
%
1
1
1
1
0.03 typ
0.03 typ
tFLR
dt1
40
60
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 2pF with Rs = 0 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
Electrical Characteristics–32KHz_B
PARAMETER
SYMBOL
CONDITIONS
see Tperiod min-max values
32K_B Output
MIN
32.768 Typical
0.9975
MAX
UNITS
kHz
V
Notes
1,2
1
Long Accuracy
Output High Voltage
ppm
VOH
3.465
Output Low Voltage
VOL
32K_B Output
0.3
+/-10
0.86
2
V
ppm
sec/day
V/ns
1
1
1
1
Initial Frequency Error
32KINI
0C to 70C
Rising Edge Slew Rate
Falling Edge Slew Rate
Duty Cycle
tSLR
tFLR
dt1
Measured from 20% to 80%
Measured from 80% to 20%
VT = V_bat/2
0.3
0.3
40
2
V/ns
%
1
1
60
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
Ω
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5%, CL = 2pF with Rs = 0 (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
2 All Long Term Accuracy and Clock Period specifications are guaranteed assuming that REFOUT is at 25.000000MHz
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
11
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Recommended 25MHz Crystal Specification
PARAMETER
SYMBOL
CONDITIONS
MIN
MAX
UNITS NOTES
Frequency Accuracy
Faccur
@25C
+/-10
ppm
ppm
ppm
uW
1
1
1
1
1
Frequency Error over
temperature
Ferrt
Faging
DL
-10C ~ 70C
1 year
+/-10
+/-1
100
Frequency Aging
Driver Level
8pF Typical
Crystal Load Capacitance
CL
Parallel Resonance
pF
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5% (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
Electrical Characteristics–Thermal Sensor Controller
PARAMETER
Local Sensor Accuracy
Resolution
SYMBOL
CONDITIONS
0C<TA<60C
60C<TA<100C
MIN
MAX
2
1
1
2
1
1
1/64
UNITS
C
C
C
C
C
C
Sec
Notes
1
1
1
1
1
1
1
0C<TA<60C
60C<TA<100C
Remote Sensor Accuracy
Raccu
Resolution
Rs
Conversion Rate
CR
16
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5% (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
Electrical Characteristics–Fan Controller
PARAMETER
PWM frequency
PWM Duty Cycle
Tachometer Range
SYMBOL
PWM
CONDITIONS
MIN
25
MAX
27
100
4
UNITS
kHz
%
Notes
1
1
1
DUTY
TACH
1
POLE
*TA = 0 - 70ꢀC; Supply Voltage V_3.3 = VDD_TS = 3.3 V +/-5%, VDD_24M = VDD_27M = VDD_25MB = 3.3V +/- 5%,
VDD_25MA = 1.05V +/- 5%, VDD_32KB = 3.3V +/- 5% (unless otherwise specified)
1Guaranteed by design and characterization, not 100% tested in production.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
12
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
General SMBus Serial Interface Information for 9TCS1083
How to Write
How to Read
• Controller (host) sends a start bit
• Controller (host) sends the write address
• IDT clock will acknowledge
• Controller (host) will send a start bit
• Controller (host) sends the write address
• IDT clock will acknowledge
• Controller (host) sends the beginning byte location = N
• IDT clock will acknowledge
• Controller (host) sends the beginning byte location = N
• IDT clock will acknowledge
• Controller (host) sends the byte count = X
• IDT clock will acknowledge
• Controller (host) will send a separate start bit
• Controller (host) sends the read address
• IDT clock will acknowledge
• IDT clock will send the data byte count = X
• IDT clock sends Byte N+X-1
• Controller (host) starts sending Byte N through Byte
N+X-1
• IDT clock will acknowledge each byte one at a time
• Controller (host) sends a Stop bit
• IDT clock sends Byte 0 through Byte X (if X was
(H)
written to Byte 8)
• Controller (host) will need to acknowledge each byte
• Controller (host) will send a not acknowledge bit
• Controller (host) will send a stop bit
Index Block Write Operation
Index Block Read Operation
Controller (Host)
starT bit
Slave Address
WR WRite
IDT (Slave/Receiver)
Controller (Host)
starT bit
IDT (Slave/Receiver)
T
T
Slave Address
WR
WRite
ACK
ACK
ACK
ACK
ACK
ACK
Beginning Byte = N
Data Byte Count = X
Beginning Byte N
Beginning Byte = N
RT
Repeat starT
Slave Address
ReaD
RD
ACK
O
O
O
O
O
O
Data Byte Count=X
Beginning Byte N
ACK
ACK
Byte N + X - 1
ACK
O
O
O
P
stoP bit
O
O
O
Byte N + X - 1
N
P
Not acknowledge
stoP bit
Read Address
Write Address
D3
D2
(H)
H)
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
13
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
0
1
SIGN
64C
32C
16C
8C
PWD
0
1
1
1
1
1
1
1
CH1 Diode ALERT High
Temperature Limit
ALERT_TH1
RW
-
4C
2C
1C
Note: Register readback uses 2's Complement
Byte1
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
0
1
SIGN
64C
32C
16C
8C
PWD
0
1
1
1
1
1
1
1
CH2 Diode ALERT High
Temperature Limit
ALERT_TH2
RW
-
4C
2C
1C
Note: Register readback uses 2's Complement
Byte 2 Reserved Register
Byte3
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
0
1
SIGN
64C
32C
16C
8C
PWD
1
0
0
0
0
0
0
1
CH1 Diode ALERT Low
Temperature Limit
ALERT_TL1
RW
-
4C
2C
1C
Note: Register readback uses 2's Complement
Byte4
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
0
1
SIGN
64C
32C
16C
8C
PWD
1
0
0
0
0
0
0
1
CH2 Diode ALERT Low
Temperature Limit
ALERT_TL2
RW
-
4C
2C
1C
Note: Register readback uses 2's Complement
Byte 5 Reserved Register
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
14
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte6
Name
Control Function
Enable Temp-Sensor Channel1
Enable Temp-Sensor Channel2
Reserved
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
CH1_EN
CH2_EN
Reserved
Reserved
Disable
Disable
-
Enable
Enable
-
0
0
1
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Reserved
-
-
00 = 1
10 = 3
00 = 1
10 = 8
01 = 2
11 = 4
01 = 4
11 = 16
Consecutive ALERT
Average_Fact
Consecutive ALERT Report
Average the converted temperature
Byte7
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
0
1
Reserved
64C
32C
16C
8C
PWD
0
1
1
1
1
1
1
1
CH1 Diode THERMALTemperature
Limit
THERMAL1
RW
-
4C
2C
1C
Byte8
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
0
1
Reserved
64C
32C
16C
8C
PWD
0
1
1
1
1
1
1
1
CH2 Diode THERMALTemperature
Limit
THERMAL2
RW
-
4C
2C
1C
Byte 9 Reserved Register
Byte10
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
1.28C
0.64C
0.32C
0.16C
4C
1
0
0
0
1
0
0
0
D_A1
CH1 Gain (Slope) Coefficient
-
2C
D_B1
CH1 Offset Coefficient
1C
0.5C
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
15
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte11
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
1.28C
0.64C
0.32C
0.16C
4C
1
0
0
0
1
0
0
0
D_A2
CH2 Gain (Slope) Coefficient
-
2C
D_B2
CH2 Offset Coefficient
1C
0.5C
Byte12
Name
Reserved
MASK2
MASK1
Control Function
Reserved
Type
RW
RW
RW
RW
RW
0
1
-
PWD
-
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
MASK Channel2 ALERT
MASK Channel1 ALERT
Non-Mask
Non-Mask
Mask
Mask
16C
8C
THERMAL_HYS
THERMAL Limit Hysteresis
RW
RW
RW
-
4C
2C
1C
1
0
0
Bit2
Bit1
Bit0
Byte13
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Reserved
Type
R
0
1
PWD
Reserved
Reserved
CH2 High
CH2 Low
CH1 High
CH1 Low
CH1 Fault
CH2 Fault
-
-
0
0
0
0
0
0
0
0
Reserved
R
-
-
Channel 2 ALERT High Alarm
Channel 2 ALERT Low Alarm
Channel 1 ALERT High Alarm
Channel 1 ALERT Low Alarm
Channel 1 Diode Fault (Open)
Channel 2 Diode Fault (Open)
R
Non-Flag
Non-Flag
Non-Flag
Non-Flag
Non-Flag
Non-Flag
Flag
Flag
Flag
Flag
Flag
Flag
R
R
R
R
R
Byte14
Bit7
Name
BUSY
HIGH
LOW
Control Function
ADC is converting
Type
R
0
1
PWD
Non-Flag
Non-Flag
Non-Flag
Flag
Flag
Flag
0
0
0
One of the Channels ALERT High
One of the Channels ALERT Low
R
Bit6
R
Bit5
One of the EXT-Channel
Open/Short
FAULT
R
Non-Flag
Flag
0
Bit4
Reserved
CH1_THERMAL
CH2_THERMAL
Reserved
Reserved
R
R
R
R
-
-
0
0
0
0
Bit3
Bit2
Bit1
Bit0
Channel1 THERMAL Alarm
Channel2 THERMAL Alarm
Reserved
Non-Flag
Non-Flag
-
Flag
Flag
-
Byte15
Name
Control Function
Clear all the Alarm Flag
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
Fault_Clear
One-Shot
No Clear
Clear
0
0
0
0
0
1
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
One-Shot Temperature Conversion
Enable Dynamic average
Disable Oneshot
Do OneShot
DYN_AVE_EN
Conv. Rate 3
Conv. Rate 2
Conv. Rate 1
Conv. Rate 0
Reserved
Disable Dynamic Average Enable Dynamic Average
See Detail From Convert Ratio Table
Reserved
-
-
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
16
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte16
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
R
0
1
SIGN
64
32
16
8
PWD
0
0
0
0
0
0
0
0
R
R
R
TEMP_CH1<10:3>
MSB of Channel 1 Temperature
-
R
R
4
R
2
R
1
Byte17
Name
Control Function
Reserved
Type
R
0
-
1
PWD
Reserved
Reserved
Reserved
Reserved
Reserved
-
0
0
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Reserved
R
-
-
Reserved
R
-
-
-
Reserved
R
-
Reserved
R
-
-
R
0.5
0.25
TEMP_CH1<2:0>
LSB of Channel 1 Temperature
R
-
R
0.125
0
Bit0
Byte18
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
R
0
1
SIGN
64
32
16
8
PWD
0
0
0
0
0
0
0
0
R
R
R
TEMP_CH2<10:3>
MSB of Channel 2 Temperature
-
R
R
4
R
2
R
1
Byte19
Name
Control Function
Reserved
Type
R
0
-
1
PWD
Reserved
Reserved
Reserved
Reserved
Reserved
-
0
0
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Reserved
R
-
-
Reserved
R
-
-
-
Reserved
R
-
Reserved
R
-
-
R
0.5
0.25
TEMP_CH2<2:0>
LSB of Channel 2 Temperature
R
-
R
0.125
0
Bit0
Byte 20 ~ Byte 21 Reserved Registers
Byte22
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
R
0
1
128
64
32
16
8
PWD
0
0
0
0
0
0
0
0
R
R
R
TACH_MEASURE<7:0>
LSB of TACH Measurement
-
R
R
4
R
2
R
1
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
17
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte23
Name
Control Function
Reserved
Type
R
0
-
1
PWD
Reserved
Reserved
Reserved
-
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Reserved
R
-
-
Reserved
R
-
-
R
4096
2048
R
TACH_MEASURE<12:8>
MSB of TACH Measurement
R
R
R
-
1024
512
0
0
0
Bit2
Bit1
Bit0
256
Byte24
Bit7
Name
Control Function
Type
0
1
PWD
RW
00 - Direct Drive Mode
01 - Thermal Trigger Mode
1
Mode Select
Select the FAN Operating Mode
RW
RW
RW
RW
RW
RW
RW
10 - Dynamic PWM Mode
00 - 25KHz
11 - Reserved
01 - 22KHz
0
0
0
0
1
0
1
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Freq_Sel
Edge
Select the PWM frequency
FAN Type Selection
10 - 27KHz
11 - Reserved
01 - 2 Poles FAN
11 - 4 Poles FAN
01 - 32
00 - 1Pole FAN
10 - 3 Poles FAN
00 - 0
Error Range
TACH Detect Tolerant Error Rang
10 - 64
11 - 128
Byte25
Bit7
Name
Control Function
Type
RW
RW
RW
RW
0
1
PWD
00 - 250ms
10 - 1s
01 - 500ms
11 - 2s
0
1
1
1
Spin-Up Time
The Time For Spin-Up
Bit6
Bit5
000 - 30%, 001 - 35%, 010 - 40%,
011 - 45%, 100 - 50%, 101 - 55%,
110 - 60%, 111 - 65%
Spin-Up Duty
PWM Duty-Cycle For Spin-Up
Bit4
RW
RW
RW
RW
0
0
1
0
Bit3
Bit2
Bit1
Bit0
00 - 3
10 - 5
-
01 - 4
11 - 6
-
Spin-Up cnt
Reserved
Time Out Times For Spin-Up
Reserved
Byte26
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
1
PWD
0
0
0
0
0
0
0
0
1/2
1/4
1/8
Duty_Cycle<10:3>
MSB of PWM Duty-Cycle Setting
-
1/16
1/32
1/64
1/128
Byte27
Bit7
Name
Control Function
Type
RW
0
1
PWD
1/256
1/512
1/1024
0
0
Duty_Cycle<2:0>
LSB of PWM Duty-Cycle Setting
-
RW
Bit6
RW
RW
RW
RW
RW
RW
0
0
1
1
0
1
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
000 - 100ms, 001 - 200ms, 010 - 300ms, 011 - 400m,
100 - 500ms, 101 - 600ms, 110 - 700ms, 111 - 800ms
Update Time
T_Hys
TACH Detect Update Time
00 - 2C
01 - 5C
Temperature Hysteresis For FAN's
Trigger Point
10 - 10C
11 - 15C
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
18
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte28
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
Reserved
64C
32C
16C
8C
PWD
0
1
1
1
1
1
1
1
First Temperature Trigger Point of
FAN
TL_FAN
-
4C
2C
1C
Byte29
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
Reserved
64C
32C
16C
8C
PWD
0
1
1
1
1
1
1
1
Second Temperature Trigger Point
of FAN
TH_FAN
-
4C
2C
1C
Byte30
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
4096
2048
1024
512
256
128
64
1
1
1
1
1
1
1
1
The Maximum Limit of TACH
Number
TACH_MAX
-
32
Byte31
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
512
256
128
64
32
16
8
PWD
0
0
0
0
0
0
0
0
The Minimum Limit of TACH
Number
TACH_MIN
-
4
Byte32
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
4096
2048
1024
512
256
128
64
0
0
0
0
0
0
0
0
MSB TACH threshold of Static
Mode(T>TL_FAN)
TACH_S1<12:5>
-
32
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
19
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte33
Bit7
Name
Control Function
Type
RW
0
1
16
8
PWD
0
0
0
RW
Bit6
LSB TACH threshold of Static
Mode(T>TL_FAN)
TACH_S1<4:0>
-
RW
4
Bit5
RW
RW
RW
RW
RW
2
0
0
0
1
0
Bit4
Bit3
Bit2
Bit1
Bit0
1
-
Reserved
Reserved
-
00 - CH1
01 - CH2
11 - Reserved
Temperature Channel Selection For
Fan
FAN_CH_SEL
10 - Reserved
Byte34
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
4096
2048
1024
512
256
128
64
0
0
0
0
0
0
0
0
MSB TACH threshold of Static
Mode(T>TH_FAN)
TACH_S2<12:5>
-
32
Byte35
Bit7
Name
Control Function
Type
RW
RW
RW
RW
0
1
16
8
PWD
0
0
0
0
Bit6
LSB TACH threshold of Static
Mode(T>TH_FAN)
TACH_S2<4:0>
-
4
Bit5
2
Bit4
RW
RW
1
0
0
Bit3
Bit2
FAN MASK
SEL_ALERT
Mask Fan Fault
0=normal
1=masked
00 - ALERT=Temp-Sensor
Alert
RW
RW
01 - ALERT=FAN Fault
0
0
Bit1
Bit0
Select the ALERT Source
10 - ALERT=Temp-Senso 10 - ALERT=Temp-Senso
Alert or FAN Fault
Alert and FAN Fault
Byte36
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
128
64
32
16
8
PWD
0
0
0
0
1
0
0
0
The PWM DutyCycle
Incremental/Decremental Step
PWM Step
-
4
2
1
Byte37
Name
Control Function
Reserved
Type
R
0
-
-
-
-
-
-
1
-
-
-
-
-
-
PWD
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
0
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Reserved
R
Reserved
R
Reserved
R
Reserved
R
Reserved
R
FAN TACH measurement is <
Minimum limit (Too Fast)
FAN TACH measurement is >
Maximum limit (Too Slow)
FAN_Fault1
FAN_Fault2
R
R
Non-Flag
Non-Flag
Flag
Flag
0
0
Bit1
Bit0
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
20
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte38
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
R
0
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
PWD
0
0
0
0
0
0
0
0
R
R
R
TACH_AIM_OUT
Targeted TACH Readback
R
R
R
R
Byte39
Name
Control Function
Reserved
Type
RW
RW
RW
RW
RW
RW
0
-
-
-
-
-
-
1
-
-
-
-
-
-
PWD
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
0
0
0
0
0
0
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Reserved
Reserved
Reserved
Reserved
Reserved
SEL_DIV2
SEL_XTAL
Temp-Sensor Reference CLK DIV2
I2C Clock Source selection
RW
RW
TS_REF=25MHz
Free-Run OSC
TS_REF=12.5M
XTAL
0
0
Bit1
Bit0
Byte 40 Reserved Register
Byte41
Name
Control Function
Stop 27M_48M output
Stop 24M 48M output
Type
RW
0
1
PWD
STOP_27M_48M
STOP_24M_48M
Stopped
Stopped
Run
Run
1
1
Bit7
Bit6
RW
Enable pin for 25M_C after at
PWRGD=0
Enable pin for 25M_B after at
PWRGD=0
Enable pin for 25M_A after at
PWRGD=0
EN_STOP25M_C
EN_STOP25M_B
EN_STOP25M_A
RW
RW
RW
Free-Run
Free-Run
Free-Run
Stoppable
Stoppable
Stoppable
1
1
0
Bit5
Bit4
Bit3
STOP_25M_C
STOP_25M_B
STOP_25M_A
Stop 25M_C output
RW
RW
RW
Stopped
Stopped
Stopped
Run
Run
Run
1
1
1
Bit2
Bit1
Bit0
Stop 25M_B output
Stop 25M_A output
Byte42
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
PWD
MSB
0
0
0
1
1
1
1
1
-
-
-
BYTE COUNT Register
Bit[7:0]
-
-
-
LSB
Byte 43 ~ Byte 46 Reserved Registers
Byte47
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
PWD
0
0
0
0
0
0
0
1
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
REV_ID
Revision ID
VENDOR_ID
Vendor ID (IDT=0001)
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
21
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Byte 48 ~ Byte 63 Reserved Registers
Byte64
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
1
PWD
LCKBYPASSB
PLL Lock Bypassb
Bypass
Not Bypas
1
0
0
1
1
0
0
1
-
-
-
-
-
-
-
-
-
-
-
-
-
-
REF COUNT<6:0>
PLL M Counter
Byte65
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Name
Control Function
Type
RW
RW
RW
RW
RW
RW
RW
RW
0
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
PWD
0
0
0
1
1
0
1
1
VCO COUNT<9:2>
PLL N COUNTER
Byte 66 Reserved Register
Byte67
Bit7
Name
Control Function
Type
0
1
PWD
RW
00 = 0.5V/ns
01 = 1.0V/ns
0
SL<1:0>(25MHzB)
25M_B Slew Rate Control
RW
RW
RW
RW
RW
RW
RW
10 = 1.0V/ns
00 = 1,0V/ns
10 = 1.5V/ns
00 = 1,0V/ns
10 = 1.5V/ns
00 = 1,0V/ns
10 = 1.5V/ns
11 = 1.5V/ns
01 = 1.5V/ns
11 = 2.0V/ns
01 = 1.5V/ns
11 = 2.0V/ns
01 = 1.5V/ns
11 = 2.0V/ns
1
0
1
0
1
0
1
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
SL<1:0>(25MHzA)
SL<1:0>(27MHz)
SL<1:0>(24MHz)
25M_A Slew Rate Control
27M Slew Rate Control
24M Slew Rate Control
*****************************************************************************************************************************************************************************
All reserved bits and reserved bytes in this SMBus table should not be overwritten at any instance. Writing to
these reserved bits and bytes may cause unexpected behavior. IDT does not warrant any application issue going
forward if continuing to overwrite these reserve bits and bytes.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
22
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Frequency Generator 32.768 kHz
1. When the system is not power ON, V_3.3 is not ready and
IDT 9TCS1083 is powered with the coin cell battery. The
32kHz comes from the DCO with the digital calibration to
keep the accuracy.
Recommended 25MHz Quartz Crystal
Specifications
SMD 25MHz AT cut crystal and maximum driver level at
100µW, for example TXC.
2. After V_3.3 is ready, the 9TCS1083 creates a seamless
switch power from V_bat to V_3.3 and the calibration will go
to full speed: this will happen every 2~3ms to keep the
accuracy and the 32K source will be switched to 25MHz
oscillator with Fraction-N divider to get to 0ppm.
VBAT Battery Recommendations and
Connection Considerations
Recommended to use coin cell battery CR2032, CR2025 or
equivalent.
32.768K DCO uses a 25Mhz crystal oscillator for calibration
reference, thus the 25MHz oscillator must be fine tuned in
order to get the best 32.768kHz accuracy.
The normal coin cell battery storage capacity is 170 mAh to
220mAh and the average total RTC circuit current required
5uA, the battery life will be at least:
RTC Routing Guidelines
170,000 µAh / 5 µA = 34,000 hours = 3.88 years
Single Trace impedance
Length
6 inches
6 inches
Notes
X1
X2
50 ohm
50 ohm
The RTC circuit (PCH) usually consumes 3µA power, thus
the 32.768kHz clock generator circuit needs be less than
2µA. The IDT9TCS1083/1085 32.768kHz generator
averaged operation current is less than 2µA.
The coin cell battery with IDT 9TCS1083/1085 VBAT power
pin connection requires a 100 ohm and 22µF ceramic
capacitor current limitation and noise filtering. The RC
needs to be added to the battery to limit the current spikes
effects.
The VDD_RTC connect to the Intel PCH/ICH chip and the
9TCS1083/1085 provide seamless power switching
between main V_3.3 and V_bat.
V_3.3
VDD_RTC
9TCS1083
Power Switch
100ohm
V_bat
1uf
10~22uF
CR2032H
32.768K Clocks Operation
The IDT9TCS1083/1085 32.768K clock output operates in
two modes:
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
23
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Reference Schematic For VBAT and VDD_RTC
V_3.3
5V/12V
To system I2C
or Int.
5V/12V
10K
VDD_TS
5V/12V 4-wire
FAN
ALERT#
THERM#
To system H/W
or Int.
VCC
PWM
DXN2
DXP2
3.3V/5V
DXP1
DXN1
PWM
TACH
GND
10K
10K
TACH
VDD_RTC
4.7K
V_3.3
100 ohm
To
Vdd_RTC
1uf
V_3.3
V_bat
9TCS1083
VDD_32KB
VDD_32KB
32K_A
V_bat
(Coin Cell
battery)
10uf
CLK
VDDIO_25MA
VDDIO_25MA
25M_A
CLK
CLK
SMBCLK
SMBDAT
To Smbus
master
32K_B / 25M_C
VDD_25MB
VDD_25MB
VDD_24M
CLK
CLK
25M_B
25Mhz crystal
X1
VDD_24/48M
X2
GND
24M_48M
VDD_27/48M
27M_48M
VDD_27M
CLK
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
24
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Frequency Synthesizer – 24/48/27/25 MHz
IDT9TCS1083/1085 includes a low power PLL to generate
24/27/48 MHz clock outputs. The PLL uses an external
25MHz crystal for reference clock input, thus all 25MHz
clock outputs are through a fanout buffer directly for optimal
performance. Fine tunning on the external crystal cap load
is required to get an accurate 25MHz reference clock.
24/27/48MHz Connection Recommendations
VDD_24M/27M
Z=50 ohm
27 ohm
5pF
5pF
CLK_24/48/
27M
25MHz_A Connection Recommendations
Z=50 ohm
27 ohm
VDDIO_25
Z= 50 ohm
a. Default 2X push-pull IO drive strength for 24/48/27MHz.
b. On board 27 ohm series resistor for each path.
c. Rising/falling slew rate: 0.5v/ns~4v/ns
0 ohm
CLK_25A
4pF
d. 2 bits (3 steps) I2C for the Slew Rate.
a. VDDIO_25A range is from 1.05V to 3.3V.
b. Optimize range is 1.05V to 1.5V.
c. Pull up strength is 50 ohm@VDDIO_25A=1.5V
d. Pull down strength is 50 ohm.
e. No on-board series resistor is required.
25MHz_B/C Connection Recommendations
VDDIO_25
Z= 50 ohm
0 ohm
CLK_25B/C
5pF
a. VDD_25B/C range is from 1.05V to 3.3V.
b. Optimized for 3.3V VDDIO.
c. Pull up strength is 50 ohm@VDD_25B/C=3.3V
d. Pull down strength is 50 ohm.
e. No on-board series resistor is required.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
25
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Thermal Sensor
The thermal sensor in the 9TCS1083 is a low power and highly accurate temperature sensor. It is optimized to operate
between 60ꢀC to 100ꢀC. There are two external thermal diode connection input temperature sensors. The chip supports
diode faults and temperature alerts for the thermal sensor; Moreover, the thermal sensor has the capability to go into standby
mode for power savings.
The temperature sensor's analog to digital converter (ADC) has 11 bits of resolution. One LSB is equal to 0.125ꢀC. The
accuracy of the temperature sensor is 1ꢀC between 60ꢀC - 100ꢀC for the two sensors.
The 9TCS1083 temperature sensor has the ability to cancel the series resistance on the remote diode inputs. Parasitic
resistances to the DXP and DXN inputs seen in series with the remote diode are caused by PCB trace resistance along with
the overall length, bulk parasitic resistance in the remote temperature transistor junctions, and series resistance in the CPU.
This resistance appears as a temperature offset in the thermal sensor measurement and is approximately +0.7ꢀC per Ohm.
The 9TCS1083 has the ability to cancel up to 100Ω of series resistance.
Current Driver
BGP Ref
Analog MUX
Channel 1
Channel 2
Local
Channel 1 Temp Reg
Channel 2 Temp Reg
NPN 2N3904
NPN 2N3904
Temp Sensor
Dector
11 bit ADC
Timing Generator
The thermal sensor in 9TCS1083 outputs the measured temperature from a beta compensated temperature reading from
an external diode. The temperature sensor architecture uses an on-chip ADC as shown to convert the analog temperature
into an 11-bit digital code. Using averaging techniques along with the ADC architecture allows accurate temperature
measurements. The ability to have programmable conversion rates and adjustable averaging schemes allow the user the
flexibility to balance accuracy versus conversion speed per the system requirements.
The temperature measurement relies on the characteristics of a semiconductor junction operating at a fixed current level.
Forcing a fixed current through the temperature diodes and detecting the changes in VBE, the forward voltage of the diode,
the temperature proportionality can be determined.
External Thermal Diode Selection
The 9TCS1083 supports the following temperature diodes:
• Typical remote substrate transistor (i.e. CPU substrate PNP intrinsic diode)
• Discrete PNP transistor diode (i.e. 2N3906)
• Discrete NPN transistor diode (i.e. 2N3904)
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
26
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
DXP
DXN
DXP
DXP
PNP
transistor
i.e. 2N3906
NPN
transister
i.e. 2N3904
PNP
transistor
i.e. to CPU
DXN
DXN
When the thermal sensor is used in a noisy environment, a capacitor can be connected across DXP and DXN to provide
some noise filtering capabilities. However, large capacitances affect the accuracy of the temperature measurement. A
maximum capacitance of 300pF can be used to help mitigate the noise.
Temperature Sensor Channel Selection
To enable the temperature sensors, register byte[6], bit[7:6]. Bit[7] is CH1 and bit[6] is CH2.
Thermal Diode Fault Conditions
9TCS1083 has the ability to detect an open or a short condition for each temperature sensor diode. An external diode fault
is defined as one of the following:
• An open between DXP and DXN
• A short from VDD to DXP
• A short from VDD to DXN
The diode fault monitoring is enabled at the start of every temperature measurement. When an external diode fault is
detected, the ALERT# pin asserts and the temperature data reads 00h in the MSB and LSB of the corresponding
temperature registers:
• DX1 MSB - byte[17], bit[2:0]
• DX1 LSB - byte[16], bit[7:0]
• DX2 MSB - byte[19], bit[2:0]
• DX2 LSB - byte[18], bit[7:0]
During the fault condition, byte[13], bit[1] or bit[0], will be set depending on the channel that has the fault. Bit[1] corresponds
to DX1, and Bit[0] corresponds to DX2; furthermore, an open/short fault flag will be set in register byte[14], bit[4].
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
27
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Temperature Threshold ALERT# Pin
Temperature Threshold Alerts
The temperature threshold alerts are sent to the ALERT#
pin. To mask this alert being sent to the ALERT# pin, set
register byte[12], bit[7:6] to logic 1. Bit[7] is CH1 and bit[6]
is CH2.
Through register writes, the high and low temperature limits
can be set such that it will trigger an alert. This alert can be
monitored through the registers or can be sent to the
ALERT# pin. Each channel has its own programmable
register to set the thresholds as follows:
Consecutive Alerts
(1) High Temperature Alert (default 127°C)
The number of temperature threshold alerts before the
assertion of the ALERT# pin can be set by the user through
register byte[6], bit[3:2] as follows:
Byte[2:0], Bit[7:0]
Temperature
Sign Bit
64ꢀC
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
Byte[6], Bit[3:2]
Number of Alert Events
[00] (default)
[01]
1
2
3
4
32ꢀC
16ꢀC
[10]
8ꢀC
[11]
4ꢀC
2ꢀC
Temperature Threshold Alert Alarm Register
1ꢀC
The two temperature channels have readable registers,
byte[13], bit[5:2] that is set when a temperature threshold
alert has occurred.
Where byte[0] is the high temperature alert for DX1, byte[1]
is for DX2.
Critical Thermal Warnings
(2) Low Temperature Alert (default 127°C)
The 9TCS1083 will have register programmable critical
thermal threshold warnings for all temperature sensor
channels. Similar to the temperature threshold alerts, the
critical high temperatures can be set such that a warning
can be dispatched to the THERM# pin and the readable
registers. The thermal warnings also have programmable
hysteresis. Each channel has its own programmable
register to set the thresholds as follows:
Byte[5:3], Bit[7:0]
Temperature
Sign Bit
64ꢀC
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
32ꢀC
16ꢀC
8ꢀC
(1) Critical Thermal Warning (default 127°C)
4ꢀC
2ꢀC
Byte[9:7], Bit[6:0]
Temperature
64ꢀC
1ꢀC
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
32ꢀC
Where byte[3] is the low alert for DX1, byte[4] is for DX2.
16ꢀC
Temperature Threshold Alert Status
8ꢀC
When a temperature threshold alert is activated, a status
indicator bit is also set. Register byte[14], bit[6:5] will be set
depending on the high or low alert. Bit[6] is the high and
bit[5] is the low alert flag. To clear the alert, register
byte[15], bit[7] needs to be written with a "1". Writing this bit
will also clear the critical thermal warnings.
4ꢀC
2ꢀC
1ꢀC
Where byte[7] is the critical thermal warning for DX1, byte[8]
is for DX2.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
28
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
(2) Critical Thermal Warning Temperature Hysteresis
(default 4°C)
The conversion rate programmable register detail is as
follows:
Byte[12], Bit[4:0]
Bit[4]
Temperature
Byte[17], Bit[4:1]
[0000]
Conversion Rate
16/sec *
8/sec **
4/sec
16ꢀC
8ꢀC
4ꢀC
2ꢀC
1ꢀC
Bit[3]
[0001]
Bit[2] (default)
Bit[1]
[0010] (default)
[0011]
2/sec
Bit[0]
[0100]
1/sec
[0101]
1/2 sec
Critical Thermal Warning Status
[0110]
1/4 sec
When a critical warning is activated, a status indicator bit is
also set. Register byte[14], bit[2:1] will be set depending on
which channel had the critical event. Bit[2] is for channel 1,
bit[1] is for channel 2.
[0111]
1/8 sec
[1000]
1/16 sec
1/32 sec
1/64 sec
[1001]
[1010]
Critical Thermal Warning THERM# Pin
The critical thermal warnings are sent to the THERM# pin
and requires a system register write to byte[15], bit[7] to
reset. This fault clear I2C write will also clear the
temperature threshold alerts
* Valid when only one temperature sensor channel is used.
** Valid when the number of temperature sensor channel is
two.
Active/Standby Mode
The thermal sensor architecture has dynamic averaging to
smooth out the temperature conversion readings. To select
the number of temperature reading averages requires the
dynamic averaging function to be enabled, register byte[15],
bit[5]. The number of averages is then selected as follows:
The thermal sensor has two modes in the temperature
conversion process:
(1) Active mode – In this mode the ADC will have a
selectable conversion rate for the temperature sensing.
Byte[6], Bit[1:0]
Average the ADC Temperature
(2) Standby mode – The system will command via I2C the
9TCS1083 to sample the temperature sensors. Once the
temperature reading from the ADC is updated, the
temperature sensor will be on stand-by awaiting the next
system request.
[00]
[01]
[10]
[11]
1
4
8
16
Register byte[15], bit[6] controls whether the thermal sensor
is in active or standby mode.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
29
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Fan Controller
Fan Controller System Diagram (Schematic
Example)
Fan Controller Description
The fan driver for the 9TCS1083 controls a 4-wire, 12V or
5V, multiple pole DC fan. The fan controller has three
modes of operation: (1) direct drive, (2) thermal trigger, and
(3) Dynamic PWM. All modes have register
programmability for the user to set the desired fan speed
and necessary parameters. The controller is also capable
of detecting stalled fans and upon detection will set the
appropriate alerts. The 9TCS1083 also has user
configuration registers to adjust both the ramp-rate and the
spin-up routine to accommodate different fan start up
requirements.
5V/12V
5V/12V
5V/12V 4-wire FAN
10K
IDT
MobileAccess
9TCS1083/85
VCC
3.3V/5V
PWM
TACH
GND
PWM
10K
10K
TACH
4.7K
The fan controller uses the input from the user selectable
external diode connections, DX1 or DX2. The 9TCS1083
fan controller can be set to run a user specified fan speed.
In this mode the tachometer signal from the fan will be
ignored. In thermal trigger mode, the user specifies the
temperature thresholds, the temperature threshold
Fan Selection Detail
The 9TCS1083 fan controller will control 5V - 12V Brushless
DC fans. The fans need to be 4-wire fans and can have one
to four poles. The number of fan poles is specified in
Register byte[24], bit[3:2]. A 2-pole fan is the default.
hysteresis, and the corresponding fan speed (fan
Byte[24], Bit[3:2]
Fan Poles
tachometer target) for the different temperature zones
defined by the thresholds. The controller will then run the
fan at the specified fixed fan speed settings depending on
the temperature from the sensors. In dynamic PWM mode,
the fan controller will adjust the PWM duty cycle to maintain
the system defined fan speed. In this mode, the system
reads a temperature sensor and the corresponding fan
speed, tachometer reading. The system will then determine
and update the 9TCS1083 directly by writing the accessible
registers byte 32 and byte 33. 9TCS1083 will then adjust the
PWM to achieve the desired system fan speed.
[00]
[01] (default)
[10]
1
2
3
4
[11]
Modes of Operation
The 9TCS1083 fan controller has three user selectable
methods to control the fan speed. The default fan speed
control mode is Dynamic PWM. The modes are selected by
writing the I2C register byte[24], bit[7:6] as follows:
The PWM has ten bits of duty cycle resolution with a 25kHz
frequency. The PWM frequency is selectable between 22,
25, and 27kHz.
Fan Controller Modes
Direct Drive
Byte[24], Bit[7:6]
[00]
[01]
[10]
The 9TCS1083 includes hardware programmable
temperature limits and dedicated system shutdown output
for thermal protection.
Thermal Trigger
Dynamic PWM (default)
The PWM frequency can be set by writing register byte[24],
bit[5:4] as follows:
PWM
Frequency
Duty Cycle
Resolution [# bits]
Byte[24],
Bit[5:4]
25kHz (default)
22kHz
10
11
9
00
01
10
27kHz
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
30
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Direct Drive Mode
Temperature Sensor
In Direct Drive Mode, the fan speed is directly controlled by
setting a fixed PWM duty cycle. After a proper fan speed
spin-up, the tachometer signal will be ignored and the
9TCS1083 will output the fixed programmed PWM duty
cycle to the fan.
The temperature can be set to read from the external
thermal sensors, DX1 or DX2. It is selectable by writing
Byte[33].
FAN_CH_SEL - byte[33], bit[1:0]
To operate in direct drive mode, Register byte[24], bit[7:6] =
[00].
Byte[33], bit[1:0]
Temperature Sensor Selection
[00]
[01]
CH1
CH2
The duty cycle is selectable through registers by writing
byte[26], bit[7:0] and byte[27], bit[7:5] as follows:
Tachometer Update
Byte[26], Bit[7:0]
Logic "1", Selects Duty Cycle
The tachometer reading can be updated at a rate of
700msec up to 100msecs. Tachometer Update Time,
byte[27], bit[4:2]
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
1
1/2
1/4
Byte[27], bit[4:2]
Tachometer Update Time
100 msec
1/8
[000]
[001]
1/16
1/32
1/64
1/128
200 msec
[010]
300 msec
[011] (default)
[100]
400 msec
500 msec
[101]
600 msec
[110]
700 msec
Byte[27], Bit[7:5]
Logic "1", Selects Duty Cycle
[111]
800 msec
Bit[7]
Bit[6]
Bit[5]
1/256
1/512
1/1024
It is important to also set the required fan spin-up specifics
for proper use. The 9TCS1083 after completion of the fan
spin-up routine will then put out the correct programmed
PWM duty cycle.
Thermal Trigger Mode
In this mode the 9TCS1083 fan speed controller is
programmed to run at different fan speeds. The 9TCS1083
will monitor the fan tachometer and depending on the
temperature from a thermal sensor diode and the
pre-programmed temperature settings, the 9TCS1083 will
adjust the fan speed to the targeted tachometer settings.
Register byte[24], bit[7:6] = [01] will put 9TCS1083 into
thermal trigger mode.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
31
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
b. TH_FAN - byte[29], bit[6:0] (default 127ꢀC)
Example of Thermal Trigger Mode Setup
The figure below shows how the programmable thresholds
relate to the fan speed settings.
Byte[29], Bit[7:0] Logic "1", Selects Temp Threshold
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
—
64ꢀC
32ꢀC
16ꢀC
8ꢀC
TACH_S2
TH_FAN
Thermal Hysteresis
4ꢀC
2ꢀC
TACH_S1
1ꢀC
TL_FAN
Thermal Hysteresis
To set TL_FAN and TH_FAN a logic "1" is written into the
proper register. For example, to get 70ꢀC, a "1" would be
written for Bit[6], Bit[2], and Bit[1].
FAN OFF
(2) Temperature Hysteresis, T_HYS, byte[27], bit[1:0]:
Byte[27], bit[1:0] Temperature Threshold Hysteresis
From the figure above, it can be seen that the fan speed will
adjust between the tachometer settings TACH_S1 and
TACH_S2 given the temperature from the thermal sensor.
The temperature thresholds are set by TH_FAN and
TL_FAN along with the temperature hysteresis, T_HYS. In
this mode, the fan will have active fault condition monitoring
along with fan spin-up control. The rate at which the fan will
speed up or slow down, going from one TACH setting to the
other, can be programmed by the user. Lastly, the fan speed
tolerance can also be selectable via registers.
[00]
[01]
2ꢀC
5ꢀC
[10]
10ꢀC
15ꢀC
[11] (default)
(3) Tachometer Targets:
a. TACH_S1 - byte[32], bit[7:0] and byte[33], bit[7:3]
To set up the fan speed controller in Thermal Trigger Mode,
the following registers will need to be programmed.
Byte[32], bit[7:0]
Logic "1" selects Tachometer
Reading
(1) Temperature Thresholds:
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
4096
2048
1024
512
256
128
64
a. TL_FAN - byte[28], bit[6:0] (default 127ꢀC)
Byte[28], Bit[7:0] Logic "1", Selects Temp Threshold
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
—
64ꢀC
32ꢀC
16ꢀC
8ꢀC
32
4ꢀC
2ꢀC
1ꢀC
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
32
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
(4) To Set the minimum and maximum fan speed, use
the RPM formula, “Formula 1”.
Byte[33],
bit[7:3]
Logic "1" selects Tachometer
Reading
a. TACH_MIN - byte[31], bit[7:0]
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
16
8
Byte[31], bit[7:0]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
512
256
128
64
32
16
8
4
2
1
b. TACH_S2 - byte[34], bit[7:0] and byte[35], bit[7:3]
Byte[34], bit[7:0]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
4096
2048
1024
512
256
128
64
4
b. TACH_MAX - byte[30, bit[7:0]
Byte[30], bit[7:0]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
4096
2048
1024
512
256
128
64
32
Byte[35], bit[7:3]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
16
8
32
(5) To adjust the rate at which the fan speed will
transition from one TACH setting to the other, the RPM
equation, “Formula 1” is again applied to determine the
incremental or decremental fan speed step size.
4
2
1
The TACH_S1/S2 is set using the following RPM formula:
Tachometer PWM Step Control - byte[36], bit[7:0]
60
(Formula 1)
RPM = 2× F
×
Byte[36], bit[7:0]
Logic "1" selects Tachometer
Reading
sample
TACH _ Re ading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
128
64
32
16
8
where: RPM - fan revolution per minute
- 25kHz sample internal clock sample rate
TACH_Reading - user programmable registers Byte[32]
through Byte[35]
F
sample
4
2
1
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
33
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Spin-up
In this mode the fan controller will also have spin-up control
The system will poll byte[22], bit[7:0], and byte[23], bit[4:0]
capabilities. At any time the fan attempts to go from a zero
for the TACH reading which will correlate to the current fan
RPM to a higher fan speed, the fan will always go through
speed by the RPM equation, “Formula 1”.
the proper spin-up routine. The time allotted for fan spin-up
as well as the spin-up PWM duty cycle can be adjusted via
registers by writing byte[25], bit[7:3] as follows:
Byte[22], bit[7:0]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
128
64
32
16
8
Spin-up Time - byte[25], bit[7:6]
Byte[25], bit[7:6]
Bit[7:6] = [00]
Spin-up Time
250msec
500msec
1sec
Bit[7:6] = [01] (default)
Bit[7:6] = [10]
4
Bit[7:6] = [11]
2sec
2
Spin-up PWM duty cycle - byte[25], bit[5:3]
1
Byte[25], bit[5:3]
Bit[5:3] = [000]
Spin-up PWM duty cycle
30%
35%
40%
45%
50%
55%
60%
65%
Byte[23], bit[4:0]
Logic "1" selects Tachometer
Reading
Bit[5:3] = [001]
Bit[5:3] = [010]
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
4096
2048
1024
512
Bit[5:3] = [011]
Bit[5:3] = [100]
Bit[5:3] = [101]
Bit[5:3] = [110] (default)
Bit[5:3] = [111]
256
The system can read the temperature sensor diodes from
the 9TCS1083 or from any sensor available to the system to
determine the necessary adjustments to the fan speed.
Dynamic PWM Mode
The 9TCS1083 in this mode will be directed by the system
via registers as to the target RPM by which the fan speed
should be running. The system will read a temperature
sensor along with the fan tachometer information and make
the determination as to what the nominal fan speed should
be. This information is fed back to the 9TCS1083 via
register writes. 9TCS1083 will comply and attempt to run
the fan at the requested speed.
To put the 9TCS1083 in Dynamic PWM mode register
byte[24], bit[7:6] = [10]
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
9TCS1083 REV 0.8 011612
34
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
b. TACH_MAX - byte[30, bit[7:0]
System Direct Tachometer Control
The system will directly write to register byte[32], bit[7:0] and
byte[33], bit[7:3] a desired TACH setting.
Byte[30], bit[7:0]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
4096
2048
1024
512
256
128
64
Byte[32], bit[7:0]
Logic "1" selects Tachometer
Reading
4096
2048
1024
512
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
256
128
32
64
Fan Fault Conditions
32
The fan fault conditions will be activated and reported if the
minimum or maximum fan speed is detected. During a
FAULT1, maximum fan speed, 9TCS1083 will stop the fan
and then wait for the FAULT1 flag to be cleared. For a
FAULT2 condition, stalled fan, 9TCS1083 will go through the
spin-up procedure to try to start the fan. The number of
attempts to try to restart the fan is programmable. The fan
fault conditions are reported via register on byte[37], bit[1;0].
Byte[33], bit[7:3]
Logic "1" selects Tachometer
Reading
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
16
8
4
Fan Fault Conditions
2
1
Byte[37], bit[1:0]
Logic "1" = FAULT CONDITION
Fault1 - Fan speed too fast
Bit[1]
Bit[0]
The tachometer setting is related to the fan speed by the
RPM equation, “Formula 1”.
Fault2 - Fan speed too slow
The number of times for spin-up retries:
Setting Minimum and Maximum Tachometer
RPM
Byte[25], bit[2:1]
Number of Spin-up Attempts
The minimum and maximum tachometer settings can be set
for the fan faults.
[00]
[01] (default)
[10]
3
4
5
6
a. TACH_MIN - byte[31], bit[7:0]
Byte[31], bit[7:0]
Logic "1" selects Tachometer
Reading
[11]
Bit[7]
Bit[6]
Bit[5]
Bit[4]
Bit[3]
Bit[2]
Bit[1]
Bit[0]
512
256
128
64
32
16
8
4
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
35
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Spin-up Details
100% *
30%~65%
Step
Step
¼ of
spin up
time
Step
Target count
Update Update Update
Time Time Time
Target count reached
Spin Up Time
1. The spin-up time can be specified in register byte[25],
bit[7:6].
Fan Controller Temperature Diode Sensor
Spin-up Time - byte[25], bit[7:6]
The fan controller can use either one of the two channels for
temperature sensing. To specify which temperature sensor
is used for the fan controller, register byte[33], bit[1:0].
Byte[25], bit[7:6]
Bit[7:6] = [00]
Spin-up Time
250msec
500msec
1sec
Bit[7:6] = [01] (default)
Bit[7:6] = [10]
Bit[7:6] = [11]
2sec
2. During spin-up, the PWM duty cycle can be set to 100%
for one quarter of the total spin-up time by register byte[25],
bit[0].
3. The next three quarters of the spin-up time, the PWM duty
cycle is set by register[25], bit[5:3].
Spin-up PWM duty cycle - byte[25], bit[5:3]
Byte[25], bit[5:3]
Bit[5:3] = [000]
Spin-up PWM duty cycle
30%
35%
40%
45%
50%
55%
60%
65%
Bit[5:3] = [001]
Bit[5:3] = [010]
Bit[5:3] = [011]
Bit[5:3] = [100]
Bit[5:3] = [101]
Bit[5:3] = [110] (default)
Bit[5:3] = [111]
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
9TCS1083 REV 0.8 011612
36
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Marking Diagram (NLG32)
IDT
9TCS1083B
$$$
YYWW
######
Notes:
1. “######” is the lot number.
2. YYWW is the last two digits of the year and week that the part was assembled.
3. “$$$” is the assembly mark code..
4. “B” at the end of the part number is the device revision desigantor; does not correlate with the datasheet revision.
5. Bottom marking: country of origin if not USA.
Thermal Characteristics 32-pin VFQFPN
Parameter
Symbol
Conditions
Min.
Typ. Max. Units
Thermal Resistance Junction to
Ambient
θ
Still air
34
29
27
32
° C/W
° C/W
° C/W
° C/W
JA
θ
1 m/s air flow
3 m/s air flow
JA
θ
JA
Thermal Resistance Junction to Case
θ
JC
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
37
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Package Outline and Package Dimensions (32-pin VFQFPN, 0.50mm pitch)
Package dimensions are kept current with JEDEC Publication No. 95
Ordering Information
Part / Order Number
9TCS1083BNLG
Marking
see page 37
Shipping Packaging
Trays
Package
32-pin VFQFPN
32-pin VFQFPN
Temperature
0 to +70° C
0 to +70° C
9TCS1083BNLG8
Tape and Reel
“G” after the two-letter package code are the Pb-Free configuration and are RoHS compliant.
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes
no responsibility for either its use or for the infringement of any patents or other rights of third parties, which would result from its use. No
other circuits, patents, or licenses are implied. This product is intended for use in normal commercial applications. Any other applications
such as those requiring extended temperature range, high reliability, or other extraordinary environmental requirements are not
recommended without additional processing by IDT. IDT reserves the right to change any circuitry or specifications without notice. IDT
does not authorize or warrant any IDT product for use in life support devices or critical medical instruments.
IDT® MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
38
9TCS1083 REV 0.8 011612
9TCS1083
MOBILE ACCESS™—CLOCK SYNTHESIZER, TEMPERATURE SENSOR, & PWM FAN CONTROLLER FOR PORTABLE DEVICES
Innovate with IDT and accelerate your future networks. Contact:
www.IDT.com
For Sales
800-345-7015
408-284-8200
Fax: 408-284-2775
For Tech Support
www.idt.com/go/clockhelp
Corporate Headquarters
Integrated Device Technology, Inc.
www.idt.com
© 2010 Integrated Device Technology, Inc. All rights reserved. Product specifications subject to change without notice. IDT and the IDT logo are trademarks of Integrated Device
Technology, Inc. Accelerated Thinking is a service mark of Integrated Device Technology, Inc. All other brands, product names and marks are or may be trademarks or registered
trademarks used to identify products or services of their respective owners.
Printed in USA
厂商 型号 描述 页数 下载

IDT

 		9TCS1082BNLG [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 27 页

IDT

 		9TCS1082BNLG8 [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 27 页

IDT

 		9TCS1083BNLG8 [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 39 页

IDT

 		9TCS1083NLGI [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 39 页

IDT

 		9TCS1083NLGI8 [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 39 页

IDT

 		9TCS1085NLGI [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 39 页

IDT

 		9TCS1085NLGI8 [ Analog Circuit, 1 Func, 0.50 MM PITCH, ROHS COMPLIANT, VFQFPN-32 ] 39 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.220665s
