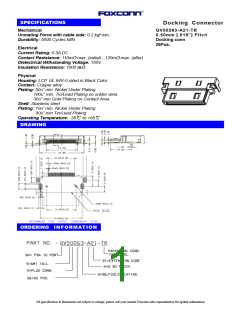

SPECIFICATIONS
Docking Connector
Mechanical
Unmating Force with cable side: 0.2 kgf min.
Durability: 5000 Cycles MIN
QV50263-A21-TR
0.50mm [.019”] Pitch
Docking conn
26Pos.
Electrical
Current Rating: 0.5A DC
Contact Resistance: 110mΩ max. (initial) , 120mΩ max. (after)
Dielectrical Withstanding Voltage: 150V
Insulation Resistance: 1000 mΩ .
Physical
Housing: LCP, UL 94V-0 rated in Black Color
Contact: Copper alloy
Plating: 50u” min. Nickel Under Plating
100u” min. Tin/Lead Plating on solder area
30u” min Gold Plating on Contact Area
Shell: Stainless steel
Plating: 10u” min. Nickel Under Plating
50u” min Tin/Lead Plating
Operating Temperature: -35℃ to +65℃
DRAWING
ORDERING INFORMATION
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
