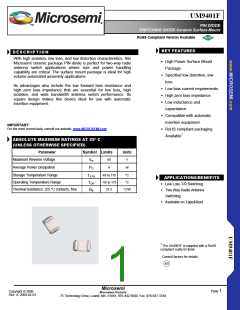

UM9401F
®
TM
PIN DIODE
SWITCHING DIODE-Ceramic Surface Mount
RoHS Compliant Version Available
KEY FEATURES
DESCRIPTION
With high isolation, low loss, and low distortion characteristics, this
Microsemi ceramic package PIN diode is perfect for two-way radio
antenna switch applications where size and power handling
capability are critical. The surface mount package is ideal for high
volume automated assembly applications.
. High Power Surface Mount
Package.
. Specified low distortion, low
loss.
Its advantages also include the low forward bias resistance and
high zero bias impedance that are essential for low loss, high
isolation, and wide bandwidth antenna switch performance. Its
square design makes this device ideal for use with automatic
insertion equipment.
. Low bias current requirements.
. High zero bias impedance.
. Low inductance and
capacitance.
. Compatible with automatic
insertion equipment.
. RoHS compliant packaging
Available1
IMPORTANT:
For the most current data, consult our website: www.MICROSEMI.com
ABSOLUTE MAXIMUM RATINGS AT 25º C
(UNLESS OTHERWISE SPECIFIED)
Parameter
Maximum Reverse Voltage
Average Power Dissipation
Units
Symbol Limits
50
V
VR
4
W
PD
-65 to 175
°C
°C
Storage Temperature Range
TSTG
APPLICATIONS/BENEFITS
. Low Loss T/R Switching.
. Two Way Radio Antenna
Switching.
- 65 to 175
Operating Temperature Range
Thermal resistance. (25 °C contacts, free
TOP
37.5
°C/W
Rθ
. Available on Tape&Reel
1
The UX4901F is supplied with a RoHS
compliant matte tin finish.
Consult factory for details.
