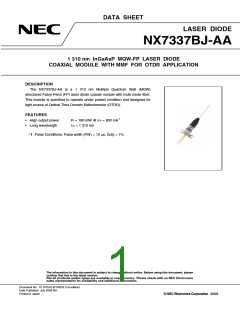

DATA SHEET
LASER DIODE
NX7337BJ-AA
1 310 nm InGaAsP MQW-FP LASER DIODE
COAXIAL MODULE WITH MMF FOR OTDR APPLICATION
DESCRIPTION
The NX7337BJ-AA is a 1 310 nm Multiple Quantum Well (MQW)
structured Fabry-Perot (FP) laser diode coaxial module with multi mode fiber.
This module is specified to operate under pulsed condition and designed for
light source of Optical Time Domain Reflectometer (OTDR).
FEATURES
High output power
Long wavelength
Pf = 180 mW @ IFP = 800 mA*1
λC = 1 310 nm
*1 Pulse Conditions: Pulse width (PW) = 10 μs, Duty = 1%
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. PL10757EJ01V0DS (1st edition)
Date Published July 2009 NS
Printed in Japan
2009
NX7337BJ-AA
PACKAGE DIMENSIONS (UNIT: mm)
Optical Fiber
φ
0.9
MMF
Length: 1 m MIN.
φ
7.0
φ
φ
0.45
12.7
17.0
PIN CONNECTIONS
P.C.D. =
φ 2
3
2
4
1
1
2
LD
CASE
2
Data Sheet PL10757EJ01V0DS
NX7337BJ-AA
OPTICAL FIBER CHARACTERISTICS
Parameter
Mode Field Diameter
Specification
Unit
μm
μm
%
50 3
Cladding Diameter
125 2
Maximum Cladding Noncircularity
Maximum Core/Cladding Concentricity
Outer Diameter
2
4
%
0.9 0.1
30
mm
mm
mm
Minimum Fiber Bending Radius
Fiber Length
1 000 MIN.
Ferrule
Fiber Length: 1 000 mm MIN.
3
Data Sheet PL10757EJ01V0DS
NX7337BJ-AA
ORDERING INFORMATION
Part Number
FIange Type
flat mount flange
NX7337BJ-AA
ABSOLUTE MAXIMUM RATINGS (TC = 25°C, unless otherwise specified)
Parameter
Symbol
IFP
Ratings
1.2
Unit
A
Pulsed Forward Current*1
Reverse Voltage
VR
2.0
V
Operating Case Temperature
Storage Temperature
TC
20 to +60
40 to +85
350 (3 sec.)
85
°C
°C
°C
%
Tstg
Tsld
Lead Soldering Temperature
Relative Humidity (noncondensing)
RH
*1 Pulse Condition: Pulse Width (PW) = 10 μs, Duty = 1%
ELECTRO-OPTICAL CHARACTERISTICS (TC = 25°C)
Parameter
Forward Voltage
Symbol
Conditions
IFP = 800 mA,
MIN.
TYP.
2.5
MAX.
4.0
Unit
V
VFP
PW = 10 μs, Duty = 1%
Threshold Current
Ith
Pf
35
65
mA
Optical Output Power from Fiber
IFP = 800 mA,
150
180
mW
PW = 10 μs, Duty = 1%
Center Wavelength
Spectral Width
λC
σ
RMS (20 dB), IFP = 800 mA,
PW = 10 μs, Duty = 1%
1 290
1 310
1 330
10.0
nm
nm
RMS (20 dB), IFP = 800 mA,
PW = 10 μs, Duty = 1%
Rise Time
Fall Time
tr
tf
10-90%
90-10%
2.0
2.0
ns
ns
ELECTRO-OPTICAL CHARACTERISTICS (TC = 0 to +60°C)
Parameter
Threshold Current
Symbol
Conditions
MIN.
TYP.
MAX.
80
Unit
mA
Ith
Optical Output Power from Fiber
Pf
IFP = 800 mA,
75
mW
PW = 10 μs, Duty = 1%
Center Wavelength
λC
Δλ/ΔT
σ
RMS (20 dB), IFP = 800 mA,
PW = 10 μs, Duty = 1%
1 280
1 342.5
nm
nm/°C
nm
Temperature Dependency of
Center Wavelength
0.35
Spectral Width
RMS (20 dB), IFP = 800 mA,
PW = 10 μs, Duty = 1%
10
4
Data Sheet PL10757EJ01V0DS
NX7337BJ-AA
TYPICAL CHARACTERISTICS (TC = 25°C, unless otherwise specified)
OPTICAL OUTPUT POWER FROM
FIBER vs. PULSED FORWARD
CURRENT
SPECTRUM
200
PW = 10
μs,
Duty = 1%
T
C
= 25°C
100
60°C
5 nm/div.
1 310
0
200
400
600
800
Pulsed Forward Current IFP (mA)
Wavelength λ (nm)
Remark The graphs indicate nominal characteristics.
5
Data Sheet PL10757EJ01V0DS
NX7337BJ-AA
REFERENCE
Document Name
Document No.
PX10160E
Opto-Electronics Devices Pamphlet
6
Data Sheet PL10757EJ01V0DS
NX7337BJ-AA
The information in this document is current as of July, 2009. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC Electronics data sheets,
etc., for the most up-to-date specifications of NEC Electronics products. Not all products and/or
types are available in every country. Please check with an NEC Electronics sales representative for
availability and additional information.
No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
While NEC Electronics endeavors to enhance the quality and safety of NEC Electronics products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. In addition, NEC
Electronics products are not taken measures to prevent radioactive rays in the product design. When customers
use NEC Electronics products with their products, customers shall, on their own responsibility, incorporate
sufficient safety measures such as redundancy, fire-containment and anti-failure features to their products in
order to avoid risks of the damages to property (including public or social property) or injury (including death) to
persons, as the result of defects of NEC Electronics products.
NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customer-
designated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1)
"NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2)
"NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E0904E
7
Data Sheet PL10757EJ01V0DS
NX7337BJ-AA
SAFETY INFORMATION ON THIS PRODUCT
SEMICONDUCTOR LASER
DANGER
INVISIBLE LASER RADIATION
AVOID DIRECT EXPOSURE TO BEAM
AVOID EXPOSURE-Invisible
OUTPUT POWER
WAVELENGTH
mW MAX
nm
Laser Radiation is emitted from
this aperture
CLASS lllb LASER PRODUCT
A laser beam is emitted from this diode during operation.
The laser beam, visible or invisible, directly or indirectly, may cause injury to the eye or loss of
eyesight.
Warning Laser Beam
Caution GaAs Products
• Do not look directly into the laser beam.
• Avoid exposure to the laser beam, any reflected or collimated beam.
This product uses gallium arsenide (GaAs).
GaAs vapor and powder are hazardous to human health if inhaled or ingested, so please observe
the following points.
• Follow related laws and ordinances when disposing of the product. If there are no applicable laws
and/or ordinances, dispose of the product as recommended below.
1. Commission a disposal company able to (with a license to) collect, transport and dispose of
materials that contain arsenic and other such industrial waste materials.
2. Exclude the product from general industrial waste and household garbage, and ensure that the
product is controlled (as industrial waste subject to special control) up until final disposal.
• Do not burn, destroy, cut, crush, or chemically dissolve the product.
• Do not lick the product or in any way allow it to enter the mouth.
A glass-fiber is attached on the product. Handle with care.
Caution Optical Fiber
• When the fiber is broken or damaged, handle carefully to avoid injury from the damaged part
or fragments.
