Manual Switches

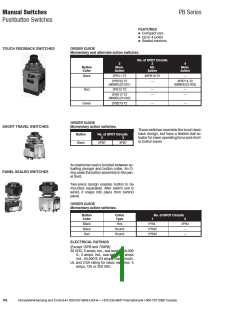

PB Series
Pushbutton Switches
WATERTIGHT SWITCH
ORDER GUIDE
Momentary action switches.
Has knurled chrome-finished facenut.
Facenut-to-panel, button-to-facenut, and
bushing-to-facenut, sealing helps pre-
vent entry of water from behind panel, up
and over bushing wall. Switch units pot-
ted in corrosion resistant metal enclo-
sure. Meets submergence requirements
of MIL-STD-108 (up to 10 PSI water pres-
sure for one hour).
Button
Color
No. of SPDT Circuits
2
Black
2PB901-T2
HERMETICALLY SEALED
SWITCHES
These pushbuttons are equipped with Vapor-proof construction enables use in
HM hermetically sealed switch units, damp locations without condensation on
which have metal-to-metal fusion around contacts. External parts corrosion resist-
the cover, actuator base, and mounting ant per MIL-S-8805. Meets explosion-
holes. Terminals are sealed glass-to- proof requirements of MIL-S-8805.
metal.
ORDER GUIDE
Momentary action switches.
Button
Color
No. of SPDT Circuits
2
4
Black
702PB1
704PB1
MINIATURE SIZE SWITCHES
ORDER GUIDE
Momentary action switches.
No. of SPDT Circuits
Button
Steel*
1
1PB5
—
2
—
White Plastic
15PB2
* Steel button enables use under hinged plates or paddle levers, in addition to manual operation.
ELECTRICAL RATINGS — 700PB
and 15PB
1PB5
700PB (With hermetically sealed switch 250 VAC: 5 amps.
units):
1PB5
15PB2
28 VDC and 115 VAC, 400 HZ: 3 amps, 30 VDC: 5 amps, res., sea level or 50,000
ind., 5 amps, res.
ft.; 3 amps, ind., sea level; 2.5 amps ind.,
50,000 ft.; 24 amps, max. inrush.
15PB:
30 VDC and 115 VAC: 2 amps, ind., 5
amps. res.; 1.0 amp, lamp load.
