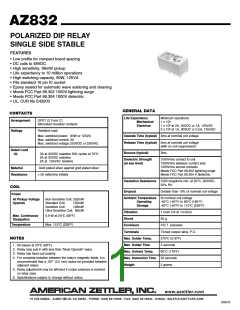

AZ832
POLARIZED DIP RELAY
SINGLE SIDE STABLE
FEATURES
• Low profile for compact board spacing
• DC coils to 48VDC
• High sensitivity, 96mW pickup
• Life expectancy to 10 million operations
• High switching capacity, 90W, 125VA
• Fits standard 16 pin IC socket
• Epoxy sealed for automatic wave soldering and cleaning
• Meets FCC Part 68.302 1500V lightning surge
• Meets FCC Part 68.304 1000V dielectric
• UL, CUR file E43203
GENERAL DATA
CONTACTS
Life Expectancy
Mechanical
Electrical
Minimum operations
Arrangement
DPDT (2 Form C)
Bifurcated crossbar contacts
1 x 108
1 x 105 at 2A, 30VDC or 1A, 125VAC
2 x 106 at 1A, 30VDC or 0.5A, 125VAC
Ratings
Resistive load:
Max. switched power: 90W or 125VA
Max. switched current: 3A
Max. switched voltage: 220VDC or 250VAC
Operate Time (typical) 3ms at nominal coil voltage
Release Time (typical) 2ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL
Bounce (typical)
3ms
3A at 30VDC resistive 50K cycles at 70°C
2A at 30VDC resistive
2A at 125VAC resistive
Dielectric Strength
(at sea level)
1500Vrms contact to coil
1000Vrms between contact sets
1000Vrms across contacts
Meets FCC Part 68.302 lightning surge
Meets FCC Part 68.304 V dielectric
Material
Gold plated silver against gold plated silver
< 50 milliohms initially
Resistance
Insulation Resistance 1000 megohms min. at 20°C, 500VDC,
50% RH
COIL
Dropout
Greater than 10% of nominal coil voltage
Power
Ambient Temperature At nominal coil voltage
At Pickup Voltage
(typical)
Non-Sensitive Coil: 252mW
Operating
Storage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
Standard Coil:
Sensitive Coil:
135mW
128mW
Ultra-Sensitive Coil: 96mW
Vibration
1.5mm DA at 10-55Hz
50 g
Max. Continuous
Dissipation
0.9 W at 20°C (68°F)
Shock
Temperature
Max. 115°C (239°F)
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Terminals
NOTES
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
80°C (176°F)
4. For complete isolation between the relay’s magnetic fields, it is
recommended that a .197" (5.0 mm) space be provided between
adjacent relays.
Max. Immersion Time 30 seconds
Weight 5 grams
5. Relay adjustment may be affected if undue pressure is exerted
on relay case.
6. Specifications subject to change without notice.
2/09/16
