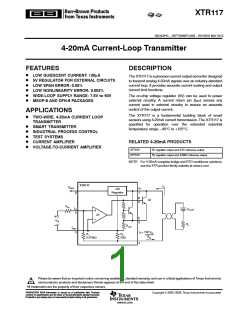

XTR117
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
4-20mA Current-Loop Transmitter
FD EATURES
DESCRIPTION
The XTR117 is a precision current output converter designed
to transmit analog 4-20mA signals over an industry-standard
current loop. It provides accurate current scaling and output
current limit functions.
LOW QUIESCENT CURRENT: 130μA
5V REGULATOR FOR EXTERNAL CIRCUITS
D
D
D
D
D
LOW SPAN ERROR: 0.05%
LOW NONLINEARITY ERROR: 0.003%
WIDE-LOOP SUPPLY RANGE: 7.5V to 40V
MSOP-8 AND DFN-8 PACKAGES
The on-chip voltage regulator (5V) can be used to power
external circuitry. A current return pin (IRET) senses any
current used in external circuitry to assure an accurate
control of the output current.
AD PPLICATIONS
The XTR117 is a fundamental building block of smart
sensors using 4-20mA current transmission. The XTR117 is
specified for operation over the extended industrial
temperature range, −40°C to +125°C.
TWO-WIRE, 4-20mA CURRENT LOOP
TRANSMITTER
D
D
D
D
D
SMART TRANSMITTER
INDUSTRIAL PROCESS CONTROL
TEST SYSTEMS
CURRENT AMPLIFIER
VOLTAGE-TO-CURRENT AMPLIFIER
RELATED 4-20mA PRODUCTS
XTR115
XTR116
5V regulator output and 2.5V reference output
5V regulator output and 4.096V reference output
:
NOTE For 4-20mA complete bridge and RTO conditioner solutions,
see the XTR product family website at www.ti.com.
XTR117
IO
VREG
V+
+5V
Regulator
8
7
B
Q1
6
RIN
IIN
VLOOP
2
A1
E
VIN
5
RL
RLIM
IRET
IO = 100 VIN
RIN
3
R1
2.475k
R2
25
Ω
Ω
4
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
Copyright © 2005−2006, Texas Instruments Incorporated
www.ti.com
XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
ABSOLUTE MAXIMUM RATINGS(1)
ELECTROSTATIC DISCHARGE SENSITIVITY
Power Supply, V+ (referenced to IO pin) . . . . . . . . . . . . . . . . . +50V
Input Voltage, (referenced to IRET pin) . . . . . . . . . . . . . . . . . 0V to V+
Output Current Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
VREG, Short-Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
Operating Temperature Range . . . . . . . . . . . . . . . −55°C to +125°C
Storage Temperature Range . . . . . . . . . . . . . . . . . −55°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +165°C
ESD Rating (Human Body Model) . . . . . . . . . . . . . . . . . . . . . . . 2000V
(Charged Device Model) . . . . . . . . . . . . . . . . . 1000V
This integrated circuit can be damaged by ESD. Texas
Instruments recommends that all integrated circuits be
handledwith appropriate precautions. Failure to observe
proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to
complete device failure. Precision integrated circuits may be more
susceptible to damage because very small parametric changes could
cause the device not to meet its published specifications.
(1)
Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods
may degrade device reliability. These are stress ratings only, and
functional operation of the device at these or any other conditions
beyond those specified is not implied.
PACKAGE/ORDERING INFORMATION(1)
PRODUCT
PACKAGE-LEAD
PACKAGE DESIGNATOR
PACKAGE MARKING
XTR117
MSOP-8
DGK
DRB
BOZ
BOY
XTR117
DFN-8
(1)
For the most current package and ordering information see the Package Option Addendum at the end of this document, or see the TI web site
at www.ti.com.
PIN ASSIGNMENTS
Top View
XTR117
XTR117
NC(1)
IIN
VREG
NC(1)
IIN
VREG
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
Exposed
Thermal
Die Pad
on
V+
V+
IRET
IO
B (Base)
E (Emitter)
IRET
IO
B (Base)
E (Emitter)
Underside(2)
MSOP−8
DFN−8
NOTES: (1) NC = No connection. Leave unconnected on PCB.
(2) Connect thermal die pad to IRET or leave unconnected on PCB.
2
XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
ELECTRICAL CHARACTERISTICS: V+ = +24V
Boldface limits apply over the temperature range, TA = −40°C to +125°C.
All specifications at TA = +25°C, V+ = 24V, RIN = 20kΩ, and TIP29C external transistor, unless otherwise noted.
XTR117
TYP
MIN
MAX
PARAMETER
CONDITION
UNITS
OUTPUT
Output Current Equation
Output Current, Linear Range
Over-Scale Limit
IO
IO = I x 100
IN
0.20
25
mA
mA
mA
ILIM
IMIN
32
0.13
Under-Scale Limit
IREG = 0
0.20
SPAN
Span (Current Gain)
Error(1)
vs Temperature
Nonlinearity
S
100
0.05
3
A/A
%
ppm/°C
%
IO = 200μA to 25mA
TA = −40°C to +125°C
IO = 200μA to 25mA
0.4
20
0.02
0.003
INPUT
Offset Voltage (Op Amp)
vs Temperature
vs Supply Voltage, V+
Bias Current
vs Temperature
Noise: 0.1Hz to 10Hz
VOS
IIN = 40μA
TA = −40°C to +125°C
V+ = 7.5V to 40V
100
0.7
+0.1
−35
150
0.6
500
6
+2
μV
μV/°C
μV/V
nA
pA/°C
μVPP
IB
TA = −40°C to +125°C
en
DYNAMIC RESPONSE
Small-Signal Bandwidth
Slew Rate
CLOOP = 0, RL = 0
380
3.2
kHz
mA/μs
(2)
VREG
Voltage
5
V
V
Voltage Accuracy
vs Temperature
vs Supply Voltage, V+
vs Output Current
Short-Circuit Current
IREG = 0
TA = −40°C to +125°C
V+ = 7.5V to 40V
0.05
0.1
1
0.1
mV/°C
mV/V
See Typical Characteristics
12
mA
POWER SUPPLY
Specified Voltage Range
Operating Voltage Range
Quiescent Current
V+
IQ
+24
V
V
μA
μA
+7.5
+40
200
250
130
Over Temperature
TA = −40°C to +125°C
TEMPERATURE RANGE
Specified Range
Operating Range
Storage Range
Thermal Resistance
MSOP
−40
−55
−55
+125
+125
+150
°C
°C
°C
q
JA
150
53
°C/W
°C/W
DFN
(1)
Does not include initial error or temperature coefficient of RIN
Voltage measured with respect to IRET pin.
.
(2)
3
XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
TYPICAL CHARACTERISTICS: V+ = +2.7V to +5.5V
At TA = +25°C, V+ = 24V, RIN = 20kΩ, and TIP29C external transistor, unless otherwise noted.
QUIESCENT CURRENT vs TEMPERATURE
CURRENT GAIN vs FREQUENCY
45
40
180
170
160
150
140
130
120
110
100
90
V+ = 36V
COUT = 0
30
20
10
Ω
RL = 0
V+ = 24V
COUT = 10nF
Ω
RL = 250
V+ = 7.5V
80
10k
100k
Frequency (Hz)
1M
−
−
−
25
75
50
0
25
50
75
100
125
_
Temperature ( C)
VREG VOLTAGE vs VREG CURRENT
OVER−SCALE CURRENT vs TEMPERATURE
5.5
5.0
4.5
34
33
32
31
30
29
28
_
+125 C
With External Transistor
−
_
55 C
V+ = 36V
V+ = 7.5V
V+ = 24V
−
_
55 C
_
+25 C
_
+25 C
Sinking
Current
Sourcing
Current
_
+125 C
−
1
0
1
2
3
4
−
−
−
25
75
50
0
25
50
75
100
125
IREG Current (mA)
_
Temperature ( C)
OFFSET VOLTAGE DISTRIBUTION
SPAN ERROR vs TEMPERATURE
50
40
30
20
10
0
−
10
20
30
40
50
−
−
−
−
−
−
−
25
75
50
0
25
50
75
100
125
_
μ
Temperature ( C)
Offset Voltage ( V)
4
XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
EXTERNAL TRANSISTOR
APPLICATIONS INFORMATION
The external transistor, Q1, conducts the majority of the
full-scale output current. Power dissipation in this
transistor can approach 0.8W with high loop voltage
(40V) and 20mA output current. The XTR117 is
designed to use an external transistor to avoid on-chip,
thermal-induced errors. Heat produced by Q1 will still
cause ambient temperature changes that can influence
the XTR117 performance. To minimize these effects,
locate Q1 away from sensitive analog circuitry, including
XTR117. Mount Q1 so that heat is conducted to the
outside of the transducer housing.
BASIC OPERATION
The XTR117 is a precision current output converter
designed to transmit analog 4-20mA signals over an
industry-standard current loop. Figure 1 shows basic
circuit connections with representative simplified input
circuitry. The XTR117 is a two-wire current transmitter.
Its input current (pin 2) controls the output current. A
portion of the output current flows into the V+ power
supply, pin 7. The remaining current flows in Q1.
External input circuitry connected to the XTR117 can be
powered from VREG. Current drawn from these
terminals must be returned to IRET, pin 3. The IRET pin is
a local ground for input circuitry driving the XTR117.
The XTR117 is designed to use virtually any NPN
transistor with sufficient voltage, current and power
rating. Case style and thermal mounting considerations
often influence the choice for any given application.
Several possible choices are listed in Figure 1. A
MOSFET transistor will not improve the accuracy of the
XTR117 and is not recommended.
The XTR117 is a current-input device with a gain of 100.
A current flowing into pin 2 produces IO = 100 x IIN. The
input voltage at the IIN pin is zero (referred to the IRET
pin). A voltage input is converted to an input current with
an external input resistor, R , as shown in Figure 1.
IN
Typical full-scale input voltages range from 1V and
upward. Full-scale inputs greater than 0.5V are
recommend to minimize the effects of offset voltage and
drift of A1.
For improved precision use an external
voltage reference.
Possible choices for Q1 (see text):
DEVICE
VOLTAGE
TYPE
PACKAGE
REF3140
REF3130
REF3125
4.096V
3.0V
2.5V
MJE3440
TIP41C
MJD3340
SOT−32
TO−220
D−PAK
Use REF32xx for lower drift.
(VREF
IREG
XTR117
IO
)
VREG
8
5V
V+
+5V
Regulator
7
B
6
Q1
RIN
VLOOP
IIN
Ω
20k
VIN
IIN
2
Input
Circuitry
COUT
10nF
A1
E
5
RL
RLIM
IRET
3
R1
2.475k
R2
25
from IREG and IREF
All return current
Ω
Ω
IO
4
I = 100 (IIN
)
Figure 1. Basic Circuit Connections
5

XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
MINIMUM OUTPUT CURRENT
MAXIMUM OUTPUT CURRENT
The quiescent current of the XTR117 (typically 130μA)
is the lower limit of its output current. Zero input current
(IIN = 0) will produce an IO equal to the quiescent current.
Output current will not begin to increase until
IIN > IQ/100. Current drawn from VREG will be added to
this minimum output current. Up to 3.8mA is available
to power external circuitry while still allowing the output
current to go below 4mA.
The XTR117 provides accurate, linear output up to
25mA. Internal circuitry limits the output current to
approximately 32mA to protect the transmitter and loop
power/measurement circuitry.
It is possible to extend the output current range of the
XTR117 by connecting an external resistor from pin 3
to pin 5, to change the current limit value. Since all
output current must flow through internal resistors, it is
possible to cause internal damage with excessive
current. Output currents greater than 45mA may cause
permanent damage.
OFFSETTING THE INPUT
A low-scale output of 4mA is produced by creating a
40μA input current. This input current can be created
with the proper value resistor from an external
REVERSE-VOLTAGE PROTECTION
reference voltage (V
) as shown in Figure 2. V
REF
REG
The XTR117 low compliance voltage rating (minimum
operating voltage) of 7.5V permits the use of various
voltage protection methods without compromising
operating range. Figure 3 shows a diode bridge circuit
which allows normal operation even when the voltage
connection lines are reversed. The bridge causes a two
diode drop (approximately 1.4V) loss in loop supply
voltage. This voltage drop results in a compliance
voltage of approximately 9V—satisfactory for most
applications. A diode can be inserted in series with the
loop supply voltage and the V+ pin to protect against
reverse output connection lines with only a 0.7V loss in
loop supply voltage.
can be used as shown in Figure 2 but will not have the
temperature stability of a high quality reference such as
the REF3125.
XTR117
VREG
8
VREF (2.5V) or
...................
R
Ω
62.5kIN
40 A
μ
IIN
2
A1
0 to 160 A
μ
IRET
3
R1
2.475k
Ω
Figure 2. Creating Low-Scale Offset
XTR117
VREG
V+
7
+5V
Regulator
8
Maximum VPS must be less
than minimum voltage rating
of the zener diode.
B
6
Q1
RIN
IIN
2
A1
(1)
μ
0.01
F
D1
IN4148
E
5
VIN
RLIM
VLOOP
RL
IRET
3
IO = 100 VIN
RIN
R1
2.475k
R2
25
The diode bridge causes a
1.4V loss in loop supply voltage.
See Reverse−Voltage Protection.
Ω
Ω
4
NOTE: (1) Some examples of zener diodes include: P6KE51 or 1N4755A. Use lower
voltage zener diodes with loop power−supply voltages < 30V for increased protection. See
Over−voltage Surge Protection.
Figure 3. Reverse Voltage Operation and Over-Voltage Surge Protection
6

XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
protection diode is used, a series diode or diode bridge
should be used for protection against reversed
connections.
OVER-VOLTAGE SURGE PROTECTION
Remote connections to current transmitters can
sometimes be subjected to voltage surges. It is prudent
to limit the maximum surge voltage applied to the
XTR117 to as low as practical. Various zener diode and
surge clamping diodes are specially designed for this
purpose. Select a clamp diode with as low a voltage
rating as possible for best protection. Absolute
maximum power-supply rating on the XTR117 is
specified at +50V. Keep overvoltages and transients
below +50V to ensure reliable operation when the
supply returns to normal (7.5V to 40V).
RADIO FREQUENCY INTERFERENCE
The long wire lengths of current loops invite radio
frequency (RF) interference. RF interference can be
rectified by the input circuitry of the XTR117 or
preceding circuitry. This effect generally appears as an
unstable output current that varies with the position of
loop supply or input wiring. Interference may also enter
at the input terminals. For integrated transmitter
assemblies with short connections to the sensor, the
interference more likely comes from the current loop
connections.
Most surge protection zener diodes have a diode
characteristic in the forward direction that will conduct
excessive current, possibly damaging receiving-side
circuitry if the loop connections are reversed. If a surge
XTR117
VREG
8
RIN
IIN
2
VO
D/A
IRET
3
XTR117
VREG
8
IIN
2
IO
D/A
Digital
Control
Optical
Isolation
IRET
3
VREG XTR117
8
RFILTER
RIN
IIN
2
PWM
Out
Digital
Control
μ
C
Optical
Isolation
CFILTER
IRET
3
Figure 4. Digital Control Methods
7
XTR117
www.ti.com
SBOS344C − SEPTEMBER 2005 − REVISED MAY 2012
VS
2.5V
Nonlinear
Bridge
Transducer
Ref
Linearization
Circuit
P
XTR117
PGA309
IO
VREG
+5V
Regulator
V+
7
psi
0
50
Lin DAC
8
Analog Sensor Linearization
B
6
Q1
ROS
RIN
Ω
125k
Ω
25k
IIN
Fault
Monitor
Linear
VOUT
VLOO P
Over/Under
Scale Limiter
Auto−Zero
PGA
(1)
2
A1
E
5
Analog Signal Conditioning
+125_C
−40_C
RL
RLIM
IRET
3
Digital
Temperature
Compensation
Int Temp
T
IO = 100VIN
RIN
R2
25Ω
R1
2.475k
Temp
ADC
Control Register
Interface Circuitry
Ω
Ext Temp
Ext Temp
4
EEPROM
(SOT23−5)
Digital Calibration
NOTE: (1) PGA309 VOUT: 0.5V to 4.5V.
Figure 5. Complete 4-20mA Pressure Transducer Solution with PGA309 and XTR117
DFN PACKAGE
LAYOUT GUIDELINES
The XTR117 is offered in a DFN-8 package (also known
as SON). The DFN is a QFN package with lead contacts
on only two sides of the bottom of the package. This
leadless package maximizes board space and
enhances thermal and electrical characteristics through
an exposed pad.
The exposed leadframe die pad on the DFN package
should be soldered to a thermal pad on the PCB. A
mechanical drawing showing an example layout is
attached at the end of this data sheet. Refinements to
this layout may be required based on assembly process
requirements. Mechanical drawings located at the end
of this data sheet list the physical dimensions for the
package and pad. The five holes in the landing pattern
are optional, and are intended for use with thermal vias
that connect the leadframe die pad to the heatsink area
on the PCB.
DFN packages are physically small, have a smaller
routing area, improved thermal performance, and
improved electrical parasitics. Additionally, the absence
of external leads eliminates bent-lead issues.
The DFN package can be easily mounted using
standard printed circuit board (PCB) assembly
techniques. See Application Note, QFN/SON PCB
Attachment (SLUA271) and Application Report, Quad
Flatpack No-Lead Logic Packages (SCBA017), both
available for download at www.ti.com.
Soldering the exposed pad significantly improves
board-level reliability during temperature cycling, key
push, package shear, and similar board-level tests.
Even with applications that have low power dissipation,
the exposed pad must be soldered to the PCB to
provide structural integrity and long-term stability.
The exposed leadframe die pad on the bottom of
the package should be connected to IRET or left
unconnected.
8
PACKAGE OPTION ADDENDUM
www.ti.com
10-Jun-2014
PACKAGING INFORMATION
Orderable Device
Status Package Type Package Pins Package
Eco Plan
Lead/Ball Finish
MSL Peak Temp
Op Temp (°C)
Device Marking
Samples
Drawing
Qty
(1)
(2)
(6)
(3)
(4/5)
COMBOSENSOR
XTR117AIDGKR
ACTIVE
0
8
TBD
Call TI
Call TI
ACTIVE
ACTIVE
ACTIVE
ACTIVE
ACTIVE
ACTIVE
ACTIVE
VSSOP
VSSOP
VSSOP
VSSOP
SON
DGK
DGK
DGK
DGK
DRB
DRB
DRB
2500
2500
250
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
Level-3-260C-168 HR
-40 to 125
-40 to 125
-40 to 125
-40 to 125
-40 to 125
-40 to 125
-40 to 125
BOZ
BOZ
BOZ
BOZ
BOY
BOY
BOY
XTR117AIDGKRG4
XTR117AIDGKT
XTR117AIDGKTG4
XTR117AIDRBR
XTR117AIDRBT
XTR117AIDRBTG4
8
8
8
8
8
8
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-3-260C-168 HR
Level-3-260C-168 HR
Level-3-260C-168 HR
Level-3-260C-168 HR
Level-3-260C-168 HR
Level-3-260C-168 HR
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
CU NIPDAU
CU NIPDAU
CU NIPDAU
3000
250
Green (RoHS
& no Sb/Br)
SON
Green (RoHS
& no Sb/Br)
SON
250
Green (RoHS
& no Sb/Br)
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Addendum-Page 1
PACKAGE OPTION ADDENDUM
www.ti.com
10-Jun-2014
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
24-Jul-2013
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
B0
K0
P1
W
Pin1
Diameter Width (mm) (mm) (mm) (mm) (mm) Quadrant
(mm) W1 (mm)
XTR117AIDGKR
XTR117AIDGKT
XTR117AIDRBR
XTR117AIDRBT
VSSOP
VSSOP
SON
DGK
DGK
DRB
DRB
8
8
8
8
2500
250
330.0
180.0
330.0
180.0
12.4
12.4
12.4
12.4
5.3
5.3
3.3
3.3
3.4
3.4
3.3
3.3
1.4
1.4
1.1
1.1
8.0
8.0
8.0
8.0
12.0
12.0
12.0
12.0
Q1
Q1
Q2
Q2
3000
250
SON
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
24-Jul-2013
*All dimensions are nominal
Device
Package Type Package Drawing Pins
SPQ
Length (mm) Width (mm) Height (mm)
XTR117AIDGKR
XTR117AIDGKT
XTR117AIDRBR
XTR117AIDRBT
VSSOP
VSSOP
SON
DGK
DGK
DRB
DRB
8
8
8
8
2500
250
367.0
210.0
367.0
210.0
367.0
185.0
367.0
185.0
35.0
35.0
35.0
35.0
3000
250
SON
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
amplifier.ti.com
dataconverter.ti.com
www.dlp.com
Automotive and Transportation www.ti.com/automotive
Communications and Telecom www.ti.com/communications
Amplifiers
Data Converters
DLP® Products
DSP
Computers and Peripherals
Consumer Electronics
Energy and Lighting
Industrial
www.ti.com/computers
www.ti.com/consumer-apps
www.ti.com/energy
dsp.ti.com
Clocks and Timers
Interface
www.ti.com/clocks
interface.ti.com
logic.ti.com
www.ti.com/industrial
www.ti.com/medical
Medical
Logic
Security
www.ti.com/security
Power Mgmt
Microcontrollers
RFID
power.ti.com
Space, Avionics and Defense
Video and Imaging
www.ti.com/space-avionics-defense
www.ti.com/video
microcontroller.ti.com
www.ti-rfid.com
www.ti.com/omap
OMAP Applications Processors
Wireless Connectivity
TI E2E Community
e2e.ti.com
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2014, Texas Instruments Incorporated
厂商 型号 描述 页数 下载

ETC

 		XTR100 [ ] 12 页

BB

 		XTR100AM [ Instrumentation Amplifier, 1 Func, 50uV Offset-Max, MDIP14, ] 12 页

BB

 		XTR100AP [ Instrumentation Amplifier, 1 Func, 50uV Offset-Max, PDIP14, ] 12 页

BB

 		XTR100BM [ Instrumentation Amplifier, 1 Func, 25uV Offset-Max, MDIP14, ] 12 页

BB

 		XTR100BP [ Instrumentation Amplifier, 1 Func, 25uV Offset-Max, PDIP14, ] 12 页

BB

 		XTR101 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 15 页

TI

 		XTR101 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 25 页

BB

 		XTR101AG 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 15 页

TI

 		XTR101AG 高精度，低漂移的4-20mA两线制变送器[ Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER ] 25 页

BB

 		XTR101AG-BI [ Instrumentation Amplifier, 1 Func, 60uV Offset-Max, CDIP14, ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.220321s
