XUM2APCNL03M12

型号:

XUM2APCNL03M12

品牌:

SCHNEIDER[ SCHNEIDER ELECTRIC ]

页数:

2 页

PDF大小:

78 K

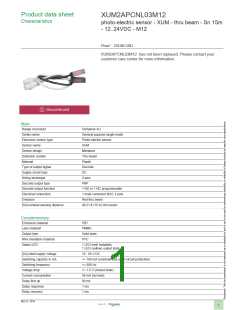

Product data sheet
XUM2APCNL03M12
Characteristics
photo-electric sensor - XUM - thru beam - Sn 15m
- 12..24VDC - M12
Price* : 102.80 USD
XUM2APCNL03M12 has not been replaced. Please contact your
customer care center for more information.
Discontinued
Main
Range of product
OsiSense XU
Series name
General purpose single mode
Electronic sensor type
Sensor name
Photo-electric sensor
XUM
Sensor design
Miniature
Detection system
Material
Thru beam
Plastic
Type of output signal
Supply circuit type
Wiring technique
Discrete output type
Discrete output function
Electrical connection
Emission
Discrete
DC
3-wire
PNP
1 NO or 1 NC programmable
1 male connector M12, 4 pins
Red thru beam
[Sn] nominal sensing distance
49.21 ft (15 m) thru beam
Complementary
Enclosure material
Lens material
PBT
PMMA
Solid state
PVC
Output type
Wire insulation material
Status LED
1 LED (red) instability
1 LED (yellow) output state
[Us] rated supply voltage
Switching capacity in mA
Switching frequency
Voltage drop
12...24 V DC
<= 100 mA (overload and short-circuit protection)
<= 500 Hz
<= 1.5 V (closed state)
35 mA (no-load)
30 ms
Current consumption
Delay first up
Delay response
1 ms
Delay recovery
1 ms
Mar 21, 2019
1
Setting-up
Sensitivity adjustment
Environment
Product certifications
CE
CSA
UL
Ambient air temperature for operation
Ambient air temperature for storage
Vibration resistance
-13...131 °F (-25...55 °C)
-22...158 °F (-30...70 °C)
7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Shock resistance
IP degree of protection
IP65 double insulation conforming to IEC 60529
IP67 double insulation conforming to IEC 60529
Ordering and shipping details
Category
22415 - SENSORS, PHOTOELECTRIC, BASIC
Discount Schedule
GTIN
DS2
003389119086363
Nbr. of units in pkg.
Package weight(Lbs)
Returnability
1
0.25
N
Country of origin
TH
2
