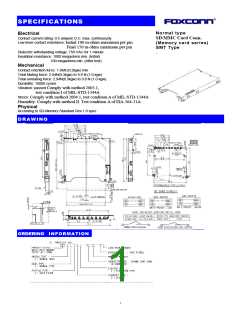

SPECIFICATIONS
Normal type
SD/MMC Card Conn.
(Memory card series)
SMT Type
Electrical
Contact current rating: 0.5 ampere D.C. max, continuously.
Low lever contact resistance: Initial 100 m-ohms maximum per pin
Final 150 m-ohms maximum per pin
Dielectric withstanding voltage: 750 VAC for 1 minute
Insulation resistance: 1000 megaohms min. (Initial)
100 megaohms min. (After test).
.
Mechanical
Contact retention force: 1.96N (0.2kgw) min.
Total Mating force: 2.94N(0.3kgw) to 9.8 N (1.0 kgw)
Total unmating force: 2.94N(0.3kgw) to 9.8 N (1.0 kgw).
Durability: 10000 cycles
Vibration: passed Comply with method 2005.1,
test condition I of MIL-STD-1344A
Shock: Comply with method 2004.1, test condition A of MIL-STD-1344A
Humidity: Comply with method II. Test condition A of EIA-364-31A.
Physical
According to SD-Memory Standard Rev:1.0 spec
DRAWING
ORDERING INFORMATION
