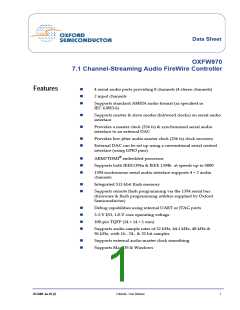

Data Sheet
OXFW970
7.1 Channel-Streaming Audio FireWire Controller
Features
„
„
„
4 serial-audio ports providing 8 channels (4 stereo channels)
2 input channels
Supports standard AM824 audio format (as specified in
IEC 61883-6)
„
„
Supports master & slave modes (bit/word clocks) on serial audio
interface
Provides a master clock (256 fs) & synchronized serial audio
interface to an external DAC
„
„
Provides low-jitter audio master clock (256 fs) clock recovery
External DAC can be set up using a conventional serial control
interface (using GPIO pins)
„
„
„
ARM7TDMI® embedded processor
Supports both IEEE1394a & IEEE 1394b at speeds up to S800
1394 isochronous serial audio interface supports 4 × 2 audio
channels
„
„
Integrated 512-kbit flash memory
Supports remote flash programming via the 1394 serial bus
(firmware & flash programming utilities supplied by Oxford
Semiconductor)
„
„
„
„
Debug capabilities using internal UART or JTAG ports
3.3-V I/O, 1.8-V core operating voltage
100-pin TQFP (14 × 14 × 1 mm)
Supports audio sample rates of 32 kHz, 44.1 kHz, 48 kHz &
96 kHz, with 16-, 24-, & 32-bit samples
„
„
Supports external audio master clock smoothing
Supports Mac OS & Windows
DS-0004 Jun 05 (2)
External—Free Release
1
OXFW970 Data Sheet
Oxford Semiconductor Ltd.
Device
The OXFW970 is a cost-effective 1394-to-audio native bridge.
Overview
This highly-integrated device offers a two-chip solution to native bridge
applications using an external 1394 PHY. The device is compatible with
both 1394-1995, 1394a and 1394b PHYs.
Applications can receive up to two channels of audio and stream data to
multiple speakers via DACs, generating 7.1 audio channels.
Device
Functionality
Within the device, the link controller complies with 1394-1995, 1394a and
1394b specifications. The 1394 transaction layer is implemented using a
combination of the ARM7TDMI (low-power 32-bit RISC processor) and a
high-performance buffer manager.
The FIFO manager has a RAM bandwidth of 1600 Mbps. It stores 1394
packets, passing them to the appropriate destinations without processor
intervention.
Configuration data, including the IEEE organizational unique identifier
(OUI) and device serial number, is stored in the flash ROM which may
be uploaded from the 1394 bus even when blank. The device also
facilitates firmware uploads from the 1394 bus.
The audio core in the OXFW970 can handle the transfer of samples in
standard 61883-6 format to multiple serial-audio interfaces. Interfaces
are configured to support stereo audio (4 × 2-channels gives the
necessary left/right samples). The audio core can support two versions of
serial-audio protocol and communicate with devices that use different
numbers of bits per sample. Input channels are handled via the internal
UART.
The OXFW970 also provides the master clock (256 fs) to the external
DAC, to which the serial-audio interface is synchronized. Clock recovery
is performed to synchronize the master clock to the 1394 transmitting
node. The performance of clock jitter can be further enhanced by using a
suitable external circuit.
Eight GPIO pins can be used to extend the device capabilities. GPIOs can
be used to control an external DAC via a DAC serial control interface.
On the device, UART signals are multiplexed to support debugging; and
other signals are wired to generate device interrupts.
Figure 1 shows the OXFW970.
2
External—Free Release
DS-0004 Jun 05 (2)
Oxford Semiconductor Ltd.
OXFW970 Data Sheet
Figure 1 OXFW970 Diagram
GPIO
Bit Clock
Word Clock
Data (0)
Data (1)
Data (2)
Data (3)
Serial Audio
ARM
Reference
Peripheral Set
RAM control
Asynch-
ronous
Engine/
Isoch Rx
Engine
FIFO pointers
Fill level
information
1394
1394
Link
Layer
Audio 256-fs Clock Out
Audio 256-fs Clock In
Audio PD VCO Out
Audio PD SYS Out
Unified memory
architecture:
Clock
Recovery
Flash
Memory
APB
Bridge
Queue
Selector
Audio-In
UART
Scratch
RAM
ARM7TMDI
Environmental
Characteristics
Tables 1 to 3 detail the required operating conditions for the device and
the DC electrical characteristics.
Table 1 Absolute Maximum Device Ratings
Symbol
Parameter
Rating
Units
V
V
V
T
DC supply voltage
1.8 V
3.3 V
2.7
3.8
V
DD
DC input voltage
3.3-V input buffer
3.3-V interface/5-V tolerant input buffer
3.8
6.5
V
V
IN
DC output voltage
Storage temperature
3.3-V output buffer
3.3-V interface/5-V tolerant output buffer
3.8
6.5
OUT
Storage temperature
–40 to 85
°C
STG
Table 2 Recommended Operating Conditions
Symbol
Parameter
Rating
Units
V
V
V
T
DC supply voltage for internal
DC supply voltage for I/O block 3.3 V
1.8 V
1.8 ± 0.15
3.3 ± 0.3
V
DD
DC input voltage
3.3-V input buffer
3.3-V interface/5-V tolerant input buffer
3.3 ± 0.3
3.0~5.25
V
IN
DC output voltage
3.3-V output buffer
3.3-V interface/5-V tolerant output buffer
3.3 ± 0.3
3.3 ± 0.3
OUT
Industrial temperature range
–40 to 85
°C
A
DS-0004 Jun 05 (2)
External—Free Release
3
OXFW970 Data Sheet
Oxford Semiconductor Ltd.
Table 3 Device I/O Buffer Electrical Characteristics
Symbol
Parameter
Input high voltage
Condition
Min
Type
Max
Units
V
V
CMOS Interface
2.0
V
IH
IL
Input low voltage
CMOS Interface
0.8
V
V
VT
Switching threshold
1.4
+
-
Schmitt trigger, positive-going threshold
Schmitt trigger, negative-going threshold
CMOS
CMOS
V = V
2.0
V
VT
VT
0.8
V
I
Input high current:
Input buffer
Input buffer with pull-down
μA
IH
IN
DD
SS
–10
10
10
60
33
I
Input low current:
Input buffer
Input buffer with pull-up
V = V
μA
IL
IN
–10
–60
10
–10
–33
V
Output high voltage
Output low voltage
I
I
= –1 μA
= –1 mA to –24 mA
V – 0.05
DD
V
V
OH
OL
OH
OH
2.4
V
I
I
= 1 μA
= 1 mA to 24 mA
0.05
0.4
OL
OL
I
Tri-state output leakage current
Quiescent supply current
Input capacitance
V
= V V
SS or DD
-10
10
100
4
μA
μA
pF
OZ
OUT
I
DD
C
Any input &
IN
bidirectional buffers
C
Output capacitance
Any output buffer
4
pF
OUT
Power
Table 4 gives power consumption figures for the OXFW970.
Consumption
Table 4 OXFW970 Power Consumption
Idle
Max
mA
115
6
mW
207
mA
250
25
mW
1.8 V
3.3 V
Core
I/O
450
19.8
82.5
4
External—Free Release
DS-0004 Jun 05 (2)
Oxford Semiconductor Ltd.
OXFW970 Data Sheet
Pinout &
Package
The device is supplied as a 100-pin TQFP package (14 × 14 × 1 mm).
Figure 2 shows the chip layout.
Information
Figure 2 OXFW970 Pinout
DNC
DNC
VDD1V8
VDD3V3
JTAG_TDI
JTAG_TCLK
JTAG_TMS
DNC
1
75
DNC
DNC
VSS3V3
VDD3V3
DNC
DNC
AUDIO_FS_WORD_CLK
DNC
DNC
VSS3V3
AUDIO_PD_VCO_OUT
VSS1V8
AUDIO_PD_SYS_OUT
VSS1V8
VDD1V8
GPIO_7
GPIO_6
GPIO_5
GPIO_4
DNC
VDD1V8
DNC
OXFW970
DNC
DNC
JTAG_UART_SEL
VDD1V8
VSS1V8
GPIO_3
DNC
GPIO_2
VSS3V3
DNC
GPIO_1
GPIO_0
DNC
VDD3V3
VSS3V3
DNC
DNC
Z_FORCE_FLASH
Z_RESET
DNC
25
51
Table 5 on page 6 details the pin allocations for the device.
DS-0004 Jun 05 (2)
External—Free Release
5
OXFW970 Data Sheet
Oxford Semiconductor Ltd.
Table 5 OXFW970 Pin Allocations (Sheet 1 of 2)
(1)
Pin
No.
Bits
Name
Description
Type
LINK (External Interface) (16 pins)
26,27,28,29,32,33,34,
35
8
5_BD_4T PD[7:0]
PHY-link data bus
36,37
41
2
1
5_BD_4T CTL[1:0]
PHY-link control bus
5_IU
PCLK
49.152-/ 98.304-MHz clock sourced by PHY. Drives
main clock system
42
1
1
1
1
1
O_4
5_IU
O_4
O_8
5_IU
LREQ
LINKON
LPS
Link request
43
Requests link to power up when in a low power mode
Indicates to PHY that link is powered and ready
B only—PCLK returned to PHY
B only—PHY Interrupt
45
40
LCLK
PINT
44
AUDIO
85
1
1
1
1
4
1
1
5_O_4
5_I
256FS_CLK_O
256FS_CLK_I
Sys clock generated 256Fs clock (to DAC)
Returned (smoothed) 256Fs clock (from VCO)
Serial audio bit clock
84
49
5_BD_4T BIT_CLK
68
5_B_4T
5_B_4T
5_B_4T
5_B_4T
WORD_CLK
Serial audio word clock
76,77,81,48
AUDIO_DATA[3:0]
SYS_FS_PDOUT
VCO_FS_PDOUT
Audio data synchronised to BIT_CLK
Output-of-audio phase detector from SYS_CLK
Output-of-audio phase detector from VCO clock
65
66
GPIO (8 pins)
62,61,60,59,18,19,20,
21
8
5_B_4T
GPIO[7:0]
General purpose I/O pins
PLL (5 pins)
91
93
92
90
89
1
1
1
1
1
P
P
P
P
P
PLL_DVDD
PLL_DVSS
PLL_AVDD
PLL_AVSS
VBB_PLL
PLL digital 1.8V
PLL digital GND
PLL analogue 1.8 V
PLL analogue GND
PLL bulk bias
UART / JTAG (4 pins) mode defined by JTAG_UART_SEL pin
100
4
1
1
1
1
O_4
UART_SOUT
UART transmitter serial data output
Active-low request-to-send output
Receiver serial data input
5_BU_4T UART_Z_RTS
5
5_IU
5_IU
UART_SIN
6
UART_Z_CTS
Active-low clear-to-send input.
MISC
24
25
98
1
1
1
5_IU
5_I
Z_FORCE_FLASH Allows flash memory programming
Z_RESET
Main asynchronous reset
5_ID
SEL_B_PHY
Selects between 1394a & 1394b mode:
High—B PHY
Low—A PHY
6
External—Free Release
DS-0004 Jun 05 (2)
Oxford Semiconductor Ltd.
OXFW970 Data Sheet
Table 5 OXFW970 Pin Allocations (Sheet 2 of 2)
(1)
Pin
No.
Bits
Name
Description
Type
15
JTAG_UART_SEL
Selects UART mode:
Low—UART
Power & Ground
2,11,16,38,63,88
6
9
VDD1V8
VDD3V3
3,22,30,46,50,71,83,
97,99
10,17,39,64,87
5
8
VSS1V8
VSS3V3
9,23,31,47,56,72,
82,96
NC
1,7,8,12,13,14,78,80,
86,94,95
11
14
NC
51,52,53,54,55,57,58,
67,69,70,73,74,75,79
Reserved
Tie low using 4K7 Ω resistor (typical)
Note:
1
Type key: format is [(W_)X(Y)(_Z(A))] where the following conventions apply:
W—Tolerance
X—Type
Input
Y—Pull
Z—Drive
4 mA
T—Tristate
Tristate
Normal
5
5 V
I
U
D
Pull up
4
8
T
3V3
O
B
Output
Pull down
None
8 mA
Bidirectional
12
12 mA
Figure 3 on page 8 shows the OXFW970 package.
DS-0004 Jun 05 (2)
External—Free Release
7
OXFW970 Data Sheet
Oxford Semiconductor Ltd.
Figure 3 OXFW970 Package
8
External—Free Release
DS-0004 Jun 05 (2)
Oxford Semiconductor Ltd.
OXFW970 Data Sheet
Ordering
Information
The following conventions are used to identify Oxford Semiconductor
products:
FW970 - TQ - A
FW970 - TQ - A G
Conventional package
Green package
Green (RoHS compliant)
Revision
Package Type: TQ 100 TQFP
Part Number
Contacting
Oxford Semi-
conductor
Oxford Semiconductor contact details:
Oxford Semiconductor Ltd.
25 Milton Park
Abingdon
Oxfordshire
OX14 4SH
United Kingdom
Website:
http://www.oxsemi.com
Telephone:
Fax:
+44 (0) 1235 824900
+44 (0) 1235 821141
Email:
sales@oxsemi.com
Alternatively, you can contact your local representative.
Revision
Table 6 documents the revisions of this guide.
Information
Table 6 Revision Information
Revision
Jan 05
Modification
Revised to clarify the use of the UART for audio input channels
Revised to reinstate missing pin & classify some NCs as reserved, tie low
Revised to correct erroneous electrical characteristics in Table 3 on page 4
Jun 05
Jun 05 (2)
DS-0004 Jun 05 (2)
External—Free Release
9
OXFW970 Data Sheet
Oxford Semiconductor Ltd.
All trademarks are the property of their respective owners
© Oxford Semiconductor Limited 2005
The content of this paper is furnished for informational use only, is subject to change without notice, and should not be construed
as a commitment by Oxford Semiconductor Limited. Oxford Semiconductor Limited assumes no responsibility or liability for
any errors or inaccuracies that may appear in this paper.
10
External—Free Release
DS-0004 Jun 05 (2)
厂商 型号 描述 页数 下载

ETC

 		OXFW900 IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 30 页

ETC

 		OXFW900-TQ-A IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 30 页

ETC

 		OXFW911 IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 32 页

ETC

 		OXFW911-TQ-A IEEE1394到ATA / ATAPI本地桥[ IEEE1394 to ATA/ATAPI Native Bridge ] 32 页

OXFORD

 		OXFW911PLUS 1394A到ATA7 / ATAPI桥[ 1394A-to-ATA7/ATAPI Bridge ] 2 页

OXFORD

 		OXFW912 1394B到ATA7 / ATAPI桥[ 1394B-to-ATA7/ATAPI Bridge ] 2 页

OXFORD

 		OXFW970-TQ-AG [ Micro Peripheral IC ] 10 页

OXFORD

 		OXFW971 16通道音频流火线I / O控制器， MIDI和S / PDIF[ 16 Channel Streaming Audio Firewire I/O Controller with Midi and S/PDIF ] 1 页

PLX

 		OXFW971-TQ-A [ Micro Peripheral IC, ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.174822s
