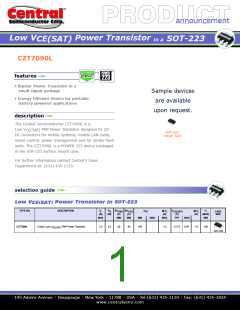

CZT7090LTR

型号:

CZT7090LTR

品牌:

CENTRAL[ CENTRAL SEMICONDUCTOR CORP ]

页数:

2 页

PDF大小:

247 K

PRODUannou
C
ncement
T
Low V
Power Transistor in a SOT-223
CE(SAT)
CZT7090L
features
• Bipolar Power Transistor in a
small signal package
Sample devices
• Energy Efficient Device for portable
are available
upon request.
battery powered applications
description
The Central Semiconductor CZT7090L is a
Low V
CE(SAT)
PNP Power Transistor designed for DC-
SOT-223
DC converters for mobile systems, mobile LAN cards,
motor control, power management and for strobe flash
units. The CZT7090L is a POWER 223 device packaged
in the SOT-223 surface mount case.
Actual Size
For further information contact Central’s Sales
Department at: (631) 435-1110.
selection guide
Low V
Power Transistor in SOT-223
CE(SAT)
TYPE NO.
DESCRIPTION
I
P
(W)
BV
(V)
MIN
BV
(V)
MIN
h
@ I
(A)
MAX
V
@ I
(A)
f
T
C
D
CBO
CEO
FE
C
CE(SAT)
(V)
TYP.
C
CASE
SIZE
(A)
MAX
(MHZ)
MIN
MIN
MAX
MAX
3 Amp, Low V
PNP Power Transistor
3.0
2.0
50
40
180
-
1.0
0.175
0.45
1.0
100
CZT7090L
CE(SAT)
SOT-223
145 Adams Avenue • Hauppauge • New York • 11788 • USA • Tel:(631) 435-1110 • Fax: (631) 435-1824
www.centralsemi.com
Low V
Power Transistor
in a SOT-223
CE(SAT)
Mechanical Specifications - SOT-223
LEAD CODE:
1) Base
2) Collector
3) Emitter
4) Collector
MARKING CODE:
Full Part Number
Tape Dimensions and Orientation
Mounting Pad Geometry
(Dimensions in mm)
(Dimensions in mm)
* Devices are taped in
accordance with
Tape Width:
12mm
Electronic Industries
Association Standard
EIA-481-1-A
Direction of Unreeling
Packaging Base
7” Reel = 1,000 pcs. (add TR suffix to part number)
13” Reel = 4,000 pcs. (add TR13 suffix to part number)
Bulk = 250 pcs. (add BK suffix to part number)
Ordering Information
• For devices taped and reeled on 7” reels, add TR
suffix to part number.
• For devices taped and reeled on 13” reels, add
TR13 suffix to part number.
• For devices bulk packed, add BK suffix to
part number.
• All SMDs are available bulk packed, for prototype
and manual placement applications.
For complete package details, please visit:
www.centralsemi.com/packagedetails
For further information contact:
Sales at Central Semiconductor Corp.
(631) 435-1110 or visit our website at:
w w w . c e n t r a l s e m i . c o m
Innovations in Discrete
Semiconductors
145 Adams Avenue • Hauppauge • New York • 11788 • USA • Tel:(631) 435-1110 • Fax: (631) 435-1824
PA CZT7090L
