QT8A0121-2011-8F

型号：

QT8A0121-2011-8F

品牌：

FOXCONN[ FOXCONN ]

页数：

1 页

PDF大小：

37 K

下载PDF手册

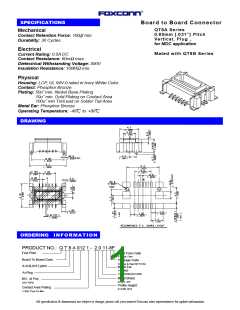

SPECIFICATIONS
Board to Board Connector
QT8A Series
Mechanical
Contact Retention Force: 100gf min.
Durability: 30 Cycles
0.80mm [.031”] Pitch
Vertical, Plug ,
for MDC application
Electrical
Current Rating: 0.5A DC
Mated with QT8B Series
Contact Resistance: 60mW max.
Dielectrical Withstanding Voltage: 500V
Insulation Resistance: 100MW min.
Physical
Housing: LCP, UL 94V-0 rated in Ivory White Color
Contact: Phosphor Bronze
Plating: 50u” min. Nickel Base Plating
10u” min. Gold Plating on Contact Area
100u” min Tin/Lead on Solder Tail Area
Metal Ear: Phosphor Bronze
Operating Temperature: -40℃ to +80℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: Q T 8 A 012 1 - 2 0 11-8F
Fine Pitch
Lead Free Code
F=Lead Free
Board To Board Conn.
8=0.8[.031"] pitch
A=Plug.
Package Code
8=Tape & Reel W/ Pi-Film
Metal Ear
1=W/ M/E
1=EXTENSION CODE
Metal Shied:
0=W/O S/P
NO. of Pos.
012=12Pin
Profile Height:
2=3.60[.142"]
Contact Area Plating:
1=50u" Pure Tin Min.
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
