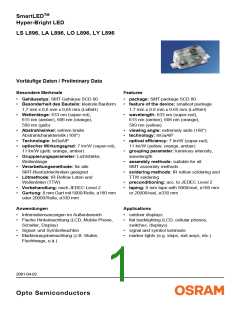

SmartLEDTM
Hyper-Bright LED
LS L896, LA L896, LO L896, LY L896
Vorläufige Daten / Preliminary Data
Besondere Merkmale
Features
• Gehäusetyp: SMT Gehäuse SCD 80
• Besonderheit des Bauteils: kleinste Bauform
1,7 mm x 0,8 mm x 0,65 mm (LxBxH)
• Wellenlänge: 633 nm (super-rot),
615 nm (amber), 606 nm (orange),
589 nm (gelb)
• package: SMT package SCD 80
• feature of the device: smallest package
1.7 mm x 0.8 mm x 0.65 mm (LxWxH)
• wavelength: 633 nm (super-red),
615 nm (amber), 606 nm (orange),
589 nm (yellow)
• Abstrahlwinkel: extrem breite
Abstrahlcharakteristik (160°)
• viewing angle: extremely wide (160°)
• technology: InGaAlP
• Technologie: InGaAlP
• optischer Wirkungsgrad: 7 lm/W (super-rot),
11 lm/W (gelb, orange, amber)
• Gruppierungsparameter: Lichtstärke,
Wellenlänge
• Verarbeitungsmethode: für alle
SMT-Bestücktechniken geeignet
• Lötmethode: IR Reflow Löten und
Wellenlöten (TTW)
• optical efficiency: 7 lm/W (super-red),
11 lm/W (yellow, orange, amber)
• grouping parameter: luminous intensity,
wavelength
• assembly methods: suitable for all
SMT assembly methods
• soldering methods: IR reflow soldering and
TTW soldering
• preconditioning: acc. to JEDEC Level 2
• taping: 8 mm tape with 5000/reel, ø180 mm
or 20000/reel, ø330 mm
• Vorbehandlung: nach JEDEC Level 2
• Gurtung: 8 mm Gurt mit 5000/Rolle, ø180 mm
oder 20000/Rolle, ø330 mm
Anwendungen
Applications
• Informationsanzeigen im Außenbereich
• Flache Hinterleuchtung (LCD, Mobile Phone,
Schalter, Display)
• outdoor displays
• flat backlighting (LCD, cellular phones,
switches, displays)
• Signal- und Symbolleuchten
• Markierungsbeleuchtung (z.B. Stufen,
Fluchtwege, u.ä.)
• signal and symbol luminaire
• marker lights (e.g. steps, exit ways, etc.)
2001-04-02
1
LS L896, LA L896, LO L896, LY L896
Typ
Emissions- Gehäusefarbe Lichtstärke
farbe
Lichtstrom
Bestellnummer
Ordering Code
Type
Color of
Emission
Color of
Package
Luminous
Intensity
IF = 20 mA
IV (mcd)
Luminous
Flux
IF = 20 mA
ΦV (mlm)
LS L896-M1N1-1 super-red
LS L896-N1P2-1
colorless clear 18.0 … 35.5
28.0 … 71.0
105 (typ.)
200 (typ.)
Q62703-Q6020
Q62703-Q6160
LA L896-P1Q1-1 amber
LA L896-Q1R2-1
colorless clear 45.0 … 90.0
71.0 …180.0
270 (typ.)
500 (typ.)
Q62703-Q6204
Q62703-Q6205
LO L896-P1Q1-1 orange
LO L896-Q1R2-1
colorless clear 45.0 … 90.0
71.0 …180.0
270 (typ.)
500 (typ.)
Q62703-Q6207
Q62703-Q6208
LY L896-P1Q1-1 yellow
LY L896-Q1R2-1
colorless clear 45.0 … 90.0
71.0 …180.0
270 (typ.)
500 (typ.)
Q62703-Q6021
Q62703-Q6164
Anm.: -1 gesamter Farbbereich, Lieferung in Einzelgruppen (siehe Seite 5)
Die Standardlieferform von Serientypen beinhaltet eine untere bzw. eine obere Familiengruppe,
die aus nur 3 bzw. 4 Halbgruppen besteht. Einzelne Halbgruppen sind nicht erhältlich.
In einer Verpackungseinheit / Gurt ist immer nur eine Halbgruppe enthalten.
Note: -1 Total color tolerance range, delivery in single groups (please see page 5)
The standard shipping format for serial types includes a lower or upper family group of 3 or 4
individual groups. Individual half groups are not available.
No packing unit / tape ever contains more than one luminous intensity group.
2001-04-02
2
LS L896, LA L896, LO L896, LY L896
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS, LA
LO, LY
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
– 40 … + 100
°C
°C
°C
mA
A
Lagertemperatur
Storage temperature range
– 40 … + 100
Sperrschichttemperatur
Junction temperature
+ 110
30
Durchlassstrom
Forward current
IF
60
Stoßstrom
IFM
–
–
Surge current
t ≤ 10 µs, D = 0.1
Sperrspannung
Reverse voltage
VR
3
V
Leistungsaufnahme
Power consumption
Ptot
170
80
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
500
290
K/W
K/W
Junction/solder point
Montage auf PC-Board FR 4 (Padgröße ≥ 16 mm2)
mounted on PC board FR 4 (pad size ≥ 16 mm 2)
2001-04-02
3
LS L896, LA L896, LO L896, LY L896
Kennwerte (TA = 25 °C)
Characteristics
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LA
LO LY
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 20 mA
(typ.) λpeak
645 622 610 591 nm
Dominantwellenlänge 1)
Dominant wavelength 1)
IF = 20 mA
(typ.) λdom
633 615 606 589 nm
± 6 ± 6 ± 6 ± 6
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 20 mA
(typ.)
16
16
16
15
nm
∆λ
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
(typ.) 2ϕ
160 160 160 160 Grad
deg.
Durchlassspannung 2)
Forward voltage 2)
IF = 20 mA
(typ.) VF
(max.) VF
2.0 2.0 2.0 2.0
2.4 2.4 2.4 2.4
V
V
Sperrstrom
Reverse current
VR = 5 V
(typ.) IR
(max.) IR
0.01 0.01 0.01 0.01 µA
10 10 10 10 µA
Temperaturkoeffizient von λpeak
Temperature coefficient of λpeak
IF = 20 mA; –10°C ≤ T ≤ 100°C
(typ.) TCλpeak
(typ.) TCλdom
(typ.) TCV
0.14 0.13 0.13 0.13 nm/K
0.01 0.06 0.07 0.10 nm/K
– 2.0 – 1.8 – 1.7 – 2.5 mV/K
Temperaturkoeffizient von λdom
Temperature coefficient of λdom
IF = 20 mA; –10°C ≤ T ≤ 100°C
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 20 mA; –10°C ≤ T ≤ 100°C
Optischer Wirkungsgrad
Optical efficiency
IF = 20 mA
(typ.) ηopt
7
11
11
11
lm/W
2001-04-02
4
LS L896, LA L896, LO L896, LY L896
1) Wellenlängengruppen für LY L896
Wavelength groups for LY L896
Gruppe
Group
Wellenlänge
Wavelength
Einheit
Unit
min.
583
586
589
592
max.
586
589
592
595
3
4
5
6
nm
nm
nm
nm
Wellenlängengruppen werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±1 nm ermittelt.
Wavelength groups are tested at a current pulse duration of 25 ms and an accuracy of ±1 nm.
2) Spannungswerte werden mit einer Stromeinprägedauer von 1 ms und einer Genauigkeit von ±0.1 V ermittelt.
Voltages are tested at a current pulse duration of 1 ms and an accuracy of ±0.1 V.
Helligkeits-Gruppierungsschema
Luminous Intensity Groups
Lichtgruppe
Luminous Intensity Group
Lichtstärke
Luminous Intensity
IV (mcd)
Lichtstrom
Luminous Flux
ΦV (mlm)
M1
M2
N1
N2
P1
P2
Q1
Q2
R1
R2
18.0 … 22.4
22.4 … 28.0
28.0 … 35.5
35.5 … 45.0
45.0 … 56.0
56.0 … 71.0
71.0 … 90.0
90.0 …112.0
112.0 …140.0
140.0 …180.0
80 (typ.)
100 (typ.)
125 (typ.)
160 (typ.)
200 (typ.)
250 (typ.)
320 (typ.)
400 (typ.)
500 (typ.)
640 (typ.)
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ± 11% ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ± 11%.
Gruppenbezeichnung auf Etikett
Group Name on Label
Beispiel: R2-3
Example: R2-3
Lichtgruppe
Luminous Intensity Group
Halbgruppe
Half Group
Wellenlänge
Wavelength
R
2
3
2001-04-02
5
LS L896, LA L896, LO L896, LY L896
Relative spektrale Emission Irel = f (λ), TA = 25 °C, IF = 20 mA
Relative Spectral Emission
V(λ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL00235
100
%
Irel
80
60
40
20
0
V
λ
yellow
orange
amber
super-red
400
450
500
550
600
650
nm
700
λ
Abstrahlcharakteristik Irel = f (ϕ)
Radiation Characteristic
40˚
30˚
20˚
10˚
0˚
OHL01440
1.0
50˚
0.8
0.6
0.4
60˚
70˚
0.2
0
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
6
20˚
40˚
60˚
80˚
100˚
120˚
2001-04-02
LS L896, LA L896, LO L896, LY L896
Durchlassstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(20 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL00232
OHL00233
102
mA
5
10 1
IV
IV (20 mA)
IF
10 0
5
101
5
10 -1
5
super-red
yellow
100
5
orange/amber
10 -2
5
10-1
10 -3
10 -1
5
10 0
5
10 1
mA 10 2
1
1.4
1.8
2.2
2.6
3
V 3.4
VF
IF
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
TS: temp. solder point
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
TA: temp. ambient
OHL01457
OHL01454
70
70
mA
mA
IF
IF
super-red/amber
super-red/amber
60
60
50
50
R
thjs = 290 K/W
Rthja = 500 K/W
40
30
20
10
0
40
30
20
10
0
yellow/orange
yellow/orange
0 10 20 30 40 50 60 70 80 ˚C100
0 10 20 30 40 50 60 70 80 ˚C100
TS
TA
2001-04-02
7
LS L896, LA L896, LO L896, LY L896
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 20 mA
OHL00238
2.0
IV
IV (25 ˚C)
1.6
orange
yellow
amber
super-red
1.2
0.8
0.4
0
orange
yellow
amber
super-red
-20
0
20
40
60
˚C 100
T
A
2001-04-02
8
LS L896, LA L896, LO L896, LY L896
Maßzeichnung
Package Outlines
+0.05 (0.002)
-0.03 (0.001)
0.125 (0.005)
±0.1 (0.004)
0.8 (0.031)
Cathode
0.3 (0.012)
+0.02 (0.001)
-0.05 (0.002)
0.65 (0.026)
GPLY6057
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gewicht / Approx. weight:1,4 mg
2001-04-02
9
LS L896, LA L896, LO L896, LY L896
Lötbedingungen
Vorbehandlung nach JEDEC Level 2
Soldering Conditions Preconditioning acc. to JEDEC Level 2
IR-Reflow Lötprofil
(nach IPC 9501)
IR Reflow Soldering Profile (acc. to IPC 9501)
OHLY0597
300
˚C
250
200
150
100
50
T
240-245 ˚C
10-40 s
183 ˚C
120 to 180 s
Ramp-down rate up to 6 K/s
Defined for Preconditioning: up to 6 K/s
Ramp-up rate up to 6 K/s
Defined for Preconditioning: 2-3 K/s
0
0
50
100
150
200
s
250
t
2001-04-02
10
LS L896, LA L896, LO L896, LY L896
Wellenlöten (TTW) (nach CECC 00802)
TTW Soldering
(acc. to CECC 00802)
OHLY0598
300
C
10 s
Normalkurve
standard curve
250
200
150
100
50
T
235 C ... 260 C
Grenzkurven
limit curves
2. Welle
2. wave
1. Welle
1. wave
ca 200 K/s
2 K/s
5 K/s
100 C ... 130 C
Zwangskühlung
2 K/s
forced cooling
0
0
50
100
150
200
s
250
t
Empfohlenes Lötpaddesign IR Reflow Löten und Wellenlöten (TTW)
Recommended Solder Pad
IR Reflow Soldering and TTW Soldering
1.45 (0.057)
0.35 (0.014)
OHPY1301
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2001-04-02
11
LS L896, LA L896, LO L896, LY L896
Gurtung / Polarität und Lage
Verpackungseinheit 8 mm Gurt mit 5000/Rolle,
ø180 mm oder 20000/Rolle, ø330 mm
Method of Taping / Polarity and Orientation Packing unit 8 mm tape with 5000/reel, ø180 mm
or 20000/reel, ø330 mm
4 (0.157)
1.5 (0.059)
C
A
2 (0.079)
0.4 (0.016)
0.93 (0.037)
OHAY1350
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2001-04-02
12
LS L896, LA L896, LO L896, LY L896
Revision History: 2001-04-02
Previous Version: 2001-03-09
Page
Subjects (major changes since last revision)
Lichtstrom / Luminous Flux
5
Published by OSRAM Opto Semiconductors GmbH & Co. OHG
Wernerwerkstrasse 2, D-93049 Regensburg
© All Rights Reserved.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics.
Terms of delivery and rights to change design reserved. Due to technical requirements components may contain
dangerous substances. For information on the types in question please contact our Sales Organization.
Packing
Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office.
By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing
material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs
incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose! Critical
components 1 may only be used in life-support devices or systems 2 with the express written approval of OSRAM OS.
1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected
to cause the failure of that life-support device or system, or to affect its safety or effectiveness of that device or system.
2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain
and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered.
2001-04-02
13
厂商 型号 描述 页数 下载

OSRAM

 		LYL296 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296-P1R2-26 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296-P2R1-26 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296-Q2R2-26 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296_12 [ SMARTLED ] 20 页

OSRAM

 		LYL29K SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K-H1J2-26 SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K-H1K2-26 SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K-J1K2-26 SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K_12 [ LCD Backlighting ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.169633s
