IXF3208

型号:

IXF3208

品牌:

INTEL[ INTEL ]

页数:

30 页

PDF大小:

132 K

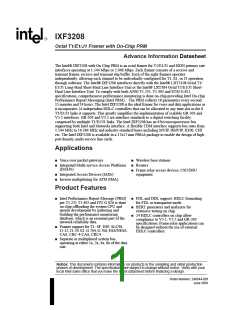

IXF3208
Octal T1/E1/J1 Framer with On-Chip PRM
Advance Information Datasheet
The Intel® IXF3208 with On Chip PRM is an octal framer for T1/E1/J1 and ISDN primary rate
interfaces operating at 1.544 Mbps or 2.048 Mbps. Each framer consists of a receive and
transmit framer, receive and transmit slip buffer. Each of the eight framers operates
independently, allowing each channel to be individually configured for T1, E1, or J1 operation
through software. The Intel® IXF3208 interfaces directly with the Intel® LXT3108 Octal T1/
E1/J1 Long-Haul Short-Haul Line Interface Unit or the Intel® LXT384 Octal T1/E1/J1 Short-
Haul Line Interface Unit. To comply with both ANSI T1.231, T1.403 and ETSI G.821
specifications, comprehensive performance monitoring is done on-chip providing Intel On-chip
Performance Report Messaging (Intel PRM). The PRM collects 18 parameters every second,
15 minutes and 24 hours. The Intel IXF3208 is the ideal framer for voice and data applications as
it incorporates 24 independent HDLC controllers that can be allocated to any time slot in the 8
T1/E1/J1 links it supports. This greatly simplifies the implementation of scalable GR-303 and
V5.2 interfaces. GR-303 and V5.2 are interface standards to a digital switching facility
comprised by multiple T1/E1/J1 links. The Intel IXF3208 has an 8 bit microprocessor bus
supporting both Intel and Motorola interface. A flexible TDM interface supports bus rates from
1.544 MHz to 16.384 MHz and industry-standard buses including MVIP, HMVIP, H100, CHI
etc. The Intel IXF3208 is available in a 17x17 mm PBGA package to enable the design of high-
port density, multi-service line cards.
Applications
Voice over packet gateways
Wireless base stations
Integrated Multi-service Access Platforms Routers
(IMAPs)
Frame relay access devices, CSU/DSU
equipment
Integrated Access Devices (IADs)
Inverse multiplexing for ATM (IMA)
Product Features
Intel Performance Report Message (PRM) FDL and DDL support. HDLC formatting
per T1.231 T1.403 and ITU G.826 is done
on-chip offloading the system CPU and
speeds development by gathering and
building the performance monitoring
database, which is an essential part of the
network reliability data.
for FDL or transparent mode.
BERT generators and analyzers for
extensive testing on chip.
24 HDLC controllers on chip allow
compliance to V5.1, V5.2 and GR-303
specifications. Frame relay applications can
be designed without the use of external
HDLC controllers.
Framer support for T1: SF, ESF, SLC96,
J1-12, J1-24. E1: G.704, G.706, FAS/NFAS,
CAS, CRC-4-CAS, CRC4.
Separate or multiplexed system bus
operating at either 1x, 2x, 4x, 8x of the data
rate.
Notice: This document contains information on products in the sampling and initial production
phases of development. The specifications are subject to change without notice. Verify with your
local Intel sales office that you have the latest datasheet before finalizing a design.
Order Number: 249544-001
June 2001
Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual
property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability
whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to
fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not
intended for use in medical, life saving, or life sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
The LXT3008 may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current
characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel’s website at http://www.intel.com.
Copyright © Intel Corporation, 2001
*Third-party brands and names are the property of their respective owners.
Advance Information Datasheet
Octal T1/E1/J1 Framer with On-Chip PRM — IXF3208
Contents
1.0
2.0
3.0
4.0
5.0
6.0
7.0
Introduction..................................................................................................................5
Pin Description............................................................................................................7
T1/E1 Nomenclature................................................................................................12
IXF3208 Nomenclature...........................................................................................13
Feature Set..................................................................................................................13
Alarm and Fault Indicators...................................................................................20
Mechanical Specification......................................................................................29
Figures
Tables
1
2
3
IXF3208 Block Diagram ........................................................................................5
LXT3108/IXF3208 PRI ..........................................................................................6
IXF3208 256 PBGA Mechanical Specification ....................................................29
1
2
3
4
5
6
7
8
IXF3208 Ball Description.......................................................................................7
IXF3208 Feature Set - General...........................................................................13
Line and Framing ................................................................................................14
Slip Buffers..........................................................................................................16
Signaling..............................................................................................................16
Data Links ...........................................................................................................16
T1 Performance Monitoring.................................................................................17
E1 Performance Monitoring.................................................................................19
Main T1 Indicators...............................................................................................20
Main E1 Indicators...............................................................................................22
IXF3208 Feature Set - Data Links.......................................................................24
IXF3208 Feature Set - Embedded HDLC Controller...........................................24
IXF3208 Feature Set - Pattern Generator/Receiver and BER Tester .................26
IXF3208 Feature Set - Interfaces........................................................................27
IXF3208 Feature Set - Maintenance/Miscellaneous ...........................................28
9
10
11
12
13
14
15
Advance Information Datasheet
3
IXF3208 — Octal T1/E1/J1 Framer with On-Chip PRM
4
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Figure 1. IXF3208 Block Diagram
Receive Framer
ZCS
RPOS
RNEG
Receive
System Bus
Slip Buffer
Decode
Signaling
Engine
FDL
Overhead Alarms
Engine Engine
Transmit Framer
ZCS
Encode
TPOS
TNEG
Transmit
System Bus
Slip Buffer
Signaling
FDL
Engine
Overhead Alarms
Engine
Engine
Host Interface Module
Control/Status
Registers
BERT - 32
Generator/
Analyzer
24 Full Duplex
HDLC
Controllers
Internal
PRM
Database
JTAG Port
8Bit Intel/Motorola
Test Port
Microprocessor Bus
1.0
Introduction
The IXF3208 is an eight-channel framer for T1/E1/J1 and Integrated Service Digital Network
(ISDN) primary rate interfaces operating at 1.544 Mbps or 2.048 Mbps. All framers are completely
independent and each port can be configured for either T1/E1/J1 operation. An 8 bit
microprocessor interface is provided that supports both Intel® and Motorola microprocessors. The
internal registers are directly addressable through the microprocessor interface. Extensive support
to the data link channels (SLC96 DDL, FDL, Sa bits, CCS) is also provided.
IXF3208 offers on-chip Performance Report Message (PRM). The on-chip PRM processing is
done automatically with data stored on the device. The internal database with performance monitor
units (accessible by a host) provides status and performance parameters already integrated and
filtered according to the available configurations. This feature offloads the external processor from
the handling of the parameters associated with the functions of this device.The standards supported
are ANSI T1.231 (T1) and ITU G.826 (E1). Support is also provided for ETSI ETS 300 011 and
ETS 300 233.
Each of the channels supports T1-D4 SF, T1-ESF, T1-SLC96, J1-12, J1-24, E1-FAS/NFAS, E1-
CRC4, E1-CAS, E1-CRC4/CAS, G.704, and G.706 frame structures. CRC inter-working is also
supported.
Each port is independent in timing and format from the others. For plesiochronous applications
independent two-frame deep slip buffers are provided in both transmit and receive directions.
Smaller elastic store depths are available for minimum delay applications.
The system back-plane can be configured to handle different rates and waveforms. The back-plane
has data, signaling, and framing indication pins. The clock can be run at speeds of 1x, 2x, 4x, and
8x of the data rate. The Time Division Multiplexing (TDM) highway can be configured to handle
different industry standard buses such as MVIP, HMVIP, IOM/GCI, CT-Bus (H.100), SCSA
(S.100), and CHI bus interfaces. Gapped clock for fractional T1/E1 applications is also supported.
Advance Information Datasheet
5
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Test and diagnostic functions are provided through a full set of loopbacks and a Bit Error Rate Test
(BERT) module. Local Loopback, Dual Loopback, Payload Loopback, Line Loopback, and per-
time slot loopbacks are available. The BERT module can handle simultaneously 8 generators and
analyzers. Any generator and analyzer is available for each port and can be set to any time slot or
set of time slots. Subrate testing is also available using a mask to define which bits in the time slots
are tested. The generators and analyzers can be set to operate on either the line or system sides.
Signaling support, robbed bit, and TS16CAS are provided for all eight ports. Signaling information
is available either from the system back-plane bus or from a table that can be accessed by the
external host. The signaling at the Tx direction on the system back-plane can be sent to the line
side. Also, the user can set a table of signaling values to be sent in any direction. The freeze and de-
bouncing functions are programmable. Two, four, nine and sixteen signaling states are available.
Alarms and error conditions at DS1/E1 levels are detected and reported. These include AIS, LOS,
yellow, and TS16 AIS. Integration times are applied to the detected defects in order to provide the
failure indications (LOS, LOF, AIS, RAI failures). TDM blanking, AIS, Digital milliwatt, and DRS
codes can be sent to either the line or system backplane.
Figure 2. LXT3108/IXF3208 PRI
LXT3108 (Octal LH/SH T1/E1/J1 LIU)
Address
Bus
8/16
8/16
Data
Bus
Microprocessor
IXF3208 (Octal T1/E1/J1 Framer)
TDM Interface
6
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
2.0
Pin Description
Table 1. IXF3208 Ball Description
PBGA
Ball Name
Line Side
I/O
Description
C3
D2
RCLK8
RCLK7
RCLK6
RCLK5
RCLK4
RCLK3
RCLK2
RCLK1
I
I
I
I
I
I
I
I
B16
A14
R13
T16
N3
Clock from LIU.
T3
B3
D3
RPOS8
RPOS7
RPOS6
RPOS5
RPOS4
RPOS3
RPOS2
RPOS1
I
I
I
I
I
I
I
I
C14
A13
T13
R15
R1
Receive POS data from LIU.
Receive NEG data from LIU.
Clock to LIU.
T4
A2
C1
RNEG8
RNEG7
RNEG6
RNEG5
RNEG4
RNEG3
RNEG2
RNEG1
I
I
I
I
I
I
I
I
C15
C13
P12
T15
P2
R4
C2
E2
TCLK8
TCLK7
TCLK6
TCLK5
TCLK4
TCLK3
TCLK2
TCLK1
O
O
O
O
O
O
O
O
D15
B15
R14
N14
N2
R2
A1
E3
TPOS8
TPOS7
TPOS6
TPOS5
TPOS4
TPOS3
TPOS2
TPOS1
O
O
O
O
O
O
O
O
D14
A15
T14
R16
P3
Transmit POS data to LIU.
T2
Advance Information Datasheet
7
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 1. IXF3208 Ball Description
PBGA
Ball Name
I/O
Description
B2
D1
TNEG8
TNEG7
TNEG6
TNEG5
TNEG4
TNEG3
TNEG2
TNEG1
O
O
O
O
O
O
O
O
C16
B14
P13
P15
P1
Transmit NEG to LIU.
R3
Backplane
Side
T12
K15
H12
F14
E10
C8
BRCLK8
BRCLK7
BRCLK6
BRCLK5
BRCLK4
BRCLK3
BRCLK2
BRCLK1
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Receive clock at the back-plane.
C6
D4
R11
K14
H13
F13
B11
A8
BRDATA8
BRDATA7
BRDATA6
BRDATA5
BRDATA4
BRDATA3
BRDATA2
BRDATA1
O
O
O
O
O
O
O
O
Receive data at the back-plane.
A6
B4
P11
L16
H16
F15
D11
D8
BRFP8
BRFP7
BRFP6
BRFP5
BRFP4
BRFP3
BRFP2
BRFP1
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Receive frame pulse at the back-plane.
C7
A3
T11
M16
J13
F16
A11
D9
BRMFP8
BRMFP7
BRMFP6
BRMFP5
BRMFP4
BRMFP3
BRMFP2
BRMFP1
O
O
O
O
O
O
O
O
Receive multi-frame pulse at the back-plane.
B7
C5
8
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 1. IXF3208 Ball Description
PBGA
Ball Name
I/O
Description
P10
M13
J15
G15
C11
C9
BRSIG8
BRSIG7
BRSIG6
BRSIG5
BRSIG4
BRSIG3
BRSIG2
BRSIG1
O
O
O
O
O
O
O
O
Rx signalling at the back-plane.
D6
B5
R10
N13
J14
G16
D13
B9
BTCLK8
BTCLK7
BTCLK6
BTCLK5
BTCLK4
BTCLK3
BTCLK2
BTCLK1
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Transmit clock at the back-plane.
E7
A4
T10
M14
J16
G14
A12
A9
BTDATA8
BTDATA7
BTDATA6
BTDATA5
BTDATA4
BTDATA3
BTDATA2
BTDATA1
I
I
I
I
I
I
I
I
Transmit data at the back-plane.
A7
A5
T9
L15
L13
G13
B12
D10
D7
BTFP8
BTFP7
BTFP6
BTFP5
BTFP4
BTFP3
BTFP2
BTFP1
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Transmit frame pulse at the back-plane.
D5
P9
L14
K13
H14
C12
C10
E8
BTMFP8
BTMFP7
BTMFP6
BTMFP5
BTMFP4
BTMFP3
BTMFP2
BTMFP1
I
I
I
I
I
I
I
I
Transmit multi-frame pulse at the back-plane.
E6
Advance Information Datasheet
9
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 1. IXF3208 Ball Description
PBGA
Ball Name
I/O
Description
R9
M15
K16
H15
D12
B10
B8
BTSIG8
BTSIG7
BTSIG6
BTSIG5
BTSIG4
BTSIG3
BTSIG2
BTSIG1
I
I
I
I
I
I
I
I
Tx signaling at the back-plane.
B6
C4
B1
ALOS8
ALOS7
ALOS6
ALOS5
ALOS4
ALOS3
ALOS2
ALOS1
I
I
I
I
I
I
I
I
A16
B13
R12
N11
T1
Loss of Signal Indicator from LIU.
P4
Host Side
G2
G1
G3
H4
H1
H3
H2
J1
ADR15
ADR14
ADR13
ADR12
ADR11
ADR10
ADR9
ADR8
ADR7
ADR6
ADR5
ADR4
ADR3
ADR2
ADR1
ADR0
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Microprocessor address lines.
J3
K1
J2
J4
K4
K3
L1
K2
N1
M3
M2
N4
M1
L3
DB7
DB6
DB5
DB4
DB3
DB2
DB1
DB0
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
Microprocessor data bus.
M4
L2
N12
F1
INTELMOT
MOTOTYPE
CSB
I
I
I
I
Intel = 1, Motorola = 0.
MPC860 = 0, MC68302 = 1.
Chip select, active low.
Read = 1, Write = 0.
F3
N16
RWB
10
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 1. IXF3208 Ball Description
PBGA
Ball Name
I/O
Description
Ready signal, active low.
N15
P16
F2
RDYB
INTB
WEB
DSB
O
O
I
Hardware interrupt output.
Write enable, active low (for MPC860).
Data strobe, active low.
P14
I
Clock
References
Clock input to be used to generate E1 rates locked to the
reference with jitter removed.
P5
T5
E1x24
I
I
Clock input to be used to generate T1 rates locked to the
reference with jitter removed.
T1x24
System Clock
SYSCLK
The system clock used for the internal state machines.
Typically a 33 MHz clock.
E1
R6
I
I
RESETB
Master hardware reset, active low.
Clock Outputs
Reference clock that can be taken from any of the Rx
lines or the internal circuitry.
R5
REFCLK
O
JTAG
TMS
E15
E14
D16
E13
E16
I
I
JTAG Test Mode.
JTAG clock.
TCK
TDI
I
JTAG data input.
JTAG data output.
JTAG reset, active low.
TDO
O
I
TRSTB
Test
R7
P7
T7
P6
T6
P8
R8
H6
T8
TESTENB
SCANEN
TRISTB
ARCTMSB
ARCTDO
TDRIN
TDROUT
I
I
Normal operation = 1, Scan mode = 0.
I
Normal operation = 1, Tristate all outputs = 0.
ARC Test.
I
O
I
ARC Test port.
Reserved.
O
Reserved.
Reserved (This pin must be a No Connect).
Reserved (This pin must be a No Connect).
Advance Information Datasheet
11
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 1. IXF3208 Ball Description
PBGA
Ball Name
I/O
Description
A10, E4, E5,
E12, F4, F8, F9,
F11, F12, G4,
G6, G7, G8, G9,
G10, G11, H5,
H7, H8, H9,
H10, H11, J6,
J7, J8, J9, J10,
J11, K6, K7, K8,
K9, K10, K11,
K12, L4, L5, L6,
L7, L8, L9, L10,
L11, M5, M11,
M12, N5, N6,
VSS
Ground.
N7, N8, N9, N10
F5, F7, F10,
G12, J12, K5,
M7, M9
VDD_IO
Connect to 3.3V power supply.
Connect to 1.8V power supply.
E9, E11, F6, G5,
J5, L12, M6,
M8, M10
VDD_CORE
3.0
T1/E1 Nomenclature
The nomenclature in this document follows telecommunication industry standard conventions, i.e.,
bit, channel (timeslot), and frame numbering increase sequentially with time. In the case of bit
ordering, unless otherwise stated, the Most Significant Bit (MSB) is transmitted first and is
designated Bit 1.
Both T1 and E1 conventions define the numbering of bits within a timeslot to be designated Bit 1”
through Bit 8,with Bit 1 defined as the MSB.
The T1 convention is to sequentially number channels (timeslots) beginning with 1, i.e., the first
channel in a T1 frame is frame number 1. The E1 convention is to number this timeslot 0, i.e., the
first timeslot in a E1 frame is timeslot number 0.
In multiframe structures, the T1 convention is to sequentially number frames beginning with 1,
i.e. the first frame in a T1 multiframe is frame number 1. The E1 convention is to number this
frame 0, i.e., the first frame in a E1 multiframe is frame number 0.
T1 bits within a frame are numbered from 1 to 193, with bit 1 being the F(framing) bit. E1 bits
within a frame are numbered from 0 to 255, with bits 1 to 8 occupying the FAS/NFAS Word
timeslot (timeslot 0).
In T1 terminology, Yellow Alarmand Remote Alarm Indication(RAI) are synonymous. Also,
Blue Alarmand Alarm Indication Signal(AIS) are synonymous.
The terms Out of Frame(OOF) and Loss of Frame(LOF) are used interchangeably in this
document.
12
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
4.0
5.0
IXF3208 Nomenclature
The IXF3208 is an octal device, meaning that it supports up to eight T1/E1/J1 links. The links are
numbered sequentially, beginning with one (1) and ending with eight (8). The time slots are
numbered 1 to 24 for T1 cases and 0 to 31 for E1 cases. Please note that T1 channel 1 corresponds
to TS0, channel 2 to TS1, etc.
A link is defined as the standard 4-wire receive/transmit pair T1/E1/J1 interface. The terms link,
port, and span may be used interchangeably in this document.
Feature Set
Table 2. IXF3208 Feature Set - General
Feature
Description
Operating Voltage
Operating Temperature
I/O type
1.8 ± .18 and 3.3 ± 0.3 Volts
-40°C to 85°C
5 Volt tolerant IO, CMOS/TTL Compatible - TTL input thresholds.
Packaging1
17 x 17 mm 256 PBGA
External Timing Reference
Power Consumption
Boundary Scan (JTAG)
BIST
Only one timing signal, system clock, is required for T1, E1 or J1 operation.
TBD
Built-in self test enabled via µP register bits per IEEE 1149.4.
Self test is available for RAMs.
Advance Information Datasheet
13
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 3. Line and Framing
Feature
Description
Bipolar: POS, NEG, CLK
Interface
Unipolar: NRZ, CLK
T1: Selectable
AMI (per ANSI T1.102)
B8ZS (per ANSI T1.102)
ZCS (bit 7)
Line Coding
E1: Selectable
AMI (per ITU G.703)
HDB3 (per ITU G.703)
T1 Maskable interrupt generated for all conditions.
AIS - Alarm Indication Signal. A ones density of at least 99.9% in a window of
3 ms to 75 ms. (Per ANSI T1.231 and ITU G.775).
BPV - Bipolar violation
EXZ - Excess zero detection
LOS - Loss of signal: 175 ± 75 clocks with no pulse transitions (per ANSI
T1.231).
Line Monitoring
E1 - Maskable interrupt generated for all conditions
AIS - Alarm Indication Signal. Two or less 0s in a windows of 512 bits (per ITU
G.775)
BPV - Bipolar Violation Detection. Two consecutive marks of the same polarity.
HDB3 Two consecutive BPVs of the same polarity.
LOS - Loss of signal: N consecutive intervals with no pulse transitions, where N
is in the range of 10 to 255 (per ITU G.775).
T1:
D4-SF (per ANSI T1.107, T1.403)
ESF (per ANSI T1.107, T1.403)
SLC96 (per Bellcore TR-TSY-008, GR-303)
E1:
FAS/NFAS double frame (per ITU G.704, G.706)
CRC-4 Multiframe (per ITU G.704, G.706)
CAS multiframe (per ITU G.704, G.706, G.732)
CRC4 and CAS multiframe (per ITU G.704, G.706, G.732)
J1:
Framing modes
J1 12 frame multiframe (per JT G.703, JT G.704, JT G.706, I.431)
J1 24 frame multiframe (per JT G.703, JT G.704, JT G.706, I.431)
Transparent:
The device does not search or generate framing information.
T1 or E1 transparent.
If a frame pulse is generated or received at the backplane it must follow the T1 or
E1 frame duration (193 or 256 bits).
14
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 3. Line and Framing
Feature
Description
T1 D4 SF
T1 ESF
5 ms (per G.704)
15 ms (per G.706)
T1 SLC96 50 ms (per G.706)
J1 D4 SF
J1 ESF
5 ms (per PUB 43801)
15 ms (per G.706)
Maximum average
reframe time
E1 FAS/NFAS
E1 CRC4
E1 CAS
E1 CRC4/CAS
T1 - D4 SF: Ft coupled with Fs framing bits.
T1- ESF: Fe framing bits coupled with CRC-6 error detection bits.
T1- SLC96: Ft framing bits coupled with Fs bits plus DDL spoiler bits.
False framing protection
E1 - CRC4: FAS/NFAS coupled with CRC4 sync sequence. CRC4 calculation also
checked.
Out of frame detection (OOF) - Maskable interrupt generated.
Resynchronization
Automatic or manual resynchronization upon detection of OOF condition.
Change of Frame Alignment (COFA)
Latest receiver synchronization results in a change of frame or multiframe
alignment.
T1 D4: out of frame is forced when there are M errors in a programmable window of
N consecutive Ft or Fs bits. N= 1,2,...,7, M= 1,2,...,7
T1 ESF: out of frame is forced when there are M errors in a programmable window
of N consecutive Fe bits. M, N= 1,2,...,7
Out of Frame conditions
If the number of CRC6 errors exceed 320 in a one second this will also force
reframe (optional).
E1 Doubleframe: three consecutive errors in FAS or three consecutive errors in
NFAS.
E1 CAS: two consecutive CAS multiframe alignment words received in error.
E1 CRC: two consecutive errors in FAS or two consecutive errors in NFAS. If 915 or
more CRC errors are detected in a one second window then the reframe process is
started.
E1 CRC: if N errors in a window of M bits occur, loss of CRC can be declared
(optional) .
CRC of T1 ESF and E1 CRC checking/generation can be disabled. The CRC bits can be taken from the
CMF disabling
back-plane data.
Advance Information Datasheet
15
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 4. Slip Buffers
Feature
Description
Separate slip buffers for both the receive and transmit paths.
Always engaged, the options are Minimum delay or Two Frames.
Read and Write pointer can be accessed (read and write) from external host.
Slip indication
Slip Buffers
Slip direction indication
Pointer separation indication (RdPtr WrPtr)
Table 5. Signaling
Feature
Description
T1/J1-Robbed bit signaling
D4 SF Two or Four states, A or AB bits
ESF -- Two, Four or Sixteen states A, AB or ABCD bits
SLC96 Two, Four or Nine states A, AB or AB+toggling
T1/E1/J1 Common Channel Signaling (CCS)
Available using FDL module.
E1 Channel Associated Signaling (CAS)
On TS16 (per ITU G.704)
T1/E1/J1:
Signaling Freeze per DS1/E1
Signaling
Triggered by loss of Frame conditions. (LOS, AIS, OOF, OOCAS)
Signaling Debounce
Disable or two multiframes
Signaling forced by the host
The external host can define the signaling to Tx in each direction
This value is kept until the host changes it or releases it
Signaling access
Signaling can be accessed through the microprocessor port or on the signaling bus
Signaling Change Indicators per DS0
Table 6. Data Links
Feature
Description
SLC96 Derived Data Link (per Bellcore TR-TSY-008).
T1 data links
E1 Data Links
ESF Facility Data link (FDL) (per ANSI T1.403 and Bellcore TR-TSY-499).
ESF Facility Data Link (FDL) (per AT&T TR 54016).
TS0 Sa4 bit data link (M chanel0 (per ITU I.431 and G.962 (ETS 300 233).
Any combination of Sa(4:8) bits is allowed.
CCS available by selecting any TS.
16
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 7. T1 Performance Monitoring
Feature
Description
Compliance
PRM
ANSI T1.231, T1.403
Automatic generation and detection of one second T1.403 PRM.
15 minutes
Counters
24 hours
Automatic integration and parameterization of primitives and alarms.
(per ANSI T1 231)
Anomalies:
Line
BPV
-- Bipolar Violations
Pulse of the same polarity as previous pulse excluding those which are a
part of the B8ZS Code.
EXZ
-- Excess zeroes
AMI/ZCS - Any string with greater than 15 consecutive 0s
B8ZS - Any string with greater than 7 consecutive 0s
Optional FCC definition (per Part 68.318-1987/47CFR)
Path
CRC-6 -- CRC errors
Any received CRC-6 code that is not identical to the corresponding locally
calculated code.
FE
CS
-- Frame bit errors
SF - any Ft or Ft and Fs bit error
ESF - any Fe Bit error
-- Controlled slips
Performance Primitives
The intentional occurrence of a replication or deletion of an entire DS1
frame to maintain framing under differing Line/System clock conditions.
Change of Frame Alignment (COFA) Indication.
Defects:
Line
LOS -- Loss of signal
OOF Out Of Frame
Path
SEF
-- Severely Errored Seconds
In SF 2 or more Ft bit errors in a 0.75 ms window (2 of 3 Ft bits in error).
In ESF mode 2 or more Fe bit errors in a 3 ms window (2 of 6 Fe bits in error).
AIS -- Alarm Indication Signal
Detected Performance Failures (per ANSI T1.231)
Line
Path
Performance failures
LOS -- LOS defect for more than 2 seconds
AIS -- AIS defect for more than 2 seconds
LOF -- OOF defect for more than 2 seconds
RAI Remote Alarm Indication. Indicated as soon as alarm is detected
(per ANSI T1.403)
Far End Performance
Reporting
User controllable Automatic message assembly and Transmission.
FDL PRM support in both receive and transmit directions.
Advance Information Datasheet
17
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 7. T1 Performance Monitoring
Feature
Description
The following indicators and signals are supported. Also, the Noted Path Failure
Parameters are Collected (per: ANSI T1.231).
Path-Related
Remote Alarm Indication (RAI) - Defined in Table 10. Selectable automatic
transmission upon detection of LOF Failure. Minimum duration = 1 second.
Other Indicators, Signals,
and Parameters
Near-End Path Failure Count parameter (FC-P) - count of number of occurrences
of near-end path failure events (LOF or AIS Failure, as defined above).
Far-End Path Failure Count (FC-PFE) - count of number of occurrences of far-end
path failure events (RAI Failure, as defined above).
The following performance parameters are collected, integrated and stored (per:
ANSI T1.231). The Parameters are Accessible via the Microprocessor Interface.
Line Parameters - Near End
CV-L
ES-L
SES-L
LOSS-L
Line Parameters - Far End
ES-LFE
Path Parameters - Near End
CV-P
ES-P
ESA-P
ESB-P
Performance parameters
SES-P
SAS-P
AISS-P
CSS-P
UAS-P
Path Parameters - Far End
CV-PFE
ES-PFE
ESA-PFE
ESB-PFE
SES-PFE
SEFS-PFE
CSS-PFE
UAS-PFE
18
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 8. E1 Performance Monitoring
Feature
Description
Compliance
ITU G.821, G.826, o.150, ETS 300 011, ETS 300 233
15 minutes minimum storage
Counters
24 hour storage
Automatic integration/parameterization of primitives and alarms
(per ITU O.161)
Line code
violations
AMI - Two consecutive marks of the same polarity
HDB3 - Two consecutive marks of the same polarity
(per ITU G.826)
Near End Anomalies
a an errored frame alignment signal;
1
a an EB as indicated by the CRC not matching the received CRC4
2
Near End Defects
Performance
primitives
d loss of signal
1
d alarm indication signal
2
d loss of frame alignment
3
Far End
FE-a1
FE-d1
E bit received set (0)
RAI is received set
The following performance parameters are collected and stored (per ITU G.826). The
parameters are accessible via the microprocessor interface.
Events -
EB -- Errored block
ES Errored second
SES Severely Errored Second
BEB Background Error Block
Parameters -
Performance
parameters
ESR -- Errored Seconds Ratio
SESR Severely Errored Seconds ratio
BBER Background Block Error ratio
Far End Performance Monitoring -
RAI
FERF and FEBE
Detection (per: ITU G.775)
Distinguished from OOF
Loss of Signal
(LOS)
Set when less than three 0s are detected in each of two consecutive double frame
periods (512 Bits).
Cleared when each of two consecutive double frame periods (512 Bits) contains 3 or
more 0s or when the Frame Alignment Signal (FAS) has been found.
Loss of Frame
Sync
(per: ITU G.704, G.706)
(per: ITU G.704, G.706)
Out Of Frame
(OOF)
Change of Frame
Alignment (COFA)
Advance Information Datasheet
19
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 8. E1 Performance Monitoring
Feature
Description
Loss of signaling
Multiframe
Alignment
(per: ITU G.704, G.706)
(per: ITU G.704, G.706)
Loss of CRC
Multiframe
Alignment
CRC-4 Error
(CRC)
(per: ITU G.704, G.706)
(per: ITU G.704, G.706)
Far End Block
Error (FEBE)
CS (Controlled
Slip)
Tx and Rx Elastic Store Frame Slip/Repeat events are reported.
6.0
Alarm and Fault Indicators
This refers to interrupt, status, counters, FIFOs or databases available to the host to convey the state
of the device.
Table 9. Main T1 Indicators
Feature
Description
T1 D4: Selectable on N/M frame bits (Ft&Fs or Ft only) in error. N, M =
1,2, ..7
OOF condition clears when the receiver frames
T1 ESF: Selectable on N/M frame bits (Fe) in error
On ESF only, 320 or more CRC6 errors.
Out of Frame (OOF) Defect
Loss of Signal (LOS) Defect
(per ITU G.775) T1: 175 +- 75 contiguous spaces
LOS clears when the average ones density is at least 12.5% over a
period of 175+- 75 contiguous pulse positions (per ANSI T1.231) (per
ITU I.431).
Set when there are no transitions in 1 ms windows, at least.
Clear occurs when the programmable ones density is met.
(per ANSI T1.231 and ITU G.775)
At least 99.9% of ones density in a window of 3 to 75 ms.
AIS (Alarm Indication Signal)
Defect
A particular case is: Set when less than 5 zeroes are detected in a 3ms
window of data.
Cleared if more than 6 zeroes are detected in a 3 ms window.
20
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 9. Main T1 Indicators
Feature
Description
SF and SLC96. Normal mode
Sets when bit 2 is 0 in every channel (per ANSI T1.231).
Clears when the set condition is not present.
Detected when 254 out of 256 TS have bit 2 set to 0??????
The minimum detect time is 335 ms???
SF Alternate mode (J1 D4 SF)
Sets when 12th framing bit = 1 for two consecutive superframes.
Clears when 12th framing bit = 0 for two consecutive superframe.
ESF
Yellow:
Remote Alarm Indication (RAI)
Sets when FDL BOM = 1111111100000000 occurs in 15 out of 16
contiguous pattern intervals.
Cleared when the above pattern does not occur in 15 out of 16
intervals.
Maskable interrupt generated.
Line Transmission
ESF - transmit Yellow Alarm Code on BOM of FDL.
Sets when an OOF defect persists for a period of 2.5 +- 0.5 seconds.
Clears when OOF has been removed for a period of 20 seconds or
fewer. (per ANSI T1.231).
LOF Failure (Red Alarm)
LOS Failure
Selectable N/M frame bits (Ft., Fs, Ft & Fs, Fe) in error.
Maskable interrupt is generated.
Sets when an LOS defect persists for a period of 2.5 +- 0.5 seconds.
Clears when LOS has been removed for a period of 20 seconds or
fewer. (per ANSI T1.231).
Sets when an AIS defect persists for a period of 2.5 +- 0.5 seconds.
Clears when AIS has been removed for a period of 20 seconds or fewer.
(per ANSI T1.231).
AIS Failure (Blue Alarm)
COFA
Maskable interrupt is generated.
COFA is declared when the new frame location is different to the
previous one.
CRC6 errors
CRC errors latched indicator
CRC errors counter
Indicator and count
Ft/Fe bit errors
Framing error indication
Indicator and count
Ft (D4) or Fe (ESF) counter
Fs bit errors
Fs error counter
Indicator and count
Ft+Fs errors
Counter of Ft plus Fs errors
Indicator and count
Slip Indicator and count
PRM detected
Slip indicator and counter
PRM reception indicator
MOP detected
MOP detected (it does not include PRM)
Indication plus other status info
BOP
BOP detected indicator
Indication and count
BOP counter (number of times it has been received) Saturated counter.
Advance Information Datasheet
21
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 9. Main T1 Indicators
Feature
Description
(per: Bellcore GR-253, Bellcore GR-303)
Line Detection
Sets when ABCD signaling Bits = 0111 for two consecutive superframes.
DS0 Yellow:
(DS0-RAI)
Clears when ABCD signaling Bits do not = 0111 for four consecutive
superframes.
Line Transmission
Force ABCD = 0111 for selected DS0
(per: Bellcore GR-253, Bellcore GR-303)
Line Detection
Sets when ABCD signaling Bits = 0010 for two consecutive superframes
DS0 AIS:
Clears when ABCD signaling Bits do not = 0010 for four consecutive
superframes
Line Transmission
Force ABCD = 0010 for selected DS0
Compliance with JT-G.704:
Japanese Application Support
Yellow Alarm generation and detection
CRC checking and transmission
Table 10. Main E1 Indicators
Feature
Description
E1: Selectable to 3 FAS, or to 3 FAS or 3 NFAS consecutive words in error
OOF condition clears when the receiver frames again.
Out of Frame (OOF) Defect
In E1 CRC4 mode, if there are 915 or more CRC4 errors in a one second
window, then reframe is restarted (G.706).
(per ITU G.775)
Set when there are no transitions in a window of 10 to 255 bit periods.
Cleared when there is at least one transition in a window of 10 to 255 bit
periods.
(per G.775): The LOS defect is cleared when the incoming signal has
"transitions", i.e. when the signal level is greater than or equal to a signal
level of P dB below nominal, for N consecutive pulse intervals, where 10 ≤
N 255.
Loss of Signal (LOS) Defect
(per ITU I.431, ETS 300 233)
Set when there are no transitions in a window of 1 ms (2048 bits).
Clear occurs when the programmable ones density is met.
(per ITU G.775)
Set when less than three 0s are detected in each of two consecutive
double frame periods (512 bits).
Cleared when each of two consecutive double frame periods (512 bits)
contain three or more 0s or when the Frame Alignment Signal (FAS) has
been found.
Blue Alarm (AIS) Defect
On Tx the framer is forced to send an unframed all ones.
ETS 300 233 Requires LOF to be present also before declaring AIS.
Both conditions, LOF and the number of 0s.
22
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 10. Main E1 Indicators
Feature
Description
(per ITU G.704)
Set when bit 3 in timeslot 0 of NFAS =1 for one time (ETS 300 011) or N
times (G.775?).
Remote Alarm Indication (RAI)
Cleared when bit 3 of TS 0 in NFAS frames = 0
On Tx, bit 3 of TS0 of NFAS frames is set to 1
To support ETS 300 011 RAI is generated on every re-sync forced by the
CMF (CRC Multiframe) circuitry.
(per ITU G.704)
Set when bit 6 of TS16 of frame 0 = 1 for two consecutive multiframes.
Cleared when bit 6 of TS16 of frame 0 = 0 for two consecutive multiframes.
On Tx bit 6 of TS16 of frame 0 = 1
Remote Multiframe Alarm (TS16
RAI)
Line detection (per ITU G.775) on both line and system side.
Set when there are less than four 0s in TS16 in each of two consecutive
multiframes.
TS 16 AIS
TS 16 LOS
Cleared when each of two consecutive multiframe periods contain 4 or
more 0s or when the Multiframe Alignment Signal (MFAS) has been found.
Line Transmission - force transmitter to send unframed all-ones in TS-16.
(per ITU G.732)
Set when all the TS16 bytes are 0 in two consecutive multiframes.
Cleared when at list a 1 is present in a TS16 preceding the multiframe
alignment signal.
(per G.775)
Red Alarm
COFA
Indicated when the OOF conditions exists for 100ms.
Cleared when 3 or more zeroes are detected in a 512 bits period.
COFA is declared when the new frame location is different to the previous
one.
Detected when the sequence 10has been detected more than 253 times
in a 512 bits window and the state is LOF (per ETS 300 233).
AUX-P
Cleared when three or more non 10patterns are found in the 512 bit
window.
CRC4 errors
CRC4 errors indicator and count
FAS error indicator and counter
NFAS error indicator and counter
FAS+NFAS error indicator and counter
Indicator and count
FAS errors
Indicator and count
NFAS bit errors
Indicator and count
FAS+NFAS errors
Indicator and count
Slip
Slip indicator and counter
Indicator and count
Code word detected indicator
Code word
Code word counter. It indicates the number of times the codeword has
been detected
Indication and count
MOP detected
MOP detected
Indication plus other status info
MOP status, length
Advance Information Datasheet
23
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 11. IXF3208 Feature Set - Data Links
Feature
Detail
Dedicated transmit and receive FDL processor per line port
Independent from HDLC processor.s
Dedicated FDL
Controller
Supported Data Links:
SLC96 Derived Data Link (DDL) (per: Bellcore TR-TSY-008)
ESF Facility Data Link (FDL) (per: ANSI T1.403, and Bellcore TR-TSY-499)
ESF Facility Data Link (FDL) (per: AT&T TR 54016)
T1 Data Links
ISDN PRI D-Channel handler Support (per: Bellcore TR-TSY-754)
The Data Link is accessed through the Microprocessor Interface.
Supported Data Links:
TS0 Sa4 Bit Data Link (M Channel) (per: ITU I.431 and G.962 (ETS 300 233)
User may select any combination of the Si bit from the FAS frame, the Si bit from the
NFAS frame or any of the Sa(4:8) bits.
E1 Data Links
TS16 Data Link
V5.2 DLC Data Link Support (Timeslots 15, 16, 31) (per: ETS 300 347-1, ITU G.965).
The Data Link is accessed through the Microprocessor Interface.
Table 12. IXF3208 Feature Set - Embedded HDLC Controller
Feature
General
Detail
Three full duplex controller, each mappable from one payload bit on any line port, up to
the entire clear payload.
From 8 Kbps (one payload bit) up to the entire payload (minus framing and signaling
bits).
Data Rates
Consecutive/Non-Consecutive channel concatenation for H0, H11, H12 support.
Control via Processor Interface
Access via FIFO registers
Control/Access
Maskable Interrupts for each channel/source
Programmable data transfer size (byte, word)
ISDN LAPD/LAPB (HDLC) protocol messaging (per ITU Q.921)
Integrated DLC (per: Bellcore GR-303)
Applications/
Protocols
Supported
V5.1 & V5.2 Interfaces (per: ITU G.964/ETS 300 324, ITU G.965/ETS 300 347)
Support Modes: HDLC LAPB and LAPD protocols without procedure support.
Framed Transparent: Includes starting and ending flags.
Modes
Fully Transparent: without starting and ending flags.
24
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 12. IXF3208 Feature Set - Embedded HDLC Controller
Feature
Detail
Non-Automatic Mode
Supports All LAPx protocols
Programmable rate per channel: Any combination of bits, including DS0 sub-rate, DS1,
H0, H11, H12
Bit oriented functions:
Flag generation/recognition
Address recognition
Bit stuffing, zero insertion/deletion
CRC generation/check
Abort generation/recognition
HDLC Features
Inter-frame time fill change recognition
Non octet frame content recognition
Minimum frame length check and maximum frame length check and cut off
Framed Transparent Mode
Starting and ending flag of 7E generation/recognition
Extraction of starting and ending flag and interframe time fill at receive side
Maximum frame length check
Fully Transparent Mode
Bits synchronous data transmission
Interframe time fill generation: 7E (flag) or programmable
Transmit FIFO depth of 128 bytes (128 x 2 bytes)
Receive FIFO depth of 128 bytes (64 x 4 bytes)
FIFO status via Processor Interface
FIFO Buffers
Advance Information Datasheet
25
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 13. IXF3208 Feature Set - Pattern Generator/Receiver and BER Tester
Feature
Detail
ANSI T1.231, AT&T TR 62411, Bellcore TR-TSY-820, Bellcore TR-NWT-001219
ITU O.150, ITU O.151, ITU O.152, ITU O.153
Compliance
Eight Programmable Pattern Generator and Receiver.
Can be used for line and system side testing.
Generator can insert selected fixed, PRBS, or User Programmable (2 to 32 Bits)
patterns.
All patterns support DS0 timeslot boundaries.
Receiver counts mismatches between the received stream and expected pattern
BERT can be performed on entire payload or on individual DS0s.
Subrate support by selecting any combination of bits in the time slot.
Selectable Fixed Patterns: (per: AT&T TR 62411, Bellcore TR-NWT-001219, ITU 0.150,
O.151, O.152)
All Ones (Mark)
All Zeroes (Space)
Alternating Ones and Zeroes (1:1)
1 in 3 (in band loop down code)
1 in 4 (in band loop up code)
1 in 5
Pattern Generation
and BERT
(Bit Error Rate Test) 1 in 7
1 in 8
1 in 16
3 in 24
Selectable PRBS patterns: (per: AT&T TR 62411, Bellcore TR-NWT-001219, ITU
O.150, O.151, O.152)
26-1
27-1
28-1
29-1
211-1
215-1
220-1
QRSS (220-1, with no more than 14 consecutive zeroes)
223-1
User Programmable Pattern with Programmable Length Up to 32 Bits.
Can detect Pattern Match, Inverse Pattern Match, Integrated Pattern Match.
Pattern Receiver
Counters
24-bit Bit Counter
24-bit Bit Error Counter
26
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 14. IXF3208 Feature Set - Interfaces
Feature
Detail
Selectable 8 bit parallel data interface
Multiplexed and non-multiplexed modes
16 bit address bus
Supports MPC860, MPC8260 (PowerQicc2), M68302, I486
Motorola and Intel busses supported with appropriate endian support
Asynchronous bus support
Processor Interface
Zero wait state operation to 33 MHz
Internal wait state generator
One open drain interrupt outputs
Internal one second timer for performance data latching
Support for interrupt-driven, polled, or mixed access architectures
Types:
Bipolar data (POS & NEG) and clock
NRZ data and clock
Line Interface
Independent clock and data inputs/outputs for each channel
Non-multiplexed or N-Channel multiplexed operation (N = 1, 2, 4 or 8)
Byte replication in multiplexed Mode
Clock source selection for each port
System Interface:
General Features
Programmable clock rate selection (1x, 2x data rates)
Full user control of frame sync polarity, width, and position
MVIP/ST-BUS, HMVIP, IOM/GCI, CHI, H.100, etc. compatibility
Support for gapped clock generation
Port timing is independent
Tx and Rx timing on each port is fully independent (Tx and Rx can work
asynchronously) and use independent clock/frame sync pairs.
Selectable internal clock source generated from a single reference
Selectable Master or Slave Operation
Tx and Rx Clock/Frame Sync pairs can be inputs (Slave) and/or outputs (Master)
System Interface:
Timing
When the Tx or Rx timing signals are outputs (Master) their timing can be derived
from the internal clock source or from a selected Rx Line Clock.
Selectable Loop Timing Options
Any line port can be selected for loop timing
Selectable System Timing Options
Master Clock input can be N x 1.536 MHz, N x 1.544 MHz or N x 2.048 MHz
(N = 1, 2 or 4)
Signaling data is accessible:
In band
Signaling TDM port
Microprocessor Interface
System Interface:
Overhead Ports
The method of access is independent of data direction (i.e., Tx and Rx for a
particular port can use different means of access).
FDL data is accessible:
Microprocessor Interface
Advance Information Datasheet
27
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
Table 15. IXF3208 Feature Set - Maintenance/Miscellaneous
Feature
Detail
The following line-side loopbacks are supported:
T1 Line (per: ANSI T1.403, AT&T TR 54016)
T1 Payload (per: ANSI T1.403, AT&T TR 54016)
T1 DS0 payload (Up to 24 DS0s simultaneously per port)
T1 local loopback
T1 remote loopback
E1 Line
E1 Payload
E1 DSO payload (Up to 32 timeslots simultaneously per port)
E1 local loopback
E1 remote loopback
Maintenance
Loopbacks
The following system-side loopbacks are supported:
Timeslot (Up to 32 timeslots simultaneously per port)
Both types of loopback can be active at the same time.
Selective Manual or Automatic Loopback support:
T1: SF Fractional T1 Loopback (T1.403 Annex B)
T1: SF Line Loopback (T1.403)
T1: ESF Line Loopback (T1.403)
T1: ESF Line Loopback (TR 54016)
T1: ESF Payload Loopback (T1.403)
T1: ESF Payload Loopback (TR 54016)
E1: Sa5/Sa6 Codeword (ETS 300 233)
Automatic AIS transmit upon loopback activation is selectively supported.
Selectable BPV, F-bit (T1)/ FAS Word (E1), and CRC Error Injection.
Single errors
One error per frame
Error Injection
One error per multiframe
One error per 1000 bits
One error per second
Multiframe signals per line port are reported to the system.
Frame Sync polarity, width and position are fully programmable.
External
Indicators
The polarity, width and position of the multiframe signal follows that of the
corresponding Frame Sync.
T1: Programmable idle code and digital milliwatt insertion (as ANSI T1.403)
T1 DRS pattern
Timeslot Code
Insertion
E1: Selectable digital milliwatt pattern insertion (as per ITU G.711)
E1 DRS pattern
28
Advance Information Datasheet
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
7.0
Mechanical Specification
Figure 3. IXF3208 256 PBGA Mechanical Specification
17.00 ±0.10
7.00 REF
1.00 REF
15.00
PIN #A1
CORNER
1.00
PIN #A1
CORNER
A
B
PIN #A1 ID
0.50
C
D
E
F
7.00
REF
1.00
G
H
J
17.00
±0.10
15.00 ±0.05
K
L
M
N
P
R
T
16 15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
1.00 REF
TOP VIEW
BOTTOM VIEW
1.60
MAX
0.70
±0.05
NOTE:
1. ALL DIMENSIONS IN MILLIMETERS.
0.35
MIN
2. ALL DIMENSIONS AND TOLERANCES
CONFORM TO ASME Y 14.5M-1994.
0.36
± 0.04
SEATING PLANE
3. TOLERANCE = ± 0.05 UNLESS
SPECIFIED OTHERWISE.
SIDE VIEW
Advance Information Datasheet
29
IXF3208 Octal T1/E1/J1 Framer with On-Chip PRM
30
Advance Information Datasheet
厂商 型号 描述 页数 下载

ILSI

IXF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15AF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15AT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15BF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15BT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15CF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15CT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15DF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15DT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A20AF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.228444s
