NX7303CH-CC

型号:

NX7303CH-CC

品牌:

RENESAS[ RENESAS TECHNOLOGY CORP ]

页数:

12 页

PDF大小:

72 K

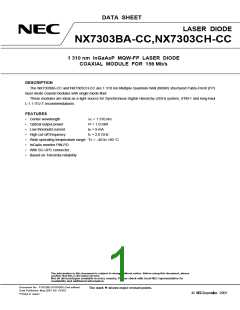

DATA SHEET
LASER DIODE
NX7303BA-CC,NX7303CH-CC
1 310 nm InGaAsP MQW-FP LASER DIODE
COAXIAL MODULE FOR 156 Mb/s
DESCRIPTION
The NX7303BA-CC and NX7303CH-CC are 1 310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP)
laser diode coaxial modules with single mode fiber.
These modules are ideal as a light source for Synchronous Digital Hierarchy (SDH) system, STM-1 and long-haul
L-1.1 ITU-T recommendations.
FEATURES
Center wavelength
λC = 1 310 nm
Pf = 1.0 mW
lth = 9 mA
Optical output power
Low threshold current
High cut-off frequency
fC = 2.0 GHz
Wide operating temperature range TC = 40 to +85 °C
InGaAs monitor PIN-PD
With SC-UPC connector
Based on Telcordia reliability
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P15228EJ2V0DS00 (2nd edition)
Date Published May 2001 NS CP(K)
Printed in Japan
The mark shows major revised points.
2001
©
NX7303BA-CC,NX7303CH-CC
PACKAGE DIMENSIONS (UNIT: mm)
NX7303BA-CC
NX7303CH-CC
φ
0.9
φ
0.9
Optical Fiber (SMF)
Length: 0.5 m
Optical Fiber (SMF)
Length: 0.5 m
With SC Connector
With SC Connector
φ
7.0±0.2
φ
7.0±0.2
8.0±0.3
8.0±0.3
φ
2.2
φ
0.45±0.05
φ
0.45±0.05
12.7±0.2
17.0±0.2
16.0
PIN CONNECTIONS
PIN CONNECTIONS
P.C.D. =
φ
2.0
P.C.D. =
4 R1.25±0.2
φ
2.0
PD
LD
2
PD
4
3
2
2
4
1
3
2
1
3
1
4
1
3
CASE
2
2.5
φ
LD
8.5±0.2
4
CASE
12.0±0.15
OPTICAL FIBER CHARACTERISTICS
Parameter
Mode Field Diameter
Specification
9.5±1
125±2
2
Unit
µm
µm
%
Cladding Diameter
Maximum Cladding Noncircularity
Maximum Core/Cladding Concentricity
Outer Diameter
1.6
%
0.9±0.1
mm
nm
mm
mm
Cut-off Wavelength
1 100 to 1 270
30
Minimum Fiber Bending Radius
Fiber Length
500±50
Flammability
UL1581 VW-1
35±2 mm
SC-UPC Connector
Fiber Length: 500±50 mm
2
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
ORDERING INFORMATION
Part Number
NX7303BA-CC
NX7303CH-CC
Flange Type
Available Connector
Flat Mount Flange
With SC-UPC Connector
Vertical Mount Flange
ABSOLUTE MAXIMUM RATINGS
Parameter
Optical Output Power from Fiber
Forward Current of LD
Symbol
Ratings
Unit
mW
mA
V
Pf
IF
3.0
150
Reverse Voltage of LD
VR
IF
2.0
Forward Current of PD
10
mA
V
Reverse Voltage of PD
VR
TC
Tstg
Tsld
RH
20
Operating Case Temperature
Storage Temperature
40 to +85
40 to +85
260 (10 sec.)
85
°C
°C
°C
%
Lead Soldering Temperature
Relative Humidity (noncondensing)
ELECTRO-OPTICAL CHARACTERISTICS (TC = 40 to +85 °C, unless otherwise specified)
Parameter
Optical Output Power from Fiber
Operating Voltage
Symbol
Conditions
MIN.
TYP.
1.0
1.2
9
MAX.
Unit
mW
V
Pf
Vop
Ith
Pf = 1.0 mW
1.5
20
Threshold Current
TC = 25 °C
4
2
mA
50
Threshold Output Power
Modulation Current
Pth
IF = Ith
75
µW
Imod
Pf = 1.0 mW, TC = 25 °C
Pf = 1.0 mW
8
5
15
0.070
2
35
mA
60
Differential Efficiency
ηd
Pf = 1.0 mW, TC = 25 °C
Pf = 1.0 mW
0.030
0.018
3
0.100
0.150
W/A
dB
ηd (@ TC °C)
∆ηd = 10 log
Temperature Dependence of
Differential Efficiency
∆ηd
ηd (@ 25 °C)
Kink (Refer to DEFINITIONS)
kink
λC
Pf = Up to 1.2 mW
±20
1 360
0.5
%
nm
Center Wavelength
Pf = 1.0 mW, RMS (20 dB)
1 263
1 310
0.4
Temperature Dependence of Center
Wavelength
λ/T
nm/°C
Spectral Width
Cut-off Frequency
Rise Time
Pf = 1.0 mW, RMS (20 dB)
3 dB
1.3
2.0
0.2
0.3
4.0
nm
GHz
ns
σ
fC
tr
10-90 %, Ppk = 1.0 mW, IF = Ith
90-10 %, Ppk = 1.0 mW, IF = Ith
0.5
0.5
Fall Time
tf
ns
3
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
ELECTRO-OPTICAL CHARACTERISTICS
(Applicable to Monitor PD: TC = 40 to +85 °C, unless otherwise specified)
Parameter
Monitor Current
Symbol
Conditions
VR = 5 V, Pf = 1.0 mW
VR = 5 V, TC = 25 °C
VR = 5 V
MIN.
100
TYP.
700
0.1
MAX.
1 200
50
Unit
µA
Im
ID
Dark Current
nA
10
500
20
Terminal Capacitance
Ct
LINm
γ
VR = 5 V, f = 1 MHz
VR = 5 V, Pf = 0.1 to 1.0 mW
Im = const.
pF
%
Linearity (Refer to DEFINITIONS)
±10
1.0
Tracking Error
0.5
dB
(Refer to DEFINITIONS)
4
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
PARAMETER DEFINITIONS
Kink : kink
Pf
dP
K
kink =
× 100 [%]
PK
(mW)
1.2
I
F
- P
f
dP
K
= dP
o
MAX.
dP
o
P
K
1.2 (mW)
dP
K
P
K
I
F
-
η
d
I
F
0
(mA)
Linearity : LINm
P
f
dP
L
LINm
=
× 100 [%]
PL
(mW)
1.0
dPL
= dP
o
MAX.
0.1 < P
L
< 1.0 (mW)
P
L
dP
L
dP
o
0.1
0
I
m
(mA)
Tracking Error : γ
Pf
P
1.0
f
γ = 10 log
[dB]
(mW)
T
C
= 25 ˚C
1.0
TC = –40 to +85 ˚C
P
f
I
m
0
I
m
(mA)
5
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
TYPICAL CHARACTERISTICS (TC = 40 to +85 °C)
OPTICAL OUTPUT POWER FROM
FIBER vs. FORWARD CURRENT
1.5
OPERATING CURRENT AND THRESHOLD
CURRENT vs. CASE TEMPERATURE
100
I
op (@P = 1.0 mW)
f
T
C
= –40 ˚C
+25 ˚C
50
30
20
+70 ˚C
+85 ˚C
Ith
1.0
0.5
10
5
3
2
1
0
50
100
(mA)
150
–60 –40 –20
0
20
40
60
80 100
Forward Current I
F
Case Temperature T
C
(˚C)
TEMPERATURE DEPENDENCE OF
CENTER WAVELENGTH
TEMPERATURE DEPENEDENCE OF
DIFFERENTIAL EFFICIENCY
1 360
1 340
1 320
1 300
1 280
1 260
0.10
0.08
0.06
0.04
0.02
0
η
–60 –40 –20
0
20
40
60
80 100
–60 –40 –20
0
20
40
60
80 100
Case Temperature T
C
(˚C)
Case Temperature T
C
(˚C)
Remark The graphs indicate nominal characteristics.
6
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
TYPICAL CHARACTERISTICS (TC = 25 °C)
OPTICAL OUTPUT POWER FROM
FIBER vs. MONITOR CURRENT
SPECTRUM
1.5
1.0
0.5
1 300
1 310
1 320
0
0.5
1.0
1.5
Wavelength λ (nm)
Monitor Current I
m
(mA)
FORWARD CURRENT vs.
FORWARD VOLTAGE
50
40
30
20
10
0
1
2
Forward Voltage V (V)
F
Remark The graphs indicate nominal characteristics.
7
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
FP-LD FAMILY
Absolute Maximum
Ratings
Electro-Optical Characteristics
(TC = 40 to +85 °C)
Part Number
TC
Tstg
Pf
λC
σ
Applications
Package
(°C)
(°C)
(mW)
(nm)
(nm)
TYP.
0.7
MIN.
MAX.
1 360
MAX.
4.0
NX7300BA-CC
NX7300CH-CC
40 to +85
40 to +85
40 to +85
40 to +85
1 266
2.5 Gb/s: STM-16 (I-16)
Coaxial
Coaxial
NX7301BA-CC
NX7301CH-CC
0.2
1 261
1 360
4.0
156 Mb/s: STM-1
(I-1, S-1.1)
622 Mb/s: STM-4 (I-4)
NX7302BA-CC
NX7302CH-CC
40 to +85
40 to +85
40 to +85
40 to +85
40 to +85
40 to +85
0.2
1.0
1 274
1 263
1 260
1 356
1 360
1 360
2.5
4.0
4.0
622 Mb/s: STM-4 (S-4.1)
Coaxial
Coaxial
Coaxial
NX7303BA-CC
NX7303CH-CC
156 Mb/s: STM-1 (L-1.1)
NX7304BG-CC
2.0*1
For fiberoptic
communications
*1 MIN.
8
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
REFERENCE
Document Name
Document No.
P12480E
P13623E
P12944X
C11159E
C11531E
X13769E
Optical semiconducrtor devices for fiberoptic communications Selection Guide
Opto-Electronics Devices Pamphlet
Opto-Electronics Devices (CD-ROM)
NEC semiconductor device reliability/quality control system
Quality grades on NEC semiconductor devices
SEMICONDUCTOR SELECTION GUIDE Products and Packages−
9
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
[MEMO]
10
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
SAFETY INFORMATION ON THIS PRODUCT
NEC Corporation
NEC Building, 7-1, Shiba 5-chome,
Minato-ku, Tokyo 108-01, Japan
SEMICONDUCTOR LASER
DANGER
INVISIBLE LASER RADIATION
AVOID DIRECT EXPOSURE TO BEAM
Type number:
Manufactured:
Serial Number:
This product conforms to FDA
regulations as applicable
to standards 21 CFR Chapter 1.
Subchapter J.
AVOID EXPOSURE-Invisible
Laser Radiation is emitted from
this aperture
OUTPUT POWER
WAVELENGTH
CLASS lllb LASER PRODUCT
mW MAX
nm
A laser beam is emitted from this diode during operation.
Warning Laser Beam
Caution GaAs Products
The laser beam, visible or invisible, directly or indirectly, may cause injury to the eye or loss of
eyesight.
• Do not look directly into the laser beam.
• Avoid exposure to the laser beam, any reflected or collimated beam.
The product contains gallium arsenide, GaAs.
GaAs vapor and powder are hazardous to human health if inhaled or ingested.
• Do not destroy or burn the product.
• Do not cut or cleave off any part of the product.
• Do not crush or chemically dissolve the product.
• Do not put the product in the mouth.
Follow related laws and ordinances for disposal. The product should be excluded from general
industrial waste or household garbage.
A glass-fiber is attached on the product. Handle with care.
Caution Optical Fiber
• When the fiber is broken or damaged, handle carefully to avoid injury from the damaged part
or fragments.
11
Data Sheet P15228EJ2V0DS
NX7303BA-CC,NX7303CH-CC
The export of this product from Japan is prohibited without governmental license. To export or re-export this product from
a country other than Japan may also be prohibited without a license from that country. Please call an NEC sales
representative.
The information in this document is current as of May, 2001. The information is subject to change
without notice. For actual design-in, refer to the latest publications of NEC's data sheets or data
books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all products
and/or types are available in every country. Please check with an NEC sales representative for
availability and additional information.
No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.
While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.
NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for
NEC (as defined above).
M8E 00. 4
厂商 型号 描述 页数 下载

NXP

NX7002AK 60 V ,单N沟道沟槽MOSFET[ 60 V, single N-channel Trench MOSFET ] 15 页

NXP

NX7002AK,215 [ NX7002AK. - 60V, N-channel Trench MOSFET TO-236 3-Pin ] 15 页

NXP

NX7002AKW [ 170mA, 60V, N-CHANNEL, Si, SMALL SIGNAL, MOSFET, PLASTIC, SC-70, 3 PIN ] 14 页

NXP

NX7002AKW,115 [ NX7002AKW - 60 V, single N-channel Trench MOSFET SC-70 3-Pin ] 14 页

NXP

NX7002BKS [ 60 V, dual N-channel Trench MOSFET ] 16 页

NXP

NX7002BKS_15 [ 60 V, dual N-channel Trench MOSFET ] 16 页

PERICOM

NX701 [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

NX7011A [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

NX7011B [ 2.5V/3.3V CMOS XO ] 2 页

PERICOM

NX7011C [ 2.5V/3.3V CMOS XO ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.184533s
