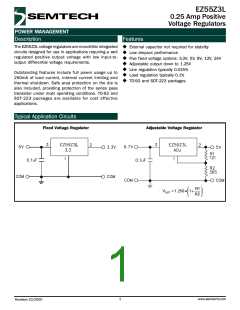

EZ55Z3L

0.25 Amp Positive

Voltage Regulators

POWER MANAGEMENT

Description

Features

The EZ55Z3L voltage regulators are monolithic integrated

circuits designed for use in applications requiring a well

regulated positive output voltage with low input-to-

output differential voltage requirements.

u External capacitor not required for stability

u Low dropout performance

u Five fixed voltage options: 3.3V, 5V, 9V, 12V, 24V

u Adjustable output down to 1.25V

u Line regulation typically 0.015%

u Load regulation typically 0.1%

Outstanding features include full power usage up to

250mA of load current, internal current limiting and

thermal shutdown. Safe area protection on the die is

also included, providing protection of the series pass

transistor under most operating conditions. TO-92 and

SOT-223 packages are available for cost effective

applications.

u TO-92 and SOT-223 packages

Typical Application Circuits

Fixed Voltage Regulator

Adjustable Voltage Regulator

V_OUT= 1.250 • 1+

www.semtech.com

Revision 10/2000

EZ55Z3L

POWER MANAGEMENT

Absolute Maximum Ratings

Parameter

Symbol

Maximum

Units

Operating Input Voltage

Power Dissipation⁽¹⁾

V_IN

P_D

V_OUT+ 10

2.5

Thermal Resistance Junction to Ambient

SOT-223

TO-92

62.3

132

°C/W

q_JA

Thermal Resistance Junction to Case

SOT-223

TO-92

q_JC

Operating Junction Temperature Range

Storage Temperature Range

T_J

0 to 125

-65 to 150

300

°C

T_STG

T_LEAD

V_ESD

Lead Temperature (Soldering) 10 Sec.

ESD Rating (Human Body Model)

Note:

(1) Specifications are applicable for a power dissipation of 2.5W and are only achievable over a limited range of

V_IN- V_OUT.

Electrical Characteristics

Unless otherwise specified: (V_IN- V_OUT) = 1.45V to 10V and I_OUT= 10mA to 250mA. Values in bold apply over the full operating temperature range.

Parameter

Symbol

Conditions⁽¹⁾

Min

Typ

Max

Units

Output Voltage⁽²⁾

V_OUT

V_IN= V_OUT+ 3V, I_OUT= 10mA

-3%

-4%

V_OUT

+3%

+4%

1.288

1.300

0.2

Fixed Voltage Version

Reference Voltage⁽²⁾

Adj. Voltage Version

Line Regulation⁽²⁾

V_REF

REG_(LINE)

REG_(LOAD)

V_D

V_IN= V_OUT+ 3V, I_OUT= 10mA

1.213

1.200

1.250

I_OUT= 10mA

0.015

0.035

0.1

0.2

Load Regulation⁽²⁾

V_IN= 3V

0.3

0.2

0.4

Dropout Voltage

1.3

1.5

DV_OUT, DV_REF= 1%

Surge Current Limit

Quiescent Current

Thermal Regulation⁽³⁾

I_S

I_Q

0.5

V_IN= 10V

REG_(THERM)

0.002

0.01

%/W

ã 2001 Semtech Corp.

www.semtech.com

EZ55Z3L

POWER MANAGEMENT

Electrical Characteristics (Cont.)

Unless otherwise specified: (V_IN- V_OUT) = 1.45V to 10V and I_OUT= 10mA to 250mA. Values in bold apply over the full operating temperature range.

Parameter

Symbol

Conditions⁽¹⁾

Min

Typ

Max

Units

Adjust Pin Current

I_ADJ

µA

120

Adjust Pin Current Change

Temperature Stability

Minimum Load Current

RMS Output Noise⁽⁴⁾

0.2

0.5

µA

DI_ADJ

T_S

V_IN= 5V, I_OUT= 250mA

V_IN= 10V

I_OUT

V_N

0.003

%V_OUT

Ripple Rejection Ratio⁽⁵⁾

R_A

V_IN= 5V, I_OUT= 250mA

Notes:

(1) Specifications are applicable for a power dissipation of 2.5W and are only achievable over a limited range of

V_IN- V_OUT.

(2) Low duty cycle pulse testing with Kelvin connections required. Changes in output voltage due to heating effects

are covered under the specification for thermal regulation.

(3) 30ms pulse.

(4) Bandwidth of 10Hz to 10kHz

(5) 120Hz input ripple, 1 dB less for each volt increase above 3.3V Min.; C_OUT& C_ADJ(for ADJ) = 25µF.

ã 2001 Semtech Corp.

www.semtech.com

EZ55Z3L

POWER MANAGEMENT

Pin Configurations

Ordering Information

Device⁽¹⁾

Package

FUNCTION

ADJ/GND

OUT

EZ55Z3L-SX.TR⁽²⁾

EZ55Z3L-ZX.TR⁽³⁾

SOT-223

TO-92

Notes:

(1) Where X denotes voltage options. Available voltages

are: 3.3V, 5V, 9V, 12V and 24V. Replace X with ADJ for

adjustable version (1.25 to 24V).

SOT-223 Tab is OUT

(2) Only available in tape and reel packaging. A reel

contains 2500 devices.

(3) Available in tape and reel packaging (a reel contains

3000 devices) or ammo pack (suffix TA, an ammo pack

contains 2000 devices).

Block Diagram

ã 2001 Semtech Corp.

www.semtech.com

EZ55Z3L

POWER MANAGEMENT

Outline Drawing - SOT-223

Land Pattern - SOT-223

ã 2001 Semtech Corp.

www.semtech.com

EZ55Z3L

POWER MANAGEMENT

Outline Drawing - TO-92

Contact Information

Semtech Corporation

Power Management Products Division

652 Mitchell Rd., Newbury Park, CA 91320

Phone: (805)498-2111 FAX (805)498-3804

ã 2001 Semtech Corp.

www.semtech.com
