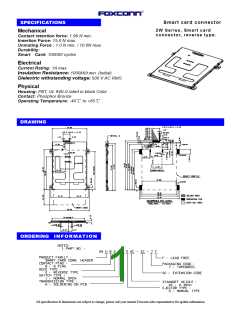

Smart card connector
SPECIFICATIONS
2W Series, Smart card
connector, reverse type.
Mechanical
Contact retention force: 1.96 N min.
Insertion Force: 15.0 N max.
Unmating Force : 1.0 N min. / 10.0N max.
Durability:
Smart Card: 100000 cycles
Electrical
Current Rating: 1A max.
Insulation Resistance: 1000MΩ min. (Initial)
Dielectric withstanding voltage: 500 V AC RMS
Physical
Housing: PBT, UL 94V-0 rated in black Color
Contact: Phosphor Bronze
Operating Temperature: -40℃ to +85℃
DRAWING
ORDERING INFORMATION
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
