KXOB22-04X3F

型号：

KXOB22-04X3F

品牌：

IXYS[ IXYS CORPORATION ]

页数：

6 页

PDF大小：

608 K

下载PDF手册

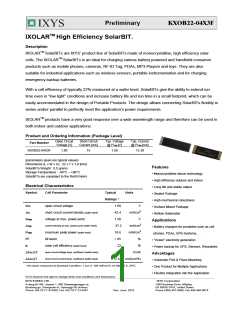

IXOLARTM High Efficiency SolarBIT.
Description
IXOLARTM SolarBITs are IXYS’ product line of SolarBITs made of monocrystalline, high efficiency solar
cells. The IXOLARTM SolarBITs is an ideal for charging various battery powered and handheld consumer
products such as mobile phones, cameras, RF-ID Tag, PDAs, MP3-Players and toys. They are also
suitable for industrial applications such as wireless sensors, portable instrumentation and for charging
emergency backup batteries.
With a cell efficiency of typically 22% measured at a wafer level, SolarBITs give the ability to extend run
time even in "low light" conditions and increase battery life and run time in a small footprint, which can be
easily accommodated in the design of Portable Products. The design allows connecting SolarBITs flexibly in
series and/or parallel to perfectly meet the application’s power requirements.
IXOLARTM products have a very good response over a wide wavelength range and therefore can be used in
both indoor and outdoor applications.
Product and Ordering Information (Package Level)
Open Circuit
Voltage [V]
Short Circuit
Current [mA]
Typ. Voltage
@ Pmpp [V]
Typ. Current
@ Pmpp [mA]
Part Number
KXOB22-04X3F
1.89
15
1.50
13.38
(parameters given are typical values)
Dimensions (L x W x H) : 22 x 7 x 1.8 [mm]
SolarBITs Weight : 0.5 grams
Features
Storage Temperature : -40°C ~ +90°C
SolarBITs are compliant to the RoHS Norm.
• Monocrystalline silicon technology
• High efficiency outdoor and indoor
• Long life and stable output
• Sealed Package
Electrical Characteristics
Symbol
Cell Parameter
Typical
Ratings *
1.89
Units
• High mechanical robustness
• Surface Mount Package
• Reflow Solderable
VOC
open circuit voltage
V
mA/cm2
V
JSC
short circuit current density (wafer level)
voltage at max. power point
current density at max. power point (wafer level)
42.4
Vmpp
Jmpp
Pmpp
FF
1.50
Applications
37.2
mA/cm2
mW/cm2
%
• Battery chargers for portables such as cell
phones, PDAs, GPS-Systems, …
• “Green” electricity generation
maximum peak power (wafer level)
fill factor
18.6
> 65
η
solar cell efficiency (wafer level)
open circuit voltage temp. coefficient (wafer level)
short circuit current temp. coefficient (wafer level)
22
%
• Power backup for UPS, Sensors, Wearables
ΔVOC/ΔT
ΔJSC/ΔT
-2.1
mV/K
Advantages
0.12 mA/(cm²K)
• Automatic Pick & Place Mounting
• One Product for Multiple Applications
* All values measured at Standard Condition: 1 sun (= 100 mW/cm²), Air Mass 1.5, 25°C
• Flexible Integration into the Application
IXYS reserves the right to change limits, test conditions and dimensions
IXYS KOREA LTD.
1
IXYS Corporation
1590 Buckeye Drive, Milpitas,
CA 95035-7418, United States
Phone (408) 457-9000, Fax 408-496-0670
A-dong #1106, Uspace 1, 660 Daewangpangyo-ro,
Bundang-gu, Seongnam-si, Gyeonggi-Do (Korea)
Phone +82-70-7113-0300, Fax +82-70-7113-0301
Rev. June. 2016
Typical SolarBIT Performance Data
External Quantum Efficiency
IXYS reserves the right to change limits, test conditions and dimensions
© 2010 IXYS All rights reserved
IXYS KOREA LTD.
A-dong #1106, Uspace 1, 660 Daewangpangyo-ro,
Bundang-gu, Seongnam-si, Gyeonggi-Do (Korea)
2
IXYS Corporation
1590 Buckeye Drive, Milpitas,
CA 95035-7418, United States
Phone +82-70-7113-0300, Fax +82-70-7113-0301
Rev. June. 2016
Phone (408) 457-9000, Fax 408-496-0670
Package front-side and back-side view.
SolarBIT Pad Design. (Dimensions in millimeters)
Front-side View details
Back-side View details
SolarBIT PCB Layout Recommendation:
The PCB layout foot print should be equivalent to the layout of the SolarBIT but on the contact pads on the short end(s) it should be
half a millimeter larger than the SolarBIT. For the KXOB22-04x3F one may use two pads of (6 x 2.5)mm size with 18mm spacing.
Moisture Sensitivity, Reflow Soldering and Washing Information
IXYS has characterized the moisture reflow sensitivity of the SolarBIT. Moisture uptake from atmospheric humidity occurs by diffusion.
During the solder reflow process, in which the component is attached to the PCB, the whole body of the component is exposed to high
process temperatures. The combination of moisture uptake and high reflow soldering temperatures may lead to moisture induced
delamination and cracking of the component. Upon reflow soldering for surface mounting, we recommend to use low temperature
solder paste like lead-free Sn-42 / Bi-58 composite paste. For instance, we recommend the lead-free solder paste TLF-401-11
manufactured by TAMURA KAKEN CORPORATION, where it recommends 220°C peak temperatures at the reflow zone
above 175°C for about 50 seconds.
SolarBIT is recommended to solder terminals by using oven curable solder paste, for instance, LORD PC10678HV silver conductor or
paste designed for screen print application and curable in convection oven at the profile of 100°C for 30 minutes. Manual soldering is
also recommended with under 260°C for 2 sec. IXYS does not recommend the use of chlorinated solvents for washing.
Tube Carrier Packaging
SolarBITs are shipped in 460 mm long clear PVC carrier tubes with antistatic coating. A tube contains 20 SolarBIT devices.
IXYS reserves the right to change limits, test conditions and dimensions
© 2010 IXYS All rights reserved
IXYS KOREA LTD.
A-dong #1106, Uspace 1, 660 Daewangpangyo-ro,
Bundang-gu, Seongnam-si, Gyeonggi-Do (Korea)
3
IXYS Corporation
1590 Buckeye Drive, Milpitas,
CA 95035-7418, United States
Phone +82-70-7113-0300, Fax +82-70-7113-0301
Rev. June. 2016
Phone (408) 457-9000, Fax 408-496-0670
Background
Some basic information needs to be covered to better understand what to expect in terms of
the SolarBITs performance with regards to solar cell type, lighting conditions in terms of
power density, and general industry standards as they relate to battery charging.
Solar Cell Types
Keep in mind these cost and performance tradeoffs when comparing various solar cell
materials:
Polycrystalline cells are commonly found in outdoor applications and have a spectral
sensitivity range of 500nm to 1100nm. They’re in the medium price range and typically offer
a 13% power conversion efficiency.
Monocrystalline cells, such as the IXYS SolarMD, have a spectral sensitivity range from 300
nm (near-ultraviolet) to 1100 nm (near-infrared), which includes visible light (400 to 700 nm).
Due to this wide spectral range, they can be used in both indoor and outdoor applications.
Monocrystalline or single-crystalline material is the most expensive but it does not contain
impurities, and as such the power conversion efficiency does not degrade over operating time.
The power conversion efficiency of commercially available monocrystalline cells ranges from
15 to 22%. The surface of these cells is a homogenous dark blue or dark grey.
Finally, amorphous cells, which work in the spectral range of 300nm to 600nm, are used
predominantly indoors in products such as solar powered calculators since they are not
sensitive to the upper light spectrum and cannot take advantage of natural sunlight. They
offer about 5% power conversion efficiency and are mostly used with ultra low power devices
like clocks and electronic calculators. Amorphous cells, like polycrystalline cells, suffer from
efficiency degradation.
IXYS reserves the right to change limits, test conditions and dimensions
© 2010 IXYS All rights reserved
IXYS KOREA LTD.
A-dong #1106, Uspace 1, 660 Daewangpangyo-ro,
Bundang-gu, Seongnam-si, Gyeonggi-Do (Korea)
4
IXYS Corporation
1590 Buckeye Drive, Milpitas,
CA 95035-7418, United States
Phone +82-70-7113-0300, Fax +82-70-7113-0301
Rev. June. 2016
Phone (408) 457-9000, Fax 408-496-0670
SolarBit Description
SolarBITs are monocrystalline, high-efficiency solar cells in a surface mount package. They’re
robust and can be used in harsh environments. SolarBITs have a very high (22%) power
conversion efficiency, which means that 22% of the light energy is converted into electrical
energy. They’re extremely useful in applications requiring solar power generation in a limited
space.
Monocrystalline cells can be used in indoor and outdoor applications because they have a wide
spectral sensitivity, 300 to 1100 nm. However, the output power of a solar cell is proportional
(over a wide range) to the incoming light energy, and irradiance is generally much higher
outdoors. The values in the data sheet are measured at “standard condition” of 1 sun, which is
equal to 1000W per square meter sunlight irradiance at a defined light spectrum (air mass of 1.5)
and 25°C cell temperature.
IXYS reserves the right to change limits, test conditions and dimensions
© 2010 IXYS All rights reserved
IXYS KOREA LTD.
A-dong #1106, Uspace 1, 660 Daewangpangyo-ro,
Bundang-gu, Seongnam-si, Gyeonggi-Do (Korea)
5
IXYS Corporation
1590 Buckeye Drive, Milpitas,
CA 95035-7418, United States
Phone +82-70-7113-0300, Fax +82-70-7113-0301
Rev. June. 2016
Phone (408) 457-9000, Fax 408-496-0670
Relative Lighting Power Density
The figure above compares relative power density for various lighting conditions in units of Watts
per square meter (W/m2). The reference standard condition is 1 Sun and is equal to 1000 Watts
per square meter of sunlight irradiance at a constant 25°C cell temperature and at 1.5 Air Mass
(Air Mass stands for a well defined light spectrum which appears if the sunlight goes through the
earth’s athmosphere at a defined angle).
As the chart clearly shows, the power density of typical indoor lighting is dramatically lower than
that of sunlight. Not only is irradiance from indirect and artificial light lower; the spectrum is also
narrower. In typical Office Space lighting with a spectrum produced from incandescent or halogen
light bulbs, the power output may be roughly 100 times less than bright sunlight. It may be 200
to 500 times less with fluorescent lighting due to the further limited spectrum.
IXYS makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the
right to make changes to specifications and product descriptions at any time without notice. Neither circuit patent licenses or indemnity are
expressed or implied. Except as set forth in IXYS’ Standard Terms and Conditions of Sale, IXYS assumes no liability whatsoever, and disclaims
any express or implied warranty relating to its products, including, but not limited to, the implied warranty of merchantability, fitness for a particular
purpose, or infringement of any intellectual property right.
The products described in this document are not designed, intended, authorized, or warranted for use as components in systems intended for
surgical implant into the body, or in other applications intended to support or sustain life, or where malfunction of IXYS’ product may result in direct
physical harm, injury, or death to a person or severe property or environmental damage. IXYS reserves the right to discontinue or make changes to
its products at any time without notice.
