AT ALL TIMES WATER RESISTANT CONNECTORS NOT
IN USE SHOULD BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
i
0.20 A
n1,12 (15x)
( 5 : 1 )
D
D
SEALING
COMPOUND
B
i
0.20 B
RECOMMENDED PANEL CUT-OUT
0,3
47,7 +-
0
0,15
0,1
33,3 +-
POS. 1
POS. 9
0,2
25,17 +- 0,05
0,22
0,03
8,26 +-
C
C
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATOR
SW 4,75
M3
M3
M3
O-RING
6STD15PAM99B40X
CONEC ABC
SEE NOTE 7
B
B
n
4
SEE NOTE 11
NOTES:
1. METALSHELLS: COPPER ALLOY; min. 315µin TIN over 40-80µin NICKEL
2. INSULATOR: PBT GF UL 94 V-0, GREEN
3. CONTACTS: COPPER ALLOY
PLATING: 8µin HARD GOLD over min. 50µin NICKEL
SOLDER CUP ACCEPTS CABLE AWG 20
4. THREADED LOCKS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
5. COLLARS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL
6. HEXLOCKING SCREWS: STAINLESS STEEL
7. FRAME: ZINC DIE CAST; NICKEL PLATED
8. O-RING: SILICON; BLUE
9. RUBBER GASKET: TPE
10. RECOMMENDED TORQUE FOR MOUNTING SCREW 35Ncm (3.1 in.LB) / max. 40Ncm (3.5 in.LB)
11. CONNECTOR IS PART MARKED: 6STD15PAM99B40X CONEC ABC
APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION
CUSTOMER APPROVAL DATE:
# APPROVAL
2:1 (5:1)
scale:
tolerance
material:
SEE NOTES
dim. in mm
A
A
date
name
title:
drawn
18.03.10
19.03.10
Petker

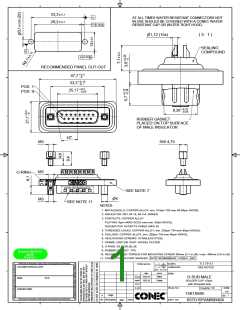

D-SUB MALE
SOLDER CUP 15pos.
with threaded lock
NAME:
TITLE:
appd.
norm
d-old
Fischer
dwg no:
Inventor 10
DIN-
COMPANY NAME:
A3
R
15K1A589
a
Origin
sh:
1
APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION
# APPROVAL
