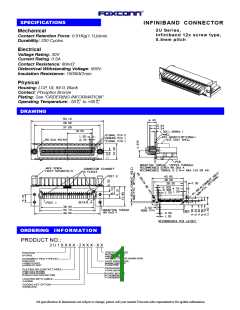

SPECIFICATIONS
INFINIBAND CONNECTOR
2U Series,
Infiniband 12x screw type,
0.5mm pitch
Mechanical
Contact Retention Force: 0.51Kg(1.1Lb)min.
Durability: 250 Cycles
Electrical
Voltage Rating: 30V
Current Rating: 0.5A
Contact Resistance: 80mΩ
Dielectrical Withstanding Voltage: 500V
Insulation Resistance: 1000MΩ min.
Physical
Housing: LCP, UL 94-0, Black
Contact: Phosphor Bronze
Plating: See “ORDERING INFORMATION”
Operating Temperature: -55℃ to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.:
2 U 1 X X X X - 2 X X X - X X
SPECIFIED CODE
POSITION
73=73POS.
N=STANDRAD TYPE
I=W/O EMI GASKET
H=SPECIAL TYPE FOR HUAWEI-3COM
ALIGNMENT PEG TYPE("A")
0=W/O POST
1=FREE FIT POST
2=PRESS FIT POST
LEAD FREE CODE
N=NONE LEAD FREE
F=LEAD FREE
PACKAGING
PLATING ON CONTACT AREA
1=TAPE AND REEL
3=30u" GOLD PLATING
5=50u" GOLD PLATING
B=GOLD FLASH OVER 20u" Pd/Ni
BOARD MOUNT
0= 2 SCREW BOSS
7= 4 SCREW BOSS
LOCKING WITH CABLE
2=SCREW
CODING KEY OPTION
0=NONE (STD)
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
