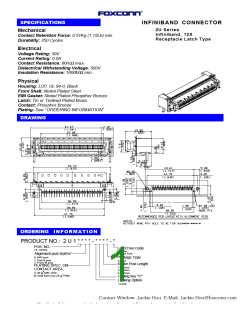

SPECIFICATIONS
INFINIBAND CONNECTOR
2U Series
Infiniband, 12X
Receptacle Latch Type
Mechanical
Contact Retention Force: 0.51Kg (1.15Lb) min.
Durability: 250 Cycles
Electrical
Voltage Rating: 30V
Current Rating: 0.5A
Contact Resistance: 80mW max.
Dielectrical Withstanding Voltage: 500V
Insulation Resistance: 1000MW min.
Physical
Housing: LCP, UL 94-0, Black
Front Shell: Nickel Plated Steel
EMI Gasket: Nickel Plated Phospthor Bronze
Latch: Tin or Tin/lead Plated Brass
Contact: Phosphor Bronze
Plating: See “ORDERING INFORMATION”
DRAWING
ORDERING INFORMATION
PRODUCT NO.: 2 U 1 * * * * - * * * * - *
POS. NO.:
Lead Free Code
73: 73POS.
N:None
F:Lead Free
Alignment post style
0: W/O post
1: Free fit post
2: Press fit post
"A"
Package Type
2:Tube
Solder Post Length
1:3.12mm
2:2.32mm
3:4.80mm
PLATING SPEC. ON
CONTACT AREA.
3: 30
MIN. Gold
B: Gold flash over 20 Pd/Ni
Coding key "C"
Locking Option
1:Latch
