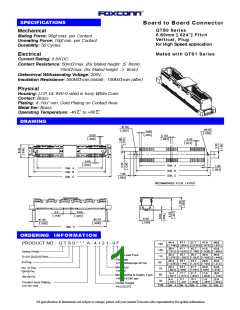

SPECIFICATIONS
Board to Board Connector
QTS0 Series
0.60mm [.024”] Pitch
Vertical, Plug
Mechanical
Mating Force: 90gf max. per Contact
Unmating Force: 10gf min. per Contact
Durability: 50 Cycles
for High Speed application
Mated with QTS1 Series
Electrical
Current Rating: 0.5A DC
Contact Resistance: 50mΩ max. (for Mated height ≦ 8mm)
70mΩ max. (for Mated height ＞ 8mm)
Dielectrical Withstanding Voltage: 200V
Insulation Resistance: 500MΩ min.(initial) , 100MΩ min.(after)
Physical
Housing: LCP, UL 94V-0 rated in Ivory White Color
Contact: Brass
Plating: 4~10u” min. Gold Plating on Contact Area
Metal Ear: Brass
Operating Temperature: -40℃ to +80℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: Q T S 0 * * * A - 4 1 2 1 - 9 F
Series Prefix
F: Lead Free
S=0.6 [0.024] Pitch
Package
9=Tape&Reel(single) W/ Cap
0=Plug
Metal Ear
1=W/ M/E
No. of Pos.
030=30 Pos.
Metal shield & Solder Type
1=W/ S/P & SMT type
150=150 Pos.
Contact Area Plating
A=4~10u" Gold
Profile Height
4=6.52 [0.257]
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
