DX4R005H91

型号：

DX4R005H91

品牌：

JAE[ JAPAN AVIATION ELECTRONICS INDUSTRY, LTD. ]

页数：

4 页

PDF大小：

181 K

下载PDF手册

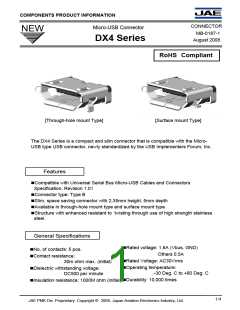

COMPONENTS PRODUCT INFORMATION
CONNECTOR
MB-0187-1
Micro-USB Connector
NEW
DX4 Series
August 2008
RoHSꢀCompliant
[Through-hole mount Type]
[Surface mount Type]
The DX4 Series is a compact and slim connector that is compatible with the Micro-
USB type USB connector, newly standardized by the USB Implementers Forum, Inc.
Features
„Compatible with Universal Serial Bus Micro-USB Cables and Connectors
Specification, Revision 1.01
„Connector type: Type B
„Slim, space saving connector with 2.35mm height, 5mm depth
„Available in through-hole mount type and surface mount type
„Structure with enhanced resistant to twisting through use of high strength stainless
steel.
General Specifications
„Rated voltage: 1.8A (Vbus, GND)
„No. of contacts: 5 pos.
Others 0.5A
„Contact resistance:
„Rated Voltage: AC30Vrms
„Operating temperature:
30m ohm max. (initial)
„Dielectric withstanding voltage:
-30 Deg. C to +80 Deg. C
DC500 per minute
„Durability: 10,000 times
„Insulation resistance: 1000M ohm (initial)
1/4
JAE PMK Div. Proprietary. Copyright ©ꢀ2008，Japan Aviation Electronics Industry, Ltd.
MB-0187-1
Materials and Finishes
Component
Insulator
Contact
Material/ Finish
Glass filled nylon resin UL94V-0
Copper alloy/
Contact area: Au plating over Pd over Ni
Terminal area: Au flash plating over Ni
Shell
Stainless steel/ Sn plating over Ni
Ordering Information
DX4 R 005 J 9 1 R1500
Reel: 1500 pcs.
Series
DX: Micro-USB
Modification code
Plating specification
9: Contact portion:
Au plating over Pd over Ni
R: Receptacle
No. of Contacts: 5 pos.
Board connection type
J: Through-hole type
H: SMT type
Micro-USB
Connector
Type
SJ
Part Number
Specifications
JACS-30097
Drawing
SJ107045
SJ107053
SJ107089
SJ107387
Individual Product (Through-hole Type):
DX4R005J91
Reel (Through-hole Type):
DX4R005J91R1500
Type B
Individual Product (SMT Type):
DX4R005H91
Reel (SMT Type):
DX4R005H91R1500
Note: Please place your order in reel units.
2/4
JAE PMK Div. Proprietary. Copyright ©ꢀ2008，Japan Aviation Electronics Industry, Ltd.
MB-0187-1
Unit: [mm]
Through-hole Type: DX4R005J91
Applicable Dimensions of Board (for Reference)
3/4
JAE PMK Div. Proprietary. Copyright ©ꢀ2008，Japan Aviation Electronics Industry, Ltd.
MB-0187-1
SMT Type: DX4R005H91
Applicable Dimensions of Board
(for Reference)
Notice: Products shown in this leaflet are
made for the applications listed below. However,
if the above-mentioned products are to be used in
aerospace devices, marine cable-connection
devices, atomic power control systems, medical
equipment for life-support systems, or any other
specific application requiring extremely high
reliability, please contact JAE for further
information.
Recommended applications: computers, office
machines, measuring devices,
telecommunication devices (terminals, mobile
devices), AV devices, household applications, FA
devices, etc.
Japan Aviation Electronics Industry, Limited
Product Marketing Division
Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539
Phone: +81-3-3780-2787 FAX: +81-3-3780-2946
* The specifications in this brochure are subject to change without notice. Please contact JAE for information.
JAE PMK Div. Proprietary. Copyright ©ꢀ2008，Japan Aviation Electronics Industry, Ltd.
4/4
