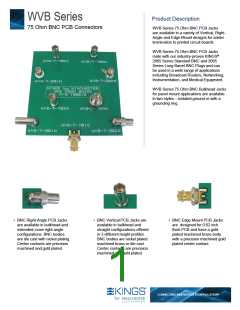

WVB Series
Product Description
75 Ohm BNC PCB Connectors
WVB Series 75 Ohm BNC PCB Jacks
are available in a variety of Vertical, Right-
Angle and Edge Mount designs for solder
termination to printed circuit boards.
WVB Series 75 Ohm BNC PCB Jacks
mate with our industry-proven KINGS®
2065 Series Standard BNC and 2065
Series Long Barrel BNC Plugs and can
be used in a wide range of applications
including Broadcast Routers, Networking,
Instrumentation, and Medical Equipment.
WVB Series 75 Ohm BNC Bulkhead Jacks
for panel mount applications are available
in two styles – isolated ground or with a
grounding ring.
• BNC Right-Angle PCB Jacks
• BNC Vertical PCB Jacks are
• BNC Edge Mount PCB Jacks
are designed for 0.62 inch
thick PCB and have a gold
plated machined brass body
with a precision machined gold
plated center contact.
are available in bulkhead and
extended–nose right-angle
configurations. BNC bodies
are die cast with nickel plating.
Center contacts are precision
machined and gold plated.
available in bulkhead and
straight configurations offered
in 3 different height profiles.
BNC bodies are nickel plated
machined brass or die cast.
Center contacts are precision
machined and gold plated.
CONNECTING INNOVATION TO APPLICATION®
