FZT649TC

型号:

FZT649TC

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

7 页

PDF大小:

493 K

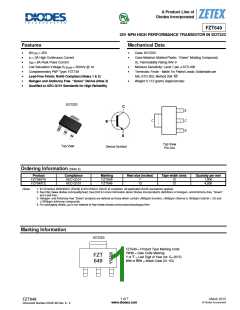

A Product Line of
Diodes Incorporated
Green
FZT649
25V NPN HIGH PERFORMANCE TRANSISTOR IN SOT223
Features
Mechanical Data
BVCEO > 25V
Case: SOT223
IC = 3A High Continuous Current
Case Material: Molded Plastic. “Green” Molding Compound;
UL Flammability Rating 94V-0
ICM = 8A Peak Pulse Current
Low Saturation Voltage VCE(sat) < 300mV @ 1A
Complementary PNP Type: FZT749
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads; Solderable per
MIL-STD-202, Method 208
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Weight: 0.112 grams (Approximate)
SOT223
Top View
Pin-Out
Top View
Device Symbol
Ordering Information (Note 4)
Product
FZT649TA
FZT649TC
Compliance
AEC-Q101
AEC-Q101
Marking
FZT649
FZT649
Reel size (inches)
Tape width (mm)
Quantity per reel
1,000
4,000
7
13
12
12
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
SOT223
FZT649 = Product Type Marking Code
YWW = Date Code Marking
FZT
649
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)
1 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
A Product Line of
Diodes Incorporated
FZT649
Absolute Maximum Ratings (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
VCBO
VCEO
VEBO
IC
Value
Unit
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
35
25
7
V
V
Continuous Collector Current
Peak Pulse Current
3
A
8
A
ICM
Thermal Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
Value
Unit
W
(Note 5)
(Note 6)
(Note 5)
(Note 6)
2
3
Power Dissipation
PD
W
62.5
°C/W
°C/W
°C/W
°C
Thermal Resistance, Junction to Ambient
RθJA
41.7
Thermal Resistance, Junction to Leads (Note 7)
Operating and Storage Temperature Range
12.9
RθJL
-55 to +150
TJ, TSTG
ESD Ratings (Note 8)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
JEDEC Class
3A
C
V
Notes:
5. For a device mounted with the collector lead on 25mm x 25mm 2oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air
conditions whilst operating in steady-state.
6. Same as Note 5, except the device is mounted on 50mm x 50mm 2oz copper.
7. Thermal resistance from junction to solder-point (at the end of the collector lead).
8. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
2 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
A Product Line of
Diodes Incorporated
FZT649
Thermal Characteristics and Derating Information
70
60
50
40
30
20
10
0
50
40
30
20
10
0
T
=25°C
T
=25°C
amb
amb
25mm x 25mm
2oz FR4
50mm x 50mm
2oz FR4
D=0.5
D=0.5
Single Pulse
D=0.05
D=0.1
10
Single Pulse
D=0.2
D=0.2
D=0.05
D=0.1
100µ 1m 10m 100m
1
100
1k
100µ 1m 10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Transient Thermal Impedance
3.0
Single Pulse
=25°C
100
10
1
50mm x 50mm
2oz FR4
T
2.5
2.0
1.5
1.0
0.5
0.0
amb
25mm x 25mm
2oz FR4
50mm x 50mm
2oz FR4
25mm x 25mm
2oz FR4
100µ 1m 10m 100m
1
10
100
1k
0
20 40 60 80 100 120 140 160
Pulse Width (s)
Temperature (°C)
Pulse Power Dissipation
Derating Curve
3 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
A Product Line of
Diodes Incorporated
FZT649
Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
BVCBO
BVCEO
BVEBO
Min
35
25
7
Typ
Max
Unit
V
Test Condition
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 9)
Emitter-Base Breakdown Voltage
IC = 100µA
IC = 10mA
IE = 100µA
VCB = 30V
V
V
0.1
10
100
0.3
0.6
1.25
1.0
Collector Cut-Off Current
µA
nA
V
ICBO
IEBO
VCB = 30V, TA = +100°C
VEB = 4V
Emitter Cut-Off Current
0.12
0.40
0.9
0.8
200
200
150
50
IC = 1A, IB = 100mA
IC = 3A, IB = 300mA
IC = 1A, IB = 100mA
IC = 1A, VCE = 2V
IC = 50mA, VCE = 2V
Collector-Emitter Saturation Voltage (Note 9)
VCE(sat)
Base-Emitter Saturation Voltage (Note 9)
Base-Emitter Turn-On Voltage (Note 9)
V
V
VBE(sat)
VBE(on)
70
100
75
15
300
I
C = 1A, VCE = 2V
IC = 2A, VCE = 2V
C = 6A, VCE = 2V
DC Current Gain (Note 9)
hFE
I
VCE = 5V, IC = 100mA,
f = 100MHz
Current Gain-Bandwidth Product
150
240
MHz
fT
55
300
25
ton
toff
-
IC = 500mA, VCC = 10V,
IB1 = -IB2 = 50mA
Switching Times
ns
Output Capacitance
50
pF
Cobo
VCB = 10V, f = 1MHz
Note:
9. Measured under pulsed conditions. Pulse width 300µs. Duty cycle 2%.
4 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
A Product Line of
Diodes Incorporated
FZT649
Typical Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
5 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
A Product Line of
Diodes Incorporated
FZT649
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
SOT223
Dim Min Max Typ
A
1.55 1.65 1.60
A1 0.010 0.15 0.05
b1
b2
C
2.90 3.10 3.00
0.60 0.80 0.70
0.20 0.30 0.25
6.45 6.55 6.50
3.45 3.55 3.50
6.90 7.10 7.00
D
E
E1
e
4.60
2.30
e1
L
0.85 1.05 0.95
0.84 0.94 0.89
All Dimensions in mm
Q
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Dimensions Value (in mm)
C
C1
X
X1
Y
2.30
6.40
1.20
3.30
1.60
1.60
8.00
Y1
Y2
6 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
A Product Line of
Diodes Incorporated
FZT649
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
7 of 7
www.diodes.com
March 2015
© Diodes Incorporated
FZT649
Document Number DS33148 Rev. 6 - 2
