TZA3050VH

型号：

TZA3050VH

品牌：

NXP[ NXP ]

页数：

24 页

PDF大小：

121 K

下载PDF手册

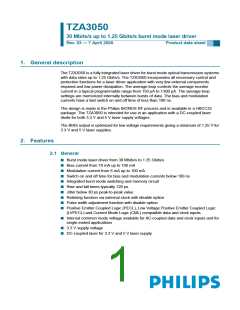

TZA3050
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
Rev. 03 — 7 April 2005
Product data sheet
1. General description
The TZA3050 is a fully integrated laser driver for burst mode optical transmission systems
with data rates up to 1.25 Gbits/s. The TZA3050 incorporates all necessary control and
protection functions for a laser driver application with very few external components
required and low power dissipation. The average-loop controls the average monitor
current in a typical programmable range from 150 µA to 1300 µA. The average-loop
settings are memorized internally between bursts of data. The bias and modulation
currents have a fast switch on and off time of less than 100 ns.
The design is made in the Philips BiCMOS RF process and is available in a HBCC32
package. The TZA3050 is intended for use in an application with a DC-coupled laser
diode for both 3.3 V and 5 V laser supply voltages.
The BIAS output is optimized for low voltage requirements giving a minimum of 1.25 V for
3.3 V and 5 V laser supplies.
2. Features
2.1 General
■ Burst mode laser driver from 30 Mbits/s to 1.25 Gbits/s
■ Bias current from 10 mA up to 100 mA
■ Modulation current from 6 mA up to 100 mA
■ Switch on and off time for bias and modulation currents below 100 ns
■ Integrated burst mode switching and memory circuit
■ Rise and fall times typically 120 ps
■ Jitter below 30 ps peak-to-peak value
■ Retiming function via external clock with disable option
■ Pulse width adjustment function with disable option
■ Positive Emitter Coupled Logic (PECL), Low Voltage Positive Emitter Coupled Logic
(LVPECL) and Current Mode Logic (CML) compatible data and clock inputs
■ Internal common mode voltage available for AC-coupled data and clock inputs and for
single-ended applications
■ 3.3 V supply voltage
■ DC-coupled laser for 3.3 V and 5 V laser supply
TZA3050
Philips Semiconductors
2.2 Control
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
■ Average power loop control
■ Optional direct setting of bias current
■ Direct setting of modulation current
2.3 Protection
■ Alarm function on operating current
■ Alarm function on monitor current
■ Soft start-up on bias and modulation currents during power-up
3. Applications
■ Burst mode laser driver
4. Ordering information
Table 1:
Ordering information
Type
number
Package
Name
Description
Version
TZA3050VH HBCC32
plastic thermal enhanced bottom chip carrier;
SOT560-1
32 terminals; body 5 × 5 × 0.65 mm
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
2 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
5. Block diagram
i.c.
CBIAS MODIN BIASOUT BIASIN
MON
AVR
32
30
29
28
27
26
31
25
24
V
CCO
I
BIAS
100 µA
100 µA
1
BIAS
V
CCA
V/I
2
CURRENT
CONVERSION
100
mA/V
V
CCD
enable
burst
I
AVR
23
22
GND
LA
V/I
100
mA/V
CONTROL BLOCK
I
100
Ω
100
Ω
MON
I
enable burst
ref
21
20
LA
3
LAQ
DIN
20
kΩ
19
18
100
Ω
PRE
AMP
POST
AMP
LAQ
PULSE
WIDTH
ADJUST
4
5
6
DINQ
TEST
CIN
MUX
20
kΩ
GND
I
mod
D
C
FF
20
kΩ
100
Ω
17
PWA
7
8
CINQ
GND
disable retiming:
20
kΩ
V
, V
CIN CINQ
< 0.3 V
TZA3050
V
I
− 1.32 V
CCD
9
ALRESET
10
kΩ
1.4 V
I
/12.5
av(MON)
/750
BIAS
R
Q
R
Q
ALARM
OPERATING
CURRENT
ALARM
MONITOR
CURRENT
3.3 V
V AND I
REFERENCE
I
/1500
mod
+
20
kΩ
enable
burst
1.4 V
10
11
12
13
14
15
16
ALOP
ALMON
MAXOP VTEMP
RREF
MAXMON
ENABLE
mce158
Fig 1. Block diagram
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
3 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
6. Pinning information
6.1 Pinning
V
1
32 31 30 29 28 27 26
25
CCA
V
2
3
4
5
6
7
8
24
23
22
21
20
19
18
BIAS
GND
LA
CCD
DIN
DINQ
TEST
CIN
LA
TZA3050VH
LAQ
LAQ
GND
CINQ
GND
9
10 11 12 13 14 15 16
17
PWA
mce135
Fig 2. Pin configuration
6.2 Pin description
Table 2:
Symbol
GND
Pin description
Pin
Description
die pad
common ground plane for VCCA, VCCD, VCCO, RF and I/O; must be
connected to ground
VCCA
1
2
analog supply voltage
VCCD
digital supply voltage
DIN
3
non-inverted data input (RF input)
inverted data input (RF input)
test pin; must be connected to ground
non-inverted clock input (RF input)
inverted clock input (RF input)
ground
DINQ
TEST
CIN
4
5
6
CINQ
GND
7
8
ALRESET
ENABLE
9
alarm reset input for alarm outputs ALMON and ALOP
10
enable input for modulation and bias current switch on and off
between bursts
ALOP
11
12
13
14
alarm output on operating current (open-drain)
alarm output on monitor diode current (open-drain)
threshold level input for alarm on operating current
temperature dependent voltage output
ALMON
MAXOP
VTEMP
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
4 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
Table 2:
Symbol
MAXMON
RREF
Pin description …continued
Pin
15
Description
threshold level input for alarm on monitor diode current
16
reference current input; must be connected to ground with an
accurate (1 %) 10 kΩ resistor
PWA
GND
LAQ
17
18
19
pulse width adjustment input
ground
inverted laser modulation output (RF output); output for dummy
load
LAQ
20
inverted laser modulation output (RF output); output for dummy
load
LA
21
22
23
24
25
26
27
28
29
30
non-inverted laser modulation output (RF output); output for laser
non-inverted laser modulation output (RF output); output for laser
ground
LA
GND
BIAS
current source output for the laser bias current
supply voltage for the output stage and the laser diode
input from the monitor photodiode (RF input)
input for the bias current setting
VCCO
MON
BIASIN
BIASOUT
MODIN
CBIAS
output of the control block for the bias current
input for the modulation current setting
output of the average loop; must be connected via a 100 nF
external capacitor to GND
i.c.
31
32
internally connected
AVR
input for the optical average power level setting
7. Functional description
7.1 Data and clock input
The TZA3050 operates with differential Positive Emitter Coupled Logic (PECL), Low
Voltage Positive Emitter Coupled Logic (LVPECL) and Current Mode Logic (CML) data
and clock inputs with a voltage swing from 100 mV to 1 V (p-p). It is assumed that both
data and clock inputs carry a complementary signal with the specified peak-to-peak value
(true differential excitation).
The circuit generates an internal common mode voltage for AC-coupled data inputs, clock
inputs and single-ended applications.
If VDIN > VDINQ, the modulation current is sunk by pin LA and corresponds to an optical
‘one’ level of the laser.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
5 of 24
TZA3050
Philips Semiconductors
7.2 Retiming
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
The retiming function synchronizes the data with the clock to improve the jitter
performance. The data latch switches on the rising edge of the clock input. The retiming
function is disabled when both clock inputs are below 0.3 V.
At start-up the initial polarity of the laser is unknown until the first rising edge of the clock
input appears.
7.3 Pulse width adjustment
The on-duration of the laser current can be adjusted with a guaranteed range from −50 ps
to +50 ps. The adjustment time is set by connecting a resistor, RPWA, to pin PWA. The
maximum allowable capacitive load on pin PWA is 100 pF. Pulse width adjustment is
disabled when pin PWA is short-circuited to ground.
7.4 Modulator output stage
The output stage is a high-speed bipolar differential pair with typical rise and fall times of
120 ps and with a modulation current source of up to 100 mA. The output stage of the
TZA3050 is optimized for DC-coupled lasers.
The modulation current switches between the LA and LAQ outputs. For a good RF
performance the inactive branch carries a small amount of the modulation current.
The LA output is optimized for the laser, the LAQ output is optimized for the dummy load.
The BIAS output is optimized for low voltage requirements (1.25 V minimum).
7.5 Average loop control
The average power control loop maintains a constant average power level of the monitor
current over temperature and lifetime of the laser. The average monitor current is
programmable over a wide current range, from 150 µA to 1300 µA typical, by tuning the
setting resistor RAVR. The maximum allowable capacitive load on pins AVR and BIASOUT
is 100 pF.
7.6 Direct current setting
The TZA3050 can also operate in open-loop mode with direct setting of the bias and
modulation currents. The bias and modulation current sources are transconductance
amplifiers and the output currents are determined by the BIASIN and MODIN voltages
respectively. The bias current source has a bipolar output stage with minimum output
capacitance for optimum RF performance.
7.7 Soft start
At power-up the bias and modulation current sources are released when VCCA > 2.7 V, the
reference voltage has reached the correct value of 1.2 V and the voltage on pin ENABLE
is HIGH.
The control loop starts with minimum bias and modulation current at power-up provided
the device is enabled. The current levels increase until the input current on pin MON
matches the programmed average level.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
6 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
7.8 Burst mode
The TZA3050 is compliant with burst mode application. Fast switch on and off of bias and
modulation currents is allowed in less than 100 ns via pin ENABLE.
When internal average loop control is used, the average power settings can be maintained
between two bursts of data via an external capacitor on pin CBIAS.
During a burst, this capacitor defines the time constant of the loop. Between bursts, the
capacitor is automatically disconnected from the internal circuitry and is used as a
memory cell.
A more complex memory cell can also be connected to pin CBIAS.
7.9 Alarm functions
The TZA3050 features two alarm functions for the detection of excessive laser operating
current and monitor diode current due to laser ageing, laser malfunctioning or a high laser
temperature. The alarm threshold levels are programmed by a resistor or a current
source. The operating current equals the bias current plus half of the modulation current.
7.10 Enable
A LOW level on the enable input disables the bias and modulation current sources: the
laser is off. A HIGH level on the enable input or an open enable input switches both
current sources on: the laser is operational.
7.11 Reference block
The reference voltage is derived from a band gap circuit and is available at pin RREF. An
accurate (1 %) 10 kΩ resistor has to be connected to pin RREF to provide the internal
reference current. The maximum allowable capacitive load on pin RREF is 100 pF.
The reference voltage on the setting pins MAXOP, MAXMON, PWA and AVR is buffered
and derived from the band gap voltage.
The output voltage on pin VTEMP reflects the junction temperature of the TZA3050. The
temperature coefficient of VVTEMP equals −2.2 mV/K.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
7 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
8. Limiting values
Table 3:
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
All voltages are referenced to ground; positive currents flow into the IC.
Symbol
VCCD
Parameter
Conditions
Min
−0.5
−0.5
−0.5
−0.5
0.8
Max
+3.5
+3.5
+3.5
+5.3
4.1
Unit
V
digital supply voltage
analog supply voltage
RF output supply voltage
VCCA
V
VCCO
3.3 V laser supply
5 V laser supply
VCCO = 3.3 V
VCCO = 5 V
V
V
Vo(LA)
Vo(LAQ)
VBIAS
Vn
output voltage at pin LA
output voltage at pin LAQ
bias voltage
V
1.2
4.5
V
VCCO = 3.3 V
VCCO = 5 V
1.6
4.5
V
2.0
5.2
V
VCCO = 3.3 V
VCCO = 5 V
0.8
3.6
V
0.8
4.1
V
voltage on all other input and output
pins
analog inputs and outputs
digital inputs and outputs
input current on pins
−0.5
−0.5
VCCA + 0.5 V
VCCD + 0.5 V
In
MAXOP, MAXMON, RREF, PWA
and AVR
−1.0
0
mA
VTEMP and BIASOUT
ALOP, ALMON and MON
ambient temperature
junction temperature
storage temperature
−1.0
0
+1.0
5.0
mA
mA
°C
Tamb
Tj
−40
−40
−65
+85
+125
+150
°C
Tstg
°C
9. Thermal characteristics
Table 4:
Thermal characteristics
In compliance with JEDEC standards JESD51-5 and JESD51-7.
Symbol
Parameter
Conditions
Typ
Unit
Rth(j-a)
thermal resistance from
junction to ambient
4 layer printed-circuit board in still air with 9 plated
vias connected with the heatsink and the first ground
plane in the PCB
35
K/W
HBCC32 die pad soldered to PCB
60
K/W
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
8 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
10. Static characteristics
Table 5:
Static characteristics
Tamb = −40 °C to +85 °C; Rth(j-a) = 35 K/W; Ptot = 400 mW; VCCA = 3.14 V to 3.47 V; VCCD = 3.14 V to 3.47 V; VCCO = 3.14 V
to 3.47 V; RAVR = 7.5 kΩ; RMODIN = 6.2 kΩ; RBIASIN = 6.8 kΩ; RPWA = 10 kΩ; RRREF = 10 kΩ (1 %); RMAXMON = 13 kΩ;
R
MAXOP = 20 kΩ; positive currents flow into the IC; all voltages are referenced to ground; unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Supplies: pins VCCA, VCCD and VCCO
VCCA
VCCD
VCCO
analog supply voltage
digital supply voltage
3.14
3.14
3.14
4.75
-
3.3
3.3
3.3
5.0
40
3.47
3.47
3.47
5.25
55
V
V
RF output supply voltage 3.3 V laser supply
5 V laser supply
V
V
ICCA
ICCD
ICCO
analog supply current
mA
mA
mA
digital supply current
-
45
60
RF output supply current pins LA and LAQ
-
20
30
open-circuit; 3.3 V and 5 V
laser supply
[1]
Ptot
total power dissipation
core power dissipation
VBIAS = 3.3 V; Imod = 16 mA;
-
-
412
264
-
-
mW
mW
IBIAS = 20 mA
Pcore
excluding Io(LA), Io(LAQ) and
IBIAS; PWA and retiming off
Data and clock inputs: pins DIN and CIN
Vi(p-p)
input voltage swing
(peak-to-peak value)
Vi(DIN) = VCCD − 2 V to VCCD
;
100
-
-
1000
-
mV
V
Vi(CIN) = VCCD − 2 V to VCCD
Vint(cm)
internal common mode AC-coupled inputs
voltage
V
CCD − 1.32
[2]
VIO
input offset voltage
−10
0
+10
130
mV
Zi(dif)
differential input
impedance
80
100
Ω
Zi(cm)
common mode input
impedance
-
-
10
-
-
kΩ
Vi(CIN)(dis)
input voltage for disabled VCIN = VCINQ
retiming
0.3
V
Monitor photodiode input: pin MON
Vi(MON)
Zi(MON)
input voltage
Iav = 150 µA to 1300 µA
Iav = 150 µA to 1300 µA
0.9
-
1.1
27
1.3
-
V
input impedance
Ω
Setting for average loop control: pins MON and AVR
Iav(MON)(low)
Iav(MON)(max)
∆Iav(MON)
low average monitor
current setting
IAVR > −250 µA
-
-
150
-
µA
µA
%
maximum average
monitor current setting
IAVR = −50 µA
1150
−10
1300
-
relative accuracy of
average current on pin
MON
temperature and VCCA
variations; IAVR = 550 µA
+10
Vref(AVR)
Isink(AVR)
9397 750 14806
reference voltage on pin IAVR = −250 µA to −15 µA;
1.14
1.20
-
1.26
V
AVR
CAVR < 100 pF
current sink on pin AVR
−280
−15
µA
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
9 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
Table 5:
Static characteristics …continued
Tamb = −40 °C to +85 °C; Rth(j-a) = 35 K/W; Ptot = 400 mW; VCCA = 3.14 V to 3.47 V; VCCD = 3.14 V to 3.47 V; VCCO = 3.14 V
to 3.47 V; RAVR = 7.5 kΩ; RMODIN = 6.2 kΩ; RBIASIN = 6.8 kΩ; RPWA = 10 kΩ; RRREF = 10 kΩ (1 %); RMAXMON = 13 kΩ;
R
MAXOP = 20 kΩ; positive currents flow into the IC; all voltages are referenced to ground; unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Control loop bias output: pin BIASOUT
Isource(BIASOUT) source current
VBIASOUT = 0.5 V to 1.5 V;
C
-
-
-
−200
µA
µA
BIASOUT < 100 pF
VBIASOUT = 0.5 V to 1.5 V;
BIASOUT < 100 pF
Bias current source: pins BIASIN and BIAS
Isink(BIASOUT)
sink current
200
-
C
gm(bias)
bias transconductance
VBIASIN = 0.5 V to 1.5 V;
BIAS = VCCO
89
110
131
mA/V
V
Isource(BIASIN)
source current at pin
BIASIN
VBIASIN = 0.5 V to 1.5 V
−110
−100
−95
µA
IBIAS(max)
IBIAS(min)
IBIAS(dis)
Vo(BIAS)
maximum bias current
minimum bias current
bias current at disable
VBIASIN = 1.8 V
100
-
-
mA
mA
µA
V
VBIASIN = 0 V to 0.4 V
VENABLE < 0.8 V
-
0.2
0.4
100
-
-
-
-
output voltage on pin
BIAS
1.25
Modulation current source: pin MODIN
gm(mod)
modulation
VMODIN = 0.5 V to 1.5 V;
77
95
112
mA/V
transconductance
VLA = VLAQ = VCCO
Isource(MODIN)
source current at pin
MODIN
VMODIN = 0.5 V to 1.5 V
−110
−100
−95
µA
Modulation current outputs: pins LA and LAQ
[3]
[3]
[3]
Io(LA)(max)(on)
Io(LA)(min)(on)
Io(LA)(min)(off)
maximum laser
modulation output
current at LA on
V
MODIN = 1.8 V;
100
-
-
mA
mA
mA
VLA = VCCO = 3.3 V
minimum laser
modulation output
current at LA on
V
V
MODIN = 0 V to 0.4 V;
LA = VCCO = 3.3 V
-
-
5
-
6
2
minimum laser
VMODIN = 1.5 V;
modulation output
current at LA off
VLA = VCCO = 3.3 V
Z
o(LA), Zo(LAQ) output impedance LA
80
-
100
-
130
200
Ω
and LAQ pins
Io(LA)(dis)
Io(LAQ)(dis)
,
non-inverted and
inverted laser
VENABLE < 0.8 V
µA
modulation output
current at disable
Vo(LA)(min)
minimum output voltage VCCO = 3.3 V
1.2
1.6
-
-
-
-
V
V
at pin LA
VCCO = 5 V
Enable function: pin ENABLE
VIL
LOW-level input voltage bias and modulation
-
-
-
0.8
-
V
V
currents disabled
VIH
HIGH-level input voltage bias and modulation
currents enabled
2.0
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
10 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
Table 5:
Static characteristics …continued
Tamb = −40 °C to +85 °C; Rth(j-a) = 35 K/W; Ptot = 400 mW; VCCA = 3.14 V to 3.47 V; VCCD = 3.14 V to 3.47 V; VCCO = 3.14 V
to 3.47 V; RAVR = 7.5 kΩ; RMODIN = 6.2 kΩ; RBIASIN = 6.8 kΩ; RPWA = 10 kΩ; RRREF = 10 kΩ (1 %); RMAXMON = 13 kΩ;
R
MAXOP = 20 kΩ; positive currents flow into the IC; all voltages are referenced to ground; unless otherwise specified.
Symbol
Rpu(int)
Parameter
Conditions
Min
Typ
Max
Unit
internal pull-up
resistance
-
20
-
kΩ
Alarm reset: pin ALRESET
VIL
LOW-level input voltage no reset
HIGH-level input voltage reset
-
-
0.8
V
VIH
2.0
-
-
-
-
V
Rpd(int)
internal pull-down
resistance
10
kΩ
Alarm operating current: pins MAXOP and ALOP
Vref(MAXOP)
reference voltage on
pin MAXOP
IMAXOP = 10 µA to 200 µA
1.15
1.2
775
-
1.25
-
V
NMAXOP
ratio of Ioper(alarm) and
IMAXOP
Ioper(alarm) = 7.5 mA to
150 mA
-
VD(ALOP)L
drain voltage at active
alarm
IALOP = 500 µA
0
0.4
V
V
Alarm monitor current: pins MAXMON and ALMON
Vref(MAXMON)
reference voltage on
pin MAXMON
IMAXMON = 10 µA to 200 µA
1.15
1.2
15
-
1.25
-
NMAXMON
ratio of IMON(alarm) and
IMAXMON
IMON(alarm) = 150 µA to
3000 µA
-
VD(ALMON)L
drain voltage at active
alarm
IALMON = 500 µA
0
0.4
V
Reference block: pins RREF and VTEMP
VRREF
reference voltage
RRREF = 10 kΩ (1%);
1.15
1.20
1.20
−2.2
-
1.25
1.27
-
V
C
RREF < 100 pF
[4]
[4]
VVTEMP
temperature dependent Tj = 25 °C; CVTEMP < 2 nF
voltage
1.14
V
TCVTEMP
Isource(VTEMP)
Isink(VTEMP)
temperature coefficient
of VVTEMP
Tj = −25 °C to + 125 °C
-
mV/K
mA
mA
source current of
pin VTEMP
-
−1
-
sink current of
pin VTEMP
1
-
[1] The total power dissipation Ptot is calculated with VBIAS = VCCO = 3.3 V and IBIAS = 20 mA. In the application VBIAS will be VCCO minus
the laser diode voltage which results in a lower total power dissipation.
[2] The specification of the offset voltage is guaranteed by design.
100
100 + ZL(LA)
[3] The relation between the sink current Io(LA) and the modulation current Imod is: Io(LA) = Imod
×
where ZL(LA) is the
-------------------------------
external load on pin LA. The voltage on pin MODIN programmes the modulation current Imod. This current is divided between ZL(LA) and
the 100 Ω internal resistor connected to pins LA. When the modulation current is programmed to 100 mA, a typical ZL(LA) of 25 Ω will
result in an Io(LA) current of 80 mA, while 20 mA flows via the internal resistor. This corresponds to a voltage swing of 2 V on the real
application load.
[4] VVTEMP = 1.31 + TCVTEMP × Tj and Tj = Tamb + Ptot × Rth(j-a)
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
11 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
11. Dynamic characteristics
Table 6:
Dynamic characteristics
Tamb = −40 °C to +85 °C; Rth(j-a) = 35 K/W; Ptot = 420 mW; VCCA = 3.14 V to 3.47 V; VCCD = 3.14 V to 3.47 V; VCCO = 3.14 V
to 3.47 V; RAVR = 7.5 kΩ; RMODIN = 6.2 kΩ; RBIASIN = 6.8 kΩ; RPWA = 10 kΩ; RRREF = 10 kΩ (1%); RMAXMON = 13 kΩ;
R
MAXOP = 20 kΩ; positive currents flow into the IC; all voltages are referenced to ground; unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
RF path
BR
bit rate
average loop control
0.03
-
-
-
1.25
30
Gbits/s
ps
J(LA)(p-p)
jitter of pin LA output signal RL = 25 Ω
(peak-to-peak value)
tr, tf
rise and fall time of voltage 20 % to 80 %; RL = 25 Ω;
-
120
150
ps
on pin LA
Imod = 30 mA
tsu(D)
th(D)
data input set-up time
data input hold time
switch-on time at enable
60
60
-
-
-
-
-
ps
ps
ns
-
[1]
[1]
to(en)
from 50 % of enable to 90 %
of steady state typical bias and
modulation current
100
to(dis)
switch-off time at disable
from 50 % of enable to 10 %
of steady state typical bias and
modulation current
-
-
100
ns
Current control
tcint
average loop time constant average loop control;
CBIAS = 100 nF
-
5
-
ms
C
tburst(min)
tidle(max)
minimum burst time
ENABLE pin HIGH
30
-
-
-
-
µs
maximum time between two ENABLE pin LOW
bursts
8
ms
Pulse width adjustment
tPWA(min) minimum pulse width
adjustment on pins LA
RPWA = 6.7 kΩ;
PWA < 100 pF
-
−100
0
−50
ps
ps
ps
C
tPWA
pulse width adjustment on RPWA = 10 kΩ; CPWA < 100 pF
-
-
-
pins LA
tPWA(max)
maximum pulse width
adjustment on pins LA
RPWA = 20 kΩ; CPWA < 100 pF
50
100
[1] The switch-on and switch-off time at enable and disable given are the absolute maximum values. They depend strongly on the following
parameters: bias current, modulation current, bias inductance and laser supply voltage. More detailed information available upon
request.
12. Application information
12.1 Design equations
12.1.1 Bias and modulation currents
The bias and modulation currents are determined by the voltages on pins BIASIN and
MODIN. For average loop control the BIASIN voltage is applied by the BIASOUT pin and
the MODIN voltage is applied by an external voltage source or an external resistor
RMODIN
.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
12 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
For direct setting of bias and modulation currents, the BIASIN and MODIN voltages have
to be applied by external voltage sources or by external resistors RBIASIN and RMODIN
connected to the BIASIN and MODIN pins:
IBIAS = (RBIASIN × 100 µA − 0.5 V) × gm(bias) [mA]
Imod = (RMODIN × 100 µA − 0.5 V) × gm(mod) + 5 [mA]
The transconductance gm(mod) defines the relation between the voltage on pin MODIN and
the modulation current.
The bias and modulation current sources operate with an input voltage range from 0.5 V
to 1.5 V. The output current is at its minimum level for an input voltage below 0.4 V;
see Figure 3 and Figure 4. The graphs indicate the values with a load of 0 Ω. When the
load is not zero, the relation between Io(LA) and Imod is given in Table 5, Table note 3.
100
I
BIAS
(mA)
g
=
m(bias)
100 mA/V
I
BIAS(min)
0.2
0
0.5
1.5
mce136
V
BIASIN
(V)
Fig 3. Bias current as function of BIASIN voltage
105
I
= I
mod o(LA)
(mA)
g
=
m(mod)
100 mA/V
I
o(LA)(min)
5
0
0.5
1.5
mgt891
V
(V)
MODIN
LA current when LA output is on
Vo(LA) = VCCO
Fig 4. Modulation current as a function of MODIN voltage
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
13 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
12.1.2 Average monitor current
The bias and modulation current sources are temperature compensated and keep the
adjusted current level stable over the temperature range.
The bias and modulation currents increase with increasing resistor values for RBIASIN and
RMODIN respectively; this allows resistor tuning to start at a minimum current level.
The average monitor current Iav(MON) in average loop operation is determined by the
source current of the AVR pin (IAVR). The current can be sunk by an external current
source or by an external resistor, RAVR, connected to ground. The equation is:
V AVR
Iav(MON) = 1580 − 5.26 × IAVR = 1580 − 5.26 ×
[µA]
-------------
RAVR
The average monitor current increases with decreasing IAVR or increasing RAVR; this
allows resistor tuning of RAVR to start at a minimum IAVR current level (Figure 5).
The formula used to program AVR is valid for typical conditions; tuning is necessary to
achieve absolute accuracy of the AVR value.
I
av(MON)
(µA)
1300
I
= 1580 − 5.26 × I
µA
AVR
av(MON)
150
0
50
250
I
(µA)
AVR
mce137
Fig 5. Typical average monitor current as a function of IAVR
12.1.3 Alarm operating current
The operating current for the DC-coupled laser application equals the bias current plus
half of the modulation current:
Imod
Ioper = IBIAS
+
----------
2
The alarm threshold Ioper(alarm) on the operating current is determined by the source
current of the MAXOP pin. The current range for IMAXOP is from 10 µA to 200 µA which
corresponds with an Ioper(alarm) from 7.5 mA to 150 mA.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
14 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
The IMAXOP current can be sunk by an external current source or by connecting RMAXOP to
ground:
VMAXOP
Ioper(alarm) = NMAXOP
×
--------------------
RMAXOP
The detection level is independent of burst mode timing.
12.1.4 Alarm monitor current
The alarm threshold IMON(alarm) on the monitor current is determined by the source current
of the MAXMON pin. The current range for IMAXMON is from 10 µA to 200 µA, which
corresponds with an IMON(alarm) from 150 µA to 3000 µA. The IMAXMON current can be
sunk by an external current source or by connecting RMAXMON to ground:
VMAXMON
IMON(alarm) = NMAXMON
×
-------------------------
RMAXMON
As the detected IMON is an average current, the alarm threshold is a function of the burst
mode timing. The formula can be used as a reference for a mode where signal is always
present.
12.1.5 Pulse width adjustment
The pulse width adjustment time is determined by resistor RPWA
:
RPWA – 10 kΩ
tPWA = 200 ×
[ps]
-----------------------------------
RPWA
The tPWA typical range is from −100 ps to +100 ps, which corresponds with an RPWA
resistance ranging from 6.7 kΩ minimum to 20 kΩ maximum (Figure 6). The PWA function
is disabled when the PWA input is short-circuited to ground, the tPWA is 0 ps for a disabled
PWA function.
100
t
PWA
(ps)
6.7
0
10
20
R
(kΩ)
PWA
−100
mgt893
Fig 6. Typical pulse width adjustment
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
15 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
12.2 Burst mode application
In burst mode application, data flow is not constant, data (the ‘burst‘) is interrupted with
significant idle times when no data is present and the laser is shut-down.
When using average loop control, the control is only done during a burst of data and the
average value should be stored during idle time.
The TZA3050 requires only one external capacitor to perform this storage. A typical
100 nF lossless capacitor connected to pin CBIAS will define the time constant of the loop
during bursts (typical 5 ms) and will also define the accuracy of the value stored between
bursts. Tuning of the external capacitor allows tuning of the average loop time constant
depending on the duty cycle and the burst duration.
When pin ENABLE is LOW, an internal switch is opened and the external capacitor is
connected to a high-impedance point. When pin ENABLE is HIGH, the internal switch is
closed and the external capacitor is connected to the internal average loop control circuit.
The ENABLE pin also controls the on and off switch state of the bias and modulation
current output stages resulting in burst-to-idle and idle-to-burst times below 100 ns on the
full current range available, with a typical load of 25 Ω on pins LA and LAQ.
It is not recommended to use the TZA3050 without an external capacitor on pin CBIAS as
this would result in a too small time constant, with the risk of pattern dependent behavior.
Table 7 shows time constants for different CBIAS capacitors.
Table 7:
Typical time constant of the average loop
Capacitor CCBIAS
10 nF
Time constant (typ.)
<1 ms
5 ms
100 nF
470 nF
30 ms
Using a smaller CBIAS capacitor allows a faster loop recovery in short burst period
applications, but it also means a shorter storage period. A 100 nF is considered as a
convenient value, even in applications with short burst time (minimum 30 µs), and large
idle time (maximum 8 ms) applications as shown in Figure 7.
Enable
burst > 30 µs
idle < 8 ms
mce138
Fig 7. Timing between burst and Idle mode
At power-up, the memorized value on pin CBIAS is reset by connecting pin CBIAS
internally to ground. The timing in Figure 7 does not take into account the initial charging
of the storage circuit. This initial timing is directly proportional to the value of the CBIAS
capacitor and to the duty cycle settings of the application.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
16 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
12.3 Average loop control
A simplified application using the TZA3050 with average loop control and a DC-coupled
laser at 3.3 V or 5 V laser voltage is illustrated in Figure 8. The average power level is
determined by the resistor RAVR. The average loop controls the bias current with the
BIASOUT output connected to the BIASIN input. The modulation current is determined by
the MODIN input voltage, which is generated by the resistor RMODIN and the 100 µA
source current of the MODIN pin.
The average loop setting is maintained between bursts with a capacitor connected to pin
CBIAS. When pin ENABLE is HIGH, the internal average loop regulates the average
power. When pin ENABLE is LOW, an internal switch is opened and the previous average
loop state is stored on the CBIAS capacitor.
3.3 V or 5 V
laser with
monitor diode
V
V
CCA
3.3 V
3.3 V
1
32 31 30 29 28 27 26
25
BIAS
GND
LA
CCD
DIN
2
3
4
5
6
7
8
24
23
22
21
20
19
18
DINQ
LA
TEST
CIN
TZA3050
LAQ
LAQ
GND
CINQ
GND
ALRESET
9
10 11 12 13 14 15 16
17
mce139
Fig 8. TZA3050 with DC-coupled laser and average loop control
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
17 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
13. Package outline
HBCC32: plastic thermal enhanced bottom chip carrier; 32 terminals; body 5 x 5 x 0.65 mm
SOT560-1
D
x
B
b
v
M
M
C
C
A B
1
w
v
M
M
C
A
B
w
C
ball A1
index area
b
b
3
E
v
M
C
C
A
B
w
M
b
v
M
M
C
C
A B
2
w
detail X
x
C
A
B
C
e
1
e
y
v
A
e
2
E
e
1 4
1
32
A
X
D
1
1
A
e
2
3
A
0
2.5
5 mm
scale
DIMENSIONS (mm are the original dimensions)
A
A
A
b
E
e
e
1
w
b
b
b
D
D
E
e
e
e
v
x
y
UNIT
1
2
1
1
2
3
1
2
3
4
max.
0.10 0.7
0.05 0.6
0.35 0.5
0.20 0.3
0.50 0.50 5.1
0.35 0.35 4.9
3.2
3.0
5.1
4.9
3.2
3.0
mm
0.8
0.15 0.15 0.05
0.5
4.2
4.2 4.15 4.15
0.2
REFERENCES
JEDEC JEITA
OUTLINE
VERSION
EUROPEAN
PROJECTION
ISSUE DATE
IEC
00-02-01
03-03-12
SOT560-1
MO-217
Fig 9. Package outline SOT560-1 (HBCC32)
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
18 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
14. Soldering
14.1 Introduction to soldering surface mount packages
This text gives a very brief insight to a complex technology. A more in-depth account of
soldering ICs can be found in our Data Handbook IC26; Integrated Circuit Packages
(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface mount IC packages. Wave
soldering can still be used for certain surface mount ICs, but it is not suitable for fine pitch
SMDs. In these situations reflow soldering is recommended.
14.2 Reflow soldering
Reflow soldering requires solder paste (a suspension of fine solder particles, flux and
binding agent) to be applied to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement. Driven by legislation and
environmental forces the worldwide use of lead-free solder pastes is increasing.
Several methods exist for reflowing; for example, convection or convection/infrared
heating in a conveyor type oven. Throughput times (preheating, soldering and cooling)
vary between 100 seconds and 200 seconds depending on heating method.
Typical reflow peak temperatures range from 215 °C to 270 °C depending on solder paste
material. The top-surface temperature of the packages should preferably be kept:
• below 225 °C (SnPb process) or below 245 °C (Pb-free process)
– for all BGA, HTSSON..T and SSOP..T packages
– for packages with a thickness ≥ 2.5 mm
– for packages with a thickness < 2.5 mm and a volume ≥ 350 mm3 so called
thick/large packages.
• below 240 °C (SnPb process) or below 260 °C (Pb-free process) for packages with a
thickness < 2.5 mm and a volume < 350 mm3 so called small/thin packages.
Moisture sensitivity precautions, as indicated on packing, must be respected at all times.
14.3 Wave soldering
Conventional single wave soldering is not recommended for surface mount devices
(SMDs) or printed-circuit boards with a high component density, as solder bridging and
non-wetting can present major problems.
To overcome these problems the double-wave soldering method was specifically
developed.
If wave soldering is used the following conditions must be observed for optimal results:
• Use a double-wave soldering method comprising a turbulent wave with high upward
pressure followed by a smooth laminar wave.
• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint longitudinal axis is preferred to be
parallel to the transport direction of the printed-circuit board;
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
19 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
– smaller than 1.27 mm, the footprint longitudinal axis must be parallel to the
transport direction of the printed-circuit board.
The footprint must incorporate solder thieves at the downstream end.
• For packages with leads on four sides, the footprint must be placed at a 45° angle to
the transport direction of the printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.
During placement and before soldering, the package must be fixed with a droplet of
adhesive. The adhesive can be applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the adhesive is cured.
Typical dwell time of the leads in the wave ranges from 3 seconds to 4 seconds at 250 °C
or 265 °C, depending on solder material applied, SnPb or Pb-free respectively.
A mildly-activated flux will eliminate the need for removal of corrosive residues in most
applications.
14.4 Manual soldering
Fix the component by first soldering two diagonally-opposite end leads. Use a low voltage
(24 V or less) soldering iron applied to the flat part of the lead. Contact time must be
limited to 10 seconds at up to 300 °C.
When using a dedicated tool, all other leads can be soldered in one operation within
2 seconds to 5 seconds between 270 °C and 320 °C.
14.5 Package related soldering information
Table 8:
Package [1]
Suitability of surface mount IC packages for wave and reflow soldering methods
Soldering method
Wave
Reflow[2]
BGA, HTSSON..T[3], LBGA, LFBGA, SQFP,
SSOP..T[3], TFBGA, VFBGA, XSON
not suitable
suitable
DHVQFN, HBCC, HBGA, HLQFP, HSO, HSOP,
HSQFP, HSSON, HTQFP, HTSSOP, HVQFN,
HVSON, SMS
not suitable[4]
suitable
PLCC[5], SO, SOJ
suitable
suitable
LQFP, QFP, TQFP
not recommended[5] [6]
not recommended[7]
not suitable
suitable
SSOP, TSSOP, VSO, VSSOP
CWQCCN..L[8], PMFP[9], WQCCN..L[8]
suitable
not suitable
[1] For more detailed information on the BGA packages refer to the (LF)BGA Application Note (AN01026);
order a copy from your Philips Semiconductors sales office.
[2] All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the
maximum temperature (with respect to time) and body size of the package, there is a risk that internal or
external package cracks may occur due to vaporization of the moisture in them (the so called popcorn
effect). For details, refer to the Drypack information in the Data Handbook IC26; Integrated Circuit
Packages; Section: Packing Methods.
[3] These transparent plastic packages are extremely sensitive to reflow soldering conditions and must on no
account be processed through more than one soldering cycle or subjected to infrared reflow soldering with
peak temperature exceeding 217 °C ± 10 °C measured in the atmosphere of the reflow oven. The package
body peak temperature must be kept as low as possible.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
20 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
[4] These packages are not suitable for wave soldering. On versions with the heatsink on the bottom side, the
solder cannot penetrate between the printed-circuit board and the heatsink. On versions with the heatsink
on the top side, the solder might be deposited on the heatsink surface.
[5] If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave
direction. The package footprint must incorporate solder thieves downstream and at the side corners.
[6] Wave soldering is suitable for LQFP, QFP and TQFP packages with a pitch (e) larger than 0.8 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.
[7] Wave soldering is suitable for SSOP, TSSOP, VSO and VSSOP packages with a pitch (e) equal to or larger
than 0.65 mm; it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.
[8] Image sensor packages in principle should not be soldered. They are mounted in sockets or delivered
pre-mounted on flex foil. However, the image sensor package can be mounted by the client on a flex foil by
using a hot bar soldering process. The appropriate soldering profile can be provided on request.
[9] Hot bar soldering or manual soldering is suitable for PMFP packages.
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
21 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
15. Revision history
Table 9:
Revision history
Document ID
TZA3050_3
Release date Data sheet status
20050407 Product data sheet
Change notice Doc. number
Supersedes
-
9397 750 14806 TZA3050_2
Modifications:
• The format of this data sheet has been redesigned to comply with the new presentation and
information standard of Philips Semiconductors.
TZA3050_2
Modifications:
TZA3050_1
20030326
Product specification
-
9397 750 11274 TZA3050_1
• Specification changed from Preliminary to Product.
20021106
Preliminary
specification
-
9397 750 10204
-
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
22 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
16. Data sheet status
Level Data sheet status[1] Product status[2] [3]
Definition
I
Objective data
Development
This data sheet contains data from the objective specification for product development. Philips
Semiconductors reserves the right to change the specification in any manner without notice.
II
Preliminary data
Qualification
This data sheet contains data from the preliminary specification. Supplementary data will be published
at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.
III
Product data
Production
This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).
[1]
[2]
Please consult the most recently issued data sheet before initiating or completing a design.
The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at
URL http://www.semiconductors.philips.com.
[3]
For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.
17. Definitions
18. Disclaimers
Short-form specification — The data in a short-form specification is
extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Life support — These products are not designed for use in life support
appliances, devices, or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors
customers using or selling these products for use in such applications do so
at their own risk and agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Limiting values definition — Limiting values given are in accordance with
the Absolute Maximum Rating System (IEC 60134). Stress above one or
more of the limiting values may cause permanent damage to the device.
These are stress ratings only and operation of the device at these or at any
other conditions above those given in the Characteristics sections of the
specification is not implied. Exposure to limiting values for extended periods
may affect device reliability.
Right to make changes — Philips Semiconductors reserves the right to
make changes in the products - including circuits, standard cells, and/or
software - described or contained herein in order to improve design and/or
performance. When the product is in full production (status ‘Production’),
relevant changes will be communicated via a Customer Product/Process
Change Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no
license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise
specified.
Application information — Applications that are described herein for any
of these products are for illustrative purposes only. Philips Semiconductors
make no representation or warranty that such applications will be suitable for
the specified use without further testing or modification.
19. Contact information
For additional information, please visit: http://www.semiconductors.philips.com
For sales office addresses, send an email to: sales.addresses@www.semiconductors.philips.com
9397 750 14806
© Koninklijke Philips Electronics N.V. 2005. All rights reserved.
Product data sheet
Rev. 03 — 7 April 2005
23 of 24
TZA3050
Philips Semiconductors
30 Mbits/s up to 1.25 Gbits/s burst mode laser driver
20. Contents
1
General description . . . . . . . . . . . . . . . . . . . . . . 1
16
17
18
19
Data sheet status. . . . . . . . . . . . . . . . . . . . . . . 23
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contact information . . . . . . . . . . . . . . . . . . . . 23
2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1
2.2
2.3
3
4
5
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Ordering information. . . . . . . . . . . . . . . . . . . . . 2
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6
6.1
6.2
Pinning information. . . . . . . . . . . . . . . . . . . . . . 4
Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 4
7
Functional description . . . . . . . . . . . . . . . . . . . 5
Data and clock input . . . . . . . . . . . . . . . . . . . . . 5
Retiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pulse width adjustment. . . . . . . . . . . . . . . . . . . 6
Modulator output stage. . . . . . . . . . . . . . . . . . . 6
Average loop control. . . . . . . . . . . . . . . . . . . . . 6
Direct current setting. . . . . . . . . . . . . . . . . . . . . 6
Soft start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Burst mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Alarm functions. . . . . . . . . . . . . . . . . . . . . . . . . 7
Enable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Reference block . . . . . . . . . . . . . . . . . . . . . . . . 7
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
7.11
8
Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Thermal characteristics. . . . . . . . . . . . . . . . . . . 8
Static characteristics. . . . . . . . . . . . . . . . . . . . . 8
Dynamic characteristics . . . . . . . . . . . . . . . . . 11
9
10
11
12
12.1
Application information. . . . . . . . . . . . . . . . . . 12
Design equations . . . . . . . . . . . . . . . . . . . . . . 12
Bias and modulation currents . . . . . . . . . . . . . 12
Average monitor current . . . . . . . . . . . . . . . . . 13
Alarm operating current . . . . . . . . . . . . . . . . . 14
Alarm monitor current. . . . . . . . . . . . . . . . . . . 15
Pulse width adjustment. . . . . . . . . . . . . . . . . . 15
Burst mode application . . . . . . . . . . . . . . . . . . 15
Average loop control. . . . . . . . . . . . . . . . . . . . 17
12.1.1
12.1.2
12.1.3
12.1.4
12.1.5
12.2
12.3
13
Package outline . . . . . . . . . . . . . . . . . . . . . . . . 18
14
14.1
Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Introduction to soldering surface mount
packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Reflow soldering . . . . . . . . . . . . . . . . . . . . . . . 19
Wave soldering . . . . . . . . . . . . . . . . . . . . . . . . 19
Manual soldering . . . . . . . . . . . . . . . . . . . . . . 20
Package related soldering information . . . . . . 20
14.2
14.3
14.4
14.5
15
Revision history. . . . . . . . . . . . . . . . . . . . . . . . 22
© Koninklijke Philips Electronics N.V. 2005
All rights are reserved. Reproduction in whole or in part is prohibited without the prior
written consent of the copyright owner. The information presented in this document does
not form part of any quotation or contract, is believed to be accurate and reliable and may
be changed without notice. No liability will be accepted by the publisher for any
consequence of its use. Publication thereof does not convey nor imply any license under
patent- or other industrial or intellectual property rights.
Date of release: 7 April 2005
Document number: 9397 750 14806
Published in The Netherlands
厂商 型号 描述 页数 下载

RHOMBUS-IND

 		TZA1-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA1-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-10 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-20 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-5 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

RHOMBUS-IND

 		TZA10-7 TZA / TYA系列5抽头高性能无源延时模块[ TZA / TYA Series 5-Tap High Performance Passive Delay Modules ] 1 页

NXP

 		TZA1000 QIC读写放大器[ QIC read-write amplifier ] 24 页

NXP

 		TZA1000T/N3 [ IC 1 CHANNEL READ WRITE AMPLIFIER CIRCUIT, PDSO24, 7.50 MM, PLASTIC, SOT-137-1, SOP-24, Drive Electronics ] 26 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.226608s
