VXS1003M10WS

型号:

VXS1003M10WS

品牌:

IVO[ BAUMER IVO GMBH & CO. KG ]

页数:

2 页

PDF大小:

498 K


n

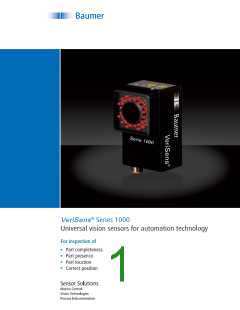

VeriSens® Series 1000
Universal vision sensors for automation technology
For inspection of
n
Part completeness
Part presence
Part location
Correct position
n
n

n

n
Models
VXS 1003M10RS
VXS 1003M10WS
VXS 1003M16RS
VXS 1003M16WS
Series 1000
Image sensor
Number of pixels
Type
High Sensitive Progressive Scan CCD
656 x 494
Monochrome
LED illumination
Red
White
Red
White
(typ. 660 nm)
(typ. 660 nm)
Your benefits
Speed
High Resolution Mode: max. 30 inspections per second
High Speed Mode: max. 50 inspections per second
n
Lens
f = 10 mm
f = 16 mm
Powerful, two-dimensional position
Min. object distance
Object distance
60 mm
50 mm
60 mm
correction for object detection
Maximum field of view
30 mm x 23 mm
51 mm x 38 mm
101 mm x 76 mm
152 mm x 114 mm
13 mm x 10 mm
26 mm x 20 mm
57 mm x 43 mm
89 mm x 67 mm
100 mm
Multiple applications are feasible
200 mm
due to extensive function library from
brightness sensing to contour sensing
300 mm
Signal processing
Processor
Baumer FEX® 3.0
64 MBytes
Memory
Reliable operation even under varying
Inputs / Outputs
3x digital input
Inputs: 8...30 VDC / Outputs: PNP 100 mA
lighting conditions due to contour-
based image processor
Trigger
Job selection 1
Job selection 2 / external Teach-in
Ready
3x digital output
n
Rapid commissioning is supported by
Pass / Fail
intuitive user interface with pre-
configured sensor functions
Flash sync / Alarm
Communication
Serial
USB 2.0
Electrical data
Power supply
Power consumption
Housing
n
Capable of switching between up to
8...30 VDC
Typical 6 Watts
255 jobs
Material
Aluminum and PMMA
250 g
Weight
Operating conditions
Operating temperature
Humidity
5°C...50°C
0%...90% (non-condensing)
IP 64
Protection class
n
Compact
PLC interface
Type M12 / 8-pin
n
1: IN1 (Trigger)
2: Power + 24 VDC
3: OUT1 (Ready)
4: OUT2 (Pass / Fail)
5: OUT3 (Flash / Alarm)
6: IN2 (Job)
Reliable
n
Powerful
6
5
7
n
User-friendly
8
4
1
3
2
7: Ground
8: IN3 (Job / Teach)
Baumer Switzerland
Baumer Group · International Sales
Find your local partner
www.baumergroup.com/worldwide
P.O. Box · Hummelstrasse 17 · CH-8501 Frauenfeld
Phone +41 (0)52 728 1122 · Fax +41 (0)52 728 1144
sales@baumergroup.com · www.baumergroup.com
