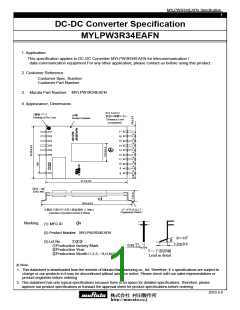

MYLPW3R34EAFN Specification
1
DC-DC Converter Specification
MYLPW3R34EAFN
1. Application
This specification applies to DC-DC Converter MYLPW3R34EAFN for telecommunication /
data-communication equipment.For any other application, please contact us before using this product.
2. Customer Reference
Customer Spec. Number
Customer Part Number
3. Murata Part Number MYLPW3R34EAFN
4. Appearance, Dimensions
P=2.54±0.2
誤差は累積しない
1番端子ﾏｰｸ
品番
Marking of No.1 pin
Product Number
Tolerance is not
accumulated.
1
2
3
4
5
6
17
16
15
14
13
12
11
10
9
7
8
37.3±0.5
[単位：mm]
[Unit:mm]
※
39.9±0.6
※製品下部ｸﾘｱﾗﾝｽ受入検査規格 0.08min
ｺﾌﾟﾗﾅﾘﾃｨ0.1以下
Coplanarity Max0.1
Clearance of product bottom 0.08min
Marking
(1) MFG ID
(2) Product Number MYLPW3R34EAFN
(3) Lot No. ①②③
0～10°
1.3±0.3
θ
+0.1
-0.15
0.55
①Production factory Mark
②Production Year
③Production Month（1,2,3,…9,O,N,D）
リード部詳細
Lead in detail
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
2
5. Pin Number and Function
Pin No.
1,7,8,17
Symbol
NCo
Function
Each pin of four corners of PWB.
For dipping resin to glue on backside of motherboard.
2
3
4
5
6
9
10
11
12
13
14
15
16
+Vout
+Vout
+Vout
-Vout
-Vout
ALM
RC
PO
NC
+Vin
+Vin
-Vin
(+)Output
(+)Output
(+)Output
(-)Output
(-)Output
Alarm output to stop all in abnormality.
Remote ON/OFF
Parallel operation.
(+)Input
(+)Input
(-)Input
(-)Input
-Vin
6. Block Diagram
6.1. Entire Product
+Vout
+Vin
13
2
3
フ
ィ
ル
タ
部
14
4
DRIVE
DRIVE
5
6
-Vout
15
16
-Vin
PO
11
制御回路部
Controller
RC
10
ALM
9
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
3
6.2. Input Filter
+Vin
13
14
15
16
-Vin
6.3. Output Filter
+Vout
2
3
4
5
6
-Vou t
6.4. Remote ON/OFF control
RC
10
15
16
-Vin
7. Environmental Conditions
7.1. Operating Temperature Range
-40℃ - +85℃
(Natural Air Convection : 0.2m/s with Vin=18 to 62V)
20% - 85% （No water condenses.）
-45℃ - +85℃
7.2. Operating Humidity Range
7.3. Storage Temperature Range
7.4. Storage Humidity Range
10% - 90%（No water condenses.）
8. Absolute Rating
Item
Unit
V
Absolute Rating
Remarks
Minimum Input Voltage
Maximum Input Voltage
ALM Applied Voltage
RC Applied Voltage
0
Continuous
V
62
Time
V
100
Slew rate 52V/10μs
100ms
PO Applied Voltage
V
8
Maximum ALM Sink Current
mA
10
※No voltage, no matter how instantaneous, shall be applied beyond the absolute maximum voltage rating to this product.
If you apply any voltage over this limit the product characteristics will deteriorate or the product itself will be destroyed.
Even though it may continue operating for a while after the over-voltage event, its life will likely be shortened significantly.
Reliability and life of the module may degrade similarly if the maximum operating voltage rating is continuously exceeded.
This product is designed to operate within the maximum operating voltage rating specification.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
4
9. Characteristics
9.1. Electrical Characteristics (Ta=25℃)
9.1.1. General Characteristics
Unless otherwise specified, (Ta= -40 to +85℃ with Natural Air Convection 0.2m/s)
Value
Item
Condition
Unit
V
Symbol
Vin
Min.
18
Typ.
Max..
62
Input Voltage Range
Turn-on Input Voltage
Natural Air Convection Min 0.2m/s)
Vin=increasing
48
16
1.0
-
-
-
18
-
V
V
Input Voltage difference of
Turn-on and Turn-off
PO pin : Open or Connected to PO
pin of other DC-DC Converters
Galvanic Isolation Voltage
Input time : 1 minute
1500
-
Vdc
Item
Standard
Note
Noise (Radiation,
Conduction)
In accordance with VCCI Class A
Recognized UL60950(UL/C-UL), Complied IEC
60950
UL file No.E190503
CE Mark is shown on a package box.
Safety Standard
CE Marking
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
5
9.1.2. Output Characteristics (Ta= -40 to +85℃ with Natural Air Convection 0.2m/s)
Part Number MYLPW3R34EAFN
特性
Item
Condition
Unit
Symbol
Vo
Min.
-
Typ.
Max.
-
Nominal Output Voltage
Output Voltage Variation
Output Current
3.3
V
Vin=18 to 62V, Io=0 to 4.5A
Δregtot
-3
0
+5
%
Ta=-40 to +85℃
Natural Air Convection 0.2m/s
(Vin=18～62V)
Io
-
4.5
A
Efficiency
η
at rated Vin, Io, Ta=25℃
87.0
-
-
%
Ripple Voltage
-
-
40
Vr
Refer to Test Circuit
mVpp
Ripple Voltage & Noise
Over Current Protection
-
-
50
Iocp
Vovp
4.63
A
V
Output halts in latch-up mode after
mask time 0.5msec (typ) to avoid
malfunction by nose and transient
change.
Input turn off and on to reset.
Output halts in latch-up mode after
mask time 500msec (typ) to avoid
malfunction by nose and transient
change.
Over Voltage Protection
3.96
-
-
Low Voltage Protection
Caution
Vlvp
-
2.97
V
Input turn off and on to reset.
!
The above electrical characteristics are guaranteed in the condition that the impedance of the input power supply is
sufficiently low as shown in clause 10.
Connecting an input inductance or using an input power supply with output inductance may cause an unstable operation of
this product. Please check the proper operation of this product with the peripheral circuits on your product.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
6
9.2. Operation information
9.2.1. Reset Condition
In order to reset all function, the input Voltage is set under 5V for Min.1 second.
入力電圧
Input Voltage
18～62V
リセット条件
Reset Condition
5V 以下
Max. 5V
1sec.以上
Min. 1 second
9.2.2. Over Voltage Protection
Output halts in latch-up mode after 0.5msec(typ) mask time while Output Voltage is over the value of
over voltage protection specified in 9.1. clause with failure of controller circuit.
Output will re-start after input turns off for Min. 1 second with input voltage less than 5V.
Output voltage might exceed the point at over voltage protection under the specific condition of
transient change of input voltage or output load, in this condition over voltage protection wait its start
until the mask time.
It is recommended to evaluate your appliance installed with DC-DC converter.。
入力電圧
18～62V
Input Voltage
復帰条件
Re-Start Condition
5V 以下
Max. 5V
1sec.以上
Min. 1 second
9.2.3. Low Voltage Protection
Output halts in latch-up mode after 500msec(typ) mask time while output voltage is below the value of
low voltage protection specified in 9.1.clause with failure of controller circuit or over load condition.
Output will re-start after input turns off for Min.1 second with input voltage less than 5V.
入力電圧 18～62V
Input Voltage
復帰条件
Re-Start Condition
5V 以下
Max. 5V
1sec.以上
Min. 1 second
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
7
9.2.4. Remote On/Off Control
Start and halt is possible with a control signal.
While the control signal stops output from DC-DC converter, alarm output does not send any signal.
Start : RC is open or connected to-Vin.
Halt : RC is connected to +Vin.
9.2.5. Alarm Output
ALM pin is down to the same voltage level of-Vin pin and sends an alarm signal. (open-drain output)
Sink current in ALM pin is Max.10mA.
It is possible to halt all of the connected DC-DC converters when any one is halted with over voltage
protection or low voltage protection, with connecting all ALM pins for the application of
parallel/multiple operation with plural DC-DC converters.
The maximum number connecting DC-DC converters is 10pcs for the purpose of halting all DC-DC
converters connected with ALM pin each other.
Please contact us when more than 10pcs.
9.2.6. Synchronous Turn-on/off
It is possible to avoid the unevenness of turn-on timing with unifying the various Turn-on input
voltage to a certain voltage which one DC-DC converter has, and with connecting PO pins each
other for the application of parallel/multiple operation of plural DC-DC converters.
It is necessary to connect PO pins for parallel operation.
The maximum number connecting DC-DC converters is 10pcs for the purpose of synchronous
turn-on/off with connecting PO pins.
Please contact us when more than 10pcs.
9.3. Reliability
9.3.1. Reliability Test Items.
Item
Test Condition
Criteria
According to JIS-C-0022
Humidity
+40±2℃, 90 to 95%RH, 100 hours.
Leave 4 hours at room temperature.
Repeat cycle 5 times. Leave 2 hours at room
temperature.
Temperature
Cycles
1. –40±3℃/30minutes
2. Room Temp./5-10minutes
3. 85±2℃/30minutes
No damage in appearance and no
deviation of electrical characteristics
before and after the test.
4. Room Temp./5-10minutes
10 to 55Hz, max. 1.5mm amplitude, 1 hour
for each of X, Y, Z directions.
Mechanical
Vibration
Mechanical
Shock
20G, 1 time for each of X, Y, Z directions.
9.3.2. Reliability Prediction (For reference only)
MTBF is 2.81 million hours = 321 years
at 50% nominal output current and Ta=40℃,
calculated by Telcordia SR-332.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
8
10. Test Circuit
In the following test circuit, the measured values should meet those of clause 9.
オシロスコープ
Oscilloscope
10.1. General Measure Circuit
A
1
A
絶縁型
DC-DC
V1
RL 負荷抵抗
コンバータ
Load
V
Ein
直流安定化電源
Stabilized DC
Isolated DC-DC
Converter
マルチメータ
Multimater
A V
power supply
10.1.1. Output Ripple & Noise
同軸ケーブル:1.5D-2V(JISC3501規定)、長さ1.5m
Coaxial cable : 1.5D-2V, (JISC3501), Length is 1.5m
オシロスコープ
+IN
-IN
+OUT
-OUT
Oscilloscope
f
:
500MHz
C1=10μF
(セラミックコンデンサ)
BW
Ein
(Ceramic Capacitor)
フィードスルーターミネータ使用
with Feed thru-Termination
計測技研製
R:50Ω
Keisokugiken
等価回路
TRC-50F
C:0.01μF
Equivalent
circuit
Capacitor : C1
コンデンサ C1
:
入力側
Input
出力側
Output
(出力端子先端に実装)
(Connect to tip of output pins.)
同軸ケーブル
Coaxial cable
A: 出力リプル&ノイズ
Output Ripple Voltage&Noise
B: 出力リプル
Output Ripple Voltage
C: スイッチング周期
Switching Period
C
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
9
10.1.2. Radiation Noise
Isolated DC-DC
Converter
Clamper
Resistive
Load
ZCAT3035-1330(TDK) 3pcs in series
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
10
11. Packaging Information
11. 1. Tray Dimensions
DC-DC converters are put in the trays. (See Fig.1)
135.9
39.0
57.9
B
B'
Ｂ－Ｂ’断面図
B-B' Cross Section
単位：ｍｍ
一般公差：±１．５
Unit : mm
General Tolerance
Fig.1
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
11
11. 2. Contained pieces of products per corrugated box.
Maximum Contained products pieces 84 pcs/corrugated box.
Further plural sheets of corrugated cardboard are placed on the top of the dummy tray according to
number of contained trays in order to full up the space in a corrugated box.
11. 3. Packaging Form
Trays with products are lidded and packed in a corrugated box. (See Fig.2)
ダンボール台紙
Corrugated cardboard
製品は入りません
Dummy tray
製品が入ります
トレイ
Containning products
Tray
最大6トレイ
6 tray max.
ダンボール台紙
Corrugated cardboard
330
（ ）
68
（ ）
MURATA PRODUCTS
表示
Lebel
155
（ ）
梱包箱
梱包箱寸法[単位:mm]は参考値
Corrugated box
Dimension [unit : mm]of
Corrugated box is reference only.
図2
Fig.2
※ Marking on the box
1.MURATA Parts Number 2.Quantity 3.Inspection No. 4. CE Mark 5. ROHS－Y
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
12
12. Production factory
Wakura Murata Mfg. Co., Ltd.
Kanazu Murata Mfg. Co., Ltd.
Komatsu Murata Mfg. Co., Ltd.
Caution
!
1 . Be sure to provide an appropriate fail-safe function on your product to prevent secondary damage that may
be caused by the functional trouble or the failure of this product.
2 . Please contact us before using this product for the applications listed below which require especially high
reliability for the prevention of defects and failure , which might directly cause damage to the third party’s life,
body or property.
①Aircraft equipment
②Aerospace equipment
③Undersea equipment
④Power plant control equipment
⑤Medical equipment
⑥Transportation equipment (vehicles, trains, ships, etc.)
⑦Traffic signal equipment
⑧Disaster prevention /crime prevention equipment
⑨Any other application of similar complexity and/or reliability requirements to the applications listed above.
!
Note
1. Please make sure that the evaluation and testing are completed with this product actually assembled on your
product.
2. All the items and parameters in this product specification have been prescribed on the premise that our
product is used for the purpose, under the condition and in the environment mutually agreed upon.
Please do not to use this product deviating from such agreement.
3. We consider it not appropriate to include other terms and conditions for transaction warranty in product
specifications, drawings or other technical documents. Therefore, if your technical documents include such
terms and conditions as warranty clause, product liability clause, or intellectual property infringement liability
clause, we will not be able to accept such terms and conditions unless they are based on the governmental
regulation or they are stated in a separate contract agreement.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
13
13. Notice
13.1. Soldering
13.1. 1. Flux
Please solder the products with no-cleaning type Rosin Flux which leaves little residue and low
activity. Do not use cleaning type flux, in case that you wash the products after using cleaning type
flux, they may damage mounting parts on the products and may cause defective or low quality
products.
13.1.2. Solder
Please use the solder or the solder paste Sn96.5/Ag3/Cu0.5 or an equivalent type.
13.1.3. Recommended Soldering Conditions
This product is RoHS compatible. The following profile is recommended for the reflow
of the SMD product using Pb-free solder paste (Sn-Ag-Cu).
Method
Reflow Soldering Profile
：Full convection reflow soldering
JEDEC IPC/JEDEC J-STD-020D
Table 5-2 Classification Reflow Profile Pb-Free Assembly Large Body
Soldering temperature
Soldering time
Heating time
Preheating time
Descending rate
Total soldering time
Times
： 245degC+0/-5degC
： 30seconds, 240 to 245degC
： 60 to 150 seconds, over217degC
： 60 to 120 seconds,150 to 200degC
： 6degC/ sec. Max.
： 8 minutes Max., 25 to 245degC
： 1time
※ Do not vibrate for the products on reflow.
Please take care of temperature control because mounted parts may come off if the products are left
under the high temperature.
Do not reflow DC-DC Converter as follows, because DC-DC Converter may fall down from a
substrate during reflowing.The solder used to this product is melted in reflow process.
実装基板
Mother board
絶縁型DC-DCコンバータ
Isolated DC-DC Converter
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
MYLPW3R34EAFN Specification
14
13.2. Cleaning
Please don’t clean the products.
13.3. Storage
13.3.1. Please store the products in room where the temperature/humidity is stable and direct sunlight
cannot come in, and use the products within 6 months after delivery.
Please avoid damp and heat or such places where the temperature greatly changes, as water may
condense on this product, and the quality of characteristics may be reduced, and/or be the
solderability may be degraded.
If this product needs to be stored for a long time (more than 1 year), this product may be degraded
in solderability and/or corroded. Please test the solderability of this product regularly.
13.3.2. Please do not store this product in the conditions such as a dusty place, a place exposed directly to
sea breeze, or in an atmosphere containing corrosive gas (Cl2, NH3, SO2, NOX and so on).
13.4. Operational Environment and Operational Conditions
13.4.1. Operational Environment
This product is not water-, chemical- or corrosion-proof.
In order to prevent leakage of electricity and abnormal temperature rise of this product, do not use
this product in the following conditions:
(1) in an atmosphere containing corrosive gas (Cl2, NH3, SO2, NOX and so on)
(2) in a dusty place
(3) in a place exposed to direct sunlight
(4) in such a place where water splashes or in such a humid place where water condenses
(5) in a place exposed to sea breeze
(6) in any other places similar to the above
13.4.2. Operational Conditions
Please use this product within specified values (power supply, temperature, input, output, load
condition, and so on).
If not used within the specified values, defectiveness and deterioration of this product may be
caused. Even if this product can endure the condition for short time, it may cause degradation of
reliability.
It is recommended that a fuse is inserted in input line (Vin) to secure safety in any abnormality such
as internal circuit of Isolated DC-DC Converter broken down.
Also please take care that the external voltage over output voltage of DC-DC Converter does not
applies to output of this Isolated DC-DC Converter.
13.4.3. Note prior to use
Defectiveness and reliability degradation may be caused if high static electricity, over rated voltage
or reverse voltage are applied to this product. Please be sure to avoid the followings:
(1) over rating power supply, reverse power supply or inadequate connection of 0 V(DC)line
(2) electrostatic discharge from production line and/or operator
(3) electrified product from electrostatic induction
Please avoid an excessive mechanical shock.
If this product is dropped on the floor, etc., a crack to the core of inductors and monolithic ceramic
capacitors may occur.
Please handle with care to avoid a strong shock to this product.
Do not give excessive mechanical stress to the product with your handling.
Please control to bend in a maximum of 0.2mm in your application.
13.5. Transportation
When transporting this product, please pack it in order to avoid damage by mechanical vibration or
mechanical shock, and please give instructions and set guidelines to the carriers to prevent rough
handling.
When transporting this product overseas (in particular, by sea), bad environment of transportation
may be expected, therefore please pack this product considering mechanical strength,
vibration-resistance and humidity-resistance.
The packaging designed for domestic sales may not suitable for overseas transportation.
Please contact us if this product with domestic packing is transported overseas.
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’ s specifications are subject to
change or our products in it may be discontinued without advance notice. Please check with our sales representatives or
product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please
approve our product specifications or transact the approval sheet for product specifications before ordering.
2010.4.8
株式会社 村田製作所
http://murata.co.j
厂商 型号 描述 页数 下载

VATRONICS

 		MYL40K102 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K112 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K121 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K151 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K201 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K221 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K241 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K271 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K361 [ LIGHTNINGPROOF VARISTORS ] 4 页

VATRONICS

 		MYL40K391 [ LIGHTNINGPROOF VARISTORS ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.213789s
