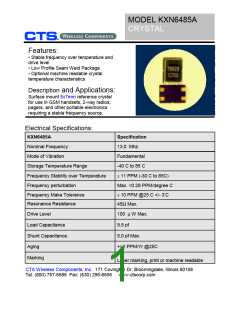

MODEL KXN6485A
CRYSTAL
Features:
• Stable frequency over temperature and
drive level
• Low Profile Seam Weld Package
• Optional machine readable crystal
temperature characteristics
Description and Applications:
Surface mount 5x7mm reference crystal
for use in GSM handsets, 2-way radios,
pagers, and other portable electronics
requiring a stable frequency source.
Electrical Specifications:
KXN6485A
Specification
Nominal Frequency
13.0 Mhz
Mode of Vibration
Fundamental
Storage Temperature Range
Frequency Stability over Temperature
-40 C to 85 C
± 11 PPM (-30 C to 85C)
Frequency perturbation
Frequency Make Tolerance
Resonance Resistance
Max. <0.28 PPM/degree C
± 10 PPM @25 C +/- 3°C
45Ω Max.
Drive Level
100 µ W Max.
9.5 pf
Load Capacitance
Shunt Capacitance
Aging
5.0 pf Max.
+/-2 PPM/Yr @25C
Marking
Laser marking, print or machine readable
CTS Wireless Components, Inc. 171 Covington Dr. Bloomingdale, Illinois 60108
Tel. (800) 757-6686 Fax: (630) 295-6606 www.ctscorp.com
