UZDM4306NTA

型号:

UZDM4306NTA

品牌:

ZETEX[ ZETEX SEMICONDUCTORS ]

页数:

3 页

PDF大小:

57 K

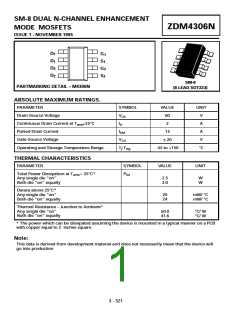

SM-8 DUAL N-CHANNEL ENHANCEMENT
ZDM4306N
MODE MOSFETS
ISSUE 1 - NOVEMBER 1995
D1
D1
D2
D2
G1
S1
G2
S2
SM-8
(8 LEAD SOT223)
PARTMARKING DETAIL – M4306N
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VDS
VALUE
UNIT
V
Drain-Source Voltage
60
Continuous Drain Current at Tam b=25°C
Pulsed Drain Current
ID
2
15
A
IDM
A
Gate-Source Voltage
VGS
V
± 20
Operating and Storage Tem perature Range
Tj:Tstg
-55 to +150
°C
THERMAL CHARACTERISTICS
PARAMETER
SYMBOL
Ptot
VALUE
UNIT
Total Power Dissipation at Tam b = 25°C*
Any single die on”
Both die on” equally
2.5
3.0
W
W
Derate above 25°C*
Any single die on”
Both die on” equally
20
24
m W/ °C
m W/ °C
Therm al Resistance - J unction to Am bient*
Any single die on”
Both die on” equally
50.0
41.6
°C/ W
°C/ W
* The power which can be dissipated assum ing the device is m ounted in a typical m anner on a PCB
with copper equal to 2 inches square.
Note:
This data is derived from developm ent m aterial and does not necessarily m ean that the device will
go into production
3 - 321
ZDM4306N
ELECTRICAL CHARACTERISTICS (at T
= 25°C unless otherw ise stated).
am b
PARAMETER
SYMBOL MIN.
TYP.
MAX. UNIT CONDITIONS.
Drain-Source
Breakdown Voltage
BVDSS
VGS(th)
IGSS
60
V
ID=1m A, VGS=0V
ID=1m A, VDS= VGS
Gate-Source Threshold
Voltage
1.3
3
V
Gate-Body Leakage
100
nA
VGS=± 20V, VDS=0V
Zero Gate Voltage Drain IDSS
Current
10
100
VDS=60V, VGS=0
DS=48V, VGS=0V, T=125°C(2)
µA
µA
V
On-State Drain
Current(1)
ID(on)
RDS(on)
gfs
12
A
VDS=10V, VGS=10V
Static Drain-Source
On-State Resistance (1)
0.22
0.32
0.33
0.45
VGS=10V,ID=3A
VGS=5V, ID=1.5A
Forward
700
m S
VDS=25V,ID=3A
Transconductance (1)(2)
Input Capacitance (2)
Ciss
350
140
pF
pF
Com m on Source Output Coss
Capacitance (2)
VDS=25 V, VGS=0V, f=1MHz
Reverse Transfer
Capacitance (2)
Crss
30
8
pF
ns
Turn-On Delay Tim e
(2)(3)
td(on)
VDD25V, VGEN=10V, ID=3A
Rise Tim e (2)(3)
tr
25
30
ns
ns
Turn-Off Delay Tim e
(2)(3)
td(off)
Fall Tim e (2)(3)
tf
16
ns
1) Measured under pulsed conditions. Width=300µs. Duty cycle 2%
(2) Sam ple test.
(3) Switching tim es m easured with 50source im pedance and <5ns rise tim e on a pulse generator
3 - 322
ZDM4306N
TYPICAL CHARACTERISTICS
VGS=
20V
10V
12V
9V
8V
VGS=3V
3.5V
6V
5V
12
11
10
10
7V
9
8
7
6
5
6V
5V
1.0
8V
4
3
2
1
10V
4V
3.5V
3V
0
0.1
0.1
0
1
2
3
4
5
6
7
8
9
10
100
1
10
VDS - Drain Source Voltage (Volts)
ID-Drain Current (Am ps)
Saturation Characteristics
On-resistance v drain current
2.6
2.4
2.2
2.0
1.8
1.6
5
VGS=10V
ID=3A
4
3
e
R
c
n
ta
s
esi
e R
VDS=10V
rc
1.4
1.2
1.0
0.8
0.6
u
2
1
o
S
-
n
VGS=VDS
ID=1mA
Drai
Gate Threshold Voltage VGS(TH)
0
-50
150
175 200 225
100
-25
0
25 50 75
125
0
2
6
8
10 12
16 18 20
4
14
ID(on)- Drain Current (Amps)
Tj-Junction Temperature (°C)
Transconductance v drain current
Normalised RDS(on) and VGS(th) v Temperature
VDD=
16
20V
40V
60V
500
400
300
14
ID=3A
12
10
8
Ciss
200
6
4
2
0
100
Coss
Crss
0
0
10
20
30 40
50
60
70
80
0
1
2
3
4
5
6
7
8
9
10 11 12
VDS-Drain Source Voltage (Volts)
Q-Charge (nC)
Capacitance v drain-source voltage
Gate charge v gate-source voltage
3 - 323
