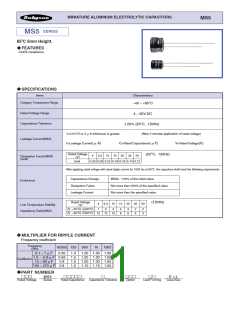

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
MS5
SERIES
MS5
O
85 C 5mm Height.
FEATURES
•
RoHS compliance.
SPECIFICATIONS
Items
Characteristics
Category Temperature Range
Rated Voltage Range
°
-
40 ∼ +85 C
4 ∼ 50V.DC
Capacitance Tolerance
+
°
20% (20 C, 120Hz)
-
I=0.01CV or 3 µ A whichever is greater.
I=Leakage Current( µ A)
(After 2 minutes application of rated voltage)
Leakage Current(MAX)
C=Rated Capacitance( µ F)
V=Rated Voltage(V)
°
Rated Voltage
(20 C, 120Hz)
4
6.3 10 16 25 35 50
Dissipation Factor(MAX)
(tanδ)
(V)
0.35 0.26 0.22 0.18 0.16 0.14 0.12
tanδ
°
After applying rated voltage with rated ripple current for 1000 hrs at 85 C, the capacitors shall meet the following requirements.
+
Within 25% of the initial value.
-
Capacitance Change
Dissipation Factor
Leakage Current
Endurance
Not more than 200% of the specified value.
Not more than the specified value.
Rated Voltage
(120Hz)
4
6.3 10 16 25 35 50
Low Temperature Stability
Impedance Ratio(MAX)
(V)
° °
Z(
Z(
-25 C) /Z(20 C)
7
6
4
4
8
3
6
2
4
2
4
° °
-40 C) /Z(20 C)
15 12 10
MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Frequency
(Hz)
<
10k
60(50)
120 500
1k
=
0.1 ∼ 1 µ F
0.50 1.0 1.20 1.30 1.50
1.5 ∼ 6.8 µ F 0.65 1.0 1.20 1.30 1.50
Coefficient
10 ∼ 68 µ F
0.8
1.0 1.20 1.30 1.50
1.0 1.10 1.15 1.20
100 ∼ 470 µ F 0.8
PART NUMBER
MS5
D × L
Rated Voltage
Series
Rated Capacitance
Capacitance Tolerance
Option
Lead Forming
Case Size
