2T62-266-1110-AF

型号:

2T62-266-1110-AF

品牌:

FOXCONN[ FOXCONN ]

页数:

2 页

PDF大小:

203 K

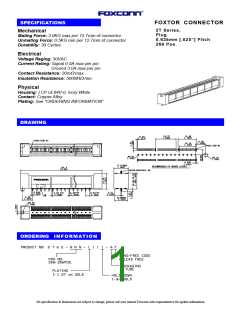

SPECIFICATIONS
FOXTOR CONNECTOR
2T Series,
Plug
0.635mm [.025”] Pitch
266 Pos.
Mechanical
Mating Force: 3.0KG max per 12.7mm of connector
Unmating Force: 0.5KG min per 12.7mm of connector
Durability: 30 Cycles
Electrical
Voltage Raging: 30VAC
Current Rating: Signal 0.5A max per pin
Ground 3.0A max per pin
Contact Resistance: 20mmax.
Insulation Resistance: 5000Mmin.
Physical
Housing: LCP UL94V-0, Ivory White
Contact: Copper Alloy
Plating: See “ORDERING INFORMATION”
DRAWING
ORDERING INFORMATION
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
Foxconn Electronics Inc.-- Products Browse by Pitch
Board-to-Board Connector -> Board to Board Connector
Board to Board Connector 0.6mm Pitch Standard Type: 2T62-266-1110-AF
2T Series,
Plug
0.635mm [.025”] Pitch
266 Pos.
Quick Search
Search By
Part Number
Product Type
Industry
Alphabetical
Feature
Attribute
Part Number
Number of Positions:
PCB Mount Style:
Contact Materials:
Plating:
266
Enter Part Number
SMT
copper alloy
1.27u gold
LCP
Starts With
Contains
Exact Match
Housing Material:
Color:
natural
Vertical
Active
Termination Type:
Available Status:
RoHS Status:
RoHS-6 compliant
CID
Business Unit:
Lead-Time ( Week ):
MOQ ( pc ):
4
150
Notice: Please confirm part availability with your local account manager.
