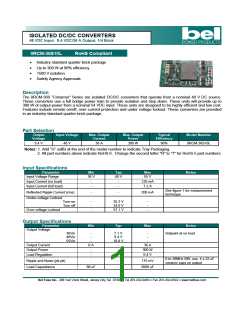

ISOLATED DC/DC CONVERTERS
48 VDC Input 9.4 VDC/36 A Output, 1/4 Brick
0RCM-36S10L
RoHS Compliant
•
•
•
•
Industry standard quarter-brick package
Up to 300 W at 96% efficiency
1500 V isolation
Safety Agency Approvals
Description
The 0RCM-36S “Cimarron” Series are isolated DC/DC converters that operate from a nominal 48 V DC source.
These converters use a full bridge power train to provide isolation and step down. These units will provide up to
300 W of output power from a nominal 54 VDC input. These units are designed to be highly efficient and low cost.
Features include remote on/off, over current protection and under voltage lockout. These converters are provided
in an industry standard quarter-brick package.
Part Selection
Output
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Voltage
9.4 V
48 V
36 A
300 W
96%
0RCM-36S10L
Notes: 1. Add “G” suffix at the end of the model number to indicate Tray Packaging.
2. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers
Input Specifications
Parameter
Min
36 V
Typ
48 V
Max
55 V
Notes
Input Voltage Range
Input Current (no load)
Input Current (full load)
-
-
-
-
120 mA
7.2 A
See figure 1 for measurement
technique
Reflected Ripple Current (rms)
-
-
200 mA
Under-voltage Lockout
Turn-on
-
-
35.3 V
34.0 V
-
-
Turn off
Over-voltage Lockout
-
57.1 V
-
Output Specifications
Parameter
Output Voltage
36Vin
Min
Typ
Max
Notes
-
-
-
7.1 V
9.4 V
10.8 V
-
-
-
Setpoint at no load.
48Vin
55Vin
Output Current
Output Power
Load Regulation
0 A
-
-
-
36 A
300 W
0.4 V
-
-
0 to 20MHz BW, use 4 x 22 uF
ceramic caps on output
Ripple and Noise (pk-pk)
Load Capacitance
-
-
-
175 mV
3000 uF
88 uF
