0RQB-Q2T06LG

型号：

0RQB-Q2T06LG

品牌：

BEL[ BEL FUSE INC. ]

页数：

13 页

PDF大小：

253 K

下载PDF手册

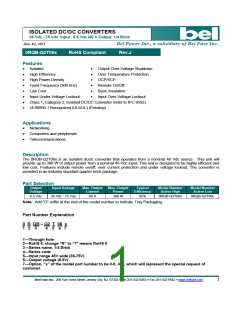

ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RQB-Q2T06x
Features
RoHS Compliant
Rev.J
Isolated
Output Over-Voltage Shutdown
Over Temperature Protection
OCP/SCP
High Efficiency
High Power Density
Fixed Frequency (300 kHz)
Low Cost
Remote On/Off
Basic Insulation
Input Under-Voltage Lockout
Input Over-Voltage Lockout
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
Networking
Computers and peripherals
Telecommunications
Description
The 0RQB-Q2T06x is an isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will
provide up to 390 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and
low cost. Features include remote on/off, over current protection and under voltage lockout. The converter is
provided in an industry standard quarter brick package.
Part Selection
Output
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
6.5 Vdc
36 Vdc - 75 Vdc
60 A
390 W
95%
0RQB-Q2T065
0RQB-Q2T06L
Note: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R QB – Q2 T 06 x
1 2
3
4
5
6 7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name, 1/4 Brick
4---Series code
5---Input range 48V wide (36-75V)
6---Output voltage (6.5V)
7---Option, “x” of the model part number to be 0-9, A-Z, which will represent the special request of
customer.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Unit
V
Parameter
Min
-0.3
-
Typ
Max
80
Notes
Continuous Input Voltage
Input Transient Voltage
Remote On/Off
-
-
-
-
-
-
100
18
V
-0.3
-
V
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
1500
85
V
-40
-55
C
C
125
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Operating Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
13.0
100
20
A
80
15
mA
mA
Tested with simulated source
impedance of 10 uH, 5 Hz to 20 MHz;
use a 100 uF/100 V electrolytic
capacitor with ESR = 1 ohm max. at
200 kHz at 25 C.
Input Reflected Ripple Current
(rms)
-
-
5
10
40
mA
Input Reflected Ripple Current
(pk-pk)
20
mA
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
1
A2s
V
33
32
34.5
33.5
36
34.5
V
CAUTION: This converter is not internally fused. An input line fuse must be used in application.
Recommend a fast-acting fuse with maximum rating of 20A on system board. Refer to the fuse
manufacture’s datasheet for further information.
Notes: 1. This converter has internal C-L-C (0uF-0.72uH-9.4uF) filter.
2. All specifications are typical at 25 C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
6.37
6.50
6.63
V
Vin=48V, Io=50% load
Load Regulation
Line Regulation
-
-
±15
±15
±30
±30
mV
mV
Regulation Over Temperature
(-40deg.C-85deg.C)
-
±30
±65
mV
0-20 MHz BW, with a 1µF ceramic
capacitor and a 470uF Tantalum cap at
output.
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
-
-
50
10
120
25
mV
mV
Ripple and Noise (pk-pk)
under worst case
over all operating input voltage, load
and temperature conditions.
-
-
150
mV
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Output Current Range
0
-
60
A
Output DC Current Limit
Short Circuit Surge Transient
Rise time
64
-
72
-
75
A
6
-
A2s
-
25
40
40
0
ms
50
mS Enable from Vin
Turn on Time
-
-
50
mS Enable from ON/OFF
Overshoot at Turn on
3
%
Output Capacitance
0
-
10000
uF
Transient Response
Overshoot
-
-
-
-
-
-
-
-
-
-
-
-
400
300
400
300
500
300
500
300
mV
△V50%~75% of
Max Load
di/dt=0.1A/us, Vin=48Vdc, Ta=25°C,
uS
Settling Time
Overshoot
Settling Time
Overshoot
with a 1µF ceramic capacitor and a
470uF Tantalum cap at the output.
mV
uS
△V75%~50% of
Max Load
-
-
-
-
mV
uS
△V50%~75% of
Max Load
di/dt=1A/us, Vin=48Vdc, Ta=25°C,
with a 1µF ceramic capacitor and a
470uF Tantalum cap at the output.
Settling Time
Overshoot
mV
uS
△V75%~50% of
Max Load
Settling Time
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Vin=48V, full load
Efficiency
94
95
-
%
Switching Frequency
Over Temperature Protection
Over Voltage Protection(Static)
Weight
-
-
-
-
300
125
8.5
71
-
-
-
-
kHz
C
V
g
Calculated Per Bell Core SR-332
(Vin=48V, Vo=6.5V, Io=30A, 500LFM,
Ta = 25 C, FIT=109/MTBF)
FIT
478
-
-
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.28 x 1.45 x 0.54
57.91 x 36.83 x 13.70
Isolation characteristics
Input to Output
-
-
1500
V
V
Input to Case
-
-
1500
500
Output to Case
-
10M
-
-
-
V
Isolation Resistance
Isolation Capacitance
ohm
pF
2700
-
Note: All specifications are typical at 25 C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Efficiency Data
98.00%
96.00%
94.00%
92.00%
90.00%
88.00%
86.00%
84.00%
82.00%
80.00%
36 V
48 V
75 V
6A
15A
30A
45A
60A
OUTPUT CURRENT(A)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curve
Maximum junction temperature of semiconductors derated to 120 degree C.
AIR FLOW
Bottom view
Derating curve under 48V input
The OTP is achieved by temperature sensor U10 and it is in non-latch mode when the hottest component Q12
reaches 120°C with 200LFM air flow correspondingly. It will restart automatically when the temperature falls
down to 105°C. The protecting point will be varied a little under different conditions (air flow, ambient temperature,
input voltage, load...).
Temperature reference points on top side
Temperature reference points on bottom side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Ripple and Noise Waveform
48Vdc input, 6.5Vdc/60A
Note: Ripple and noise at full load, with a 1uF ceramic cap and a 470 uF Tantalum cap at output, Ta=25 deg C.
Transient Response Waveforms
Vout= 6.5V 50%-75% Load Transients
Vout= 6.5V 75%-50% Load Transients
Note: Transient Response at di/dt=1A/uS, with 1uF ceramic cap and 470uF aluminum cap at output,
and Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Startup & Shutdown
Rise time
Vout= 6.5V/60A at Vin=48V@Ta=25℃
Vout= 6.5V/60A at Vin=48V@Ta=25℃
Cext = 0uF
Cext = 10000uF
Startup time
Startup from Vin
Ch1: Vo
Startup from on/off
Ch1: Vo
Ch3: Vin
Ch3: on/off
Vout= 6.5V/60A at Vin=48V@Ta=25℃
Cext = 10000uF
Vout= 6.5V/60A at Vin=48V@Ta=25℃
Cext = 10000uF
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Startup & Shutdown (continued)
Shutdown
Vout= 6.5V/60A at Vin=48V@Ta=25℃
Cext = 10000uF
Over Current Protection
To provide protection in a fault output overload condition, the module is equipped with internal current-limiting
circuitry and can endure current limiting for a few mili-seconds. If the over current condition persists beyond a few
milliseconds, the module will shut down into hiccup mode and restart once every 400mS. The module operates
normally when the output current goes into specified range. The typical average output current is 4.8A during
hiccup.
output current waveform
Expansion of on time portion
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.3
-
0.8
V
0RQB-Q2T06L. The remote on/off pin
open, Unit off.
Active Low
Active High
2.4
-0.3
2.4
0
-
-
-
-
18
0.8
18
1
V
V
0RQB-Q2T065. The remote on/off pin
open, Unit on.
V
mA
Recommended remote on/off circuit for active low
Vin+
On/off
Vin-
Vin+
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
Vin-
On/off
Vin-
Control with logic circuit
Permanently on
Recommended remote on/off circuit for active high
Vin+
Vin+
On/off
Vin-
On/off
Vin-
Control with open collector/drain circuit
Control with photocoupler circuit
Vin+
Vin+
Vcc
On/off
Vin-
On/off
Vin-
Control with logic circuit
Permanently on
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Input Under-voltage Lockout
Under-voltage Lockout
Voltage Falling
Voltage Rising
V1=32V
V2=34V
Input Voltage (V)
V1
V2
Safety & EMC
Safety
1. Material flammability UL94V-0
2. TUV Certification
3. UL Certification
EN60950-1
UL60950-1
EMC
1. Surge
IEC61000-4-5
2. DC-DIP
3. Conductive EMI
IEC61000-4-29
EN55022 class A
Compliance to EN55022 class A (both q.peak and average) with the following inductive and capacitive filter
Setup:
CY12
RY12
CY22
RY22
CY32
RY32
CY42
RY42
+Vin
-Vin
+Vout
-Vout
T1A
T2A
CX1
CX2
CX3
CX4
Testmodule
RY11
CY11
RY21
CY21
RY31
CY31
RY41
CY41
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
10
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Safety & EMC (continued)
Item
Designator
Parameter
1
2
3
4
5
CX2
100uF/100V, AL cap
220uF/100V, AL cap
2*6.8nF/1000V,ceramic
1206,0R,Resistor
CX3
CY31, CY32, CY41, CY42
RY31, RY32, RY41, RY42
T2A
0.81mH, common mode
T1A,CX1,CX2,RY11,RY21,RY12
RY22,CY11,CY21,CY12,CY22
6
NIL
Positive:
Negative:
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
11
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
Pin Connections
pin# function pin size
1
2
3
4
5
Vin (+)
Enable
Vin (-)
Vout (-)
Vout (+)
0.04"
0.04"
0.04"
0.06"
0.06"
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
12
ISOLATED DC/DC CONVERTERS
36 Vdc - 75 Vdc Input 6.5 Vdc /60 A Output, 1/4 Brick
Jun. 02, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
Joe Wei
Joe Wei
2009-06-16
2009-06-23
A
B
First release
Delete output trim and remote sense function, update mechanical
drawing
2009-06-30
2009-09-25
C
D
1. Update input C-L-C filter; 2. Change Max output cap form 5600uF
to 10000uF; 3. Add transient response of di/dt=1A/us; 4. Change
output current from 65A to 60A.
Joe Wei
YP Zhou
1.Changge Switching frequency from 250K to 300K, 2.No load Input
current. 3.remote off input current. 4.load regulation. 5.line regulation.
6.regulation over temperature. 7.Output DC current limit. 8.Turn on
time. 9.Rise time. 10.Add efficiency, TD,NR,TR
2009-10-19
E
1.Add I2t Inrush Current Transient; 2.Add Short Circuit Surge
Transient; 3.Add MTBF data; 4.Update Derating curve under normal
input; 5. Add OCP,OVP, OTP, Safety&EMC
YP Zhou
2009-10-23
2010-03-02
2010-08-09
F
G
H
1. Update test condition of MTBF; 2. Update waveform for OVP
Update mechanical drawing.
YP Zhou
JZ Wang
JZ Wang
1. Update operating input current, turn on voltage threshold, turn off
voltage threshold and input C-L-C filter in input specifications.
2. Update load regulation, output DC current limit and turn on time in
output specifications.
3. Add Layout.
2011-01-17
2011-06-02
I
Update the typical efficiency from 93.5% to 94.5% in general
specifications and update efficiency data, OTP and layout.
JZ Wang
JZ Wang
J
New design.
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
2011 Bel Fuse Inc. Specifications subject to change without notice. 060211
13
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RQ1-C5TV80 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8A 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8B 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8X 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-C5TV8_11 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 17 页

BEL

 		0RQ1-Q0T12 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T120 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-Q0T12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 14 页

BEL

 		0RQ1-T0S12BG [ DC-DC Regulated Power Supply Module, ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.178051s
