IXF6402

型号:

IXF6402

品牌:

LevelOne[ LEVEL ONE ]

页数:

30 页

PDF大小:

303 K

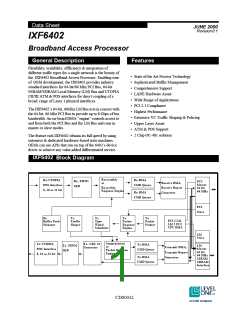

Data Sheet
JUNE 2000
Revision 0.1
IXF6402
Broadband Access Processor
General Description
Features
Flexibility, scalability, effficiency & integration of
different traffic types for a single network is the beauty of
the IXF6402 Broadband Access Processor. Enabling ease
of OEM development, the IXF6402 provides industry
standard interfaces for 64-bit/66 Mhz PCI Bus, 64-bit
SSRAM/SDRAM Local Memory (LM) Bus and UTOPIA
I/II/III ATM & POS interfaces for direct coupling of a
broad range of Layer 1 physical interfaces.
• State of the Art Process Technology
• Sophisticated Buffer Management
• Comprehensive Support
• LANE Hardware Assist
• Wide Range of Applications
• PCI 2.1 Compliance
The IXF6402’s 64-bit, 66Mhz LM Bus acts in concert with
the 64-bit, 66 Mhz PCI Bus to provide up to 8 Gbps of bus
bandwidth. An on-board DMA engine” controls access to
and from both the PCI Bus and the LM Bus and runs in
master or slave modes.
• Highest Performance
• Extensive VC Traffic Shaping & Policing
• Upper Layer Assist
• ATM & POS Support
• 2 Chip OC-48c solution
The feature rich IXF6402 obtains its full speed by using
extensive & dedicated hardware-based state machines.
OEMs can use APIs that run on top of the 6402’s device
driver to achieve any value added differentiated service.
IXF6402
Block Diagram
Reassembly
or
Rx-UTOPIA
POS Interface
Rx-DMA
Rx- FIFO1
2KB
PCI
Master
64 bit
Receive DMA,
Receive Report
Generator
CMD Queue
Rx-packet
Enqueue Engine
8, 16 or 32 bit
66 MHz
Rx-DMA
CMD Queue
PCI
Slave
Rx
Tx
Traffic
Shaper
Tx
Time
W heel
Scheduler
Tx
Packet
Enqueue
Engine
Tx
Packet
Pointer
PCI 2 LM
LM 2 PCI
CPU DMA
Buffer Pools
Manager
LM
Slave
Segmentation
or
Packet Dequeue
Engine
Tx-UTOPIA
Tx- CRC 32
Generator
Tx-DMA
Tx- FIFO1
1KB
LM
Master
64 bit
66 MHz
SSRAM
SDRAM
Interface
Transmit DMA,
Transmit Report
Generator
POS Interface
8, 16 or 32 bit
CMD Queue
Tx-DMA
CMD Queue
CD00032
IXF6402 Broadband Access Processor
SECTION 1 - FEATURE LIST
High Performance
• Integrated ATM & POS Quad or Dual OC-24c
Segmentation & Reassembly (SAR)
Feature Rich Silicon
• AAL Types 0, 1, 3/4 & 5
• TM 4.0 compliant
• Full duplex line rate operation for 64 byte packets
• 64-bit architecture
• Flow control: UBR, CBR, VBR, ABR
• Full 64-byte VC descriptors
• Scalable to OC-48
• Hardware encapsulation & tagging
• Hardware packet formatting
• ATM & POS UTOPIA 1, 2 & 3 Support
• Support for Multi-Port POS
Extensive Traffic Shaping & Policing
• Up to 64K VC supported
• Traffic shaping resources for CBR, VBR
• Granularity for rates down to 1 Kbps
Sophisticated Buffer Management
• Full scatter/gather DMA
• Time wheel shaper for ABR/UBR with gauranteed
frame rate
• Extensive transmit and receive buffering
• Two-dimensional link-list packet queuing
• Dual GCRA policing per VC
• Weighted fair queuing and dynamic priority
arbitration
• 164K internal packet descriptor and packet buffer
pools
• Maximum bandwidth utilization with UBR fill-in for
idle cells
• Multiple buffer sizes and buffer pools
• Support for 2 & 4-bank-structured SDRAM
Upper Layer Assist
• LEC ID, ELAN ID, LLC/SNAP, MPOA, IP
encapsulations
State of the Art Process Technology
• 3.3V+/- 5% tolerant I/Os
• 64 byte header
• Programmable header encapsulation or tagging
• LAN, MPOA, MPLS and IP protocol assist
• Support for both packet and VC tagging
• 0.35um CMOS design
• 352 pin EBGA/SBGA package
• Power consumption 8.0W @ 100Mhz
• 9 different transmit and receive report ring size
configuration
• Transmit report disable feature for reduced PCI bus
utilization
LANE Hardware Assist
• LANE V1 and V2 packet header generation
• Support 16 offset configuration per VC per packet or
buffer in Receive process
• LEC ID, ELAN ID, and/or LLC/SNAP encapsulation
• Separate LANE control buffer pool with 4K bitmap
• LANE flush protocol assist
• Support for 32-bit cell-or-packet counters for Receive
• Concurrent cell-or-packet counter reporting for ease
of statistic tracking
• Programmable packet holding mode
Wait for Flush” reply message
• Support for transmit per packet offset up to 256 bytes
on byte bundary
• Per packet CLP-bit setting in transmitting for frame
relay congestion flag support
2
CD00032
IXF6402 Feature List
Interfaces:
• Quad OC-12c or Dual OC-24c
• Glueless 64-bit SSRAM and SDRAM I/F
• PCI 2.1 compliant 33 / 66 MHz, 32 / 64 bit operation
• UTOPIA Level 1, II & III
• ATM or Packet Over Sonet
PCI 2.1 Compliance:
• Single-cycle, master-based, fast back-to-back
transaction
• PCI read-write overlap operations when either
operation encounters a re-try response
• Support for PCI Master to access the 256 Mbyte
Local Memory
Comprehensive Support
• Full source for device drivers provided
• Internetworking, Development, Evaluation &
Application -(IDEA Platform) development
environment available
• Complete GigaBlade™ reference design available
• Technical support
3
CD00032
IXF6402 Broadband Access Processor
SECTION 2 - ARCHITECTURAL OVERVIEW
• RFC 1577 (Classical IP and ARP over ATM)
• ATM Forum LANE Specification, Version 1.0
2.1 Hardware Packet
Processing
The IXF6402 performs all relevant Layer 2 functions and
provides extensive hardware assistance to your CPU,
FPGA or ASIC-based higher-layer processing engine.
Because all SAR, traffic shaping, tagging, encapsulation,
buffer management & DMA is handled by the IXF6402, it
enables your higher-layer engine to focus on application
functions layers such as bridging, routing, encryption,
network O/S, management and security.
• ATM Forum LANE Version 2.0 - LUNI Baseline
Document, Draft 5, February 1997
• ATM Forum MPOA Specification, Version 1.0 -
Baseline Document, February 1997
The design incorporates numerous features to maximize
both chip level and system level throughput. The IXF6402
has 128 VC descriptors in its on-chip cache providing
additional bandwidth for the whole system. Adding
external high-speed SSRAM to the 6402's local bus
increases total capacity to 64K VCs.
The IXF6402 is also capable of handling any high-level
application that relies on stateful inspection of packet
headers as they traverse an interface boundary, such as
security, firewalling, or encryption.
The IXF6402 has a sophisticated buffer management
scheme. All pointer structures (128K for transmit and 36K
for receive) are internal to the 6402 and greatly reduces the
number of read/write operations performed during lookup,
segmentation and re-assembly. Multiple buffer sizes and
non-contiguous cell splitting are fully supported in
hardware.The IXF6402 offers support for a PCI Master to
access 256 Mbyte Local Memory. It also supports a 4-
bank-structured SDRAM for Packet Buffer.
The IXF6402 supports a multitude of encapsulation
methods that accelerate packet processing at layers 2 and 3,
and can automate packet header generation using the LEC
ID, ELAN ID, MAC address or any required bit field. It
also performs LLC/SNAP encapsulation, LANE, MPLS,
IP protocols and any custom packet tagging schemes.
Unlike traditional SARs, which only link buffers to VCs
and perform no packet processing, the IXF6402 uses a two-
dimensional link list to first, link packets on a per-VC
basis, and second, link buffers on a per-packet basis with
enqueue/dequeue pointers to control the link list.
2.2 ATM Processing
In addition to features for higher layer processing, the
IXF6402 still comprises a full suite of ATM processing
functions.
Enabling tremendous flexibility to perform extensive
packet processing assist in hardware, as the IXF6402 can
differentiate between packets within a given VC. The
IXF6402 supports multiple packets per VC, with multiple
buffers per p acket. The GigaBlade subsystem uses this
feature to provide complete LANE 1.0 data path processing
in hardware.
It supports ATM AAL-0, 1, 3/4 and 5 and can deliver true
UBR, CBR, VBR and ABR for up to 64K VC's. The design
features full 64-byte VC descriptors and multiple SONET
ports.
In ATM mode, the IXF6402 provides all of the necessary
termination functions currently established by the ATM
Forum and IETF including:
• ATM Forum UNI 3.1 ATM Adaptation Layer and
ATM Layer Specifications
• ATM Forum Traffic Management Specifications,
Rev. 4.0
• RFC 1483 (Multi Protocol Encapsulation Over ATM
Adaptation Layer 5)
• RFC 1626 (Default IP MTU for Use Over ATM
AAL 5)
4
CD00032
IXF6402 Architectural Overview
Applications
ILMI
Signaling
MPLS
Hardware Assist
LANE
Hardware State Machine
Not Supported
RFC 1483
RFC 1577
RFC 1626
AAL 1, 3/4, 5
ATM Layer
Physical
There is no embedded RISC processor in the path of any
per-cell or per-packet transaction that would slow device
operation or system throughput. This massive hardware
assist off loads the local CPU saving valuable cycles for
other critical tasks such as bridging, routing, encryption,
policy execution and security.
Figure 1: ATM Functionality
2.3 Traffic Shaping and
Policing
The IXF6402 provides the most granular and efficient
traffic shaping in the industry, making it an ideal fit for
DSLAM, VoIP and class-of-service sensitive applications.
It includes 16 on-chip traffic shapers for CBR/VBR, along
with a complete TM 4.0 compliant ABR scheduler with
guaranteed MCR not Zero” hardware support and on
board RM cell processing. The CBR/VBR shape has the
support for automatic link/dink feature upon packet
availability to improve bandwidth utilization.
2.4 Basic Operation
Using the IXF6402 is simple. To send a packet to the
SONET infrastructure you issue an Add-Packet”
command. The command is 64-bit and specifies how you
want the packet encapsulated, tagged, what the target VPI/
VCI is, what the traffic shaping parameters are. As well as
the packet location and length. This can/may immediately
followed by a series of “add-buffer” commands (8-byte
each) telling the engine where the additional payload
resides (in local SDRAM or across the PCI bus) in case the
packet is spread across several buffers. From this point on
the IXF6402 takes control. If required, the payload is
encapsulated and tagged then passed to the traffic shapers
and then to the Segmentation Engine. As it passes through
the packet-cell boundary, cell headers are automatically
generated as specified in the descriptor.
During segmentation, if the CBR/VBR VC has no packet
to send the hardware will dink the VC from shape. During
an ADD PACKET command the hardware will link the VC
into the shape.
During segmentation, if the ABR VC has no packet to send,
the hardware will remove the VC from the scheduler table.
During an “ADD PACKET command, the hardware will
add the VC back into the scheduler table.
On the receive side, the IXF6402 performs VPI/VCI to 16-
bit VC descriptor mapping and allocates buffer from its
internal pools (36K). It polices the traffic using the GCRA
virtual scheduling algorithm and has the ability to count or
drop the non-conforming cells or packets. The IXF6402
offers the ability to differentiate between control and data
Each VC can be independently shaped within a VP to rates
as low as 1Kbps giving you unprecedented control over
traffic on a per-VC basis. The IXF6402's leaky take out
bucket and virtual scheduling algorithms have been
implemented for per VC policing.
5
CD00032
IXF6402 Broadband Access Processor
packets by directing all control packets to a different port
than the data packets according to the on-chip 4K small
buffer pool setting and dedicating the other on-chip 32k
large buffer pool strictly to data packets.
ring. There is also an automatic receive buffer recover
feature upon completition of a CPU DMA tranfer from
local bus to PCI bus.
Up to 32 Mbytes of SDRAM can be used for local
buffering to support host latency, a large number of
connections or virtual channels (VCs). For applications
that support a smaller number of virtual channels, such as a
low-end network interface card, local memory is not
required. The chip’s internal 32 Kbytes of memory
provides fast local storage for cells and descriptor
buffering.
The process of associating a packet with a descriptor is an
application-level function. For example, if your application
is routing, IP route matches will direct packets destined to
a remote subnet to a VPI/VCI defined in a local or
centralized table. In LAN Emulation or Bridging, a similar
process occurs based on the MAC/LECID address.
The IXF6402 can perform any desired combination of
operations on individual packets and reliably deliver wire-
speed OC-24c performance for 64-byte packets. Designs
must issue the requisite add-packet” commands at
whatever rates are required to achieve target performance
levels.
Full support for newly developed ABR service category
and multi protocols, such as TCP/IP over ATM, are also
supported. On-chip memory enables cached VC
descriptors to be registered and allows extensive cell
buffering, which further enhances performance for dual
chip OC-48c rate operation.
To handle changes to networking standards, the IXF6402
obtains configuration information from the PCI address
space or from a tightly-coupled local RISC processor. The
local RISC processor is not in the critical path of any per-
cell or per-packet transaction and, when coupled with the
extensive hardware assist of the IXF6402 is able to support
multi protocol data rates of 622 Mbps, full duplex. The
processor further increases overall end-system
performance and manageability by off-loading ATM
service-specific software functions, IP over ATM, and
network statistical and management functions from the
end-system’s main processor. This allows the load to be
distributed to each local processor which greatly reduces
system bus bandwidth.
An intelligent DMA interface provides a high-speed
transfer mechanism between the chip’s internal or local
memory and external host memory or PCI address space.
The architecture also provides SSRAM and SDRAM
support. In very high-performance applications, part of the
memory can be allocated to SSRAM. Architectural
innovations make the SRAMs unnecessary in OC-3c
applications and optional in some OC-48c applications.
The IXF6402 generates packet and/or buffer reports
providing all information the user needs to know about the
transmitted or reassambled packets. It communicates with
external intelligence using a single location or a circular
6
CD00032
IXF6402 Pin Configuration
SECTION 3 - PIN CONFIGURATION
Figure 2: IXF6402 Pin Configuration
A
B
C
D
E
F
G
H
J
K
L
M
N
1
2
3
4
5
GND
GND
TXCLAV
(3)
TXCLAV
(0)
TXEN#
TXDATA
(14)
TXDATA
(10)
TXDATA
(6)
TXDATA
(3)
RCDATA
(15)
RCDATA
(12)
RCCLK
GND
GND
VCC
GND
TXL-
CAV(1)
TXA-
DDR(0)
TXDATA
(15)
TXDATA
(11)
TXDATA
(7)
TXDATA
(4)
TXDATA
(1)
RCDATA
(13)
RCDATA
(9)
RCDATA
(7)
LM_IRL(0)
LM_SA(2)
LM_SA(3)
LM_A(2)
GND
VCC
TXCLAV
(2)
TXA-
DDR(1)
TXPRTY
TXDATA
(12)
TXDATA
(8)
TXDATA
(5)
TXDATA
(2)
RCDATA
(14)
RCDATA
(9)
RCDATA
(7)
LM_IRL(1)
NC(GND)
LM_SA(4)
EXT_CLK
VCC
TXA-
DDR(2)
TXSOC
TXDATA
(13)
TXDATA
(9)
VCC
TXCLK
TXDATA
(0)
RCDATA
(11)
VCC
LM_RCM
CS#
OTEOP
LM_IRL(2)
IRMOD(1)
6
OTMOD(1) LM_SA(6)
IRMOD(0) LM_SA(5)
7
LM_A(4)
LM_A(7)
LM_A(10)
OTMOD(0) LM_A(3) IREOP
8
LM_A(6)
LM_A(9)
LM_A(5)
LM_CS#
LM_A(12)
VCC
9
LM_A(8)
LM_A(11)
10
11
IXF6402
CPUDMA_ DMAQF
BUSY
LM_A(16)
LM_A(15)
LM_A(14)
LM_A(13)
12
352SGBA
Bottom View
(Left Side)
GND
GND
LM_A(17)
LM_A(19)
LM_CLK
IERR
VCC
13
14
LM_A(18)
LM_A(23)
LM_RD#
LM_D(1)
LM_A(22)
LM_WR#
LM_D(0)
LM_A(21)
LM_A(25)
LM_A(20)
LM_A(24)
15
16
17
SSRAMC
S#(0)
LM_WE#
(0)
LM_D(4)
LM_D(3)
LM_D(7)
LM_D(9)
LM_D(2)
LM_D(6)
LM_D(8)
VCC
VCC
Power Pin (+3V)
Ground Pin
NC(VCC)
NC(GND)
Reserved Power pin
(+3V)
18
19
20
21
22
23
24
25
26
LM_WE#
(1)
LM_D
GND
Reserved Ground Pin
LM_D(10)
SSRAMC
S#(1)
CLOCK
Clock Input Pin
LM_D(13)
SSRAMCS LM_D(13)
#(2)
LM_D(11)
LM_D(14)
VCC
LM_WE#
(2)
NC(VCC)
LM_D(17)
GND
LM_D(15)
LM_D(16)
VCC
IRVAL
LM_D(18)
GND
LM_D(22)
LM_D(23)
NC(Vcc)
LM_D(24)
E
LM_WE#
(3)
LM_D(26)
LM_D(27)
LM_D(28)
LM_D(29)
G
LM_D(30)
VCC
LM_D(33)
LM_D(37)
LM_D(38)
LM_D(39)
LM_RAS# LM_D(41)
(1)
NC(GND)
LM_D(20)
LM_D(21)
D
NC(GND)
LM_D(31)
LM_CAS# LM_D(34)
(0)
LM_CAS# LM_D(42)
(1)
VCC
GND
SSRAMC
S#(3)
LM_WE#
(4)
SDRAMC
S#(0)
LM_D(35)
LM_D(36)
K
SDRAMC
S#(1)
LM_D(43)
GND
GND
LM_D(19)
C
LM_D(25)
LM_RAS# LM_D(32)
(0)
LM_WE#
(5)
LM_D
(40)
GND
A
B
F
H
J
L
M
N
7
CD00032
IXF6402 Broadband Access Processor
Figure 2: IXF6402 Pin Configuration (cont)
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
GND
RCDATA
(0)
RCCLAV
(2)
RCADDR
(1)
RCEN#
DIS_ALL# TCK
TDO
PLI_AD
(27)
NC(VCC)
PCI_AD
(24)
GND
GND
1
RCDATA
(4)
RCDATA
(1)
RCCLAV
(3)
RCADDR
(2)
TCADDR
(0)
TMS
TDI
TRST#
NC(GND)
PCI_AD
(15)
GND
VCC
GND
GND
2
RCDATA
(5)
RCDATA(
2)
RCSOC
RCCLAV
(0)
PCI_INT#
PCI_RST
#
PCI_REQ
#
PCI_AD
(30)
PCI_AD
(28)
PCI_AD
(26)
VCC
PCI_AD
(23)
3
RCDATA
(6)
RCDATA
(3)
RCPRTY
RCCLAV
(1)
VCC
PCI_CLK
PCI_GNT
#
PCI_AD
(3)
PCI_AD
(29)
VCC
PCI_CBE
#(3)
PCI_IDSE PCI_AD(2
4
L#
2)
PCI_AD
(21)
PCI_AD
(20)
PCI_AD
(19)
PCI_AD
(18)
5
PCI_AD
(17)
PCI_AD
(16)
PCI_CBE
#(2)
PCI_FRA
ME#
6
PCI_IRDY PCI_TRD
PCI_DEV
SEL#
PCI_STO
P
7
#
Y#
PCI_PER
R#
PCI_SER
R#
PCI_PARI PCI_CBE
8
TY
#(1)
IXF6402
VCC
PCI_AD
(15)
PCI_AD
(14)
PCI_AD
(13)
9
PCI_AD
(12)
PCI_AD
(11)
PCI_AD
(10)
PCI_AD
(9)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
352SGBA
Bottom View
(Left Side)
PCI_AD
(8)
PCI_CBE
#(0)
PCI_AD
(7)
PCI_AD
(8)
PCI_AD
(5)
PCI_AD
(4)
PCI_AD
(3)
PCI_AD
(2)
VCC
PCI_AD
(1)
PCI_AD
(0)
GND
PCI_ACK
#
PCI_REQ
64#
PCI_CBE
#(7)
GND
VCC
Power Pin (+3V)
NC(VCC)
NC(GND)
Reserved Power pin
(+3V)
PCI_CBE
#(6)
PCI_CBE
#(5)
PCI_CBE
#(4)
PCI_AD
(63)
GND
Ground Pin
Reserved Ground Pin
PCI_AD
(62)
PCI_AD
(61)
PCI_AD
(60)
PCI_AD
(59)
CLOCK
Clock Input Pin
PCI_AD
(58)
PCI_AD
(57)
PCI_AD
(56)
PCI_AD
(55)
VCC
PCI_AD
(54)
PCI_AD
(53)
PCI_AD
(52)
PCI_AD
(51)
PCI_AD
(50)
PCI_AD
(49)
PCI_AD
(48)
PCI_AD
(47)
PCI_AD
(46)
PCI_AD
(45)
PCI_AD
(44)
PCI_AD
(43)
PCI_AD
(42)
PCI_AD
(41)
NC (Vcc)
PCI_AD
(40)
PCI_AD
(39)
PCI_AD
(38)
PCI_AD
(37)
VCC
LM_D(46)
LM_D(47)
LM_CAS# LM_D(50)
(2)
VCC
LM_RAS# LM_D(57)
(3)
LM_D(61)
LM_D(62)
LM_D(63)
LM_BWAI VCC
T#
NC(GND)
PCI_AD
(38)
PCI_AD
(35)
LM_D(44)
LM_D(45)
GND
SDRAMC
S#(2)
LM_D(51)
LM_D(52)
LM_D(53)
U
LM_D(54)
LM_D(55)
LM_CAS# LM_D(58)
(3)
LM_BACK NC(VCC)
#
VCC
GND
VCC
GND
AE
PCI_AD(3
4)
LM_WE
#(6)
LM_D(48)
SDRAMC
S#(3)
LM_D(59)
LM_D(60)
Y
LM_BRE
Q#
PCI_PARI GND
TY64
GND
GND
AF
LM_RAS# LM_D(49)
(2)
LM_WE#
(7)
LM_D(58)
LM_BREL OLM_CLK PCI_AD
PCI_AD
(33)
#
(32)
P
R
T
V
W
AA
AB
AC
AD
8
CD00032
IXF6402 Signal Definitions
SECTION 4 - SIGNAL DEFINITIONS
Table 1: PCI Bus Signals
Pin Numbers
Signal Name
I/O
I/O
Description
AF15, AC16, AD16, AE16, AF16,
AC17, AD17, AE17, AF17, AD18,
AE18, AF18, AC19, AD19, AE19,
AF19, AC20, AD20, AE20, AF20,
AC21, AD21, AE21, AC22, AD22,
AE22, AF22, AE23, AF23, AF24,
AD26, AC26, AA4, AA3, AB4, AB3,
AB1, AC3, AC2, AD1, AF3, AF4, AC5,
AD5, AE5, AF5, AC6, AD6, AD9, AE9,
AF9, AC10, AD10, AE10, AF10, AC11,
AE11, AF11, AC12, AD12, AE12,
AF12, AD13, AE13
PCI_AD[63:0]
PCI Bus Multi-plexed 64-bit Address/Data. During a
data phase, the upper 32 bits are meaningful when both
PCI_REQ64# and PCI_ACK# are asserted. During the
address phase, only the lower 32 bits are used.
AE14, AC15, AD15, AE15, AD4, AE6,
AF8, AD11
PCI_CBE#[7:0]
I/O
PCI Bus Command and Byte Enable. During an
address phase, PCI_CBE# represents a PCI bus com-
mand. During a data phase it represents a byte enable.
AF6
AE4
PCI_FRAME#
PCI_IDSEL
I/O
I
PCI Bus Cycle Frame. This signal is driven by the Bus
master to indicate the start and end of a transaction.
PCI Bus Initialization Device Select. This signal is
used as a chip select during configuration read and
write transactions.
AC7
AD7
PCI_IRDY#
PCI_TRDY#
I/O
I/O
PCI Bus Initiator Ready. When asserted, the bus master
is ready to complete the current data phase.
PCI Bus Target Ready. This signal is driven by the tar-
get to indicate its ability to complete current data
phase.
AE7
PCI_DEVSEL#
I/O
PCI Bus Device Select. When driven, this signal indi-
cates that the driving device has decoded its address as
the target of the current access.
AF7
V3
PCI_STOP#
PCI_INT#
I/O
O
PCI Bus Stop. The PCI target asserts this signal to
request the bus master to stop the current transaction.
PCI Bus Interrupt Signal. This signal should be con-
nected to INTA# of the PCI connector.
AD8
PCI_SERR#
O
PCI Bus System Error. This signal is used to report
address parity errors, data parity on the Special Cycle
command, or any other system error where the result
will be catastrophic. PCI_SERR# is an open drain sig-
nal.
9
CD00032
IXF6402 Broadband Access Processor
AC8
PCI_PERR#
I/O
PCI Bus Parity Error. This bit is only used for reporting
data parity errors during all PCI transactions, except
for a Special Cycle.
Table 1: PCI Bus Signals (cont)
Pin Numbers
Signal Name
I/O
Description
AE8
PCI_PARITY
I/O
PCI Bus Parity Bit. Sets even parity across
PCI_AD[31:0] and PCI_C/BE#[3:0].
W4
Y3
PCI_CLK
I
PCI Bus Clock. Up to 66 MHz.
PCI_REQ#
O
PCI Bus Request. The IXF6402 asserts this signal
when it is trying to access the PCI bus.
Y4
PCI_GNT#
PCI_RST#
I
I
PCI Bus Grant for the IXF6402.
W3
PCI Bus Reset. This is the master reset signal for
IXF6402.
AD14
AC14
PCI_REQ64#
PCI_ACK64#
I/O
I/O
PCI Bus Request 64-bit Transfer. When asserted, this
signal indicates a 64-bit transaction.
PCI Bus Acknowledge 64-bit. When asserted, this sig-
nal indicates the target is willing to transfer data using
64 bits.
AC25
PCI_PARITY64
I/O
PCI Bus Parity Doubleword. Sets even parity across
PCI_AD[63:32] and PCI_C/BE#[7:4].
Table 2: Local Memory Bus Signals
Pin Numbers
AB23
Signal Name
I/O
Description
LM_BWAIT#
O
Local Bus External Master Wait. During slave access, after the external
master asserts LM_CS#, the IXF6402 asserts this signal when it is not
ready for a data transaction. The IXF6402 removes LM_BWAIT# when it
is ready for transaction. During slave read access, the data on the local bus
is valid the cycle AFTER LM_BWAIT# is deasserted. The external master
must hold the data until 1 cycle after this signal is deasserted during a
slave write transaction.
AB24
LM_BACK#
I
Local Bus Acknowledge. This is the grant signal to the IXF6402 bus
request. It should remain asserted throughout the transaction. To optimize
the performance of the chip, external logic can assert this signal all the
time. However, if external master is present, external logic needs to
deassert this signal only when external master requires the bus by asserting
LM_BREL# and LM_BREQ# is deasserted by the IXF6402. After
LM_BACK# is deasserted, it must remain deasserted until the external
master has completed the transaction.
10
CD00032
IXF6402 Signal Definitions
AB25
LM_BREQ#
O
Local Bus Request. When asserted, this signal indicates that the IXF6402
wants to access the local bus. Once it is asserted, it remains asserted until
the external master asserts LM_BREL#. If the IXF6402 is idle when
LM_BREL# is asserted, the IXF6402 deasserts LM_BREQ# in the next
clock cycle; otherwise, it will be 2 cycles after the IXF6402 finishes the
current transaction. The IXF6402 deasserts this signal for 1 cycle only.
Table 2: Local Memory Bus Signals (cont)
Pin Numbers
Signal Name
I/O
I/O
Description
AA25, AA24, AA23,
Y26:Y23, W26,
LM_D[63:0]
Local Bus Data. Output during master write or slave read. Input when
master read or slave write. When writing to SSRAM or SDRAM, data is
valid on every clock provided any of the memory chip enables are
asserted. During SSRAM read access, data is valid 1 cycle after
SSRAMCS# is asserted; therefore, the first cycle after SSRAMCS# is
deasserted, data is still valid. When reading from SDRAM, depending on
the CAS latency value, data could be valid 3 clock AFTER SDRAMCS# is
asserted. As a result, data could still be valid for 3 cycles after
SDRAMCS# has been removed. Data is invalid in all other cycles when
IXF6402 is in master mode. During slave write, the external device must
put the valid data on the data bus in the same cycle that it asserts LM_CS#,
and the value of the data must be held until for 1 cycle after LM_BWAIT#
is deasserted. During slave read, data is valid 1 cycle after LM_BWAIT#
is deasserted and it is held until LM_CS# is deasserted by the external
device.
V25, V24, U26:U23,
T26, T25, R24, R23,
P25, P24, N25:N23,
M26, L25, L24, L23,
K26:K23, J26, H24,
H23, G26:G23, F26,
E26, E24, E23, D26,
D25, C26, A24, B23,
C23, D22, A21, C22,
C21, D21, A20, B20,
C20, B19, C19, D19,
A18, B18, C18, A17,
B17
V26, R25, L26, H25, LM_WE#[7:0]
F23, A22, A19, D17
I/O
Local Bus Write Enable. Output during master read/write and input during
slave read/write.
LM_WE#[7] controls LM_D[63:56].
LM_WE#[6] controls LM_D[55:48].
LM_WE#[5] controls LM_D[47:40].
LM_WE#[4] controls LM_D[39:32].
LM_WE#[3] controls LM_D[31:24].
LM_WE#[2] controls LM_D[23:16].
LM_WE#[1] controls LM_D[15:8].
LM_WE#[0] controls LM_D[7:0].
LM_WE#[2 i] and LM_WE#[2 i+1] should be connected to DQML and
DQMU of the SDRAM, respectively, where i is 0 to 3. When connected to
SSRAM, LM_WE#[i] should be connected to BWi#. LM_WE# has the
same timing as local memory chip select when the IXF6402 is performing
a master write.
W25, T24, M25, J25 SDRAMCS#[3:0]
O
Local Bus SDRAM Chip Select. When asserted, the IXF6402 wants to
access SDRAM. These signals are asserted 2 cycles after LM_BACK# is
asserted if there is a transaction pending. They remain asserted until the
burst transaction has completed. Note that when these signals are
deasserted at the end of the read cycle, it does not mean the data is invalid
from then on; also, these signals are for flow- through only. Please see
LM_D for more information.
11
CD00032
IXF6402 Broadband Access Processor
F25, B21, D20, C17
SSRAMCS#[3:0]
I/O
Local Bus SSRAM Chip Select. When asserted, the IXF6402 wants to
access SSRAM. These signals should be connected to CS# and ADSC#.
ADSP# and ADV# should be tied high. These signals are asserted 2 cycles
after LM_BACKLM_BREQ# is asserted if there is a transaction pending.
They remain asserted until the burst transaction has completed. Note that
when these signals are deasserted at the end of the read cycle, it does not
mean the data is invalid from then on. Please see LM_D for more informa-
tion.
Table 2: Local Memory Bus Signals (cont)
Pin Numbers
AB26
Signal Name
I/O
Description
OLM_CLK#
O
Local memory clock output
W24, T23, M24, J24
LM_CAS#[3:0]
I/O
Local Bus SDRAM Column Address Strobe Command. When this signal
and SDRAMCS# are both asserted while LM_RAS# is deasserted, then
the column address is selected. They remain asserted until the transaction
has completed. These signals are also asserted for 1 cycle during either
refresh or mode set. They should be connected directly to CAS# of a
SDRAM. They are input and shaped during slave external master access
local SDRAM.
W23, R26, M23,
H26
LM_RAS#[3:0]
I/O
Local Bus SSRAM Colum Address Strobe Command. When this signal
and SDRAMCS# are both asserted while LM_RAS# is deasserted, then
the colum address is selected. They remain asserted until the transaction
has completed. These signals are also asserted for 1 cycle during either
refresh or mode set. They are imput and shaped during slave external mas-
ter access local SDRAM.
AA26
LM_BREL#
LM_A[25:2]
I
Local Bus Release. The external master asserts this signal to indicate that
it intents to use the local bus. It deasserts this signal once it detects that
LM_BREQ# is deasserted. To improve performance, the external master
should not assert this signal until there is a transaction waiting to be per-
formed.
10 C16, D16, A15,
B15, C15, D15, B14,
C14, B13, A12, B12,
D22, A21, C11, D11,
A10, B10, D10, A9,
B9, C9, A8, C8, A6
I/O
Local Bus Address. The SDRAM row address is selected by LM_A[14:3].
The SDRAM column address is represented by LM_A[10:3] if a "x16"
device is chosen. During SSRAM operation, a new address is presented on
every clock if SSRAMCS# is asserted. When the external master is per-
forming a slave transaction, it must hold the address until LM_BWAIT# is
deasserted.
B16
LM_WR#
LM_RD#
I/O
I/O
Local Bus Write. Asserted when the IXF6402 accesses SDRAM and has
the same timing as SDRAMCS#. Note that this signal is NOT asserted
during a master write to SSRAM. During Slave access, the external master
asserts LM_WR# to indicate a write access. The external logic should hold
the signal until the IXF6402 deasserts lm_wait#.
A16
Local Bus Read. Asserted when the current transaction performed by the
IXF6402 is a read instruction to SSRAM. It has the same timing as
SSRAMCS#. Please notice that this signal is NOT used when a master
read from SDRAM is performed. This signal is asserted by the external
master during a slave read transaction and external logic should hold the
signal until the IXF6402 deasserts lm_wait#.
12
CD00032
IXF6402 Signal Definitions
C13
LM_CLK
LM_CS#
I
Local Bus Clock. This is the master clock for the local memory bus and
the IXF6402.
C10
I
Local memory chip when asserted the IXF6402 wants to access local
memory.
B7, D7, B6, A5, A4
LM_SA[6:2]
O
Local Bus Spare Memory Address. When LM_A[6:2] is used for
SDRAM. The LM_SA[6:2] should be used for SSRAM or vice-versa. This
signal has the same timing as LM_A. However, instead of becoming input
during a slave access, these pins will be tristated.
D6, B4, A3
LM_IRL[2:0]
O
Local Bus Interrupt. LM_IRL[0] is asserted when any bit in the Error
Interrupt register is set. LM_IRL[1] is set when any bit in the Status Inter-
rupt register is asserted. LM_IRL[2] is set when any bit in the Status[2:0]
register is set.
Table 2: Local Memory Bus Signals (cont)
Description
Pin Numbers
Signal Name
I/O
C5
LM_ROMCS#
O
Local Bus Expansion ROM Chip Select. If ROM is present, this signal
will be asserted during the booting process. PCI Master Access Expansion
ROM. Only 16-bit EPROM is supported by the IXF6402 and it should be
connected to LM_A[18:3] and LM_A[63:48].
Table 3: UTOPIA Bus Signals
Pin Numbers
C1, D3, D2, D1
Signal Name
TXCLAV[3:0]
I/O
Description
I
UTOPIA Bus Transmit Cell Available. When asserted, this signal indi-
cates that MPHY is ready to accept the transfer of a complete cell.
E4, E3, E2
TXADDR[2:0]
TXDATA[15:0]
TXSOC
O
UTOPIA Bus Transmit MPHY Address. When address polling is enabled,
these signal are the MPHY address. When address polling is disabled,
these signals are used as TXEN#[3:1].
F2, F1, G4:G1,
H4:H1, J3:J1, K3,
K2, L4
O
UTOPIA Bus Transmit Data. This bus carries the ATM cell and is only
valid when TXEN# is asserted.
F4
O
UTOPIA Bus Transmit Start of Cell. When asserted, this signal indicates
that the current data on TXDATA is the beginning of a new ATM cell. F3
TXPRTY O UTOPIA Bus Transmit Data Parity. TXPRTY serves as the
odd parity bit over TXDATA[15:0]. When FPE (Force Parity Error) is set
in the UTOPIA control register, the IXF6402 asserts even parity on this
pin.
F3
E1
TXPRTY
TXEN#
O
UTOPIA Bus Transmit Data Parity. TXPRTY serves as the odd parity bit
over TXDATA[15:0]. When FPE ( Force Parity Error ) is set in the
UTOPIA Control register, the IXF6402 assert even parity on this pin.
O
UTOPIA Bus Transmit Enable. When asserted, this signal indicates that
the current cycle contains a valid ATM cell. K4 TXCLK I UTOPIA Bus
Transmit Clock. This signal is the UTOPIA Bus transmit clock.
13
CD00032
IXF6402 Broadband Access Processor
K4
TXCLK
I
I
UTOPIA Bus Transmit Clock. This signal is the UTOPIA Bus transmit
clock.
T2, T1, U4, U3
U2, U1, V2
RCCLAV[3:0]
RCADDR[2:0]
UTOPIA Bus Receive Cell Available. When asserted, MPHY is ready to
transfer a complete cell.
O
UTOPIA Bus Receive MPHY Address. When address polling is enabled,
these signals are the Receive MPHY address. When polling is disabled,
these signals are used as RxEn#[3:1].
K1, L3:L1, M4:M2,
N3, N2, P4:P2,
R4:R1
RCDATA[15:0]
I
UTOPIA Bus Receive Data. These signals carry the ATM cell and are
valid only in cycles following those with RCEN# asserted.
T3
RCSOC
I
UTOPIA Bus Receive Start of Cell. This signal indicates the current data
on RCDATA is the beginning of a new ATM cell.
T4
RCPRTY
I
UTOPIA Bus Receive Data Parity. This signal is only valid in cycles
following those with RCEN# asserted. This bit serves as the odd parity bit
over RCDATA[15:0]. When FPE (Force Parity Error) is set in the
UTOPIA Control register, the IXF6402 assert even parity on this pin.
V1
RCEN#
O
UTOPIA Bus Receive Enable. When asserted, indicates that the IXF6402
is ready to accept a ATM cell in the following cycles.
M1
D5
RCCLK
TEOP
I
UTOPIA Bus Receive Clock This is the UTOPIA Bus receive clock.
Tx end of packet
O
I
D8
REOP
Rx end of packet
D13
RERR
I
Rx packet error, assert only when reop is asserted.
C6
C7
RMOD [ 1:0 ]
I
Rx module indicates the number of valid bytes in rx data.
8 bit mode - not applicable
16 bit mode - only rmod [ 0 ] is used
0: only rmod [ 15:0 ] are valid
1: only rcDATA [ 15:8 ] are valid
32 bit mode -
00 : Rc Data[ 31:0 ] are valid
01 : Rc Data [ 31: 8 ] are valid
10 : Rc Data [ 31: 16 ] are valid
11 : Rc Data [ 31: 24 ] are valid
A7
B8
TMOD[ 1:0 ]
O
Tx modulo indicates the number of valid bytes in tcdata.
8 bit mode - not applicable
16 bit mode - only TMOD [ 0 ] is used
0 : Tx Data [ 15:0 ] are valid
1 : only Tx Data [ 15 ] are valid
32 bit mode -
00 : Tx Data [ 31: 0 ] are valid
01 : Tx Data [ 31: 8 ] are valid
10 : Tx Data [ 31: 16 ] are valid
11 : Tx Data [ 31: 24 ] are valid
14
CD00032
IXF6402 Signal Definitions
Table 4: Support For POS Feature
SIGNAL
NAME
PIN #
I/O
SIGNAL DEFINITIONS
Transmit EOP
When in ATM Mode
No Connect
D5
D8
D13
C6
OTEOP
O-4mA
IREOP
I
Receive EOP
Pulldown
Pulldown
Pulldown
Pulldown
No Connect
No Connect
Pullup
IERR
I
Receive Error
IRMOD(1)
IRMOD(0)
OTMOD(1)
OTMOD(0)
IRVAL
I
Receive Modulo(1)
Receive Modulo(0)
Transmit Modulo(1)
Transmit Modulo(0)
POS RC-Data Valid
C7
I
A7
B8
O-4mA
O-4mA
I
A23
Table 5: JTAG Signals
Pin Numbers
W2
Signal Name
I/O
Description
TMS
I
JTAG Test Mode Select. It is used to control the state of the TAP controller
in the device.
Y1
TCK
TDI
I
I
JTAG Input Clock.
Y2
JTAG Data Input.
AA1
AA2
TDO
TRST#
O
I
JTAG Data Output.
JTAG Test Reset. This will reset the TAP controller.
Table 6: Miscellaneous Signals
Pin Numbers
Signal Name
I/O
Description
W1
B11
C4
DIS_ALL#
I
Disable All. This signal disables all output and tristate
signals. For normal operation, this signal should be
high. A11 PKT_BUSY O Packet Processor Busy.
CPUDMA_BUSY
EXT_CLK
O
DMA Queue Full. C4 EXT_CLK I External Clock.
This clock can be used as an external clock source for
the shaper.
I
External clock . This clock can be used as an external
source for the traffic shaper.
15
CD00032
IXF6402 Broadband Access Processor
A11
PKT_BUSY
O
The purpose of this pin is to help the hardware to keep
track of whether the IXF6402’s four entry
Transmit_ADD_PKT_QUEUE and 2-entry
ADD_BUFFER_QUEUE are available to accept
another command.
B5, D24, F24, AB2, AD23
NC(GND)
NC(VCC)
GND
I
I
No connect (reserved for ground).
No connect (reserved for power).
Ground.
B22, E25, AC1, AC24, AF21
A1, A2, A13, A14, A25, A26, B1, B3,
B24, B26, C2, C25, N1, N26, P1, P26,
AD2, AD25, AE1, AE3, AE24, AE26,
AF1, AF2, AF13, AF14, AF25, AF26
I
C3, C24, D9, D18, J4, J23, V4, V23,
AC9, AC18, AD3, AD24
VCC
VCC
I
Power, 3.3V.
Pover, 2.5V.
B2, B25, D4, D14, D23, N4, P23, AC4,
AC13, AC23, AE2, AE25
16
CD00032
IXF6402 Electrical Characteristics
SECTION 5 - ELECTRICAL CHARACTERISTICS
Above which the useful life of the chip may be impaired.
For user guidelines, not tested.
Table 7: Absolute Maximum Ratings
Rating
Value
Case Temperature under bias
Storage Temperature
0 C to 85 C
-65 C to 150 C
-55 C to 125 C
Ambient Temperature (Power ON)
Voltage on any pin
-0.3V to Vcc+0.3V (with respect to GND)
DC Input Voltage
0.5V to 7.0V
30mA
Output current into TTL Outputs (LOW)
Output current into PECL Outputs (HIGH)
Table 8: Operating Range
-50mA
Range
Ambient Temperature
VCC
Commercial
0 C to +70 C
3.3V ± 5%
Table 9: DC Characteristics
Item
Symbol
Min
Type
Max
Vcc+0.3
Units
Condition
Notes
Input Voltage
(LV-TTL level)
VIHT
VILT
2.0
-0.3
-
-
V
-
0.8
V
V
V
V
Input Voltage
TTL Level
Schmitt
VTT-
VTT
0.8
0.3
-
-
-
-
Vcc = 3.3V
Vcc = 3.3V
Vcc = 3.3V
VTT+
2.0
Input Voltage
(CMOS level)
VTT-
AVTT
0.3Vcc
0.3
-
-
-
-
V
V
FCC = 3.3V
Vcc = 3.3V
17
CD00032
IXF6402 Broadband Access Processor
Table 9: DC Characteristics
Item
Symbol
Min
2.4
Type
Max
Units
Condition
Notes
Output Voltage
(TTL level)
VOHT
VOLT
-
-
-
0.4
V
V
IOH = -2/-4/-8/-12/-24 mA
IOL = 2/4/8/12/24 mA
-
Output Voltage
(CMOS level)
VOHC
VOLC
Vcc-0.1
-
-
-
-
0.1
V
V
VCC = 3.3V
VCC = 3.3V
Input leak current
Output leak current
ILI
-
-
-
-
1.0
1.0
mA
mA
-
ILO
High impedance output
mode
Pull up current (TTL)
IPUT
IPUC
120
60
330
165
800
400
mA
mA
VIN = GND
VIN = GND
Pull up current
(CMOS)
Pull down current
(TTL)
IPDT
120
330
800
mA
mA
VIN = VCC
Pull down current
(CMOS)
IPDC
60
165
400
VIN = VCC
Output high mini-
mum current
IOH (min)
IOH (max)
IOL(min)
IOL (max)
-12VCC
-
-
-
-
-
mA
mA
mA
mA
VOUT = 0.3VCC
VOUT = 0.7VCC
VOUT = 0.6VCC
VOUT = 1.8VCC
1
output high maximum
current
-
-32VCC
-
Output low Minimum
current
-16VCC
-
1
output low maximum
current
38VCC
Output High Voltage
Output Low Voltage
High clamp current
VOH
VOL
ICH
0.9VCC
-
-
-
-
-
V
V
IOUT = -1.5mA
0.1VCC
-
IOUT = 1.5mA
25 +
ma
VCC+4>VIN>=VCC+1
(VIN-
VCC-1)
/ 0.015
Low clamp current
ICL
-25 +
-
-
ma
-3 < VIN >= -1
(VIN+1)
/ 0.015
Output Rise slew rate
Output Fall slew rate
Tx
Tx
1
1
-
-
4
4
V/ns
V/ns
0.3VCC to 0.6VCC
0.6VCC to 0.3VCC
2
2
Note: VCC = 3.3V ± 0.3V, Ta = 0° C to +70° C
Notes:
specified here, i.e. half sized drivers may be used on these
signals. This specification does not apply to PCI_CLK and
PCI_RST# which are system outputs. Switching Current
High” specifications are not relevant to PCI_SERR# and
PCI_INT# which are open drain outputs.
Switching current characteristics for the PCI_REQ64# and
PCI_GNT# pins are permitted to be one half of what is
18
CD00032
IXF6402 Electrical Characteristics
This parameter is to be interpreted as the cumulative edge
rate across the specified range rather than the instantaneous
rate at any point within the transition range. The specified
load is optional. The designer may elect to meet this
parameter with an unloaded output per rev 2.0 of the PCI
spec. However, adherence to both maximum and minimum
parameters is now required (the max is no longer simply a
guideline).
DC curves with one exception: from a quiescent or steady
state condition, the current associated with the AC drive
point must be reached within the output delay time, Tval.
Note however, that this delay time also includes necessary
logic time. The partitioning of Tval between clock
distribution, logic and output buffer is not specified, but the
faster the buffer (as long as it does not exceed the
maximum rise/fall time specification) the more time
allowed for logic delay inside the part.
The V/I curves define the min and max output buffer drive
strength. These curves should be interpreted as traditional
pin
0.5 inch maximum
Vcc
10pF
1 KOhm
1 KOhm
Output buffer
Figure 3: Tval (min) and Slew Rate
19
CD00032
IXF6402 Broadband Access Processor
SECTION 6 - TIMING SPECIFICATIONS
compliance with clock specification is measured at the add-
in board component, not at the connector slot.
6.1 Clock Timing
The clock waveform must be delivered to each 66Mhz PCI
component in the system. In the case of add-in boards,
Fig 4 shows the clock waveform and required measurement
points for 3.3V signaling environments.
Tcyc
3.3V CLOCK
Thigh
0.6Vcc
0.5Vcc
0.4Vcc
0.3Vcc
0.2Vcc
Tlow
0.4Vcc, peak-to-peak
(minimum)
Figure 4: 3.3V CLOCK Waveform
20
CD00032
IXF6402 Timing Specifications
6.2 Clock Specifications
Table 10: 33Mhz / 66Mhz Timing Parameters
Symbol
Parameter
66Mhz
max
33Mhz
max
Units
Notes
min
15
6
min
30
12
12
1
Tcyc
Clock cycle time
ns
1, 3
Thigh
Tlow
Tslew
Clock high time
Clock low time
Clock slew rate
9
9
4
18
18
4
ns
6
ns
1.5
V/ns
2
Notes:
In general, all 66.6Mhz PC components must work with a
clock frequency of up to 66.6Mhz. Device operational
parameters at frequencies under 33Mhz must conform to
the specifications in Chapter 4 of the PCI specification, rev
2.1. The clock frequency may be changed at any time
during the operation of the system as long as the clock
edges remain “clean” (monotonic) and the minimum cycle
and high and low times are not violated. The clock maybe
stopped only in a low state. A variance on this specification
is allowed for components designed for use on the system
planar only. For clock frequency between 33Mhz and
66.6Mhz, the clock frequency may not change except in
conjunction with a PCI reset.
Rise and Fall times are specified in terms of the edge rate
measured in V/ns. This slew rate must be met across the
minimum peak-to-peak portion of the clock waveform as
shown in Fig 4. Clock slew rate is measured by the slew
rate circuit shown in Table 10. The minimum clock rate
must not be violated for any single clock cycle, i.e.
accounting for all system jitter.
21
CD00032
IXF6402 Broadband Access Processor
description is an extract from the ATM Form UTOPIA
Level 2 Specification, Version 1.0 of June 1995 (af-phy-
0039.0000).
6.3 UTOPIA Timing
Parameters
The IXF6402 UTOPIA interface is fully compliant with
the ATM Forum Specifications. The following timing
Table 11: Transmit timing (16-bit data bus, Û50 MHz at cell interface)
Signal Name
TxClk
DIR
Item
f1
tT2
tT3
tT4
Description
Min
Max
50MHz
60%
5%
TxClk frequency (nominal)
TxClk duty cycle
TxClk peak-to-peak jitter
TxClk rise/fall time
0
40%
-
-
2ns
TxData[15:0],
A=>P
tT5
tT6
Clock to Output Valid @ 35 pf
2
-
14
-
TxPrty, TxSOC,
TxEnb*, Txaddr
TxFull*/
TxClav
A<=P
tT7
tT8
Input setup to TxClk
Input hold from TxClk
4ns
1ns
-
-
Table 12: Receive timing (16-bit data bus, Û50 MHz at cell interface, single-PHY)
Signal Name
RxClk
DIR
Item
f1
tT2
tT3
tT4
Description
Min
Max
50MHz
60%
5%
RxClk frequency (nominal)
RxClk duty cycle
RxClk peak-to-peak jitter
TxClk rise/fall time
0
40%
-
-
2ns
RxEnb*, Rxaddr
A=>P
A<=P
tT5
tT6
Clock to Output Valid @ 35 pf
2
-
14
-
RxData[15:0],
RxPrty, RxSOC,
RxEmpty*/RxClav
tT7
tT8
Input setup to RxClk
Input hold from RxClk
4ns
1ns
-
-
22
CD00032
IXF6402 Timing Specifications
6.4 PCI Timing Parameters
Table 13: 33Mhz and 66Mhz Timing Parameters
Symbol
Parameter
66Mhz
33Mhz
min max
Units
Notes
min
2
max
6
Tval
PCI_CLK to signal valid delay – bused signals
2
2
11
12
ns
ns
1, 2, 3, 7
1, 2, 3, 7
Tval(ptp)
PCI_CLK to signal valid delay – point-to-point
signals
2
6
Ton
Float to active delay
2
2
ns
ns
ns
ns
1, 7, 8
1, 8
Toff
Active to Float delay
14
28
Tsu
Input setup time to PCI_CLK – bused signals
3
5
3, 4
Tsu(ptp)
Input setup time to PCI_CLK – point-to-point
signals
10,
12
3, 4
Th
Input Hold time from PCI_CLK
0
1
0
1
ns
ms
us
ns
ns
4
5
5
5
Trst
RESET active time after Power stable
RESET active time after PCI_CLK stable
RESET active to output float delay
PCI_REQ64# to PCI_RST# setup time
Trst-clk
Trst-off
Trrsu
100
100
40
40
50
10Tc
yc
10Tc
yc
Trrh
PCI_RST# to PCI_REQ64# HOLD time
0
50
0
ns
Notes:
It is important that all driven signal transitions drive to their
Voh or Vol level within one Tcyc.
if a mechanism is provided to guarantee a minimum value
of 2ns when M66EN is deasserted.
Minimum times are measured at the package pin with the
load circuit. Maximum times are measured with the load
circuit.
For purpose of active/float timing measurements, the HI-Z
or “off” state is defined as when the total current delivered
through the component pin is less than or equal to the
current leakage specification.
PCI_REQ64# and PCI_GNT# are point-to-point signals
and have different input setup times than do bused signals.
The PCI_REQ64# and PCI_GNT# signals have a setup
time of 5 ns at 66.6Mhz. All other signals are bused.
PCI_RST# is asserted and deasserted asynchronously with
respect to PCI_CLK. All output drivers must be floated
when PCI_RST# is active.
When M66EN is asserted, the minimum specification for
Tval(min), Tval(ptp)(min) and Ton may be reduced to 1ns
23
CD00032
IXF6402 Broadband Access Processor
Vth
Vtl
CLK
Tfval
Vtfall
Output delay
Trval
Vtrise
Tristate
Output
Ton
Toff
Figure 5: Output timing measurement
conditions
Vth
Vtl
Vtest
CLK
Tsu
Th
Vth
Input
Vtl
Vmax
Valid
Vtest
Figure 6: Input timing measurement
conditions
24
CD00032
IXF6402 Timing Specifications
pin
0.5 inch maximum
10pF
25 ohm
Output buffer
Figure 7: Tval (max) Rising edge
pin
0.5 inch maximum
Vcc
10pF
25 Ohm
Output buffer
Figure 8: Tval (max) Falling edge
25
CD00032
IXF6402 Broadband Access Processor
6.5 Local Memory Bus
Timing
Table 14: Local Memory Bus Timing Parameters
Symbol
Parameter
66Mhz
max
33Mhz
min max
Units
Notes
min
15
6
Tcyc
Clock cycle time
ns
ns
ns
ns
ns
ns
ns
1, 3 (clk timing)
Thigh
Tlow
Clock high time
Clock low time
Input setup
9
9
6
Tsetup
Thold
Tdelay
Thigh-z
3
Input hold
3
Output delay
4
10
14
High impedance delay
5
Thigh
Tlow
CLK
Tsetup Thold
Inputs
Tcyc
Inputs
Tdly
Th-iZ
Valid
Outputs
Figure 9: Local Memory Bus Timing
Specifications
26
CD00032
IXF6402 Package Information
SECTION 7 - PACKAGE INFORMATION
Figure 10: 352-pin Ball Array
Parameter
Millimiters
Nom
Min
Max
Package Height
Ball Height
A
1
1.41
0.56
1.54
0.63
1.67
0.70
A
Package Body Thickness
A
0.85
0.91
0.97
2
Package Body Width
Ball Foot Print
D
1
34.90
31.65
35.00
31.75
35.10
31.85
D
Package Body Length
Ball ( Lead ) Count
E
1,
34.90
31.65
35.00
31.75
35.10
31.85
E
Ball Matrix
No. Of Rows Deep
M, N
26 x 26
2 - 4
M
1
Ball ( Lead ) Width
Ball Pitch
b
e
0.60
0.75
1.27
0.90
Complanarity
aaa
bbb
ccc
ddd
p
0.15
0.15
0.20
0.50
0.35
0.635
Parallel
Top Flatness
Seating Plane Clearance
Encapsulation Height
Solder Ball Placement
0.15
0.20
0.33
0.30
s
Table 15: 352-pin Ball Array
27
CD00032
IXF6402 Broadband Access Processor
NOTES
28
CD00032
IXF6402 NOTES
29
CD00032
OPO Headquaters
47509 Seabridge Drive
Fremont, California 94538
Telephone: (510) 497 3960
Fax: (510) 497 3980
The Americas
International
EAST
WEST
ASIA/PACIFIC
EUROPE
Eastern Area Headquarters & Western Area
Northeastern Regional Office Headquarters
Asia / Pacific Area
Headquarters
European Area Headquarters &
Southern Regional Office
234 Littleton Road, Unit 1A
Westford, MA 01886
USA
Tel: (978) 692-1193
Fax: (978) 692-1124
3375 Scott Blvd., #110
Santa Clara, CA 95054
USA
Tel: (408) 496-1950
Fax: (408) 496-1955
101 Thomson Road
United Square #08-01
Singapore 307591
Singapore
Tel: +65 353 6722
Fax: +65 353 6711
Parc Technopolis-Bat. Zeta 3,
avenue du Canada -
Z.A. de Courtaboeuf
Les Ulis Cedex 91974
France
Tel: +33 1 64 86 2828
Fax: +33 1 60 92 0608
North Central
Regional Office
South Central
Regional Office
Central Asia/Pacific
Regional Office
Central Europe
Regional Office
One Pierce Place
Suite 500E
Itasca, IL 60143
USA
800 East Campbell Road
Suite 199
Richardson, TX 75081
USA
12F-1, No. 128, Section3, Lilienthalstr. 25
Ming Sheng East Road
Taipei , Taiwan,
R.O.C.
D-85399 Hallbergmoos
Germany
Tel: +49 81 16 006 817
Tel: (630) 250-6044
Fax: (630) 250-6045
Tel: (972) 680-5207
Fax: (972) 680-5236
Tel: +886 2 2547 5227 Fax: +49 81 16 006 815
Fax: +886 2 2547 5228
Southeastern
Regional Office
Southwestern
Regional Office
Northern Asia/Pacific
Regional Office
Northern Europe
Regional Office
4020 WestChase Blvd
Suite 100
Raleigh, NC 27607
USA
28203 Cabot Road
Suite 300
Laguna Niguel, CA 92677
USA
Nishi-Shinjuku, Mizuma Torshamnsgatan 35
Building 8F 164/40 Kista/Stockholm,
3-3-13, Nishi-Shinjuku, Sweden
Shinjuku-Ku
Tel: +46 8 750 3980
Tel: (919) 836-9798
Fax: (919) 836-9818
Tel: (949) 365-5655
Fax: (949) 365-5653
Tokyo, 160-0023 Japan Fax: +46 8 750 3982
Tel: +81 3 3347-8630
Fax: +81 3 3347-8635
Latin/South America
Headquarters
Israel
Regional Office
9750 Goethe Road
Sacramento, CA 95827
USA
Tel: (916) 855-5000
Fax: (916) 854-1102
Regus Instant Offices-Harel House
3 Abba Hillel Silver Street
Ramat Gan, 52522 Israel
Tel: +972-3-754-1130
Fax: +972-3-754-1100
Revision
Date
Status
Data Sheet
0.1
6/00
The products listed in this publication are covered by one or more of the following patents. Additional patents pending.
5,008,637; 5,028,888; 5,057,794; 5,059,924; 5,068,628; 5,077,529; 5,084,866; 5,148,427; 5,153,875; 5,157,690; 5,159,291; 5,162,746; 5,166,635; 5,181,228;
5,204,880; 5,249,183; 5,257,286; 5,267,269; 5,267,746; 5,461,661; 5,493,243; 5,534,863; 5,574,726; 5,581,585; 5,608,341; 5,671,249; 5,666,129; 5,701,099
Copyright © 1999 Level One Communications, Inc., an Intel company. Specifications subject to change without notice.
Document # CD00032
All rights reserved. Printed in the United States of America.
厂商 型号 描述 页数 下载

ILSI

IXF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15AF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15AT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15BF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15BT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15CF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15CT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15DF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A15DT 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

ILSI

IXF-10A20AF 晶体滤波器3线金属包装[ Crystal Filter 3 Lead Metal Package ] 1 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.235375s
