REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
DATE
APP'D
A
PRODUCT DRAWING (EAR 13513)
AUG26/09
K.L.
47.55
1.872
1
1
"LAST MAKE"
SIGNAL CONTACT
29.26
1.152
SIGNAL CONTACT
SIZE 20
FLOATING EYELET
ASSEMBLY WITH
0.25 [.010] VERTICAL
& RADIAL FLOAT
2.74 TYP.
.108
RADSOK POWER
CONTACT, SIZE 8
A1
A2 8
1
14
7
A3
A4
10.80
.425
RECEPTACLE
HOUSING
2
2
3.30
.130
16.46
.648
SLOT ACCEPTS PLUG
HOUSING BLADE. LOCATED
OFF CENTER TO PREVENT
IMPROPER MATING.
62.57
2.464
0.81
.032
9.02
.355
8.40
.331
RECESSED CONTACTS
IN POSITIONS #1 & 8
3
3
ORDERING CODE: D W R - K 1 S - B 4 4 0 0 - 1 E 5
SERIES
3.64
.143
SOCKET CONFIGURATION
24.87
.979
REF.
6.35
.250
RADSOK POWER & SIGNAL CONTACT
•
STANDARD SOLDER CUP
TERMINATION
CUSTOM PRODUCT
2.82
.111
NOTES:
9.50
.374
SIGNAL
SOLDER CUP
ACCEPTS UP
TO 20 AWG
WIRE
4
4
1. MATERIALS: ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2002/95/EC AND AMENDMENTS.
•
•
HOUSING: HIGH TEMPERATURE RESISTANT NYLON, UL FLAMMABILITY RATING 94V-0, COLOUR BLACK
SIGNAL CONTACTS: PHOSPHOR BRONZE PLATED WITH 0.76µm (30µ”) GOLD OVER 1.27µm (50µ”) NICKEL
ON THE MATING AREA AND 2.54µm (100µ”) MATTE TIN OVER NICKEL ON THE TAILS.
RADSOK POWER CONTACTS: BERYLLIUM COPPER MATING GRID, COPPER ALLOY BALANCE. PLATED
WITH 0.76µm (30µ”) GOLD OVER 1.27µm (50µ”) NICKEL ON THE MATING AREA & 2.54µm (100µ”) MATTE TIN
OVER NICKEL ON THE TAILS.
7.19
.283
5.49 DIA.
.216
HEX NUT &
LOCKWASHER
SEE NOTE 2.
•
POWER SOLDER
CUP ACCEPTS UP
TO 8 AWG WIRE
•
MOUNTING HARDWARE: NICKEL PLATED COPPER ALLOY HEX NUT & THREADED FASTENER, NICKEL
PLATED SPRING STEEL LOCK WASHER, PASSIVATED STAINLESS STEEL GUIDE PIN EYELET.
2. TWO HEX NUTS AND LOCK WASHERS ARE SUPPLIED PER CONNECTOR. THESE ITEMS ARE BULK PACKED IN
EACH BOX.
3. WHEN MATED WITH PLUG P/N DWR-K1P-B7700-1E5, THE ORDER OF MECHANICAL AND ELECTRICAL
ENGAGEMENT IS A) GUIDE PINS, B) HOUSING BLADES, C) HOUSING SHROUD, D) TWO “FIRST MAKE”
EXTENDED POWER CONTACTS, E) STANDARD POWER CONTACTS, F) STANDARD SIGNAL CONTACTS, G)
TWO “LAST MAKE” RECESSED SIGNAL CONTACTS.
5
5
4. RATINGS SUBJECT TO DESIGN QUALIFICATION TESTING
•
•
•
•
CURRENT RATING: 60A POWER, 5A SIGNAL
DIELECTRIC WITHSTANDING VOLTAGE: 1500VDC
INSULATION RESISTANCE: 5000 MEGAOHMS
OPERATING TEMPERATURE: -55C TO +105C
74.93
2.950
86.10
3.390
UNLESS SPECIFIED OTHERWISE DRAWN
PRIMARY UNITS MILLIMETERS
A.CHAN
JUL30/09
Amphenol Canada Corp.
CHECKED
INCHES M.E. APP'D
REFERENCE IN PARENTHESES Q.A. APP'D
K.LAMBIE AUG26/09
SECONDARY

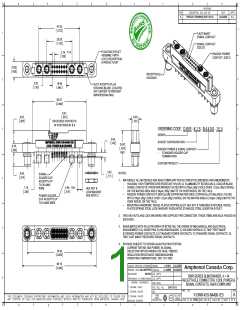

DWR SERIES SLIM DRAWER, 4 + 14
RECEPTACLE CONNECTOR, COOL POWER &
SIGNAL CONTACTS, RoHS COMPLIANT
6
6
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
3 DECIMAL PLACES
ANGULAR DEGREES
E
DWG APPR.
ENG. REL. NO.
EAR 13513
DWG. NO.
REV
A
2
REF.
THIRD
DO NOT
SCALE
P-DWR-K1S-B4400-1E5
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
ANGLE
PROJECTION
DRAWING CODE ID NO. 03554 DWG SIZE:X
SCALE:2:1
SHEET 1 OF
