QT8H0506-H113R-4F

型号:

QT8H0506-H113R-4F

品牌:

FOXCONN[ FOXCONN ]

页数:

1 页

PDF大小:

64 K

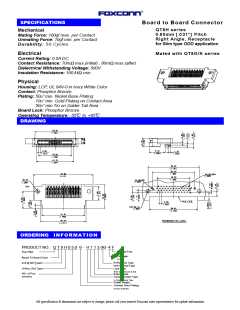

SPECIFICATIONS
Board to Board Connector
QT8H series
Mechanical
0.80mm [.031”] Pitch
Right Angle, Receptacle
for Slim type ODD application
Mating Force: 100gf max. per Contact
Unmating Force: 10gf min. per Contact
Durability: 50 Cycles
Electrical
Current Rating: 0.5A DC
Mated with QT8G/K series
Contact Resistance: 70mW max.(initial) , 80mW max.(after)
Dielectrical Withstanding Voltage: 500V
Insulation Resistance: 100 MW min.
Physical
Housing: LCP, UL 94V-0 in Ivory White Color
Contact: Phosphor Bronze
Plating: 50u” min. Nickel Base Plating
10u” min. Gold Plating on Contact Area
50u” min Tin on Solder Tail Area
Board Lock: Phosphor Bronze
Operating Temperature: -55to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: Q T 8 H 0 5 0 6 - H 1 1 3 (R)- 4 F
Fine Pitch
F=Lead Free
Package:
4=Tray
Board To Board Conn.
8=0.8[.031"] pitch
H=Rec. R/A Type
R=Reverse Type
N/A=Normal Type
Lock Type
0=W/ OBoard-Lock & Nut
Extend code
Contact Solder Type
NO. of Pos:
050=50Pos
1=Through Hole Type
Profile Height:
Contact Area Plating:
6=10u" Gold Min.
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
