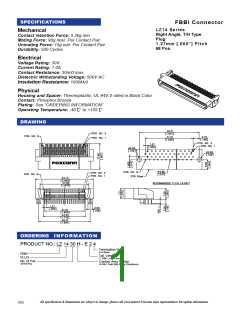

SPECIFICATIONS
FBBI Connector
LZ14 Series
Mechanical
Right Angle, T/H Type
Plug
Contact retention Force: 0.3kg min.
Mating Force: 90g max. Per Contact Pair
Unmating Force: 15g min. Per Contact Pair
Durability: 500 Cycles
1.27mm [.050”] Pitch
68 Pos.
Electrical
Voltage Rating: 30V
Current Rating: 1.0A
Contact Resistance: 30mΩ max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 1000MΩ
Physical
Housing and Spacer: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Phosphor Bronze
Plating: See “ORDERING INFORMATION”
Operating Temperature: -40℃ to +105℃
DRAWING
ORDERING INFORMATION
: LZ 14 30 H - E 2 4
PRODUCT NO.
Termination Side
4=4 Rows
FBBI
Tail Length:
PLUG
2: DIM. L=2.80 mm
No. of Pos.
Contact Area Plating
30=60 Pos.
H=30u" Gold With RoHs Compliance
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
