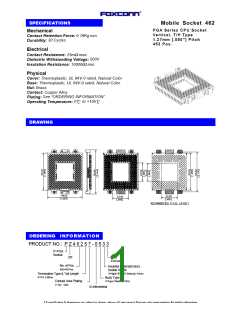

SPECIFICATIONS
Mobile Socket 462
PGA Series CPU Socket
Vertical, T/H Type
1.27mm [.050”] Pitch
453 Pos.
Mechanical
0.19Kg min.
Contact Retention Force:
: 30 Cycles
Durability
Electrical
Contact Resistance:
Dielectric Withstanding Voltage:
25mW max.
500V
1000MW min.
Insulation Resistance:
Physical
Thermoplastic, UL 94V-0 rated, Natural Color
Cover:
Thermoplastic, UL 94V-0 rated, Natural Color
Base:
Brass
Nut:
Copper Alloy
See “ORDERING INFORMATION”
Contact:
Plating:
0
to +105
℃
Operating Temperature: ℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: P Z 4 6 2 5 7 - 0 5 3 3
P=PGA
Socket
ZIF
Nuts
3=W/ Nuts
No. of Pos.
462=453 Pos.
Insulator Material(Color),
Socket Height
3=Hight HDT LCP (Natural), 4.5mm
Termination Type & Tail Length
5=T/H, 2.00mm
Body Type
Contact Area Plating
5=Type 2 Modified(T2m)
7=15u" Gold
0=Interstistial
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
