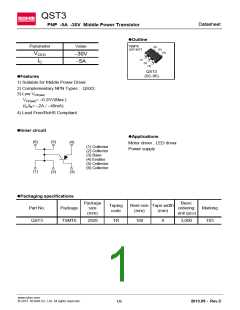

QST3
Datasheet
PNP -5A -30V Middle Power Transistor
lOutline
TSMT6
SOT-457T
Parameter
VCEO
IC
Value
-30V
-5A
(6)
(5)
(4)
(1)
(2)
(3)
QST3
(SC-95)
lFeatures
1) Suitable for Middle Power Driver
2) Complementary NPN Types : QSX2
3) Low VCE(sat)
VCE(sat)= -0.25V(Max.)
(IC/IB= -2A / -40mA)
4) Lead Free/RoHS Compliant.
lInner circuit
lApplications
(6)
(1)
(5)
(2)
(4)
(3)
Motor driver , LED driver
Power supply
(1) Collector
(2) Collector
(3) Base
(4) Emitter
(5) Collector
(6) Collector
lPackaging specifications
Package
size
(mm)
Basic
ordering
unit (pcs)
Taping
code
Reel size Tape width
Part No.
QST3
Package
TSMT6
Marking
T03
(mm)
(mm)
2928
TR
180
8
3,000
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2013.05 - Rev.C
1/6
Data Sheet
QST3
lAbsolute maximum ratings (Ta = 25°C)
Parameter
Symbol
VCBO
VCEO
VEBO
IC
Values
-30
Unit
V
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
V
-30
V
-6
A
DC
Collector current
-5.0
-8.0
500
*1
A
Pulsed
ICP
*2
mW
PD
Power dissipation
*3
1.25
150
W
°C
°C
PD
Tj
Junction temperature
Tstg
Range of storage temperature
-55 to +150
*1 Pw=1ms , single pulse
*2 Each terminal mounted on a reference land
*3 Mounted on a ceramic board (25×25×0.8 mm)
lElectrical characteristics (Ta = 25°C)
Parameter
Collector-emitter
breakdown voltage
Symbol
Conditions
IC = -1mA
Min.
Typ.
-
Max.
Unit
V
BVCEO
-
-30
Collector-base
breakdown voltage
BVCBO
BVEBO
ICBO
IC = -10mA
IE = -10mA
VCB = -30V
VEB = -6V
-
-
-
V
V
-30
Emitter-base
breakdown voltage
-
-6
Collector cut-off current
Emitter cut-off current
-
-
-
nA
nA
mV
-
-100
-100
-250
680
-
IEBO
-
Collector-emitter
saturation voltage
VCE(sat)
hFE
IC = -2A, IB = -40mA
VCE = -2V, IC = -500mA
-
-170
-
DC current gain
270
VCE = -2V, IE = 500mA
f=100MHZ
fT
Transition frequency
Output capacitance
-
-
200
60
MHz
pF
VCB = -10V, IE = 0A
f = 1MHz
Cob
-
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2013.05 - Rev.C
2/6
Data Sheet
QST3
lElectrical characteristic curves(Ta = 25°C)
Fig.2 Typical Output Characteristics
Fig.1 Ground Emitter Propagation Characteristics
-2
-10mA
-9mA
-8mA
-7mA
-6mA
-5mA
-4mA
-1.5
-1
-3mA
-2mA
-0.5
-0
IB= -1mA
Ta=25ºC
Pulsed
-0
-1
-2
-3
BASE TO EMITTER VOLTAGE : VBE [V]
COLECTOR TO EMITTE VOLTAGE : VCE [V]
Fig.3 DC Current Gain vs. Collector Current(I) Fig.4 DC Current Gain vs. Collector Current(II)
1000
Ta=25ºC
Pulsed
VCE= -5V
-2V
100
-1V
10
-0.001
-0.01
-0.1
-1
-10
COLLECTOR CURRENT : IC [A]
COLLECTOR CURRENT : IC [A]
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2013.05 - Rev.C
3/6
Data Sheet
QST3
lElectrical characteristic curves(Ta = 25°C)
Fig.6 Collector-Emitter Saturation Voltage
Fig.5 Collector-Emitter Saturation Voltage
vs. Collector Current (II)
-1
vs. Collector Current (I)
-1
Ta=25ºC
Pulsed
IC / IB = 20
Pulsed
-0.1
-0.1
Ta=125ºC
IC / IB = 50
75ºC
-40ºC
-0.01
-0.01
20
10
-0.001
-0.001
-1
-10
-100
-1000
-10000
-1
-10
-100
-1000
-10000
COLLECTOR CURRENT : IC [A]
COLLECTOR CURRENT : IC [A]
Fig.8 Gain Bandwidth Product
vs. Emitter Current
Fig.7 Base-Emitter Saturation Voltage
vs. Collector Current
EMITTER CURRENT : IE [A]
COLLECTOR CURRENT : IC [A]
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2013.05 - Rev.C
4/6
Data Sheet
QST3
lElectrical characteristic curves(Ta = 25°C)
Fig.9 Emitter input capacitance vs.
Emitter-Base Voltage
Fig.10 Safe Operating Area
Collector output capacitance vs.
Collector-Base Voltage
-100
1ms
10ms
-10
-1
100ms
-0.1
DC
(Mounted on a
reference land)
-0.01
Ta=25ºC
Single non repetitive pulse
-0.001
-0.01
-0.1
-1
-10
-100
COLLECTOR - BASE VOLTAGE : VCB [V]
EMITTER - BASE VOLTAGE : VEB [V]
COLLECTOR TO EMITTER VOLTAGE : VCE [V]
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2013.05 - Rev.C
5/6
Data Sheet
QST3
lDimensions (Unit : mm)
D
A
e
TSMT6
c
Q
b
x
S A
A3
e
y
S
S
b2
Pattern of terminal position areas
[Not a recommended pattern of soldering pads]
MILIMETERS
INCHES
DIM
MIN
-
0.00
0.75
MAX
1.00
0.10
0.95
MIN
-
0.000
0.030
MAX
0.039
0.004
0.037
A
A1
A2
A3
b
c
D
E
e
0.25
0.95
0.010
0.037
0.35
0.10
2.80
1.50
0.50
0.26
3.00
1.80
0.014
0.004
0.110
0.059
0.020
0.010
0.118
0.071
HE
L1
Lp
Q
x
y
2.60
0.30
0.40
0.05
-
3.00
0.60
0.70
0.25
0.20
0.10
0.102
0.012
0.016
0.002
-
0.118
0.024
0.028
0.010
0.008
0.004
-
-
MILIMETERS
MAX
0.70
INCHES
0.083
DIM
MIN
MIN
-
MAX
0.028
b2
e1
l1
2.10
-
0.90
-
0.035
Dimension in mm / inches
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2013.05 - Rev.C
6/6
Notice
N o t e s
1) The information contained herein is subject to change without notice.
2) Before you use our Products, please contact our sales representative and verify the latest specifica-
tions :
3) Although ROHM is continuously working to improve product reliability and quality, semicon-
ductors can break down and malfunction due to various factors.
Therefore, in order to prevent personal injury or fire arising from failure, please take safety
measures such as complying with the derating characteristics, implementing redundant and
fire prevention designs, and utilizing backups and fail-safe procedures. ROHM shall have no
responsibility for any damages arising out of the use of our Poducts beyond the rating specified by
ROHM.
4) Examples of application circuits, circuit constants and any other information contained herein are
provided only to illustrate the standard usage and operations of the Products. The peripheral
conditions must be taken into account when designing circuits for mass production.
5) The technical information specified herein is intended only to show the typical functions of and
examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly,
any license to use or exercise intellectual property or other rights held by ROHM or any other
parties. ROHM shall have no responsibility whatsoever for any dispute arising out of the use of
such technical information.
6) The Products are intended for use in general electronic equipment (i.e. AV/OA devices, communi-
cation, consumer systems, gaming/entertainment sets) as well as the applications indicated in
this document.
7) The Products specified in this document are not designed to be radiation tolerant.
8) For use of our Products in applications requiring a high degree of reliability (as exemplified
below), please contact and consult with a ROHM representative : transportation equipment (i.e.
cars, ships, trains), primary communication equipment, traffic lights, fire/crime prevention, safety
equipment, medical systems, servers, solar cells, and power transmission systems.
9) Do not use our Products in applications requiring extremely high reliability, such as aerospace
equipment, nuclear power control systems, and submarine repeaters.
10) ROHM shall have no responsibility for any damages or injury arising from non-compliance with
the recommended usage conditions and specifications contained herein.
11) ROHM has used reasonable care to ensur the accuracy of the information contained in this
document. However, ROHM does not warrants that such information is error-free, and ROHM
shall have no responsibility for any damages arising from any inaccuracy or misprint of such
information.
12) Please use the Products in accordance with any applicable environmental laws and regulations,
such as the RoHS Directive. For more details, including RoHS compatibility, please contact a
ROHM sales office. ROHM shall have no responsibility for any damages or losses resulting
non-compliance with any applicable laws or regulations.
13) When providing our Products and technologies contained in this document to other countries,
you must abide by the procedures and provisions stipulated in all applicable export laws and
regulations, including without limitation the US Export Administration Regulations and the Foreign
Exchange and Foreign Trade Act.
14) This document, in part or in whole, may not be reprinted or reproduced without prior consent of
ROHM.
Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
http://www.rohm.com/contact/
