UZDT6753

型号：

UZDT6753

品牌：

DIODES[ DIODES INCORPORATED ]

页数：

3 页

PDF大小：

32 K

下载PDF手册

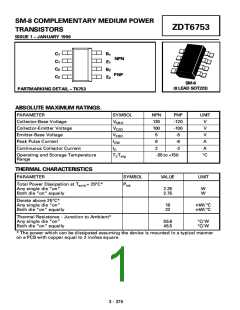

SM-8 COMPLEMENTARY MEDIUM POWER
ZDT6753
TRANSISTORS
ISSUE 1 – JANUARY 1996
C1
C1
C2
C2
B1
E1
B2
E2
NPN
PNP
SM-8
(8 LEAD SOT223)
PARTMARKING DETAIL – T6753
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VCBO
VCEO
VEBO
ICM
NPN
120
100
5
PNP
-120
-100
-5
UNIT
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
Peak Pulse Current
6
-6
A
Continuous Collector Current
IC
2
-2
A
Operating and Storage Temperature
Range
Tj:Tstg
-55 to +150
°C
THERMAL CHARACTERISTICS
PARAMETER
SYMBOL
Ptot
VALUE
UNIT
Total Power Dissipation at Tamb = 25°C*
Any single die “on”
Both die “on” equally
2.25
2.75
W
W
Derate above 25°C*
Any single die “on”
Both die “on” equally
18
22
mW/ °C
mW/ °C
Thermal Resistance - Junction to Ambient*
Any single die “on”
Both die “on” equally
55.6
45.5
°C/ W
°C/ W
* The power which can be dissipated assuming the device is mounted in a typical manner
on a PCB with copper equal to 2 inches square.
3 - 375
ZDT6753
NPN TRANSISTOR
ELECTRICAL CHARACTERISTICS (at T
= 25°C).
amb
PARAMETER
SYMBOL MIN.
TYP.
MAX. UNIT CONDITIONS.
Collector-Base
Breakdown Voltage
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
120
100
5
V
V
V
IC=100µA, IE =0
IC=10mA, IB =0*
IE=100µA, IC =0
Collector-Emitter
Breakdown Voltage
Emitter-Base
Breakdown Voltage
Collector Cutoff
Current
0.1
10
VCB=100V
µA
µA
VCB=100V,T
=100°C
Emitter Cutoff Current IEBO
0.1
VEB=4V, IC =0
µA
Collector-Emitter
Saturation Voltage
VCE(sat)
0.13
0.23
0.3
0.5
V
IC=1A, IB=100mA*
IC=2A, IB=200mA*
Base-Emitter
Saturation Voltage
VBE(sat)
VBE(on)
hFE
0.9
0.8
1.25
1
V
V
IC=1A, IB=100mA*
IC=1A, VCE=2V*
Base-Emitter
Turn-On Voltage
Static Forward
Current Transfer Ratio
70
100
55
200
200
110
55
IC=50mA, VCE=2V
IC=500mA, VCE=2V*
IC=1A, VCE=2V*
300
25
IC=2A, VCE=2V*
Transition Frequency
fT
140
175
MHz
IC=100mA, VCE=5V
f=100MHz
Output Capacitance
Switching Times
Cobo
ton
30
pF
ns
ns
VCB=10V, f=1MHz
80
IC=500mA, VCE=10V
B1=IB2=50mA
I
toff
1200
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle ≤ 2%
For typical characteristics graphs see FZT653 datasheet.
3 - 376
ZDT6753
PNP TRANSISTOR
ELECTRICAL CHARACTERISTICS (at T
= 25°C unless otherwise stated).
amb
PARAMETER
SYMBOL MIN.
V(BR)CBO -120
TYP.
MAX. UNIT CONDITIONS.
Collector-Base
Breakdown Voltage
V
V
V
IC=-100µA
IC=-10mA*
IE=-100µA
Collector-Emitter
Breakdown Voltage
VCEO(SUS) -100
Emitter-Base
Breakdown Voltage
V(BR)EBO
-5
Collector Cutoff
Current
ICBO
-0.1
-10
V
CB=-100V
µA
µA
VCB=-100V, T
=100°C
amb
Emitter Cutoff Current IEBO
-0.1
VEB=-4V
µA
Collector-Emitter
Saturation Voltage
VCE(sat)
-0.17
-0.30
-0.3
-0.5
V
V
IC=-1A, IB=-100mA*
IC=-2A, IB=-200mA*
Base-Emitter
Saturation Voltage
VBE(sat)
-0.90
-0.8
-1.25
-1.0
V
V
IC=-1A, IB=-100mA*
IC=-1A, VCE=-2V*
Base-Emitter Turn-On VBE(on)
Voltage
Static Forward
Current Transfer Ratio
hFE
70
100
55
200
200
170
55
IC=-50mA, VCE=-2V
IC=-500mA, VCE=-2V*
IC=-1A, VCE=2V*
300
25
IC=-2A, VCE=-2V*
Transition Frequency
fT
100
140
MHz
IC=-100mA, VCE=5V
f=100MHz
Output Capacitance
Switching Times
Cobo
ton
30
pF
ns
ns
VCE=-10V, f=1MHz
40
IC=-500mA, VCC=-10V
IB1=IB2=50mA
toff
600
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle ≤ 2%
For typical characteristics graphs see FZT753 datasheet.
3 - 377
