RXR035N03TCL

型号：

RXR035N03TCL

品牌：

ROHM[ ROHM ]

页数：

7 页

PDF大小：

569 K

下载PDF手册

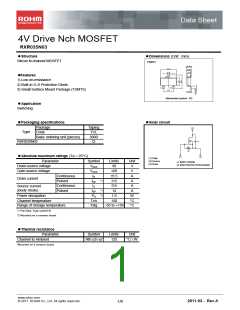

Data Sheet
4V Drive Nch MOSFET
RXR035N03
Structure
Dimensions (Unit : mm)
Silicon N-channel MOSFET
TSMT3
Features
(3)
1) Low on-resistance.
2) Built-in G-S Protection Diode.
3) Small Surface Mount Package (TSMT3).
(1)
(2)
Abbreviated symbol : XQ
Application
Switching
Packaging specifications
Inner circuit
Package
Taping
TCL
3000
○
(3)
Type
Code
Basic ordering unit (pieces)
∗1
RXR035N03
∗2
Absolute maximum ratings (Ta = 25C)
Parameter
(1)
(2)
(1) Gate
(2) Source
(3) Drain
Symbol
VDSS
VGSS
ID
Limits
30
Unit
V
∗1 BODY DIODE
∗2 ESD PROTECTION DIODE
Drain-source voltage
Gate-source voltage
20
V
Continuous
3.5
A
Drain current
Pulsed
*1
IDP
12
A
Continuous
Pulsed
IS
0.8
A
Source current
(Body Diode)
*1
*2
ISP
12
A
Power dissipation
PD
1.0
W
C
C
Channel temperature
Tch
Tstg
150
Range of storage temperature
*1 Pw10s, Duty cycle1%
55 to 150
*2 Mounted on a ceramic board.
Thermal resistance
Parameter
Symbol
Rth (ch-a)*
Limits
125
Unit
Channel to Ambient
*Mounted on a ceramic board.
C / W
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
2011.03 - Rev.A
1/6
Data Sheet
RXR035N03
ꢀ
Electrical characteristics (Ta = 25C)
Parameter
Symbol
IGSS
Min.
Typ.
-
Max.
Unit
A VGS=20V, VDS=0V
ID=1mA, VGS=0V
A VDS=30V, VGS=0V
Conditions
Gate-source leakage
-
10
Drain-source breakdown voltage V(BR)DSS
30
-
-
1
2.5
50
65
70
-
V
Zero gate voltage drain current
Gate threshold voltage
IDSS
-
-
VGS (th)
1.0
-
V
VDS=10V, ID=1mA
ID=3.5A, VGS=10V
ID=3.5A, VGS=4.5V
ID=3.5A, VGS=4.0V
ID=3.5A, VDS=10V
-
35
45
50
-
Static drain-source on-state
resistance
*
RDS (on)
m
S
-
-
*
Forward transfer admittance
Input capacitance
Output capacitance
Reverse transfer capacitance
Turn-on delay time
Rise time
l Yfs l
2.2
Ciss
Coss
Crss
td(on)
tr
-
-
-
-
-
-
-
-
-
-
180
70
35
10
25
25
7
-
pF VDS=10V
pF VGS=0V
-
-
pF f=1MHz
-
ns ID=1.7A, VDD 15V
ns VGS=10V
ns RL=8.8
ns RG=10
nC ID=3.5A
*
*
*
*
*
*
*
-
Turn-off delay time
Fall time
td(off)
tf
-
-
Total gate charge
Gate-source charge
Gate-drain charge
Qg
3.3
1.0
1.0
-
Qgs
Qgd
-
nC VDD 15V
nC VGS=5V
-
*Pulsed
Body diode characteristics (Source-Drain) (Ta = 25C)
Parameter
Forward Voltage
Symbol
Min.
-
Typ.
-
Max. Unit
1.2
Conditions
*
VSD
V
Is=3.5A, VGS=0V
*Pulsed
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
2/6
2011.03 - Rev.A
Data Sheet
RXR035N03
ꢀ
Electrical characteristic curves (Ta=25C)
Fig.1 Typical Output Characteristics(Ⅰ)
Fig.2 Typical Output Characteristics(Ⅱ)
3
3.5
3
Ta=25℃
Pulsed
VGS= 10V
Ta=25℃
Pulsed
2.5
VGS= 2.5V
VGS= 10V
VGS= 4.5V
VGS= 4.0V
2.5
2
2
VGS= 4.5V
VGS= 4.0V
1.5
1.5
1
VGS= 2.5V
1
0.5
0
0.5
0
VGS= 2.0V
VGS= 2.0V
0.8
0
0.2
0.4
0.6
1
0
2
4
6
8
10
DRAIN-SOURCE VOLTAGE : VDS[V]
DRAIN-SOURCE VOLTAGE : VDS[V]
Fig.4 Static Drain-Source On-State
Fig.3 Typical Transfer Characteristics
Resistance vs. Drain Current(Ⅰ)
10
1
1000
VDS= 10V
Pulsed
Ta=25℃
Pulsed
Ta= 125℃
Ta= 75°C
Ta= 25°C
VGS= 4.0V
VGS= 4.5V
VGS= 10V
Ta= - 25°C
0.1
100
.
0.01
0.001
10
0
1
2
3
0.01
0.1
1
10
DRAIN-CURRENT : ID[A]
GATE-SOURCE VOLTAGE : VGS[V]
Fig.5 Static Drain-Source On-State
Fig.6 Static Drain-Source On-State
Resistance vs. Drain Current(Ⅱ)
Resistance vs. Drain Current(Ⅲ)
1000
100
10
1000
VGS= 4.5V
Pulsed
VGS= 10V
Pulsed
Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C
Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C
100
10
0.1
1
10
0.1
1
10
DRAIN-CURRENT : ID[A]
DRAIN-CURRENT : ID[A]
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
3/6
2011.03 - Rev.A
Data Sheet
RXR035N03
ꢀ
Fig.7 Static Drain-Source On-State
Fig.8 Forward Transfer Admittance
vs. Drain Current
Resistance vs. Drain Current(Ⅳ)
1000
10
VGS= 4.0V
Pulsed
VDS= 10V
Pulsed
Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C
100
1
Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C
10
0.1
0.1
1
10
1.5
10
0.01
0.1
1
10
10
10
DRAIN-CURRENT : ID[A]
DRAIN-CURRENT : ID[A]
Fig.9 Reverse Drain Current
vs. Sourse-Drain Voltage
Fig.10 Static Drain-Source On-State
Resistance vs. Gate Source Voltage
100
10
Ta=25℃
Pulsed
VGS=0V
Pulsed
ID= 1.75A
ID= 3.5A
80
60
40
20
0
1
Ta= 125℃
Ta= 75°C
Ta= 25°C
Ta= - 25°C
0.1
0.01
0
0.5
1
0
2
4
6
8
GATE-SOURCE VOLTAGE : VGS[V]
SOURCE-DRAIN VOLTAGE : VSD [V]
Fig.11 Switching Characteristics
Fig.12 Dynamic Input Characteristics
10
10000
1000
100
10
Ta=25°C
VDD=15V
VGS=10V
RG=10Ω
Pulsed
8
6
4
2
0
tf
td(off)
Ta=25°C
VDD= 15V
ID= 3.5A
RG=10Ω
Pulsed
tr
td(on)
1
0.01
0.1
1
0
2
4
6
8
DRAIN-CURRENT : ID[A]
TOTAL GATE CHARGE : Qg [nC]
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
4/6
2011.03 - Rev.A
Data Sheet
RXR035N03
ꢀ
Fig.13 Typical Capacitance
vs. Drain-Source Voltage
Fig.14 Maximum Safe Operating Area
1000
100
10
Operation in this area is limited by RDS(on)
(VGS = 10V)
Ciss
PW = 100μs
100
1
PW = 1ms
Crss
PW = 10ms
Coss
0.1
0.01
Ta=25°C
Single Pulse
Mounted on a ceramic board.
(30mm × 30mm × 0.8mm)
Ta=25°C
f=1MHz
VGS=0V
DC Operation
100
10
0.01
0.1
1
10
100
0.1
1
10
DRAIN-SOURCE VOLTAGE : VDS[V]
Drain-Source Voltage : VDS [ V ]
Fig.15 Normalized Transient Thermal Resistance v.s. Pulse Width
10
Ta=25°C
Single Pulse
1
0.1
0.01
Mounted on a ceramic board.
(30mm × 30mm × 0.8mm)
Rth(ch-a)=125°C/W
Rth(ch-a)(t)=r(t)×Rth(ch-a)
0.001
0.0001
0.001
0.01
0.1
1
10
100
1000
Pulse width : Pw (s)
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
5/6
2011.03 - Rev.A
Data Sheet
RXR035N03
ꢀ
Measurement circuits
Pulse width
90%
VGS
ID
VDS
50%
10%
50%
V
GS
DS
R
L
V
10%
10%
90%
D.U.T.
V
DD
RG
90%
t
d(on)
td(off)
t
r
tf
t
on
toff
Fig.1-2ꢀSwitching Waveforms
Fig.1-1 Switching Time Measurement Circuit
V
G
V
GS
I
D
VDS
Q
g
RL
V
GS
D.U.T.
I
G(Const.)
Q
gs
Qgd
VDD
Charge
Fig.2-2 Gate Charge Waveform
Fig.2-1 Gate Charge Measurement Circuit
Notice
This product might cause chip aging and breakdown under the large electrified environment. Please consider to design
ESD protection circuit.
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
6/6
2011.03 - Rev.A
Notice
N o t e s
Thank you for your accessing to ROHM product informations.
More detail product informations and catalogs are available, please contact us.
ROHM Customer Support System
http://www.rohm.com/contact/
www.rohm.com
