OX4114A-D3-1-10.000-3.3

型号：

OX4114A-D3-1-10.000-3.3

品牌：

RALTRON[ Raltron Electronics Corporation ]

页数：

3 页

PDF大小：

414 K

下载PDF手册

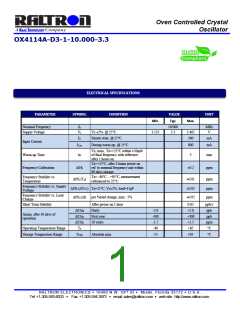

Oven Controlled Crystal
Oscillator
OX4114A-D3-1-10.000-3.3
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
CONDITION
VALUE
UNIT
Min.
Typ.
Max.
Nominal Frequency
Supply Voltage
fo
10.000
3.3
MHz
V
Vs
Vs ±5% @ 25°C
3.135
3.465
300
IS
Steady state, @ 25°C
mA
mA
Input Current
IS,w
During warm-up ,@ 25°C
800
Vs, nom., Ta=+25°C within ±50ppb
of final frequency with reference
after 1 hours on
Warm-up Time
tW
3
min
Ta=+25°C, after 15mins power on
ref. to nominal frequency and within
90 days storage.
Frequency Calibration
Δf/f0
±0.2
ppm
Ta= -40°C…+85°C, measurement
referenced to 25°C
Frequency Stability vs.
Temperature
Δf/f0 (Ta)
±0.01
±0.05
±0.05
ppm
ppm
ppm
Frequency Stability vs. Supply
Voltage
Frequency Stability vs. Load
Change
Δf/f0 (ΔVCC
)
Ta=25°C, Vs±5%, load=15pF
Δf/f0 (Δl) per %load change, max.: 5%
Short Term Stability
After power on 1 hour
0.05
+2.0
+300
+1.5
+85
ppb/s
ppb
ppb
ppm
C
Δf/Δtd
Δf/Δty
Δf/Δty
Ta
Daily
-2.0
-300
-1.5
-40
Aging, after 30 days of
operation
First year
10 years
Operating Temperature Range
Storage Temperature Range
T(stg)
Absolute max
-55
105
C
RALTRON ELECTRONICS ▪ 10400 N.W. 33r d St ▪ Miami, Florida 33172 ▪ U.S.A.
Tel: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ email: sales@raltron.com ▪ web site: http://www.raltron.com
Oven Controlled Crystal
Oscillator
OX4114A-D3-1-10.000-3.3
PHASE NOISE
PARAMETER
SYMBOL
CONDITION
VALUE
UNIT
Typ. /
Nom.*
Min.
Max.
@1 Hz Offset
@10 Hz Offset
@100 Hz Offset
@1 kHz Offset
@10 kHz Offset
@100 kHz Offset
-70
-95
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
£ (f)
£ (f)
£ (f)
£ (f)
£ (f)
£ (f)
-122
-135
-145
-150
CMOS OUTPUT CHARACTERISTICS
PARAMETER
SYMBOL
CONDITION
Min.
VALUE
UNIT
Typ.
2.4/0.4
45/55
Max.
Output Levels
Duty Cycle
Rise/Fall Time
Load
VOH/VOL VCC = 3.3V, load = 15pF
V
%
DC
load = 15pF
tr/tf
10% ~ 90% Vout
5
ns
pF
15
±5%
ENVIRONMENTAL MECHANICAL CONDITIONS
Storage temperature range
-55°C to +105°C
The test shall be carried out as the provisions of the IEC60028-2-32 test Ed.
10cm height, 3 times on hard board with thickness of 3cm
Drop Test
Device are bumped to three mutually perpendicular axes at peak acceleration of 400m/s2, each
4000±10times, 6ms pulse duration time
Frequency range: 1Hz-4Hz-100Hz-200Hz
Acceleration: 0.0001g2/Hz-0.01g2/Hz-0.01g2/Hz-0.001g2/Hz
Grms=1.15g
Bumping Test
Vibration Test
Sweep time: 30 minutes (perpendicular axes each sweep time)
100g, 6mS duration, 1/2 sine wave, 3 shocks each direction along 3 mutually perpendicular planes.
Mechanical Shock
Thermal shock
0.5h@‐40℃，0.5h@+85℃，Note: the changing time < 30 seconds, cycling for 100 times
RALTRON ELECTRONICS ▪ 10400 N.W. 33r d St ▪ Miami, Florida 33172 ▪ U.S.A.
Tel: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ email: sales@raltron.com ▪ web site: http://www.raltron.com
Oven Controlled Crystal
Oscillator
OX4114A-D3-1-10.000-3.3
MECHANICAL DIMENSIONS AND PIN FUNCTIONING
TOP VIEW
0.575
[14.6 MAX.]
6
5
4
MARKING
AREA
1
2
3
PIN 1 LOCATION
FRONT VIEW
RECOMMENDED SOLDER PATTERN
TOP VIEW
.049
1.25
BOTTOM VIEW
1
2
3
6
5
4
0.043
[1.09]
0.100
[2.54]
.100
2.54
0.200
[5.08]
PIN
SYMBOL
FUNCTION
1
2
3
4
5
6
N/C
N/C
GND
OUTPUT
N/C
No connect
No connect
Case/Ground
RF Output
No connect
Supply Voltage
Vs
RALTRON
Created
Signed
Date
CP
SP
January 14,2019
January 14, 2019
Eng. approved
REV A
RALTRON ELECTRONICS ▪ 10400 N.W. 33r d St ▪ Miami, Florida 33172 ▪ U.S.A.
Tel: +1-305-593-6033 ▪ Fax: +1-305-594-3973 ▪ email: sales@raltron.com ▪ web site: http://www.raltron.com
