BZX84C24D87Z

型号:

BZX84C24D87Z

品牌:

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数:

7 页

PDF大小:

409 K

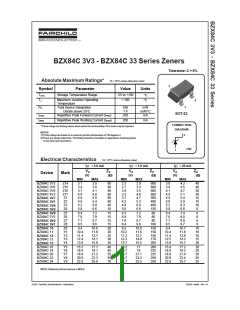

BZX84C 3V3 - BZX84C 33 Series Zeners
Tolerance: C = 5%
Absolute Maximum Ratings*
TA = 25°C unless otherwise noted
3
Symbol
Parameter
Value
Units
TSTG
Storage Temperature Range
-55 to +150
°C
TJ
Maximum Junction Operating
+ 150
°C
2
Temperature
1
PD
Total Device Dissipation
Derate above 25°C
Repetitive Peak Forward Current (IFRM
350
1.8
250
250
mW
mW/°C
mA
SOT-23
IFRM
IZRM
)
)
Repetitive Peak Working Current (IZRM
mA
CONNECTION
DIAGRAM
*These ratings are limiting values above which the serviceability of the diode may be impaired.
NOTES:
3
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed
or low duty cycle operations.
2 NC
1
Electrical Characteristics
TA = 25°C unless otherwise noted
IZT = 5.0 mA
IZT = 1.0 mA
IZT = 20 mA
VZ
ZZ
VZ
ZZ
VZ
ZZ
Device
Mark
(V)
()
(V)
()
(V)
()
MIN
MAX
MIN
MAX
MIN
MAX
BZX84C 3V3
BZX84C 3V6
BZX84C 3V9
BZX84C 4V3
BZX84C 4V7
BZX84C 5V1
BZX84C 5V6
BZX84C 6V2
BZX84C 6V8
BZX84C 7V5
BZX84C 8V2
BZX84C 9V1
BZX84C 10
BZX84C 11
BZX84C 12
BZX84C 13
BZX84C 15
BZX84C 16
BZX84C 18
BZX84C 20
BZX84C 22
BZX84C 24
Z14
Z15
Z16
Z17
Z1
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
2.3
2.7
2.9
3.3
3.7
4.2
4.8
5.6
2.9
3.3
3.5
4.0
4.7
5.3
6.0
6.6
7.2
7.9
8.7
9.6
600
600
600
600
500
480
400
150
3.6
3.9
4.1
4.4
4.5
5.0
5.2
5.8
4.2
4.5
4.7
5.1
5.4
5.9
6.3
6.8
7.4
8.0
8.8
9.7
10.7
11.8
12.9
14.2
15.7
17.2
19.2
21.4
23.4
25.7
40
40
30
30
15
15
10
6
6
6
6
8
10
10
10
15
20
20
20
20
25
25
Z2
Z3
Z4
Z5
Z6
Z7
Z8
6.4
7.0
7.7
8.5
6.3
6.9
7.6
8.4
80
6.4
7.0
7.7
8.5
80
80
100
Z9
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
9.4
9.3
10.6
11.6
12.7
14.0
15.5
150
150
150
170
200
9.4
10.4
11.4
12.4
13.8
10.2
11.2
12.3
13.7
10.4
11.4
12.5
13.9
15.3
16.8
18.8
20.8
22.8
15.2
16.7
18.7
20.7
22.7
17
200
225
225
250
250
15.4
16.9
18.9
20.9
22.9
19
21.1
23.2
25.5
NOTE: National preferred devices in BOLD
2001 Fairchild Semiconductor Corporation
BZX84 Series Rev. A1
BZX84C Series Zeners
(continued)
Electrical Characteristics (continued)
TA = 25°C unless otherwise noted
IZT = 2.0 mA
IZT = 100 µA*
IZT = 10 mA
VZ
ZZ
VZ
ZZ
VZ
ZZ
Device
Mark
(V)
()
(V)
()
(V)
()
MIN
MAX
MIN
MAX
MIN
25.2
28.1
31.1
MAX
29.3
32.4
35.4
BZX84C 27
BZX84C 30
BZX84C 33
Y10
Y11
Y12
25.1
28
28.9
32
80
80
80
25
28.9
32
300
300
325
45
50
55
27.8
30.8
31
35
35
Foward Voltage = 0.9 V Maximum @ IF = 10 mA for all BZX 84 series
VF
*Capacitance @ VR= 0.0 volts; Frequency = 1.0 megahertz.
DVZ / Dt @ 5.0 mA
VR
IR
CAP*
Device
(mV/k)
(V)
(pF)
(µA)
MIN
MAX
BZX84C 3V3
BZX84C 3V6
BZX84C 3V9
BZX84C 4V3
BZX84C 4V7
BZX84C 5V1
BZX84C 5V6
BZX84C 6V2
BZX84C 6V8
BZX84C 7V5
BZX84C 8V2
BZX84C 9V1
BZX84C 10
BZX84C 11
BZX84C 12
BZX84C 13
BZX84C 15
BZX84C 16
BZX84C 18
BZX84C 20
BZX84C 22
BZX84C 24
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14
5.0
5.0
5.0
5.0
3
450
450
450
450
260
225
200
185
155
140
135
130
130
130
130
120
110
105
100
85
- 3.5
0.0
- 3.5
0.0
- 3.5
0.0
- 3.5
0.0
- 3.5
+ 0.2
+ 1.2
+ 2.5
+ 3.7
+ 4.5
+ 5.3
+ 6.2
+ 7.0
+ 8.0
+ 9.0
+ 10
+ 11
+ 13
+ 14
+ 16
+ 18
+ 20
+ 22
2
- 2.7
1
- 2.0
3
+ 0.4
+ 1.2
+ 2.5
+ 3.2
+ 3.8
+ 4.5
+ 5.4
+ 6.0
+ 7.0
+ 9.2
+ 10.4
+ 12.4
+ 14.4
+ 16.4
+ 18.4
2
1
0.7
0.5
0.2
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
15.4
16.8
85
80
DVZ / Dt @ 2.0 mA
VR
IR
CAP*
Device
(mV/k)
(V)
(pF)
(µA)
MIN
MAX
BZX84C 27
BZX84C 30
BZX84C 33
18.9
21
0.05
0.05
0.05
70
70
70
21.4
24.4
27.4
25.3
29.4
33.4
23.1
BZX84 Series Rev. B
Typical Characteristics
Zener Current vs. Zener Voltage
Zener Current vs. Zener Impedence
35
5000
º
= 25 C
T
V
= 5.1V
Z
A
V
= 33.0V
2000
1000
500
Z
30
25
20
15
10
5
V
= 3.3V
Z
T
= 25 C
º
A
200
100
50
V
= 33.0V
Z
V
V
= 12.0V
= 5.1V
Z
Z
20
10
5
V
= 12.0V
Z
V
= 3.3V
Z
2
1
1
2
5
10
20
30
0.1
0.2
0.5
1
2
5
10
20
I Z- ZENER CURRENT (mA)
I Z - ZENER CURRENT (mA)
5.1 Zener Voltage vs. Temperature
3.3 Zener Voltage vs. Temperature
6
5
4
3
2
1
V
= 5.1V
Z
V
= 3.3V
Z
5.5
5
T
= 125 C
º
A
T
= -25
º
C
A
T
= 25
º
C
A
T
= 100 C
º
A
T
= 85 C
º
A
T
= 85 C
º
A
T
= 25 C
º
T
= 100
C
º
º
A
A
A
4.5
4
T
= -25 C
º
T
= 125
C
A
1
2
5
10
20
30
1
2
5
10
20
30
IZ - ZENER CURRENT (mA)
I Z- ZENER CURRENT (mA)
12 Zener Voltage vs. Zener Temperature
33 Zener Voltage vs. Zener Temperature
15
40
V
= 12.0V
V
= 33.0V
Z
Z
T
= 125 C
º
A
º
T = 125 C
A
T
= 100 C
º
A
35
30
25
20
10
5
T
= 85
A
C
º
T
A
= 100 C
º
T
= -25
C
T
= 25
C
º
º
A
A
T
= 25
C
T = 85 C
º
A
º
T
º
= -25 C
A
A
0
1
2
5
10
20
30
1
2
5
10
20
30
I Z- ZENER CURRENT (mA)
I Z- ZENER CURRENT (mA)
BZX84 Series Rev. B
SOT-23 Tape and Reel Data
SOT-23 Packaging
Configuration: Figure 1.0
Packaging Description:
Customized Label
SOT-23 parts are shipped in tape. The carrier tape is
made from
a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
3,000 units per 7" or 177cm diameter reel. The reels are
dark bluein color and is madeof polystyrene plastic (anti-
static coated). Other option comes in 10,000 units per 13"
or 330cm diameter reel. This and some other options are
described in the Packaging Information table.
Antistatic Cover Tape
These full reels areindividually labeled and placed inside
a
standard intermediate made of recyclable corrugated
brown paper with aFairchild logo printing. One pizza box
contains eight reels maximum. And these intermediate
boxes are placed inside a labeled shipping box which
comesin different sizes depending on the number of parts
shipped.
Human Readable
Label
Embossed
CarrierTape
3P
3P
3P
3P
SOT-23 PackagingInformation
Standard
(no flow code)
PackagingOption
D87Z
Packagingtype
TNR
TNR
10,000
13"
SOT-23 Unit Orientation
Qty per Reel/Tube/Bag
Reel Size
3,000
7" Dia
Box Dimension (mm)
Max qty per Box
187x107x183 343x343x64
343mmx 342mmx 64mm
Intermediate box for L87Z Option
Human Readable Label
24,000
0.0082
0.1175
30,000
0.0082
0.4006
Weight per unit (gm)
Weight per Reel (kg)
Note/Comments
Human Readable Label sample
Human readable
Label
187mmx 107mmx 183mm
SOT-23 Tape Leader and Trailer
IntermediateBox forStandard Option
Configuration: Figure 2.0
Carrier Tape
Cover Tape
Components
Trailer Tape
Leader Tape
300mm minimumor
75 empty pockets
500mm minimumor
125 empty pockets
September 1999, Rev. C
©2000 Fairchild Semiconductor International
SOT-23 Tape and Reel Data, continued
SOT-23 Embossed Carrier Tape
Configuration: Figure 3.0
P0
P2
D0
D1
T
E1
E2
W
F
Wc
B0
Tc
K0
A0
P1
User Direction of Feed
Dimensions are in millimeter
E1 E2
A0
B0
W
D0
D1
F
P1
P0
K0
T
Wc
5.2
Tc
Pkg type
SOT-23
(8mm)
3.15
+/-0.10
2.77
+/-0.10
8.0
+/-0.3
1.55
+/-0.05
1.125
1.75
+/-0.10
6.25
min
3.50
+/-0.05
4.0
+/-0.1
4.0
+/-0.1
1.30
+/-0.10
0.228
+/-0.013
0.06
+/-0.02
+/-0.125
+/-0.3
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
0.5mm
maximum
20 deg maximum
Typical
component
cavity
center line
0.5mm
maximum
B0
20 deg maximum component rotation
Typical
component
center line
Sketch A (Side or Front Sectional View)
Component Rotation
Sketch C (Top View)
Component lateral movement
A0
Sketch B (Top View)
Component Rotation
SOT-23 Reel Configuration: Figure 4.0
W1 Measured at Hub
Dim A
Max
Dim A
max
See detail AA
Dim N
7"Diameter Option
B Min
Dim C
See detail AA
Dim D
min
W3
13" Diameter Option
W2 max Measured at Hub
DETAIL AA
Dim W2
Dimensions are in inches and millimeters
Reel
Option
Tape Size
8mm
Dim A
Dim B
Dim C
Dim D
Dim N
Dim W1
Dim W3 (LSL-USL)
7.00
177.8
0.059
1.5
512 +0.020/-0.008
13 +0.5/-0.2
0.795
20.2
2.165
55
0.331 +0.059/-0.000
8.4 +1.5/0
0.567
14.4
0.311 – 0.429
7.9 – 10.9
7" Dia
13.00
330
0.059
1.5
512 +0.020/-0.008
13 +0.5/-0.2
0.795
20.2
4.00
100
0.331 +0.059/-0.000
8.4 +1.5/0
0.567
14.4
0.311 – 0.429
7.9 – 10.9
8mm
13" Dia
September 1999, Rev. C
SOT-23 Package Dimensions
SOT-23 (FS PKG Code 49)
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
inches [millimeters]
Part Weight per unit (gram): 0.0082
September 1998, Rev. A1
©2000 Fairchild Semiconductor International
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
PowerTrench
QFET™
QS™
SyncFET™
TinyLogic™
UHC™
ACEx™
FASTr™
GlobalOptoisolator™
GTO™
Bottomless™
CoolFET™
CROSSVOLT™
DOME™
QT Optoelectronics™
VCX™
HiSeC™
Quiet Series™
SILENT SWITCHER
SMART START™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
ISOPLANAR™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
PACMAN™
POP™
E2CMOSTM
EnSignaTM
FACT™
FACT Quiet Series™
FAST
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TOANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOTASSUMEANY LIABILITYARISING OUT OF THEAPPLICATION OR USE OFANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUTTHE EXPRESS WRITTENAPPROVALOF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Product Status
Definition
Advance Information
Formative or
In Design
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
Preliminary
First Production
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
No Identification Needed
Obsolete
Full Production
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. G
厂商 型号 描述 页数 下载

SEMTECH

BZX1.5C 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C10 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C100 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C11 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C110 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C12 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C120 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C13 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C130 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

SEMTECH

BZX1.5C15 硅平面齐纳二极管[ SILICON PLANAR ZENER DIODES ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.225903s
