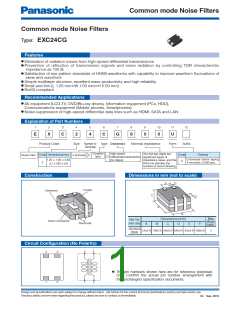

Common mode Noise Filters
Common mode Noise Filters
Type: EXC24CG
Features
●
Elimination of radiation noises from high-speed differential transmissions
Prevention of reflection of transmission signals and noise radiation by controlling TDR characteristic
impedance as 100 Ω
●
●
Satisfaction of eye pattern standards of HDMI waveforms with capability to improve waveform fluctuations of
skew and overshoot
●
●
●
Simple multilayer structure, excellent mass productivity and high reliability
Small and thin (L 1.25 mm×W 1.00 mm×H 0.50 mm)
RoHS compliant
Recommended Applications
●
●
AV equipment (LCD-TV, DVD/Blu-ray drives), Information equipment (PCs, HDD),
Communications equipment (Mobile phones, Smartphones)
Noise suppression of high-speed differential data lines such as HDMI, SATA and LAN
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
X
C
2
4
C
G
9
0
0
U
Product Code
Size
Number of Type Characteristics
Terminals
Nominal Impedance
Form
Suffix
Coupled
type
High speed
Differential transmission
(for Gbps)
The first two digits are
significant figure of
impedance value, and the
third one denotes the
number of zeros following
Code Dimensions(mm)
Code
U
Packing
4 Terminals
C
Noise Filter
G
Embossed Carrier Taping
4 mm pitch, 5,000 pcs.
1.25 × 1.00 × 0.50
2
(L) × (W) × (H)
Construction
Dimensions in mm (not to scale)
E
F
Ferrite
Ceramics
C
D
A
B
Mass
Dimensions (mm)
Part No.
(inch size)
Inner Conductor
(Weight)
[mg/pc.]
Electrode
A
B
C
D
E
F
EXC24CG
(0504)
1.25 0.15 1.00 0.15 0.50 0.10 0.20 0.15 0.55 0.10 0.30 0.10
3
Circuit Configuration (No Polarity)
4
3
4
3
●
The pin numbers shown here are for reference purposes
only. Confirm the actual pin number arrangement with
the exchanged specification documents.
1
2
1
2
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
04 Sep. 2015
