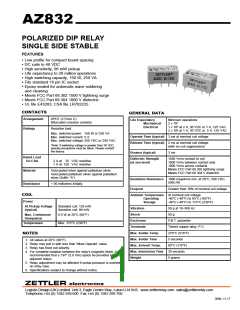

AZ832
POLARIZED DIP RELAY
SINGLE SIDE STABLE
FEATURES
• Low profile for compact board spacing
• DC coils to 48 VDC
• High sensitivity, 96 mW pickup
• Life expectancy to 20 million operations
• High switching capacity, 150 W, 250 VA
• Fits standard 16 pin IC socket
• Epoxy sealed for automatic wave soldering
and cleaning
• Meets FCC Part 68.302 1500 V lightning surge
• Meets FCC Part 68.304 1000 V dielectric
• UL file E43203; CSA file LR702225
CONTACTS
GENERAL DATA
Arrangement
DPDT (2 Form C)
Bifurcated crossbar contacts
Life Expectancy
Mechanical
Electrical
Minimum operations
2 x 107
1 x 105 at 2 A, 30 VDC or 1 A, 125 VAC
2 x 106 at 1 A, 30 VDC or .5 A, 125 VAC
Ratings
Resistive load:
Max. switched power: 150 W or 250 VA
Max. switched current: 5 A
Operate Time (typical) 3 ms at nominal coil voltage
Max. switched voltage: 250 VDC or 250 VAC
Release Time (typical) 2 ms at nominal coil voltage
*Note: If switching voltage is greater than 30 VDC,
special precautions must be taken. Please contact
the factory.
(with no coil suppression)
Bounce (typical)
3 ms
Rated Load
UL/CSA
Dielectric Strength
(at sea level)
1500 Vrms contact to coil
1000 Vrms between contact sets
1000 Vrms across contacts
2 A at 25 VDC resistive
1 A at 120 VAC resistive
Meets FCC Part 68.302 lightning surge
Meets FCC Part 68.304 V dielectric
Material
Gold plated silver against palladium silver.
Gold plated palladium silver against palladium
silver (Suffix “A”)
Insulation Resistance 1000 megohms min. at 20°C, 500 VDC,
50% RH
Resistance
< 50 milliohms initially
Dropout
Greater than 10% of nominal coil voltage
COIL
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 115°C (239°F)
Power
At Pickup Voltage
(typical)
Standard coil: 128 mW
Sensitive coil: 96 mW
Vibration
50 g at 10–500 Hz
50 g
Shock
Max. Continuous
Dissipation
0.9 W at 20°C (68°F)
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
Temperature
Max. 115°C (239°F)
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
80°C (176°F)
Max. Immersion Time 30 seconds
Weight 5 grams
4. For complete isolation between the relay’s magnetic fields, it is
recommended that a .197" (5.0 mm) space be provided between
adjacent relays.
5. Relay adjustment may be affected if undue pressure is exerted
on relay case.
6. Specifications subject to change without notice.
