IZ4436

型号:

IZ4436

描述:

智能221位EEPROM计数器\u003e 20000单位与安全逻辑和高安全性的身份验证[ Intelligent 221-Bit EEPROM Counter for > 20000 Units with Security Logic and High Security Authentication ]

品牌:

ETC[ ETC ]

页数:

2 页

PDF大小:

29 K

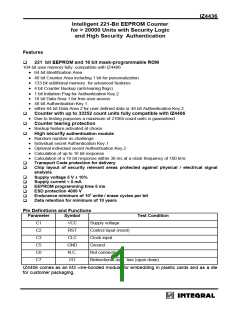

IZ4436
Intelligent 221-Bit EEPROM Counter
for > 20000 Units with Security Logic
and High Security Authentication
Features
221 bit EEPROM and 16 bit mask-programmable ROM
!
104 bit user memory fully compatible with IZ4406:
• 64 bit Identification Area
• 40 bit Counter Area including 1 bit for personalization
• 133 bit additional memory for advanced features
• 4 bit Counter Backup (anti-tearing flags)
• 1 bit Initiation Flag for Authentication Key.2
• 16 bit Data Area 1 for free user access
• 48 bit Authentication Key.1
• either 64 bit Data Area 2 for user defined data or 48 bit Authentication Key.2
!
!
!
Counter with up to 33352 count units fully compatible with IZ4406
• Due to testing purposes a maximum of 21064 count units is guaranteed
Counter tearing protection
• Backup feature activated at choice
High security authentication module
• Random number as challenge
• Individual secret Authentication Key.1
• Optional individual secret Authentication Key.2
• Calculation of up to 16 bit response
• Calculation of a 16 bit response within 30 ms at a clock frequency of 100 kHz
Transport Code protection for delivery
!
!
Chip layout of security relevant areas protected against physical / electrical signal
analysis
!
!
!
!
!
!
Supply voltage 5 V ± 10%
Supply current < 5 mA
EEPROM programming time 5 ms
ESD protection 4000 V
Endurance minimum of 105 write / erase cycles per bit
Data retention for minimum of 10 years
Pin Definitions and Functions
Parameter
Symbol
VCC
RST
CLC
GND
N.C.
I/O
Test Condition
C1
C2
C3
C5
C6
C7
Supply voltage
Control input (reset)
Clock input
Ground
Not connected
Bidirectional data line (open drain)
IZ4406 comes as an M3 wire-bonded module for embedding in plastic cards and as a die
for customer packaging.
IZ4436
Electrical Characteristics
Absolute Maximum Ratings
Parameter
Symbol
Limit Values
Unit
Comments
Min.
-0.35
-0.35
-40
Max.
7.0
7.0
Supply voltage
Input voltage
Storage temperature
VCC
VI
Tstg
V
V
°C
-
-
125
Power dissipation
ESD protection
Ptot
40
mW
V
-
4000
Operating range
Parameter
Symbol
Limit Values
Unit
Test
Condition
Min.
Typ.
Max.
Supply voltage
VCC
ICC
TA
4.5
5.0
5.5
V
mA
Supply current
2.5
5.0
80
VCC=5 V
Ambient temperature
-35
°C
DC Characteristics
Parameter
Symbol
Limit Values
Unit
Test
Condition
Min.
3.5
0
Typ.
Max.
H-Input voltage (I/O, CLC, RST)
L-Input voltage (I/O,CLC,RST)
L-output voltage
VIH
VIL
VOL
-
-
-
VCC
0.8
0.5
V
V
V
-
-
-
IOL =0.5mA
(open drain)
VOH = VCC
(open drain)
H-leakage current
IOH
-
-
10
µA
AC Characteristics
Parameter
Symbol
Limit Values
Unit
Test
Condition
Min.
Typ.
Max.
CLC H-level
(set address)
CLC L-level
tH
tL
5
-
-
-
-
µs
µs
5
-
-
(set address)
CLC H-level (write)
tHW
tHW
5
3
-
-
-
-
ms
ms
V
CC ≥4.5 V
5V≤VCC ≤5/5V
