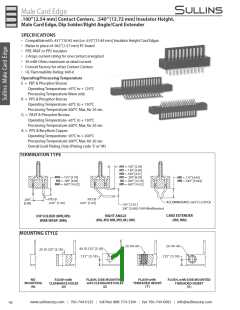

Male Card Edge
.100” [2.54 mm] Contact Centers, .540” [13.72 mm] Insulator Height,
Male Card Edge, Dip Solder/Right Angle/Card Extender
SPECIFICATIONS
•ꢀ Compatibleꢀwithꢀ.431”ꢀ[10.95ꢀmm]ꢀorꢀ.610”ꢀ[15.49ꢀmm]ꢀInsulatorꢀHeightꢀCardꢀEdges
•ꢀ Matesꢀinꢀplaceꢀofꢀ.062”ꢀ[1.57ꢀmm]ꢀPCꢀboard
•ꢀ PBT,ꢀPA9TꢀorꢀPPSꢀinsulatorꢀ
•ꢀ 3ꢀAmpsꢀcurrentꢀratingꢀforꢀoneꢀcontactꢀenergized
•ꢀ 30ꢀmilliꢀOhmsꢀmaximumꢀatꢀratedꢀcurrent
•ꢀ ConsultꢀFactoryꢀforꢀotherꢀContactꢀCenters
•ꢀ ULꢀFlammabilityꢀRating:ꢀ94V-0
Operating/Processing Temperature
Eꢀꢀ=ꢀꢀPBTꢀ&ꢀPhosphorꢀBronze
ꢀꢀꢀꢀꢀꢀꢀꢀOperatingꢀTemperature:ꢀ-65°Cꢀtoꢀ+ꢀ125°C
ꢀꢀꢀꢀꢀꢀꢀꢀProcessingꢀTemperature:ꢀWaveꢀonly
Rꢀꢀ=ꢀꢀPPSꢀ&ꢀPhosphorꢀBronze
ꢀꢀꢀꢀꢀꢀꢀꢀOperatingꢀTemperature:ꢀ-65°Cꢀtoꢀ+ꢀ150°C
ꢀꢀꢀꢀꢀꢀꢀꢀProcessingꢀTemperature:ꢀ260°CꢀMax.ꢀforꢀ20ꢀsec.
Gꢀꢀ=ꢀꢀPA9Tꢀ&ꢀPhosphorꢀBronze
ꢀꢀꢀꢀꢀꢀꢀꢀOperatingꢀTemperature:ꢀ-65°Cꢀtoꢀ+ꢀ150°C
ꢀꢀꢀꢀꢀꢀꢀꢀProcessingꢀTemperature:ꢀ260°CꢀMax.ꢀforꢀ20ꢀsec.ꢀ
Aꢀꢀ=ꢀꢀPPSꢀ&ꢀBerylliumꢀCopper
ꢀꢀꢀꢀꢀꢀꢀꢀOperatingꢀTemperature:ꢀ-65°Cꢀtoꢀ+ꢀ200°C
ꢀꢀꢀꢀꢀꢀꢀꢀProcessingꢀTemperature:ꢀ260°CꢀMax.ꢀforꢀ20ꢀsec.
ꢀꢀꢀꢀꢀꢀꢀꢀOverallꢀGoldꢀPlatingꢀOnlyꢀ(Platingꢀcodeꢀ'S'ꢀorꢀ'M')
TERMINATION TYPE
MA = .100” [2.54]
MV = .130” [3.30]
MB = .180” [4.57]
MW = .125” [3.18]
MS = .190” [4.83]
MM = .560” [14.22]
MD = .250” [6.35]
MJ = .500” [12.70]
MK = .560” [14.22]
MR = .175” [4.45]
MN = .545” [13.84]
FITS Ø
.043” [1.09]
FITS Ø
.043” [1.09]
.200”
[5.08]
ACCOMMODATES .062”[1.57] PCB
.150” [3.81]
.200” [5.08] (-S189 Modification)
CARD EXTENDER
(MR, MN)
RIGHT ANGLE
(MA, MV, MB, MD, MJ, MK)
DIP SOLDER (MW, MS)
WIRE WRAP (MM)
MOUNTING STYLE
2X #4-40
2X #4-40
4X Ø.125” [3.18]
.125” [3.18]
2X Ø.125” [3.18]
.125” [3.18]
FLUSH with
THREADED INSERT
(T)
NO
MOUNTING
(N)
FLUSH with
CLEARANCE HOLES
(D)
FLUSH, SIDE MOUNTING
with CLEARANCE HOLES
(Z)
FLUSH, with SIDE MOUNTED
THREADED INSERT
(V)
