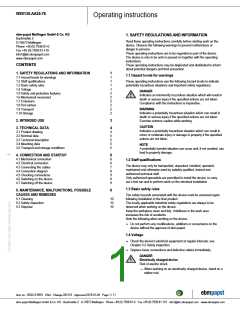

W2S130-AA25-76
Operating instructions
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2
D-74673 Mulfingen
Phone +49 (0) 7938 81-0
Fax +49 (0) 7938 81-110
info1@de.ebmpapst.com
www.ebmpapst.com
1. SAFETY REGULATIONS AND INFORMATION
Read these operating instructions carefully before starting work on the
device. Observe the following warnings to prevent malfunctions or
danger to persons.
These operating instructions are to be regarded as part of the device.
The device is only to be sold or passed on together with the operating
instructions.
CONTENTS
These operating instructions may be duplicated and distributed to inform
about potential dangers and their prevention.
1. SAFETY REGULATIONS AND INFORMATION
1.1 Hazard levels for warnings
1.2 Staff qualifications
1.3 Basic safety rules
1.4 Voltage
1.5 Safety and protective features
1.6 Mechanical movement
1.7 Emissions
1
1
1
1
1
2
2
2
2
2
2
1.1 Hazard levels for warnings
These operating instructions use the following hazard levels to indicate
potentially hazardous situations and important safety regulations:
DANGER
Indicates an imminently hazardous situation which will result in
death or serious injury if the specified actions are not taken.
Compliance with the instructions is imperative.
1.8 Hot surface
1.9 Transport
1.10 Storage
WARNING
Indicates a potentially hazardous situation which can result in
death or serious injury if the specified actions are not taken.
Exercise extreme caution while working.
2. INTENDED USE
3
CAUTION
3. TECHNICAL DATA
3.1 Product drawing
3.2 Nominal data
3.3 Technical description
3.4 Mounting data
3.5 Transport and storage conditions
4
4
5
5
5
5
Indicates a potentially hazardous situation which can result in
minor or moderate injury or damage to property if the specified
actions are not taken.
NOTE
A potentially harmful situation can occur and, if not avoided, can
lead to property damage.
4. CONNECTION AND STARTUP
4.1 Mechanical connection
4.2 Electrical connection
4.3 Connecting the cables
4.4 Connection diagram
4.5 Checking connections
4.6 Switching on the device
4.7 Switching off the device
6
6
6
7
8
9
9
9
1.2 Staff qualifications
The device may only be transported, unpacked, installed, operated,
maintained and otherwise used by suitably qualified, trained and
authorized technical staff.
Only authorized specialists are permitted to install the device, to carry
out a test run and to perform work on the electrical installation.
1.3 Basic safety rules
5. MAINTENANCE, MALFUNCTIONS, POSSIBLE
CAUSES AND REMEDIES
5.1 Cleaning
5.2 Safety inspection
5.3 Disposal
9
The safety hazards associated with the device must be assessed again
following installation in the final product.
The locally applicable industrial safety regulations are always to be
observed when working on the device.
10
10
10
Keep the workplace clean and tidy. Untidiness in the work area
increases the risk of accidents.
Note the following when working on the device:
; Do not perform any modifications, additions or conversions on the
device without the approval of ebm-papst.
1.4 Voltage
; Check the device's electrical equipment at regular intervals; see
Chapter 5.2 Safety inspection.
; Replace loose connections and defective cables immediately.
DANGER
Electrically charged device
Risk of electric shock
→ When working on an electrically charged device, stand on a
rubber mat.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 1 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
WARNING
1.7 Emissions
Live terminals and connections even with device
WARNING
switched off
Depending on the installation and operating conditions,
the sound pressure level may exceed 70 dB(A).
Risk of noise-induced hearing loss
Electric shock
→ Wait five minutes after disconnecting the voltage at all poles
before opening the device.
→ Take appropriate technical safety measures.
CAUTION
→ Protect operating personnel with appropriate safety
equipment such as hearing protection.
In the event of a fault, the rotor and the impeller will be
energized
→ Also observe the requirements of local agencies.
The rotor and the impeller have basic insulation.
→ Do not touch the rotor and impeller once installed.
1.8 Hot surface
CAUTION
CAUTION
High temperature on motor housing
Risk of burns
The motor restarts automatically when operating voltage
is applied, e.g. after a power failure.
Risk of injury
→ Ensure sufficient protection against accidental contact.
→ Keep out of the device's danger zone.
→ When working on the device, switch off the line voltage
and ensure that it cannot be switched back on.
1.9 Transport
NOTE
→ Wait until the device comes to a stop.
Transporting the device
1.5 Safety and protective features
→ Transport the device in its original packaging only.
→ Secure the device so it cannot slip, e.g. by using a
lashing strip.
DANGER
Guard missing and guard not functioning
Without a guard, hands may become caught up in the device
during operation for example, resulting in serious injury. Loose
parts or items of clothing could be drawn in.
1.10 Storage
; Store the device, partially or fully assembled, in a dry place,
protected against the weather and free from vibration, in the original
packaging in a clean environment.
→ The device is a built-in component. As the owner, you are
responsible for ensuring that the device is adequately
safeguarded.# Operate the device only with a fixed
protective device and guard grill.
; Protect the device against environmental effects and dirt until final
installation.
; We recommend storing the device for no longer than one year in
order to guarantee trouble-free operation and the longest possible
service life.
→ Stop the device immediately if a protective device is
found to be missing or ineffective.
1.6 Mechanical movement
; Even devices explicitly intended for outdoor use are to be stored as
described prior to commissioning.
DANGER
; Maintain the storage temperature, see
Rotating device
Chapter 3.5 Transport and storage conditions.
Risk of injury to body parts coming into contact with the rotor or
the impeller.
→ Secure the device against accidental contact.
→ Before working on the system/machine, wait until all
parts have come to a standstill.
WARNING
Rotating device
Long hair and dangling items of clothing, jewelry and the like
can become entangled and be pulled into the device. Injuries
can result.
→ Do not wear any loose-fitting or dangling clothing or jewelry
while working on rotating parts.
→ Protect long hair with a cap.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 2 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
2. INTENDED USE
Operating instructions
The device is exclusively designed as a built-in device for conveying
air according to its technical data.
Any other usage above and beyond this does not conform with the
intended purpose and constitutes misuse of the device.
Customer equipment must be capable of withstanding the mechanical
and thermal stresses that can arise from this product. This applies for the
entire service life of the equipment in which this product is installed.
Intended use also includes
Conveying air at an ambient air pressure between 800 mbar and
1050 mbar.
Using the device within the permitted ambient temperature range; see
Chapter 3.5 Transport and storage conditions and
Chapter 3.2 Nominal data.
Operating the device with all protective devices.
Following the operating instructions.
Improper use
In particular, operating the device in the following ways is prohibited and
could be hazardous:
Operating the device in an unbalanced state, e.g. due to dirt deposits
or ice formation.
Resonant operation, operation with severe vibration. This also
includes vibration transmitted to the fan from the customer installation.
Operation in medical equipment with a life-sustaining or life-support
function.
Conveying solids in the flow medium.
Painting the device
Connections (e.g. screws) coming loose during operation.
Conveying air that contains abrasive particles.
Conveying highly corrosive air, e.g. salt spray. Exception: devices
designed for salt spray and correspondingly protected.
Conveying air with high dust content, e.g. suctioning off sawdust.
Operating the device close to flammable materials or components.
Operating the device in an explosive atmosphere.
Using the device as a safety component or to perform safety-related
functions.
Operation with completely or partially disassembled or manipulated
protective devices.
In addition, all applications not listed among the intended uses.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 3 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
3. TECHNICAL DATA
3.1 Product drawing
All dimensions in mm.
1
2
3
Direction of air flow "V"
Cable PVC AWG20, 2x crimped splices
M4 screw for fastening ground connector
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 4 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
With regard to cyclic speed loads, note that the rotating parts of
3.2 Nominal data
Motor
the device are designed for a maximum of one million load
cycles. If you have special questions, consult ebm-papst for
support.
M2S052-CA
Phase
Nominal voltage / VAC
Frequency / Hz
1~
115
50
1~
115
60
; Use the device in accordance with its degree of protection.
Information on surface quality
The surfaces of the products conform to the generally applicable industrial
standard. The surface quality may change during the production period.
This has no effect on strength, dimensional stability and dimensional
accuracy.
Method of obtaining
data
Valid for approval/
standard
fa
fa
CE
CE
Speed (rpm) / min-1
Power consumption / W 41
Current draw / A
Max. back pressure / Pa 80
2800
3250
38
0.47
120
-25
The color pigments in the paints used perceptibly react to UV light over
the course of time. This does not however in any way affect the
technical properties of the products. The product is to be protected against
UV radiation to prevent the formation of patches and fading. Changes in
color are not a reason for complaint and are not covered by the warranty.
0.56
Min. ambient
-25
temperature / °C
Max. ambient
3.4 Mounting data
50
70
temperature / °C
Strength class of
screws
8.8
ml = Max. load · me = Max. efficiency · fa = Free air
cs = Customer specification · ce = Customer equipment
For screw clearance, see Chapter 3.1 Product drawing
Subject to change
; Secure the screws against unintentional loosening (e.g. use self-
locking screws).
3.3 Technical description
Any further mounting data required can be taken from the product
drawing or Section Chapter 4.1 Mechanical connection.
Weight
Size
Motor size
1.05 kg
130 mm
52
Painted black
Sheet steel, painted black
Die-cast aluminum, painted black
7
V
3.5 Transport and storage conditions
Rotor surface
Blade material
Fan housing material
Number of blades
Airflow direction
Direction of rotation
Degree of protection
Insulation class
Moisture (F) /
Max. permitted
ambient temp. for
motor (transport/
storage)
Min. permitted
ambient temp. for
motor (transport/
storage)
+ 80 °C
- 40 °C
Counterclockwise, viewed toward rotor
IP20
"B"
H0+
Environmental (H)
protection class
Installation position
Condensation
drainage holes
Mode
Any
None
S1
Motor bearing
Touch current
according to IEC
60990 (measuring
circuit Fig. 4, TN
system)
Ball bearing
< 0.75 mA
Motor protection
Thermal overload protector (TOP)
internally connected
with cable
Variable
Protection class
I (if protective earth is connected by
customer to the housing's connection point)
EN 60335-1; CE
Conformity with
standards
Approval
CSA C22.2 No. 113; VDE; UL 507
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 5 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
NOTE
4. CONNECTION AND STARTUP
4.1 Mechanical connection
Water ingress into wires or cables
Water ingress at the customer end of the cable can damage the
device.
CAUTION
→ Make sure the end of the cable is connected in a dry
environment.
Cutting and crushing hazard when removing device
from packaging
Blades can bend
Only connect the device to circuits that can be switched off with
an all-pole disconnection switch.
→ Carefully remove the device from its packaging, by the fan
housing. Strictly avoid shocks.
4.2.1 Requirements
→ Wear safety shoes and cut-resistant safety gloves.
; Check whether the information on the nameplate matches the
NOTE
connection data.
Damage to the device from vibration
Bearing damage, shorter service life
; Before connecting the device, make sure the power supply matches
the device voltage.
→ The fan must not be subjected to force or excessive vibration
from sections of the installation.
; Only use cables designed for the current level indicated on the
nameplate.
→ If the fan is connected to air ducts, the connection should
be isolated from vibration, e.g. using compensators or similar
elements.
For determining the cross-section, note the sizing criteria according
to EN 61800-5-1. The protective earth must have a cross-section
equal to or greater than that of the phase conductor.
We recommend the use of 105 °C cables. Ensure that the minimum
cable cross-section is at least
→ Ensure stress-free attachment of the fan to the
substructure.
; Check the device for transport damage. Damaged devices are not to
AWG 26 / 0.13 mm².
be installed.
Protective earth contact resistance according to EN 60335
; Install the undamaged device in accordance with your application.
Compliance with the resistance specifications according to EN 60335 for
the protective earth connection circuit must be verified in the end
application. Depending on the installation situation, it may be necessary
to connect an additional protective earth conductor by way of the extra
protective earth terminal provided on the device.
CAUTION
Possible damage to the device
If the device slips during installation, serious damage can result.
→ Ensure that the device is securely positioned at its place of
installation until all fastening screws have been tightened.
4.2.2 Voltage control
The fan must not be strained on fastening.
NOTE
4.2 Electrical connection
Current overshoots may occur if speed control is implemented
by transformers or electronic voltage regulators (e.g. phase
control). Depending on the type of installation of the device,
noise and vibration may also occur in the case of phase
control. Vibration can lead to bearing damage and thus
premature failure.
DANGER
Voltage on the device
Electric shock
→ Always connect a protective earth first.
→ Check the protective earth.
Heating-up of the motor when using voltage control must be checked by
the customer following installation in the end device.
DANGER
Faulty insulation
Risk of fatal injury from electric shock
4.2.3 Variable frequency drive
Please use a variable frequency drive only after consultation with ebm-
papst.
→ Use only cables that meet the specified installation
regulations for voltage, current, insulation material, capacity,
etc.
For operation with variable frequency drives, install sinusoidal
filters that work on all poles (phase-phase and phase-ground)
between the drive and the motor.
→ Route cables so that they cannot be touched by any
rotating parts.
During operation with variable frequency drives, an all-pole
sine filter protects the motor against high-voltage transients that
can destroy the coil insulation system, and against harmful
bearing currents.
CAUTION
Voltage
The fan is a built-in component and has no disconnecting switch.
→ Only connect the fan to circuits that can be switched off with
an all-pole disconnection switch.
Heating-up of the motor when using a variable frequency drive must be
checked by the customer following installation in the end device.
→ When working on the fan, secure the system/machine in
which the fan is installed so as to prevent it from being
switched back on.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 6 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
4.3 Connecting the cables
The device has external leads.
; First connect the "PE" (protective earth).
Connect the cables according to your application. When doing so,
observe Chapter 4.4 Connection diagram.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 7 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
4.4 Connection diagram
L
= black
N
= black
TOP
= thermal overload protector
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 8 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
4.5 Checking connections
5. MAINTENANCE, MALFUNCTIONS, POSSIBLE
; Ensure isolation from supply (all phases).
; Make sure a restart is impossible
; Check the cables for proper fit.
CAUSES AND REMEDIES
Do not perform any repairs on your device. Send the device to ebm-
papst for repair or replacement.
WARNING
4.6 Switching on the device
Live terminals and connections even with device
The device may only be switched on if it has been installed properly and
in accordance with its intended use, including the required safety
mechanisms and professional electrical hookup. This also applies for
devices which have already been equipped with plugs and terminals or
similar connectors by the customer.
switched off
Electric shock
→ Wait five minutes after disconnecting the voltage at all poles
before opening the device.
CAUTION
WARNING
The motor restarts automatically when operating voltage
is applied, e.g. after a power failure.
Risk of injury
Hot motor housing
Risk of fire
→ Ensure that no combustible or flammable materials are
located close to the fan.
→ Keep out of the device's danger zone.
→ When working on the device, switch off the line voltage
and ensure that it cannot be switched back on.
; Before switching on, check the device for visible external damage
and make sure the protective devices are functional.
→ Wait until the device comes to a stop.
; Check the fan's air flow paths for foreign matter and remove any
If the device is out of use for some time, e.g. when in storage,
we recommend switching it on for at least two hours to allow
any condensation to evaporate and to move the bearings.
foreign matter found.
; Apply the nominal supply voltage.
NOTE
Malfunction/fault
Impeller not
Possible cause
Imbalance in rotating Clean the device;
Possible remedy
Damage to the device from vibration
Bearing damage, shorter service life
running smoothly
parts
replace it if imbalance
persists after cleaning.
Make sure no
→ Low-vibration operation of the fan must be ensured over the
entire speed control range.
→ Severe vibration can arise for instance from inexpert
handling, transportation damage and resultant imbalance or
be caused by component or structural resonance.
weight clips are
removed during
cleaning.
→ Speed ranges with excessively high vibration levels and
possibly resonant frequencies must be determined in the
course of fan commissioning.
Motor not turning
Mechanical blockage Switch off, isolate
from supply and
remove mechanical
blockage.
→ Either run through the resonant range as quickly as
possible with speed control or find another remedy.
Line voltage faulty
Faulty connection
Check line voltage,
restore power supply.
Isolate from supply,
correct connection;
see connection
→ Operation with excessively high vibration levels can
lead to premature failure.
4.7 Switching off the device
diagram.
; Disconnect the device from the power supply at the supply line's
Thermal overload
protector activated
Allow motor to cool
off, locate and rectify
cause of error,
main switch.
; When disconnecting, be sure to disconnect the ground connection last.
release restart lockout
if necessary
Impermissible point of Check point of
operation operation
Ambient temperature Reduce ambient
Motor
overtemperature
too high
Deficient cooling
temperature if possible
Improve cooling
In the event of further malfunctions, contact ebm-papst.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 9 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
5.1 Cleaning
Operating instructions
Welds for crack Visual inspection At least every
formation
Replace device
Replace device
6 months
At least every
6 months
To ensure a long service life, check the fans regularly for proper
operation and soiling. The frequency of checking is to be adapted
accordingly depending on the degree of soiling.
Abnormal
acoustic
bearing noise
DANGER
Risk of injury from rotating fan.
5.3 Disposal
For ebm-papst, environmental protection and resource preservation are
top priority corporate goals.
→ Only clean when not in motion. Interrupt the power supply,
secure against renewed switch-on. Secure against start-up,
prevent air flow.
ebm-papst operates an environmental management system which is
certified in accordance with ISO 14001 and rigorously implemented
around the world on the basis of German standards.
Right from the development stage, ecological design, technical safety
and health protection are fixed criteria.
; Dirt deposits on the motor housing can cause overheating of the motor.
; Soiling of the impeller can cause vibration that will shorten the service
life of the fan.
The following section contains recommendations for ecological disposal
of the product and its components.
; Severe vibration can destroy the fan.
; In such cases, switch off the fan immediately and clean it.
5.3.1 Country-specific legal requirements
; The preferred method of cleaning is dry cleaning, e.g. using
compressed air.
NOTE
Country-specific legal requirements
; Do not use aggressive cleaning agents!
Always observe the applicable country-specific legal
regulations with regard to the disposal of products or waste
occurring in the various phases of the life cycle. The
corresponding disposal standards are also to be heeded.
NOTE
Damage to the device during cleaning
Malfunction possible
→ Do not clean the device using a water jet or high-pressure
cleaner.
5.3.2 Disassembly
→ Do not use any acid, alkali or solvent-basedcleaning
agents.
Disassembly of the product must be performed or supervised by
qualified personnel with the appropriate technical knowledge.
The product is to be disassembled into suitable components for disposal
employing standard procedures for motors.
→ Do not use any pointed or sharp-edged objects for cleaning
; Completely remove any cleaning agents used.
WARNING
; If severe corrosion is visible on load-bearing or rotating parts, switch
Heavy parts of the product may drop off. Some of the
product components are heavy. These components
could drop off during disassembly.
off the device immediately and replace it.
; Repair of load-bearing or rotating parts is not permitted!
; Operate the fan for 2 hours at maximum speed so that any water that
This can result in fatal or serious injury and material damage.
has ingressed can evaporate.
→ Secure components before unfastening to stop them falling.
; If cleaning does not eliminate vibrations, the fan may need to be
rebalanced. To have it rebalanced, contact ebm-papst.
5.3.3 Component disposal
; The fan is equipped with maintenance-free ball bearings. The lifetime
lubrication of the ball bearings is designed for a service life of 40,000
hours.
The products are mostly made of steel, copper, aluminum and plastic.
Metallic materials are generally considered to be fully recyclable.
Separate the components for recycling into the following categories:
; If bearing replacement is necessary after that period, contact ebm-
Steel and iron
papst.
Aluminum
; Adapt the maintenance intervals to the actual level of dust exposure.
Non-ferrous metal, e.g. motor windings
Plastics, particularly with brominated flame retardants, in accordance
with marking
5.2 Safety inspection
What to check How to check How often
What action?
Repair or
replacement of
device
Insulating materials
Contact
Visual inspection At least every
6 months
Cables and wires
protection
cover for
Electronic scrap, e.g. circuit boards
intactness or
damage
Only ferrite magnets and not rare earth magnets are used in external
rotor motors from ebm-papst Mulfingen GmbH & Co. KG.
Device for
damage to
blades and
housing
Fastening the
cables
Insulation of
cables for
damage
Visual inspection At least every
6 months
Replacement of
device
; Ferrite magnets can be disposed of in the same way as normal iron
and steel.
Electrical insulating materials on the product, in cables and wires are
made of similar materials and are therefore to be treated in the same
manner.
Visual inspection At least every
6 months
Visual inspection At least every
6 months
Fasten
The materials concerned are as follows:
Replace cables
Miscellaneous insulators used in the terminal box
Power cables
Cables for internal wiring
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 10 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
W2S130-AA25-76
Operating instructions
Electrolytic capacitors
Dispose of electronic components employing the proper procedures for
electronic scrap.
→ Please contact ebm-papst for any other questions on disposal.
Item no. 10522-5-9970 · ENU · Change 202174 · Approved 2019-01-04 · Page 11 / 11
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
厂商 型号 描述 页数 下载

EBMPAPST

W2S130-AA03-01 TUBEAXIAL[ TUBEAXIAL ] 1 页

EBMPAPST

W2S130-AA03-44 TUBEAXIAL[ TUBEAXIAL ] 1 页

EBMPAPST

W2S130-AA03-49 TUBEAXIAL[ TUBEAXIAL ] 1 页

EBMPAPST

W2S130-AA03-51 TUBEAXIAL[ TUBEAXIAL ] 1 页

EBMPAPST

W2S130-AA25-01 TUBEAXIAL[ TUBEAXIAL ] 1 页

EBMPAPST

W2S130-AA25-01_11 AC轴流风机[ AC axial fans ] 1 页

EBMPAPST

W2S130-AA25-44 TUBEAXIAL[ TUBEAXIAL ] 1 页

EBMPAPST

W2S130-AA25-51 TUBEAXIAL[ TUBEAXIAL ] 1 页

ETC

W2S130-AB25-24 [ FAN AXIAL ] 10 页

EBMPAPST

W2S130-BM03-01 TUBEAXIAL[ TUBEAXIAL ] 1 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.210369s
